本文介绍了将Java Struts项目部署到Tomcat服务器的过程，包括将JavaStrutsDemo部署到tomcat webapps目录。详细阐述了登录流程，从index.jsp页面提交用户名和密码，经struts.xml配置，由LoginAction执行验证，根据结果跳转到相应页面，还给出了相关配置文件和代码。

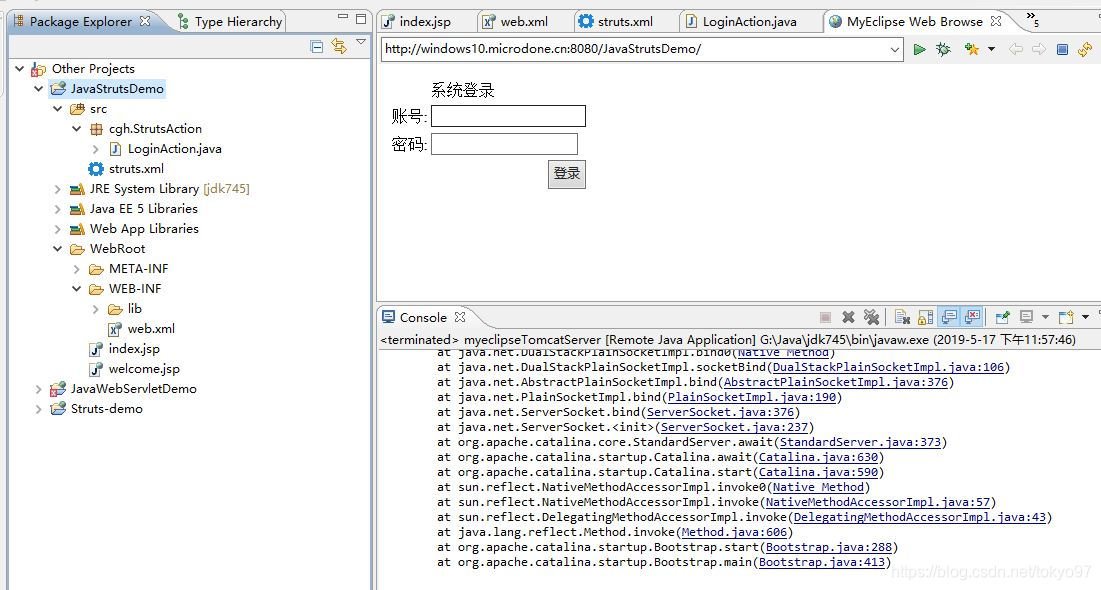

启动服务器：
tomcat的webapps下可以部署创建的web project：
创建好的JavaStrutsDemo部署到tomcat webapps目录下
1、http://127.0.0.1:8080/JavaStrutsDemo/index.jsp
2、index.jsp - post username password action login
3、struts.xml - struts action login
4、cgh.StrutsAction.LoginAction 执行 execute
5、根据执行返回值，success或者login 比较struts.xml中的配置跳转到index.jsp或者welcom.jsp
目录
project
JavaStrutsDemo
src
cgh.StrutsAction.LoginAction.java
struts.xml
JRE jdk7u45.jar
Java EE 5.jar
Web App Libraries.jar
WebRoot
META-INF
WEB_INF
lib
web.xml
index.jsp
welcom.jsp
wel.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5"
xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">
<display-name></display-name>
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>
<filter>
<!--指定Struts2的核心Filter-->
<filter-name>struts2</filter-name>
<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter
</filter-class>
</filter>
<filter-mapping>
<filter-name>struts2</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
struts.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
<package name="default" namespace="/" extends="struts-default">
<action name="login" class="cgh.StrutsAction.LoginAction" method="execute" >
<result name="success">welcome.jsp</result>
<result name="login">login.jsp</result>
</action>
</package>
</struts>
index.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%@ taglib prefix="s" uri="/struts-tags"%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<title>登录</title>
</head>
<body>
<s:form action="login" method="post">
<s:label value="系统登录"></s:label>
<s:textfield name="username" label="账号"></s:textfield>
<s:password name="password" label="密码"></s:password>
<s:submit value="登录"></s:submit>
</s:form>
</body>
</html>
welcom.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<title>欢迎</title>
</head>
<body>
欢迎${username}
</body>
</html>
LoginAction,java
package cgh.StrutsAction;
import com.opensymphony.xwork2.ActionSupport;
public class LoginAction extends ActionSupport{
private static final long serialVersionUID = 1L;
//该类继承了ActionSupport，就可以直接使用SUCCESS LOGIN等变量和 重写execute方法
private String username;
private String password;
public String getUsername() {
return username;
}
public void setUsername(String username) {
this.username = username;
}
public String getPassword() {
return password;
}
public void setPassword(String password) {
this.password = password;
}
@Override
public String execute() throws Exception {
if("cgh".equals(username) && "123".equals(password))
return SUCCESS;
return LOGIN;
}
}
