本文介绍了如何使用C++实现DNS域名解析，解决gethostbyname函数导致的长时间阻塞问题。根据RFC1035，通过UDP/TCP协议进行DNS查询，详细解析了DNS查询包的结构，并给出了实现代码的头文件和源文件。

背景
在调用gethostbyname函数时会遇到阻塞10秒钟问题，为了控制阻塞时间，在调用之前查询DNS信息，类似nslookup命令。只当查询DNS正确返回时，才调用gethostbyname函数，也即自己控制阻塞时间。
根据RFC1035文档，DNS查询采用53端口，可使用UDP/TCP协议。

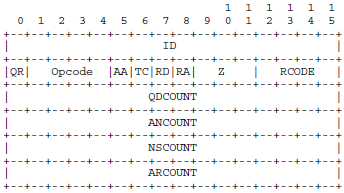

DNS查询/回复包格式为：

ID(16bits)：标识符，一般填入本进程的标识符
QR(1bits)：标志位，查询包为0，回复包为1
Opcode(4bits)：查询的种类，标准查询为0
QDCOUNT(16bits)：DNS查询/回复包数据部分Question字段的个数
ANCOUNT(16bits)：DNS查询/回复包数据部分Answer字段的个数

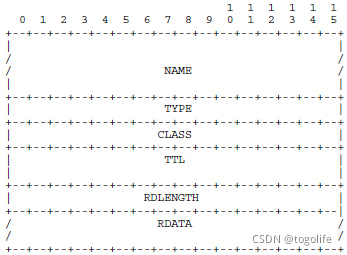

DNS查询/回复包数据部分格式为：

Name(不定长)：域名
TYPE(16bits)：查询类型/回复包RDATA类型，比如TYPE=1表示主机IP地址、TYPE=5表示CNAME，详见RFC1035 3.2.2
CLASS(16bits)：类，一般情况下CLASS=1表示Internet，详见RFC1035 3.2.4
TTL(32bits，仅回复包)：生存时间
RDLENGTH(16bits，仅回复包)：RDATA部分的字节数
RDATA(不定长，仅回复包)：资源数据，具体格式取决于TYPE和CLASS，比如TYPE=1、CLASS=1时，RDATA为四个字节的IP地址

对域名的解析规则为：标签内容长度(1个字节) + 标签内容，以标签内容长度0作为Name的结束符
例如： www.csdn.com --> 3www4csdn3com （需16进制表示），最后加0结束
实现如下
重点关注组装报文的逻辑

dns_lookup.h 头文件

#ifndef NET_DNS_TOOL_H
#define NET_DNS_TOOL_H

#include <string>
#include <netinet/in.h>

class NetDnsTool
{
public:
    NetDnsTool();
    ~NetDnsTool();
    bool Init();
    std::string GetDnsServer(void);
    bool DnsLookup(const std::string &dnsServer, const std::string &domain, long timeOut = 5);

private:
    bool QueryInternal(const std::string &dnsServer, const std::string &domain, long timeOut = 5);
    bool SendDnsRequest(const struct sockaddr_in &addr, const std::string &domain);
    bool RecvDnsResponse(const struct sockaddr_in &addr, long timeOut);
    std::string EncodeDomain(const std::string &domain);

private:
    int mSocket;
    unsigned short mProcessId;
};
#endif

dns_lookup.cpp

#include "dns_lookup.h"
#include <fstream>
#include <memory>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <fcntl.h>
#include <unistd.h>
#include <sys/types.h>
#include <sys/select.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <time.h>

constexpr char DNS_CONF_FILE[] = "/etc/resolv.conf";
constexpr int RECV_BUF_LENGTH = 1024;
constexpr int DNS_PORT = 53;
constexpr int MAX_DOMAIN_LENGTH = 255;
constexpr int DNS_TYPE_SIZE = 2;
constexpr int DNS_CLASS_SIZE = 2;

struct DnsHeader
{
    unsigned short transId;
    unsigned short flags;
    unsigned short questionCount;
    unsigned short answerCount;
    unsigned short authorityCount;
    unsigned short additionalCount;
};

constexpr int DNS_PACKET_MAX_SIZE = sizeof(DnsHeader) + MAX_DOMAIN_LENGTH + DNS_TYPE_SIZE + DNS_CLASS_SIZE;

NetDnsTool::NetDnsTool():mSocket(-1),mProcessId(0)
{}

NetDnsTool::~NetDnsTool()
{
    if (mSocket != -1) {
        close(mSocket);
        mSocket = -1;
    }
}

bool NetDnsTool::Init()
{
    mSocket = socket(AF_INET, SOCK_DGRAM, 0);
    if (mSocket < 0) {
        return false;
    }
    int flags = fcntl(mSocket, F_GETFL, 0);
    if (flags < 0) {
        return false;
    }
    fcntl(mSocket, F_SETFL, flags | O_NONBLOCK);
    mProcessId = static_cast<unsigned short>(getpid());
    return true;
}

std::string NetDnsTool::GetDnsServer(void)
{
    std::string ret;
    std::ifstream fp;
    fp.open(DNS_CONF_FILE);
    if (!fp.is_open()) {
        return ret;
    }
    std::string line;
    std::string emit = "nameserver";
    while (std::getline(fp, line)) {
        if (line.empty() || line[0] == '#') {
            continue;
        }
        if (line.substr(0, emit.length()) == emit) {
            ret = line.substr(emit.length() + 1);
            break;
        }
    }
    fp.close();
    return ret;
}

bool NetDnsTool::DnsLookup(const std::string &dnsServer, const std::string &domain, long timeOut)
{
    return QueryInternal(dnsServer, domain, timeOut);
}

bool NetDnsTool::QueryInternal(const std::string &dnsServer, const std::string &domain, long timeOut)
{
    if (dnsServer.empty() || domain.empty()) {
        return false;
    }
    struct sockaddr_in addr;
    memset(&addr, 0, sizeof(addr));
    addr.sin_family = AF_INET;
    addr.sin_addr.s_addr = inet_addr(dnsServer.c_str());
    if (addr.sin_addr.s_addr == INADDR_NONE) {
        printf("Input dns server [%s] is not correct!", dnsServer.c_str());
        return false;
    }
    addr.sin_port = htons(DNS_PORT);
    if (!SendDnsRequest(addr, domain)) {
        return false;
    }
    return RecvDnsResponse(addr, timeOut);
}

bool NetDnsTool::SendDnsRequest(const struct sockaddr_in &addr, const std::string &domain)
{
    // package dns request info
    std::unique_ptr<char []> uniPtr = std::make_unique<char []>(DNS_PACKET_MAX_SIZE);
    char *data = uniPtr.get();
    if (data == nullptr) {
        return false;
    }
    DnsHeader *header = reinterpret_cast<DnsHeader *>(data);
    header->transId = mProcessId;
    header->flags = htons(0x0100);
    header->questionCount = htons(1);
    header->answerCount = 0;
    header->authorityCount = 0;
    header->additionalCount = 0;
    std::string enDomain = EncodeDomain(domain);
    size_t pos = sizeof(DnsHeader);
    size_t max = DNS_PACKET_MAX_SIZE;
    memcpy(data + pos, enDomain.c_str(), enDomain.length());
    pos += enDomain.length() + 1;
    unsigned short queryType = htons(0x1);
    unsigned short queryClass = htons(0x1);
    memcpy(data + pos, (char*)&queryType, DNS_TYPE_SIZE);
    pos += DNS_TYPE_SIZE;
    memcpy(data + pos, (char *)&queryClass, DNS_CLASS_SIZE);
    pos += DNS_CLASS_SIZE;
    if (sendto(mSocket, data, pos, 0, (struct sockaddr *)&addr, sizeof(addr)) < 0) {
        printf("Failed to send dns request info!");
        return false;
    }
    return true;
}

bool NetDnsTool::RecvDnsResponse(const struct sockaddr_in &addr, long timeOut)
{
    time_t start = time(nullptr);
    while (true) {
        time_t curr = time(nullptr);
        fd_set rdSet;
        FD_ZERO(&rdSet);
        FD_SET(mSocket, &rdSet);
        struct timeval tv;
        tv.tv_sec = timeOut + start - curr;
        if (tv.tv_sec <= 0) {
            return false;
        }
        tv.tv_usec = 0;
        int ret = select(mSocket + 1, &rdSet, nullptr, nullptr, &tv);
        if (ret <= 0) {
            if (ret < 0 && (errno == EWOULDBLOCK || errno == EINTR || errno == EAGAIN)) {
                continue;
            } else {
                printf("select return timeout\n");
                return false;
            }
        }
        char recvBuf[RECV_BUF_LENGTH] = {0};
        ret = recvfrom(mSocket, recvBuf, RECV_BUF_LENGTH, 0, nullptr, nullptr);
        if (ret < 0) {
            printf("recvfrom return failed\n");
            continue;
        }
        DnsHeader *pHeader = (DnsHeader *)recvBuf;
        if (pHeader->transId == mProcessId) {
            return true;
        } else {
            printf("return dns header transid %d, flag %d\n", pHeader->transId, ntohs(pHeader->flags));
        }
    }
    return false;
}

/**
 * 域名编码
 * 例如: www.csdn.com --> 3www4csdn3com
 */
std::string NetDnsTool::EncodeDomain(const std::string &domain)
{
    std::string encode;
    std::size_t beg = 0;
    std::size_t end = 0;
    while ((end = domain.find('.', beg)) != std::string::npos) {
        std::size_t pos = end - beg;
        encode.push_back(pos);
        encode += domain.substr(beg, pos);
        beg = end + 1;
    }
    if (beg < domain.length()) {
        std::size_t pos = domain.length() - beg;
        encode.push_back(pos);
        encode += domain.substr(beg);
    }
    return encode;
}

dns_test.cpp

#include <stdio.h>
#include <unistd.h>
#include <netdb.h>
#include <sys/socket.h>
#include <arpa/inet.h>
#include "dns_lookup.h"

int main(void)
{
    NetDnsTool dns;
    if (!dns.Init()) {
        printf("init dns failed!\n");
        return -1;
    }
    std::string dnsServer = dns.GetDnsServer();
    if (dnsServer.empty()) {
        printf("dns server not set!\n");
        return -1;
    } else {
        printf("dns server is [%s]\n", dnsServer.c_str());
    }
    std::string domain = "www.csdn.com";
    bool ret = dns.DnsLookup(dnsServer, domain);
    if (ret) {
        struct hostent *he = gethostbyname(domain.c_str());
        if (he == nullptr) {
            printf("gethostbyname domain failed.\n");
            return -1;
        } else {
            struct in_addr **addrList = reinterpret_cast<struct in_addr **>(he->h_addr_list);
            for (int32_t i = 0; addrList[i] != nullptr; i++) {
                char ipStr[255] = {0};
                if (inet_ntop(AF_INET, addrList[i], ipStr, sizeof(ipStr)) == nullptr) {
                    continue;
                }
                printf("ip [%s]\n", ipStr);
            }
        }
    } else {
        printf("query dns return failed!\n");
    }
    return 0;
}
