新建一个空项目，再建2个module:provider,consumer

用到以下依赖及插件，pom文件如下：

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>5.2.4.RELEASE</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-beans</artifactId>
    <version>5.2.4.RELEASE</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>5.2.4.RELEASE</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-jdbc</artifactId>
    <version>5.2.4.RELEASE</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-aspects</artifactId>
    <version>5.2.4.RELEASE</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-jms</artifactId>
    <version>5.2.4.RELEASE</version>
  </dependency>
  <dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context-support</artifactId>
    <version>5.2.4.RELEASE</version>
  </dependency>
  <dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>fastjson</artifactId>
    <version>1.2.47</version>
  </dependency>

  <!-- dubbo相关 -->
  <dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>dubbo</artifactId>
    <version>2.6.6</version>
    <exclusions>
      <exclusion>
        <artifactId>spring-context</artifactId>
        <groupId>org.springframework</groupId>
      </exclusion>
      <exclusion>
        <artifactId>netty</artifactId>
        <groupId>org.jboss.netty</groupId>
      </exclusion>
    </exclusions>
  </dependency>
  <dependency>
    <groupId>org.apache.zookeeper</groupId>
    <artifactId>zookeeper</artifactId>
    <version>3.4.14</version>
  </dependency>
    <!-- 修改后的 curator 依赖 -->
    <!-- https://mvnrepository.com/artifact/org.apache.curator/curator-framework -->
    <dependency>
      <groupId>org.apache.curator</groupId>
      <artifactId>curator-framework</artifactId>
      <version>4.2.0</version>
    </dependency>
    <dependency>
      <groupId>org.apache.curator</groupId>
      <artifactId>curator-recipes</artifactId>
      <version>4.2.0</version>
    </dependency>

    <!-- https://mvnrepository.com/artifact/io.netty/netty-all -->
    <dependency>
      <groupId>io.netty</groupId>
      <artifactId>netty-all</artifactId>
      <version>4.1.42.Final</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.javassist/javassist -->
    <dependency>
      <groupId>org.javassist</groupId>
      <artifactId>javassist</artifactId>
      <version>3.20.0-GA</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/com.101tec/zkclient -->
    <dependency>
      <groupId>com.101tec</groupId>
      <artifactId>zkclient</artifactId>
      <version>0.10</version>
    </dependency>
  <dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>4.11</version>
    <scope>test</scope>
  </dependency>
</dependencies>

  <build>
    <finalName>pro</finalName>
    <plugins>
      <plugin>
        <groupId>org.apache.tomcat.maven</groupId>
        <artifactId>tomcat7-maven-plugin</artifactId>
        <configuration>
          <port>8082</port>
          <path>/</path>
        </configuration>
      </plugin>
    </plugins>

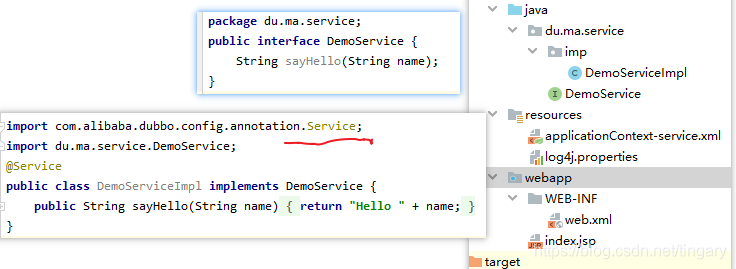

在provider中提供服务，接口及实现类，目录结构如下所示：

applicationContext-service.xml如下所示：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://dubbo.apache.org/schema/dubbo        http://dubbo.apache.org/schema/dubbo/dubbo.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
    <!-- 提供方应用信息，用于计算依赖关系 -->
    <dubbo:application name="provider">
        <dubbo:parameter key="qos.enable" value="true"/>
        <dubbo:parameter key="qos.accept.foreign.ip" value="false"/>
        <dubbo:parameter key="qos.port" value="33333"/>
    </dubbo:application>

    <!-- 使用multicast广播注册中心暴露服务地址 -->
    <dubbo:registry address="zookeeper://192.168.31.27:2181" />

    <!-- 用dubbo协议在20880端口暴露服务 -->
    <dubbo:protocol name="dubbo" port="20880"/>
<!--    包扫描@service-->
    <dubbo:annotation package="du.ma.service.imp"/>
</beans>

web.xml配置监听器，加载spring容器

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
  <display-name>Archetype Created Web Application</display-name>
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:applicationContext-service.xml</param-value>
  </context-param>
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
</web-app>

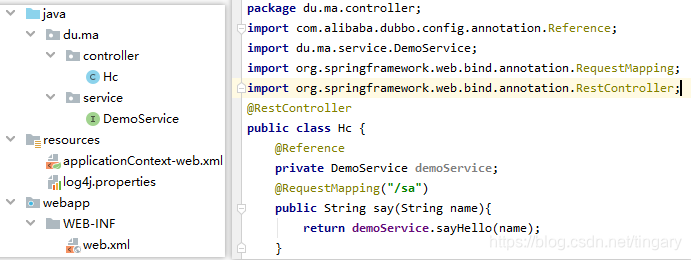

consumer中的controller及文件结构如下所示

web.xml:

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >
<web-app>
  <!-- 前端控制器 -->
  <display-name>Archetype Created Web Application</display-name>
  <servlet>
    <servlet-name>consumer</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <!-- contextConfigLocation不是必须的， 如果不配置contextConfigLocation， springmvc的配置文件默认在：WEB-INF/servlet的name+"-servlet.xml" -->
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:applicationContext-web.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>consumer</servlet-name>
    <!-- 拦截请求 -->
    <url-pattern>/</url-pattern>
  </servlet-mapping>
</web-app>

applicationContext-web.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
       http://dubbo.apache.org/schema/dubbo        http://dubbo.apache.org/schema/dubbo/dubbo.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
<!--   注解扫描-->
    <context:component-scan base-package="du.ma"></context:component-scan>
    <mvc:annotation-driven>
        <mvc:message-converters register-defaults="false">
            <bean class="org.springframework.http.converter.StringHttpMessageConverter">
                <constructor-arg value="UTF-8"/>
            </bean>
        </mvc:message-converters>
    </mvc:annotation-driven>
    <!-- 提供方应用信息，用于计算依赖关系 -->
    <dubbo:application name="consumer">
        <dubbo:parameter key="qos.enable" value="true"/>
        <dubbo:parameter key="qos.accept.foreign.ip" value="false"/>
        <dubbo:parameter key="qos.port" value="44444"/>
    </dubbo:application>
    <dubbo:registry address="zookeeper://192.168.31.27:2181" />
<!--    包扫描，注入service-->
    <dubbo:annotation package="du.ma.controller"/>
</beans>

注意一下：context:component-scan的设置，否则会出现错误，，，
