本文详细介绍了如何在Nacos中实现数据源适配的插件化，包括针对达梦、瀚高和人大金仓等不同数据库的适配实现，并提供了DDL脚本。同时，文章还探讨了源码层面的数据持久化入口、数据源加载以及SPI加载实现类的过程。

一.插件实现

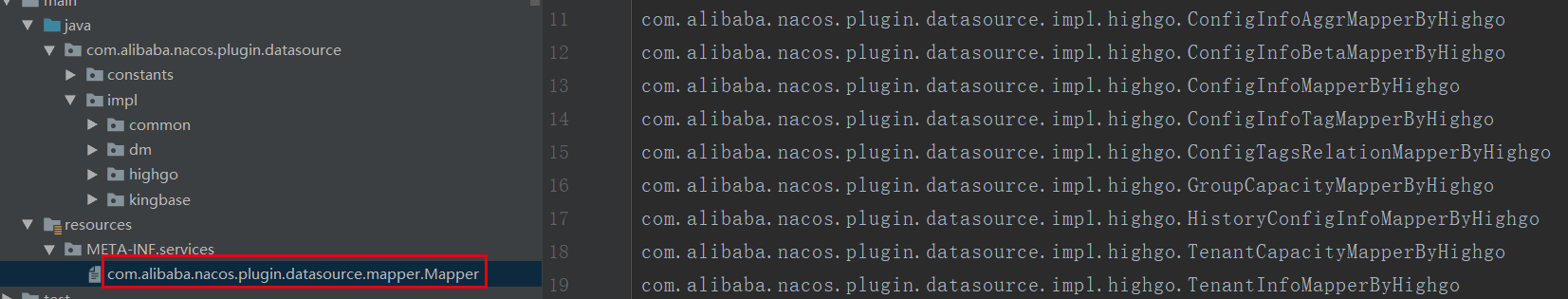

　　1.插件目录结构

　　2.pom依赖

        <dependency>
            <groupId>com.alibaba.nacos</groupId>
            <artifactId>nacos-datasource-plugin</artifactId>
            <version>2.2.4</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>3.1.3.RELEASE</version>
        </dependency>
        <!-- 达梦 -->
        <dependency>
            <groupId>com.dameng</groupId>
            <artifactId>Dm8JdbcDriver18</artifactId>
            <version>8.1.1.49</version>
        </dependency>
        <!-- 瀚高 -->
        <dependency>
            <groupId>com.highgo</groupId>
            <artifactId>HgdbJdbc</artifactId>
            <version>6.2.2</version>
        </dependency>
        <!--人大金仓 -->
        <dependency>
            <groupId>com.kingbase</groupId>
            <artifactId>kingbase8</artifactId>
            <version>8.2.0</version>
        </dependency>

　　3.代码实现

　　3.1.DataSourceConstant

public class DataSourceConstant {
    public static final String MYSQL = "mysql";

    public static final String DERBY = "derby";

    public static final String DM="dm";

    public static final String HIGHGO="highgo";

    public static final String KINGBASE="kingbase";

}

　　3.2.公共方法

　　 3.2.1.AbstractConfigInfoAggrMapperCommon

package com.alibaba.nacos.plugin.datasource.impl.common;

import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoAggrMapper;


public abstract class AbstractConfigInfoAggrMapperCommon extends AbstractMapper implements ConfigInfoAggrMapper {

    @Override
    public String batchRemoveAggr(int datumSize) {
        final StringBuilder placeholderString = new StringBuilder();
        for (int i = 0; i < datumSize; i++) {
            if (i != 0) {
                placeholderString.append(", ");
            }
            placeholderString.append('?');
        }
        return "DELETE FROM config_info_aggr WHERE data_id = ? AND group_id = ? AND tenant_id = ? AND datum_id IN ("
                + placeholderString + ")";
    }

    @Override
    public String aggrConfigInfoCount(int size, boolean isIn) {
        StringBuilder sql = new StringBuilder(
                "SELECT count(*) FROM config_info_aggr WHERE data_id = ? AND group_id = ? AND tenant_id = ? AND datum_id");
        if (isIn) {
            sql.append(" IN (");
        } else {
            sql.append(" NOT IN (");
        }
        for (int i = 0; i < size; i++) {
            if (i > 0) {
                sql.append(", ");
            }
            sql.append('?');
        }
        sql.append(')');

        return sql.toString();
    }

    public String findConfigInfoAggrIsOrdered() {
        return "SELECT data_id,group_id,tenant_id,datum_id,app_name,content FROM "
                + "config_info_aggr WHERE data_id = ? AND group_id = ? AND tenant_id = ? ORDER BY datum_id";
    }

    public String findConfigInfoAggrByPageFetchRows(int startRow, int pageSize) {
        return "SELECT data_id,group_id,tenant_id,datum_id,app_name,content FROM config_info_aggr WHERE data_id= ? AND "
                + "group_id= ? AND tenant_id= ? ORDER BY datum_id LIMIT " + pageSize + " OFFSET " + startRow;
    }

    public String findAllAggrGroupByDistinct() {
        return "SELECT DISTINCT data_id, group_id, tenant_id FROM config_info_aggr";
    }

    public String getTableName() {
        return TableConstant.CONFIG_INFO_AGGR;
    }

}

　　 3.2.2.AbstractConfigInfoBetaMapperCommon

package com.alibaba.nacos.plugin.datasource.impl.common;

import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoBetaMapper;


public abstract class AbstractConfigInfoBetaMapperCommon extends AbstractMapper implements ConfigInfoBetaMapper {

    public String updateConfigInfo4BetaCas() {
        return "UPDATE config_info_beta SET content = ?,md5 = ?,beta_ips = ?,src_ip = ?,src_user = ?,gmt_modified = ?,app_name = ? "
                + "WHERE data_id = ? AND group_id = ? AND tenant_id = ? AND (md5 = ? or md5 is null or md5 = '')";
    }

    public String findAllConfigInfoBetaForDumpAllFetchRows(int startRow, int pageSize) {
        return " SELECT t.id,data_id,group_id,tenant_id,app_name,content,md5,gmt_modified,beta_ips,encrypted_data_key "
                + " FROM ( SELECT id FROM config_info_beta  ORDER BY id LIMIT " + pageSize + " OFFSET " + startRow
                + " )" + "  g, config_info_beta t WHERE g.id = t.id ";
    }

    public String getTableName() {
        return TableConstant.CONFIG_INFO_BETA;
    }
}

　　 3.2.3.AbstractConfigInfoTagMapperCommon

package com.alibaba.nacos.plugin.datasource.impl.common;

import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigInfoTagMapper;

public abstract class AbstractConfigInfoTagMapperCommon extends AbstractMapper implements ConfigInfoTagMapper {


    public String updateConfigInfo4TagCas() {
        return "UPDATE config_info_tag SET content = ?, md5 = ?, src_ip = ?,src_user = ?,gmt_modified = ?,app_name = ? "
                + "WHERE data_id = ? AND group_id = ? AND tenant_id = ? AND tag_id = ? AND (md5 = ? OR md5 IS NULL OR md5 = '')";
    }


    public String findAllConfigInfoTagForDumpAllFetchRows(int startRow, int pageSize) {
        return " SELECT t.id,data_id,group_id,tenant_id,tag_id,app_name,content,md5,gmt_modified "
                + " FROM (  SELECT id FROM config_info_tag  ORDER BY id LIMIT " + pageSize + " OFFSET " + startRow
                + " ) " + "g, config_info_tag t  WHERE g.id = t.id  ";
    }


    public String getTableName() {
        return TableConstant.CONFIG_INFO_TAG;
    }

}

　　 3.2.4.AbstractConfigTagsRelationMapperCommon

package com.alibaba.nacos.plugin.datasource.impl.common;

import com.alibaba.nacos.common.utils.StringUtils;
import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.ConfigTagsRelationMapper;

import java.util.Map;

public abstract class AbstractConfigTagsRelationMapperCommon extends AbstractMapper implements ConfigTagsRelationMapper {


    public String findConfigInfo4PageCountRows(final Map<String, String> params, final int tagSize) {
        final String appName = params.get("appName");
        final String dataId = params.get("dataId");
        final String group = params.get("group");
        StringBuilder where = new StringBuilder(" WHERE ");
        final String sqlCount = "SELECT count(*) FROM config_info  a LEFT JOIN config_tags_relation b ON a.id=b.id";
        where.append(" a.tenant_id=? ");
        if (StringUtils.isNotBlank(dataId)) {
            where.append(" AND a.data_id=? ");
        }
        if (StringUtils.isNotBlank(group)) {
            where.append(" AND a.group_id=? ");
        }
        if (StringUtils.isNotBlank(appName)) {
            where.append(" AND a.app_name=? ");
        }
        where.append(" AND b.tag_name IN (");
        for (int i = 0; i < tagSize; i++) {
            if (i != 0) {
                where.append(", ");
            }
            where.append('?');
        }
        where.append(") ");
        return sqlCount + where;
    }


    public String findConfigInfo4PageFetchRows(Map<String, String> params, int tagSize, int startRow, int pageSize) {
        final String appName = params.get("appName");
        final String dataId = params.get("dataId");
        final String group = params.get("group");
        StringBuilder where = new StringBuilder(" WHERE ");
        final String sql = "SELECT a.id,a.data_id,a.group_id,a.tenant_id,a.app_name,a.content FROM config_info  a LEFT JOIN "
                + "config_tags_relation b ON a.id=b.id";

        where.append(" a.tenant_id=? ");

        if (StringUtils.isNotBlank(dataId)) {
            where.append(" AND a.data_id=? ");
        }
        if (StringUtils.isNotBlank(group)) {
            where.append(" AND a.group_id=? ");
        }
        if (StringUtils.isNotBlank(appName)) {
            where.append(" AND a.app_name=? ");
        }

        where.append(" AND b.tag_name IN (");
        for (int i = 0; i < tagSize; i++) {
            if (i != 0) {
                where.append(", ");
            }
            where.append('?');
        }
        where.append(") ");
        return sql + where + " LIMIT " + pageSize + " OFFSET " + startRow;
    }


    public String findConfigInfoLike4PageCountRows(final Map<String, String> params, int tagSize) {
        final String appName = params.get("appName");
        final String content = params.get("content");
        final String dataId = params.get("dataId");
        final String group = params.get("group");
        StringBuilder where = new StringBuilder(" WHERE ");
        final String sqlCountRows = "SELECT count(*) FROM config_info  a LEFT JOIN config_tags_relation b ON a.id=b.id ";

        where.append(" a.tenant_id LIKE ? ");
        if (!StringUtils.isBlank(dataId)) {
            where.append(" AND a.data_id LIKE ? ");
        }
        if (!StringUtils.isBlank(group)) {
            where.append(" AND a.group_id LIKE ? ");
        }
        if (!StringUtils.isBlank(appName)) {
            where.append(" AND a.app_name = ? ");
        }
        if (!StringUtils.isBlank(content)) {
            where.append(" AND a.content LIKE ? ");
        }

        where.append(" AND b.tag_name IN (");
        for (int i = 0; i < tagSize; i++) {
            if (i != 0) {
                where.append(", ");
            }
            where.append('?');
        }
        where.append(") ");
        return sqlCountRows + where;
    }


    public String findConfigInfoLike4PageFetchRows(final Map<String, String> params, int tagSize, int startRow,
                                                   int pageSize) {
        final String appName = params.get("appName");
        final String content = params.get("content");
        final String dataId = params.get("dataId");
        final String group = params.get("group");
        StringBuilder where = new StringBuilder(" WHERE ");
        final String sqlFetchRows = "SELECT a.id,a.data_id,a.group_id,a.tenant_id,a.app_name,a.content "
                + "FROM config_info a LEFT JOIN config_tags_relation b ON a.id=b.id ";

        where.append(" a.tenant_id LIKE ? ");
        if (!StringUtils.isBlank(dataId)) {
            where.append(" AND a.data_id LIKE ? ");
        }
        if (!StringUtils.isBlank(group)) {
            where.append(" AND a.group_id LIKE ? ");
        }
        if (!StringUtils.isBlank(appName)) {
            where.append(" AND a.app_name = ? ");
        }
        if (!StringUtils.isBlank(content)) {
            where.append(" AND a.content LIKE ? ");
        }

        where.append(" AND b.tag_name IN (");
        for (int i = 0; i < tagSize; i++) {
            if (i != 0) {
                where.append(", ");
            }
            where.append('?');
        }
        where.append(") ");
        return sqlFetchRows + where + " LIMIT " + startRow + "," + pageSize;
    }


    public String getTableName() {
        return TableConstant.CONFIG_TAGS_RELATION;
    }

}

　　 3.2.5.AbstractGroupCapacityMapperCommon

package com.alibaba.nacos.plugin.datasource.impl.common;

import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.GroupCapacityMapper;


public abstract class AbstractGroupCapacityMapperCommon extends AbstractMapper implements GroupCapacityMapper {


    public String insertIntoSelect() {
        return "INSERT INTO group_capacity (group_id, quota, `usage`, `max_size`, max_aggr_count, max_aggr_size,gmt_create,"
                + " gmt_modified) SELECT ?, ?, count(*), ?, ?, ?, ?, ? FROM config_info";
    }


    public String insertIntoSelectByWhere() {
        return "INSERT INTO group_capacity (group_id, quota,`usage`, `max_size`, max_aggr_count, max_aggr_size, gmt_create,"
                + " gmt_modified) SELECT ?, ?, count(*), ?, ?, ?, ?, ? FROM config_info WHERE group_id=? AND tenant_id = ''";
    }


    public String incrementUsageByWhereQuotaEqualZero() {
        return "UPDATE group_capacity SET `usage` = `usage` + 1, gmt_modified = ? WHERE group_id = ? AND `usage` < ? AND quota = 0";
    }


    public String incrementUsageByWhereQuotaNotEqualZero() {
        return "UPDATE group_capacity SET `usage` = `usage` + 1, gmt_modified = ? WHERE group_id = ? AND `usage` < quota AND quota != 0";
    }


    public String incrementUsageByWhere() {
        return "UPDATE group_capacity SET `usage` = `usage` + 1, gmt_modified = ? WHERE group_id = ?";
    }


    public String decrementUsageByWhere() {
        return "UPDATE group_capacity SET `usage` = `usage` - 1, gmt_modified = ? WHERE group_id = ? AND `usage` > 0";
    }


    public String updateUsage() {
        return "UPDATE group_capacity SET `usage` = (SELECT count(*) FROM config_info), gmt_modified = ? WHERE group_id = ?";
    }


    public String updateUsageByWhere() {
        return "UPDATE group_capacity SET `usage` = (SELECT count(*) FROM config_info WHERE group_id=? AND tenant_id = ''),"
                + " gmt_modified = ? WHERE group_id= ?";
    }


    public String selectGroupInfoBySize() {
        return "SELECT id, group_id FROM group_capacity WHERE id > ? LIMIT ?";
    }


    public String getTableName() {
        return TableConstant.GROUP_CAPACITY;
    }


}

　　 3.2.6.AbstractHistoryConfigInfoMapperCommon

package com.alibaba.nacos.plugin.datasource.impl.common;

import com.alibaba.nacos.plugin.datasource.constants.TableConstant;
import com.alibaba.nacos.plugin.datasource.mapper.AbstractMapper;
import com.alibaba.nacos.plugin.datasource.mapper.HistoryConfigInfoMapper;


public abstract class AbstractHistoryConfigInfoMapperCommon extends AbstractMapper implements HistoryConfigInfoMapper {


    public String removeConfigHistory() {
        return "DELETE FROM his_config_info WHERE gmt_modified < ? LIMIT ?";
    }


    public String findConfigHistoryCountByTime() {
        return "SELECT count(*) FROM his_config_info WHERE gmt_modified < ?";
    }


    public String findDeletedConfig() {
        return "SELECT DISTINCT data_id, group_id, tenant_id FROM his_config_info WHERE op_type = 'D' AND gmt_modified >= ? AND gmt_modified <= ?";
    }


    public String findConfigHistoryFetchRows() {
        return "SELECT nid,data_id,group_id,tenant_id,app_name,src_ip,src_user,op_type,gmt_create,gmt_modified FROM his_config_info "
                + "WHERE data_id = ? AND group_id = ? AND tenant_id = ? ORDER BY nid DESC";
    }


    public String detailPreviousConfigHistory() {
        return "SELECT nid,data_id,group_id,tenant_id,app_name,content,md5,src_user,src_ip,op_type,gmt_create,gmt_modified "
                + "FROM his_config_info WHERE nid = (SELECT max(nid) FROM his_config_info WHERE id = ?) ";
    }

    public String pageFindConfigHistoryFetchRows(int pageNo, int pageSize) {
        final int offset = (pageNo - 1) * pageSize;
        final int limit = pageSize;
        return  "SELECT nid,data_id,group_id,tenant_id,app_name,src_ip,src_user,op_type,gmt_create,gmt_modified FROM his_config_info "
                + "WHERE data_id = ? A
