基于three.js 和ArcGIS JS API 防空盾/电屏蔽
简介
ArcGIS API for JavaScript 是ESRI 推出面向 WEB 端 GIS API，可构建引人注目的web 地图应用程序，通过交互式用户体验和令人惊叹的2D和3D可视化来释放地理时空大数据的潜力。同时提供了一个轻量级接口来访问SceneView的WebGL上下文，因此可以创建与内置层相同的方式与场景交互的自定义可视化。开发人员可以直接编写WebGL代码，也可以与第三方WebGL库集成
基于ArcGIS JS API 和 three.js 防空盾/电屏蔽扩展类electricShieldRenderer
define([
'dojo/_base/declare',
"esri/geometry/geometryEngine",
"esri/geometry/Extent",
"esri/views/3d/externalRenderers",
"esri/geometry/Polygon",
"esri/geometry/Point",
"esri/geometry/support/webMercatorUtils"
], function (
declare,
geometryEngine,
Extent,
externalRenderers,
Polygon,
Point,
webMercatorUtils
) {
var THREE = window.THREE;
var electricShieldRenderer= declare([], {
constructor: function (view, points, options) {
this.view = view;
this.electricShieldobject3d = [];
const OPTIONS = {
speed: 0.02,
radius: 1,
altitude: 0,
}
this.options = this.extend({}, OPTIONS, options, {
points: points
});
},
setup: function (context) {
this.renderer = new THREE.WebGLRenderer({
context: context.gl, // 可用于将渲染器附加到已有的渲染环境(RenderingContext)中
premultipliedAlpha: false, // renderer是否假设颜色有 premultiplied alpha. 默认为true
});
this.renderer.setPixelRatio(window.devicePixelRatio); // 设置设备像素比。通常用于避免HiDPI设备上绘图模糊
this.renderer.setViewport(0, 0, this.view.width, this.view.height); // 视口大小设置
// Make sure it does not clear anything before rendering
this.renderer.autoClear = false;
this.renderer.autoClearDepth = false;
this.renderer.autoClearColor = false;
this.renderer.autoClearStencil = false;
// The ArcGIS JS API renders to custom offscreen buffers, and not to the default framebuffers.
// We have to inject this bit of code into the three.js runtime in order for it to bind those
// buffers instead of the default ones.
var originalSetRenderTarget = this.renderer.setRenderTarget.bind(this.renderer);
this.renderer.setRenderTarget = function (target) {
originalSetRenderTarget(target);
if (target == null) {
context.bindRenderTarget();
}
};
this.scene = new THREE.Scene();
this.camera = new THREE.PerspectiveCamera();
const axesHelper = new THREE.AxesHelper(1);
axesHelper.position.copy(1000000, 100000, 100000);
this.scene.add(axesHelper);
this._setupScene(context);
},
_setupScene: function (context) {
var scope = this;
scope.material = scope.getMaterial()
const {
altitude,
radius
} = scope.options;
scope.options.points.forEach((point) => {
const geometry = new THREE.SphereBufferGeometry(point.radius, 50, 50, 0, Math.PI * 2);
const object3d = new THREE.Mesh(geometry, scope.material);
const position = scope.coordinateToVector3([point.x, point.y], point.altitude);
object3d.position.copy(position);
object3d.rotation.x = Math.PI / 2;
scope.scene.add(object3d);
scope.electricShieldobject3d.push(object3d)
})
context.resetWebGLState();
},
getMaterial: function () {
var scope = this;
var ElectricShield = {
uniforms: {
time: {
type: "f",
value: 0
},
color: {
type: "c",
value: new THREE.Color(scope.options.color)
},
opacity: {
type: "f",
value: 1
}
},
vertexShaderSource: "\n precision lowp float;\n precision lowp int;\n "
.concat(
THREE.ShaderChunk.fog_pars_vertex,
"\n varying vec2 vUv;\n void main() {\n vec4 mvPosition = modelViewMatrix * vec4( position, 1.0 );\n vUv = uv;\n gl_Position = projectionMatrix * modelViewMatrix * vec4(position, 1.0);\n "
)
.concat(THREE.ShaderChunk.fog_vertex, "\n }\n"),
fragmentShaderSource: `
#if __VERSION__ == 100
#extension GL_OES_standard_derivatives : enable
#endif
uniform vec3 color;
uniform float opacity;
uniform float time;
varying vec2 vUv;
#define pi 3.1415926535
#define PI2RAD 0.01745329252
#define TWO_PI (2. * PI)
float rands(float p){
return fract(sin(p) * 10000.0);
}
float noise(vec2 p){
float t = time / 20000.0;
if(t > 1.0) t -= floor(t);
return rands(p.x * 14. + p.y * sin(t) * 0.5);
}
vec2 sw(vec2 p){
return vec2(floor(p.x), floor(p.y));
}
vec2 se(vec2 p){
return vec2(ceil(p.x), floor(p.y));
}
vec2 nw(vec2 p){
return vec2(floor(p.x), ceil(p.y));
}
vec2 ne(vec2 p){
return vec2(ceil(p.x), ceil(p.y));
}
float smoothNoise(vec2 p){
vec2 inter = smoothstep(0.0, 1.0, fract(p));
float s = mix(noise(sw(p)), noise(se(p)), inter.x);
float n = mix(noise(nw(p)), noise(ne(p)), inter.x);
return mix(s, n, inter.y);
}
float fbm(vec2 p){
float z = 2.0;
float rz = 0.0;
vec2 bp = p;
for(float i = 1.0; i < 6.0; i++){
rz += abs((smoothNoise(p) - 0.5)* 2.0) / z;
z *= 2.0;
p *= 2.0;
}
return rz;
}
void main() {
vec2 uv = vUv;
vec2 uv2 = vUv;
if (uv.y < 0.5) {
discard;
}
uv *= 4.;
float rz = fbm(uv);
uv /= exp(mod(time * 2.0, pi));
rz *= pow(15., 0.9);
gl_FragColor = mix(vec4(color, opacity) / rz, vec4(color, 0.1), 0.2);
if (uv2.x < 0.05) {
gl_FragColor = mix(vec4(color, 0.1), gl_FragColor, uv2.x / 0.05);
}
if (uv2.x > 0.95){
gl_FragColor = mix(gl_FragColor, vec4(color, 0.1), (uv2.x - 0.95) / 0.05);
}
}`
};
let material = new THREE.ShaderMaterial({
uniforms: ElectricShield.uniforms,
defaultAttributeValues: {},
vertexShader: ElectricShield.vertexShaderSource,
fragmentShader: ElectricShield.fragmentShaderSource,
blending: THREE.AdditiveBlending,
depthWrite: !1,
shading: THREE.FlatShading,
opacity: 0.1,
depthTest: !0,
side: THREE.DoubleSide,
transparent: !0,
wireframe: scope.options.wireframe === undefined ? false : scope.options.wireframe,
});
return material;
},
setMaterialColor: function (rgb) {
if (!this.electricShieldobject3d.length) {
return
}
this.electricShieldobject3d.forEach((item) => {
item.material.color.set(rgb);
})
},
setwireframe: function () {
if (!this.electricShieldobject3d.length) {
return
}
this.electricShieldobject3d.forEach((item) => {
item.material.wireframe = !item.material.wireframe;
})
},
setopacity: function (opacity) {
if (!this.electricShieldobject3d.length) {
return
}
this.electricShieldobject3d.forEach((item) => {
item.material.opacity = opacity;
})
},
setaltitude: function (altitude) {
if (!this.electricShieldobject3d.length) {
return
}
this.electricShieldobject3d.forEach((item) => {
item.position.z = altitude;
})
},
setscaleZ: function (scaleZ) {
if (!this.electricShieldobject3d.length) {
return
}
this.electricShieldobject3d.forEach((item) => {
item.scale.z = scaleZ;
})
},
coordinateToVector3: function (coord, z = 0) {
const p = coord;
let transform = new THREE.Matrix4();
let transformation = new Array(16);
// const z = point.z === undefined ? 0 : point.z
transform.fromArray(
externalRenderers.renderCoordinateTransformAt(
this.view,
[p[0], p[1], z],
this.view.spatialReference,
transformation
)
);
let vector3 = new THREE.Vector3(
transform.elements[12],
transform.elements[13],
transform.elements[14]
);
return vector3;
},
extend: function (dest) { // (Object[, Object, ...]) ->
for (let i = 1; i < arguments.length; i++) {
const src = arguments[i];
for (const k in src) {
dest[k] = src[k];
}
}
return dest;
},
render: function (context) {
const cam = context.camera;
this.camera.position.set(cam.eye[0], cam.eye[1], cam.eye[2]);
this.camera.up.set(cam.up[0], cam.up[1], cam.up[2]);
this.camera.lookAt(
new THREE.Vector3(cam.center[0], cam.center[1], cam.center[2])
);
this.electricShieldobject3d.map((item) => {
item.material.uniforms.time.value += this.options.speed;
})
this.camera.projectionMatrix.fromArray(cam.projectionMatrix);
this.renderer.state.reset();
this.renderer.render(this.scene, this.camera);
externalRenderers.requestRender(this.view);
context.resetWebGLState();
}
});
return electricShieldRenderer;
});
防空盾/电屏蔽扩展类electricShieldRenderer 调用示例
const points = [{
"name": "上海",
"x": 13520199.85,
"y": 3654099.00,
"radius": 800000,
"altitude": 0
}]
const options = {
"color": "#FF0000",
"wireframe": false,
"speed": 0.01
}
const rwRender = new electricShieldRenderer(view, points, options);
externalRenderers.add(view, rwRender);
效果图：

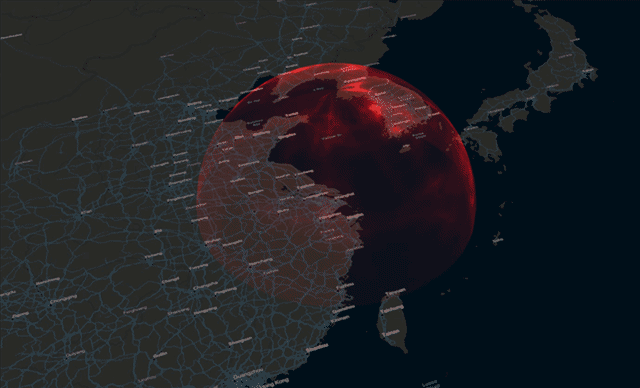

防空盾/电屏蔽渲染效果图
