本文详细介绍了SpringSecurity中CSRF（跨站请求伪造）防护的原理与实践，包括登录、POST接口、退出时的防护措施，并探讨了前后端分离项目的CSRF解决方案。实验展示了如何在模板和JavaScript中处理CSRF令牌，以及如何配置Cookie存储类型。强调了涉及浏览器操作的安全请求应启用CSRF防护。

背景

本系列教程，是作为团队内部的培训资料准备的。主要以实验的方式来体验SpringSecurity的各项Feature。

依赖不变，核心依赖为Web，SpringSecurity与Thymeleaf：

<dependencies><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-thymeleaf</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-security</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-devtools</artifactId><scope>runtime</scope><optional>true</optional></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><optional>true</optional></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency>
</dependencies>

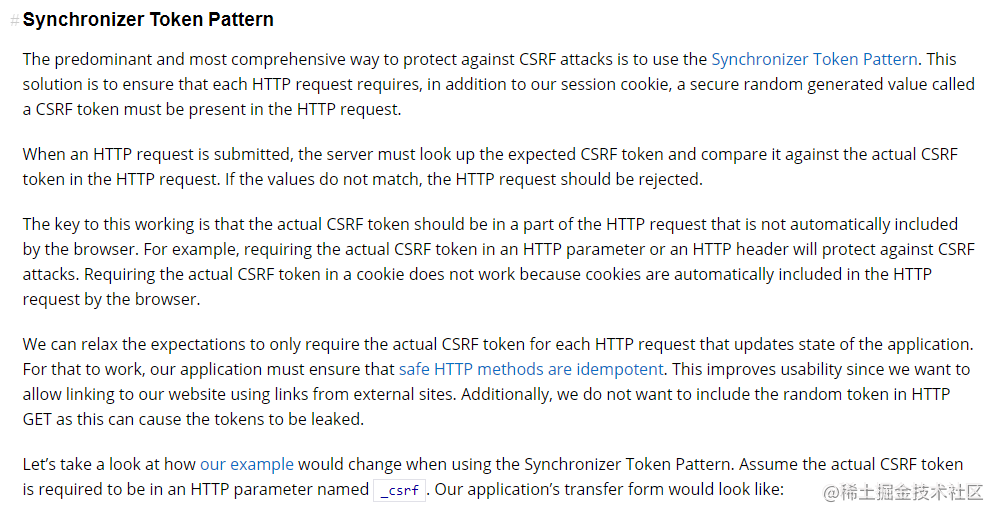

从官网中可以知道，CSRF防护的关键在于我们发请求时附带一个随机数（CSRF token），而这个随机数不会被浏览器自动携带（eg: Cookie就会被浏览器自动带上）。

实验0：登录时的CSRF防护

显然，我们这里的登录请求是个POST方法（SpringSecurity默认忽略"GET", “HEAD”, “TRACE”, "OPTIONS"等幂等请求的CSRF拦截）。登录时必须携带_csrf参数，与认证信息一并提交，否则报403。

后端安全配置（默认开启CSRF）

@Override
protected void configure(HttpSecurity http) throws Exception {http.authorizeRequests().antMatchers("/user/add").hasAuthority("p1").antMatchers("/user/query").hasAuthority("p2").antMatchers("/user/**").authenticated().anyRequest().permitAll() // Let other request pass.and()// .csrf().disable() // turn off csrf, or will be 403 forbidden.formLogin() // Support form and HTTPBasic.loginPage("/login").failureHandler(new AuthenticationFailureHandler(){@Overridepublic void onAuthenticationFailure(HttpServletRequest request, HttpServletResponse response, AuthenticationException exception) throws IOException, ServletException {exception.printStackTrace();request.getRequestDispatcher(request.getRequestURL().toString()).forward(request, response);}});}

前端模板（新增了_csrf参数）：

<form action="login" method="post"><span>用户名</span><input type="text" name="username" /> <br><span>密码</span><input type="password" name="password" /> <br><span>csrf token</span><input type="text" th:name="${_csrf.parameterName}" th:value="${_csrf.token}"/> <br><input type="submit" value="登录">
</form>

Note:

1.当然，实际中可以将新增的_csrf参数作为一个隐藏域进行提交：<input type="text" th:name="${_csrf.parameterName}" th:value="${_csrf.token}" hidden/>

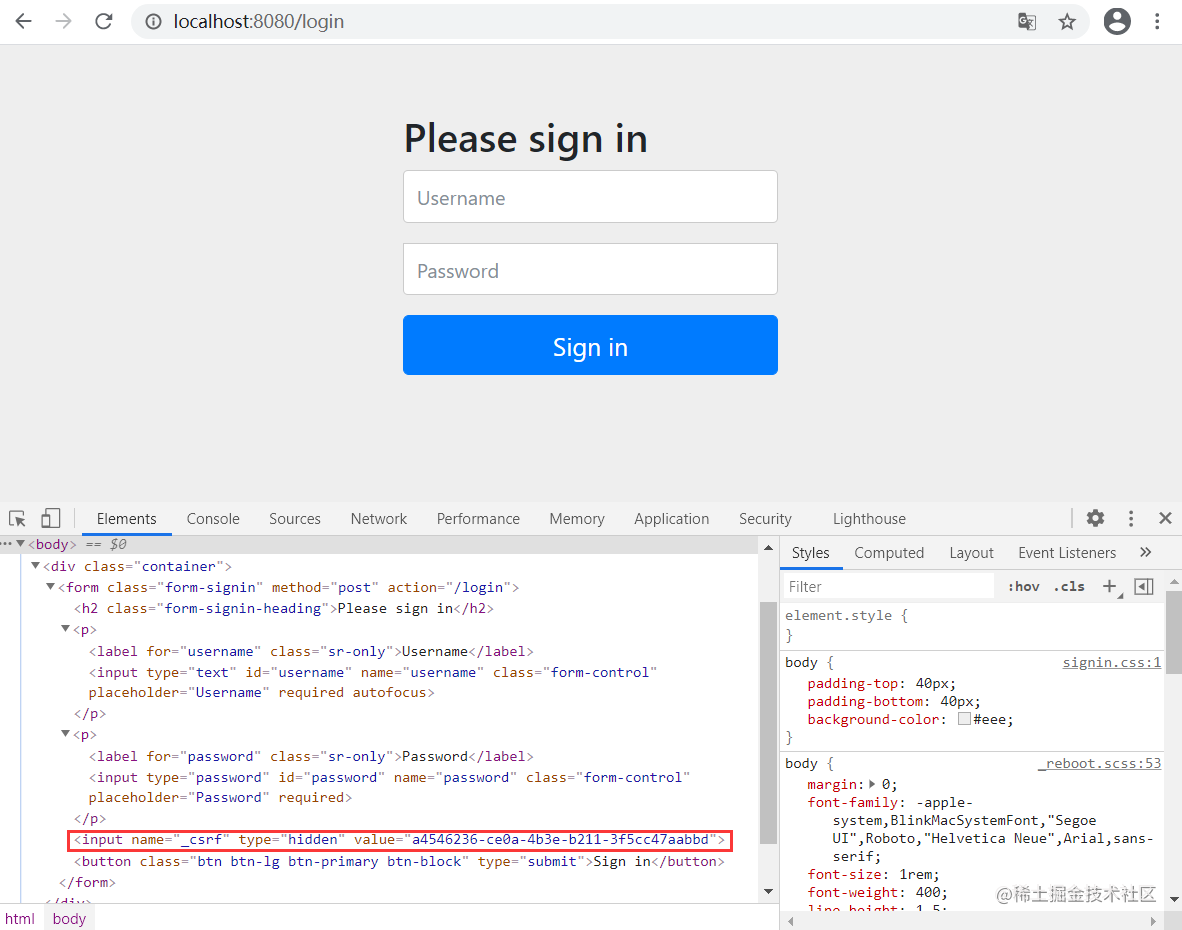

2.其实，如果我们使用默认的登录页面，可以在页面元素中看到同样有个隐藏域：

实验1：POST接口CSRF防护

通过form表单是一种发送POST请求的方式，但我们其他的请求不可能都通过form表单来提交。下面通过原生的JavaScript发起Ajax的POST请求。

后端接口

@Controller
public class HelloController {@RequestMapping("/")public String hello(){return "index";}@PostMapping(value = "/ok")@ResponseBodypublic String ok() {return "ok post";}}

前端模板（新增index.html）

<head><meta charset="UTF-8"><meta name="viewport" content="width=device-width, initial-scale=1.0"><meta http-equiv="X-UA-Compatible" content="ie=edge"><meta name="csrf" th:content="${_csrf.token}"><meta name="_csrf_header" th:content="${_csrf.headerName}" /><title>SpringSecurity</title>
</head>

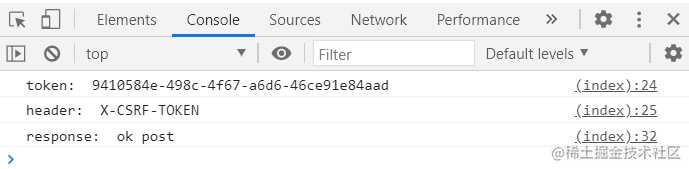

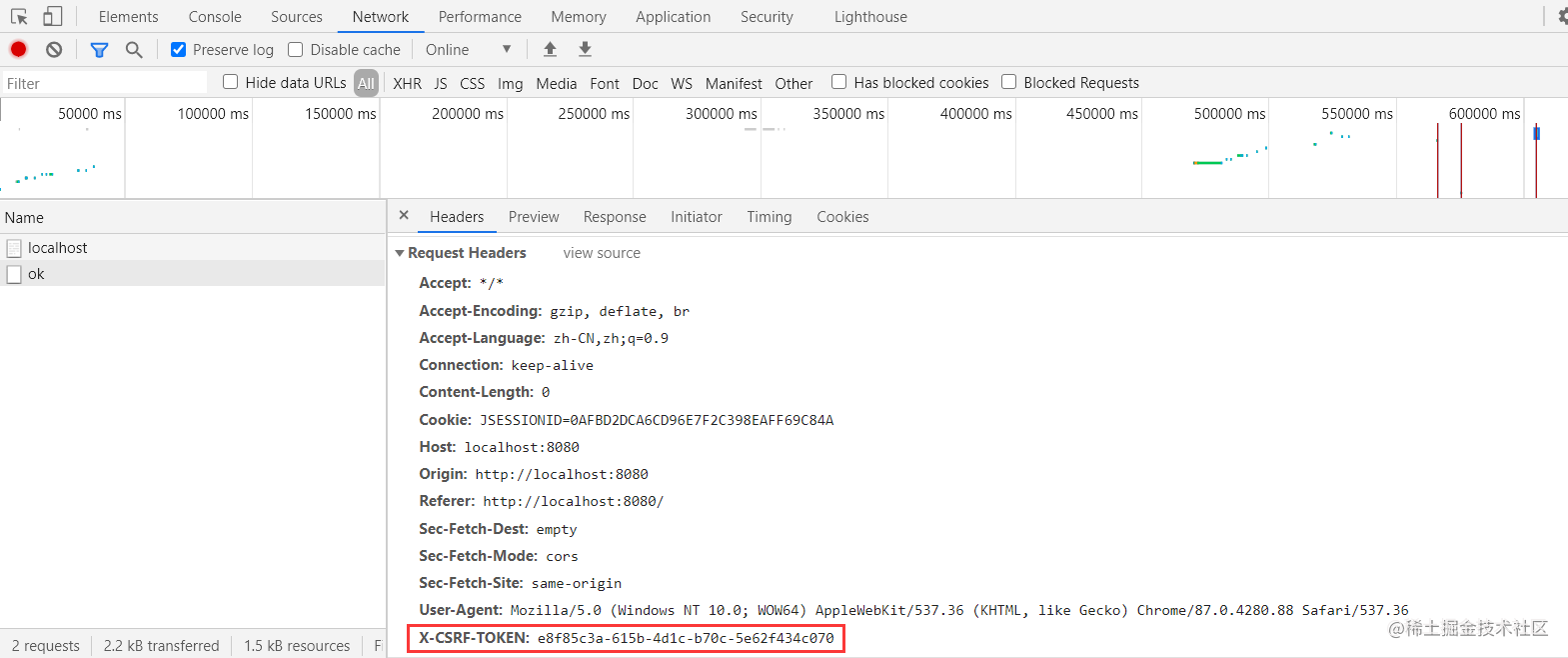

<body><a href="/user/add">添加用户</a><a href="/user/query">查询用户</a><a href="/logout">退出</a><script language="JavaScript"> // let token = document.getElementsByTagName('meta')['csrf'].content;let token = document.querySelector('meta[name="csrf"]').getAttribute('content');let header = document.getElementsByTagName('meta')['_csrf_header'].content;console.log("token: ", token);console.log("header: ", header);function click() {let xhr = new XMLHttpRequest();xhr.open("POST", "http://localhost:8080/ok", true);xhr.setRequestHeader(header, token);xhr.onload = function (e) {console.log("response: ", e.target.responseText);}xhr.onerror = function (e) {console.log("error: ", e)}xhr.send(null);}click(); </script>
</body>

Note: 前面这两个实验中用到了一些参数：_csrf.parameterName，_csrf.token，_csrf_header等，这些可以从源码中获悉：

public final class HttpSessionCsrfTokenRepository implements CsrfTokenRepository {
	private static final String DEFAULT_CSRF_PARAMETER_NAME = "_csrf";

	private static final String DEFAULT_CSRF_HEADER_NAME = "X-CSRF-TOKEN";

	private static final String DEFAULT_CSRF_TOKEN_ATTR_NAME = HttpSessionCsrfTokenRepository.class
			.getName().concat(".CSRF_TOKEN");

	private String parameterName = DEFAULT_CSRF_PARAMETER_NAME;

	private String headerName = DEFAULT_CSRF_HEADER_NAME;private String sessionAttributeName = DEFAULT_CSRF_TOKEN_ATTR_NAME;
}

实验2：退出时的CSRF防护

退出url在开启CSRF之后，直接以a标签形式请求/logout（即GET方式）会报404；此时logout必须以POST方式才可以正常退出。

public final class LogoutConfigurer<H extends HttpSecurityBuilder<H>> extends
		AbstractHttpConfigurer<LogoutConfigurer<H>, H> {
	private List<LogoutHandler> logoutHandlers = new ArrayList<>();
	private SecurityContextLogoutHandler contextLogoutHandler = new SecurityContextLogoutHandler();
	private String logoutSuccessUrl = "/login?logout";
	private LogoutSuccessHandler logoutSuccessHandler;
	private String logoutUrl = "/logout";
	private RequestMatcher logoutRequestMatcher;
	private boolean permitAll;private boolean customLogoutSuccess;...

	/**
	 * The URL that triggers log out to occur (default is "/logout"). If CSRF protection
	 * is enabled (default), then the request must also be a POST. This means that by
	 * default POST "/logout" is required to trigger a log out. If CSRF protection is
	 * disabled, then any HTTP method is allowed.
	 *
	 * <p>
	 * It is considered best practice to use an HTTP POST on any action that changes state
	 * (i.e. log out) to protect against <a
	 * href="https://en.wikipedia.org/wiki/Cross-site_request_forgery">CSRF attacks</a>. If
	 * you really want to use an HTTP GET, you can use
	 * <code>logoutRequestMatcher(new AntPathRequestMatcher(logoutUrl, "GET"));</code>
	 * </p>
	 *
	 * @see #logoutRequestMatcher(RequestMatcher)
	 * @see HttpSecurity#csrf()
	 *
	 * @param logoutUrl the URL that will invoke logout.
	 * @return the {@link LogoutConfigurer} for further customization
	 */
	public LogoutConfigurer<H> logoutUrl(String logoutUrl) {
		this.logoutRequestMatcher = null;
		this.logoutUrl = logoutUrl;
		return this;
	}}

可采用form表单或者Ajax的形式发送POST请求，携带_csrf参数，这里以form表单为例，点击POST logout按钮，可成功退出：

<form action="logout" method="post"><input type="text" th:name="${_csrf.parameterName}" th:value="${_csrf.token}" hidden/> <br><input type="submit" value="POST logout">
</form>

实验3：前后端分离时的CSRF防护

前面是通过在模板引擎中接收后端传回的_csrf，这里演示下前后端分离项目如何实现CSRF防护下的安全请求。

A CsrfTokenRepository that persists the CSRF token in a cookie named “XSRF-TOKEN” and reads from the header “X-XSRF-TOKEN” following the conventions of AngularJS. When using with AngularJS be sure to use withHttpOnlyFalse().

后端安全配置（修改CSRF存储类型：CookieCsrfTokenRepository）

@Override
protected void configure(HttpSecurity http) throws Exception {http.authorizeRequests().antMatchers("/user/add").hasAuthority("p1").antMatchers("/user/query").hasAuthority("p2").antMatchers("/user/**").authenticated().anyRequest().permitAll() // Let other request pass.and().csrf().csrfTokenRepository(CookieCsrfTokenRepository.withHttpOnlyFalse()).and()// .csrf().disable() // turn off csrf, or will be 403 forbidden.formLogin() // Support form and HTTPBasic.loginPage("/login").failureHandler(new AuthenticationFailureHandler(){@Overridepublic void onAuthenticationFailure(HttpServletRequest request, HttpServletResponse response, AuthenticationException exception) throws IOException, ServletException {exception.printStackTrace();request.getRequestDispatcher(request.getRequestURL().toString()).forward(request, response);}});}

前端脚本

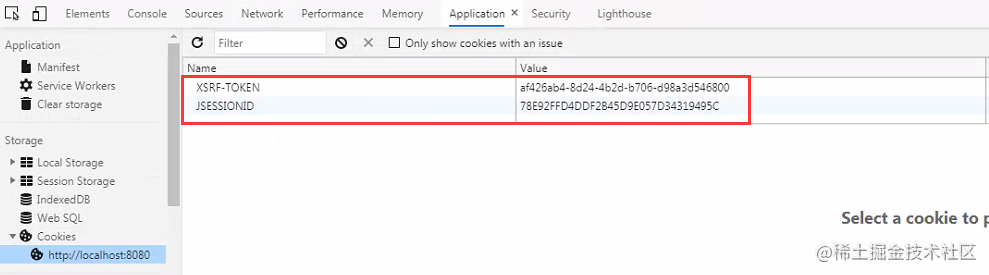

</body><script> function getCookie(name) {let arr = document.cookie.split("; ");for (let i = 0; i < arr.length; i++) {let arr2 = arr[i].split("=");if (arr2[0] == name) {return arr2[1];}}return "";}console.log("XSRF-TOKEN: ", getCookie("XSRF-TOKEN"));// 之后就可以拿着前面获取到的"XSRF-TOKEN"去请求后端POST等接口了 </script>
</body>

Note: 这里大部分同学有个问题：Cookie都被自动带到请求中了，那攻击者不就又可以拿到了吗？

由于Cookie中的信息对于攻击者来说是不可见的，无法伪造的，虽然Cookie被浏览器自动携带了，但攻击者能做的仅仅是用一下Cookie，而Cookie里面到底放了什么内容，攻击者是不知道的，所以将CSRF-TOKEN写在Cookie中是可以防御CSRF的，相比默认的存放在Session中，CSRF-TOKEN写在Cookie中仅仅是换了一个存储位置。
