Android N(O) adb shell pm install package 流程分析

最新推荐文章于 2024-07-24 11:25:30 发布

焦着未来的女汪汪

最新推荐文章于 2024-07-24 11:25:30 发布

阅读量1.5k

点赞数

CC 4.0 BY-SA版权

分类专栏： android

本文链接：https://blog.youkuaiyun.com/tcp_westwood/article/details/80989673

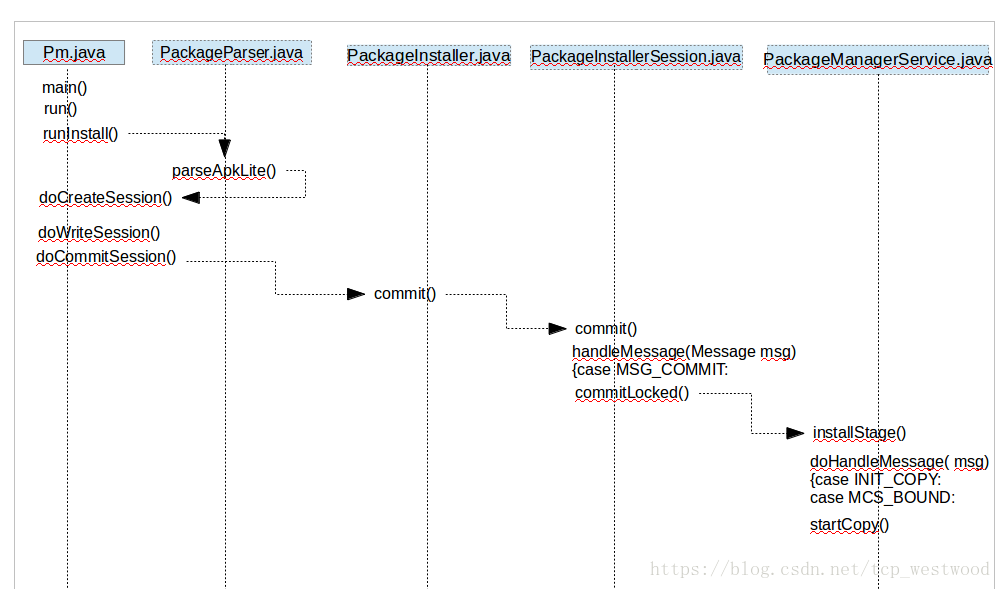

本文深入探讨了在Android N操作系统中，通过adb shell pm install命令安装应用的详细流程，涉及Pm.java、PackageInstaller.java、PackageInstallerSession.java及PackageManagerService.java等关键组件的交互过程。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

参考文献：https://blog.youkuaiyun.com/xuezhe__/article/details/73130567

1、alps/android_mtk/frameworks/base/cmds/pm/src/com/android/commands/pm/Pm.java

public static void main(String[] args) {
    int exitCode = 1;
    try {
        exitCode = new Pm().run(args);///////////step1
    } catch (Exception e) {
        Log.e(TAG, "Error", e);
        System.err.println("Error: " + e);
        if (e instanceof RemoteException) {
            System.err.println(PM_NOT_RUNNING_ERR);
        }
    }
    System.exit(exitCode);
}

public int run(String[] args) throws RemoteException {
    boolean validCommand = false;
    if (args.length < 1) {
        return showUsage();
    }
   ****************************************************
    if ("install".equals(op)) {
        return runInstall();/////////////////////step2
    }

private int runInstall() throws RemoteException {
    long startedTime = SystemClock.elapsedRealtime();
    final InstallParams params = makeInstallParams();
    final String inPath = nextArg();
    if (params.sessionParams.sizeBytes == -1 && !STDIN_PATH.equals(inPath)) {
        File file = new File(inPath);
        if (file.isFile()) {
            try {
                ApkLite baseApk = PackageParser.parseApkLite(file, 0); //////////step3
                PackageLite pkgLite = new PackageLite(null, baseApk, null, null, null, null,
                        null, null); //////////////////////step4
                params.sessionParams.setSize(
                        PackageHelper.calculateInstalledSize(pkgLite, false,
                        params.sessionParams.abiOverride));
            } catch (PackageParserException | IOException e) {
                System.err.println("Error: Failed to parse APK file: " + e);
                return 1;
            }
        } else {
            System.err.println("Error: Can't open non-file: " + inPath);
            return 1;
        }
    }

    final int sessionId = doCreateSession(params.sessionParams,
            params.installerPackageName, params.userId);/////////////////////step5

    try {
