TextFile SequencFile性能对比

转载:http://tangjj.blog.51cto.com/1848040/1535555



首先所有的输入格式都继承FileInputFormat,对于TextFile和SequenceFile有对应的TextInputFormat和SequenceFileInputFormat。

   我们先来看一下TextInputFormat的实现:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
public  class  TextInputFormat  extends  FileInputFormat<LongWritable, Text>
   implements  JobConfigurable {

   private  CompressionCodecFactory compressionCodecs =  null ;

   public  void  configure(JobConf conf) {
     compressionCodecs =  new  CompressionCodecFactory(conf);
   }

   //是否可以被切分
   //1、没压缩 return true
   //2、压缩类是SplittableCompressionCodec的实例 return false 否则return false
   protected  boolean  isSplitable(FileSystem fs, Path file) {
     final  CompressionCodec codec = compressionCodecs.getCodec(file);
     if  ( null  == codec) {
       return  true ;
     }
     return  codec  instanceof  SplittableCompressionCodec;
   }

  //创建出LineRecordReader,其中会读取配置中的textinputformat.record.delimiter
  //已确定每行的分隔符
   public  RecordReader<LongWritable, Text> getRecordReader(
                                           InputSplit genericSplit, JobConf job,
                                           Reporter reporter)
     throws  IOException {

     reporter.setStatus(genericSplit.toString());
     String delimiter = job.get( "textinputformat.record.delimiter" );
     byte [] recordDelimiterBytes =  null ;
     if  ( null  != delimiter) {
       recordDelimiterBytes = delimiter.getBytes(Charsets.UTF_8);
     }
     return  new  LineRecordReader(job, (FileSplit) genericSplit,
         recordDelimiterBytes);
   }
}

接下去,看一下LineRecordReader是如何读取记录的,以下是它的构造方法:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

  private  SplitLineReader in;  //读取一行记录的实现类

  public  LineRecordReader(Configuration job, FileSplit split,
       byte [] recordDelimiter)  throws  IOException {
     this .maxLineLength = job.getInt(org.apache.hadoop.mapreduce.lib.input.
       LineRecordReader.MAX_LINE_LENGTH, Integer.MAX_VALUE);
     start = split.getStart(); //获取分片文件的启始位置
     end = start + split.getLength(); //获取分片文件的结束位置
     final  Path file = split.getPath(); //获取分片文件对应的完整文件
     compressionCodecs =  new  CompressionCodecFactory(job);
     codec = compressionCodecs.getCodec(file); //获取压缩类

     // open the file and seek to the start of the split
     final  FileSystem fs = file.getFileSystem(job);
     fileIn = fs.open(file);
     if  (isCompressedInput()) { //是否是压缩过的流
       decompressor = CodecPool.getDecompressor(codec);
       if  (codec  instanceof  SplittableCompressionCodec) { //是否是可切分的压缩
         final  SplitCompressionInputStream cIn =
           ((SplittableCompressionCodec)codec).createInputStream(
             fileIn, decompressor, start, end,
             SplittableCompressionCodec.READ_MODE.BYBLOCK);
         in =  new  CompressedSplitLineReader(cIn, job, recordDelimiter);
         start = cIn.getAdjustedStart();
         end = cIn.getAdjustedEnd();
         filePosition = cIn;  // take pos from compressed stream
       else  {
         in =  new  SplitLineReader(codec.createInputStream(fileIn,
             decompressor), job, recordDelimiter);
         filePosition = fileIn;
       }
     else  {
       fileIn.seek(start);
       in =  new  SplitLineReader(fileIn, job, recordDelimiter);
       filePosition = fileIn;
     }
     // If this is not the first split, we always throw away first record
     // because we always (except the last split) read one extra line in
     // next() method.
     //如果不是第一个分片,放弃读取第一行数据,因为每个分片(除了最后一个分片文件)会多读一行。至于为啥要这么做后面会解释。
     if  (start !=  0 ) {
       start += in.readLine( new  Text(),  0 , maxBytesToConsume(start));
     }
     this .pos = start;
   }


  接下去客户端就可以调用来读取一行:

  /** Read a line. */
   public  synchronized  boolean  next(LongWritable key, Text value)
     throws  IOException { //同步方法,因为pos是全局可变量

     // We always read one extra line, which lies outside the upper
     // split limit i.e. (end - 1)
     //总是多读一行,getFilePosition() <= end ,可见当等于end还会执行一次in.readLine
     while  (getFilePosition() <= end || in.needAdditionalRecordAfterSplit()) {
       key.set(pos); //当前位置作为key

       int  newSize = in.readLine(value, maxLineLength, Math.max(maxBytesToConsume(pos), maxLineLength));
       if  (newSize ==  0 ) {
         return  false ;
       }
       pos += newSize;
       if  (newSize < maxLineLength) {
         return  true ;
       }

       // line too long. try again
       LOG.info( "Skipped line of size "  + newSize +  " at pos "  + (pos - newSize));
     }

     return  false ;
   }

接下去,我们具体看下SplitLineReader里readLine的实现

1
2
3
4
5
6
7
8
9
10
  public  int  readLine(Text str,  int  maxLineLength,
                       int  maxBytesToConsume)  throws  IOException {
     if  ( this .recordDelimiterBytes !=  null ) {
     //根据用户自定义的行分隔符读记录
       return  readCustomLine(str, maxLineLength, maxBytesToConsume);
     else  {
     //根据默认行分隔符读记录
       return  readDefaultLine(str, maxLineLength, maxBytesToConsume);
     }
   }

我们先来看看readCustomLine(str, maxLineLength, maxBytesToConsume)的实现:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
/**
    * Read a line terminated by a custom delimiter.
    */
   private  int  readCustomLine(Text str,  int  maxLineLength,  int  maxBytesToConsume)
       throws  IOException {
    /* We're reading data from inputStream, but the head of the stream may be
     *  already captured in the previous buffer, so we have several cases:

     * 1. 缓冲区的尾部不包含行分隔符的任何字符。我们计ambiguousByteCount=0
     *
     *
     * 2. 缓冲区的尾部包含X个字符序列,是X个字符是行分隔符的头部,我们计ambiguousByteCount=X
     *
     *    // ***  例子:输入片段
     *
     *    " record 1792: I found this bug very interesting and
     *     I have completely read about it. record 1793: This bug
     *     can be solved easily record 1794: This ."
     *
     *    delimiter = "record";
     *
     *    supposing:- String at the end of buffer =
     *    "I found this bug very interesting and I have completely re"
     *    There for next buffer = "ad about it. record 179       ...."
     *
     *     The matching characters in the input
     *     buffer tail and delimiter head = "re"
     *     Therefore, ambiguous byte count = 2 ****   //
     *
     *     2.1 If the following bytes are the remaining characters of
     *         the delimiter, then we have to capture only up to the starting
     *         position of delimiter. That means, we need not include the
     *         ambiguous characters in str.
     *
     *     2.2 If the following bytes are not the remaining characters of
     *         the delimiter ( as mentioned in the example ),
     *         then we have to include the ambiguous characters in str.
     */
     str.clear();
     int  txtLength =  0 // tracks str.getLength(), as an optimization
     long  bytesConsumed =  0 ;
     int  delPosn =  0 ;
     int  ambiguousByteCount= 0 // To capture the ambiguous characters count
     do  {
       int  startPosn = bufferPosn;  // Start from previous end position
       if  (bufferPosn >= bufferLength) {
         startPosn = bufferPosn =  0 ;
         bufferLength = fillBuffer(in, buffer, ambiguousByteCount >  0 );
         if  (bufferLength <=  0 ) {
           str.append(recordDelimiterBytes,  0 , ambiguousByteCount);
           break // EOF
         }
       }
       for  (; bufferPosn < bufferLength; ++bufferPosn) {
         if  (buffer[bufferPosn] == recordDelimiterBytes[delPosn]) {
           delPosn++;
           if  (delPosn >= recordDelimiterBytes.length) {
             bufferPosn++;
             break ;
           }
         else  if  (delPosn !=  0 ) {
           bufferPosn--;
           delPosn =  0 ;
         }
       }
       int  readLength = bufferPosn - startPosn;
       bytesConsumed += readLength;
       int  appendLength = readLength - delPosn;
       if  (appendLength > maxLineLength - txtLength) {
         appendLength = maxLineLength - txtLength;
       }
       if  (appendLength >  0 ) {
         if  (ambiguousByteCount >  0 ) {
           str.append(recordDelimiterBytes,  0 , ambiguousByteCount);
           //appending the ambiguous characters (refer case 2.2)
           bytesConsumed += ambiguousByteCount;
           ambiguousByteCount= 0 ;
         }
         str.append(buffer, startPosn, appendLength);
         txtLength += appendLength;
       }
       if  (bufferPosn >= bufferLength) {
         if  (delPosn >  0  && delPosn < recordDelimiterBytes.length) {
           ambiguousByteCount = delPosn;
           bytesConsumed -= ambiguousByteCount;  //to be consumed in next
         }
       }
     while  (delPosn < recordDelimiterBytes.length
         && bytesConsumed < maxBytesToConsume);
     if  (bytesConsumed > ( long ) Integer.MAX_VALUE) {
       throw  new  IOException( "Too many bytes before delimiter: "  + bytesConsumed);
     }
     return  ( int ) bytesConsumed;
   }

再来看看readDefaultLine

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
  /**
    * Read a line terminated by one of CR, LF, or CRLF.
    */
   private  int  readDefaultLine(Text str,  int  maxLineLength,  int  maxBytesToConsume)
   throws  IOException {
     /* We're reading data from in, but the head of the stream may be
      * already buffered in buffer, so we have several cases:
      * 1. No newline characters are in the buffer, so we need to copy
      *    everything and read another buffer from the stream.
      * 2. An unambiguously terminated line is in buffer, so we just
      *    copy to str.
      * 3. Ambiguously terminated line is in buffer, i.e. buffer ends
      *    in CR.  In this case we copy everything up to CR to str, but
      *    we also need to see what follows CR: if it's LF, then we
      *    need consume LF as well, so next call to readLine will read
      *    from after that.
      * We use a flag prevCharCR to signal if previous character was CR
      * and, if it happens to be at the end of the buffer, delay
      * consuming it until we have a chance to look at the char that
      * follows.
      */
      //以上注释说明了如何处理
      //UNIX: '\n'  (LF)
      //Mac:  '\r'  (CR)
      //Windows: '\r\n'  (CR)(LF)
     str.clear();
     int  txtLength =  0 //tracks str.getLength(), as an optimization
     int  newlineLength =  0 //length of terminating newline
     boolean  prevCharCR =  false //true of prev char was CR
     long  bytesConsumed =  0 ;
     do  {
       int  startPosn = bufferPosn;  //starting from where we left off the last time
       if  (bufferPosn >= bufferLength) {
         startPosn = bufferPosn =  0 ;
         if  (prevCharCR) {
           ++bytesConsumed;  //account for CR from previous read
         }
         bufferLength = fillBuffer(in, buffer, prevCharCR);
         if  (bufferLength <=  0 ) {
           break // EOF
         }
       }
       for  (; bufferPosn < bufferLength; ++bufferPosn) {  //search for newline
         if  (buffer[bufferPosn] == LF) {
           newlineLength = (prevCharCR) ?  2  1 ;
           ++bufferPosn;  // at next invocation proceed from following byte
           break ;
         }
         if  (prevCharCR) {  //CR + notLF, we are at notLF
           newlineLength =  1 ;
           break ;
         }
         prevCharCR = (buffer[bufferPosn] == CR);
       }
       int  readLength = bufferPosn - startPosn;
       if  (prevCharCR && newlineLength ==  0 ) {
         --readLength;  //CR at the end of the buffer
       }
       bytesConsumed += readLength;
       int  appendLength = readLength - newlineLength;
       if  (appendLength > maxLineLength - txtLength) {
         appendLength = maxLineLength - txtLength;
       }
       if  (appendLength >  0 ) {
         str.append(buffer, startPosn, appendLength);
         txtLength += appendLength;
       }
     while  (newlineLength ==  0  && bytesConsumed < maxBytesToConsume);

     if  (bytesConsumed > ( long )Integer.MAX_VALUE) {
       throw  new  IOException( "Too many bytes before newline: "  + bytesConsumed);
     }
     return  ( int )bytesConsumed;
   }

    其中

1
while  (newlineLength ==  0  && bytesConsumed < maxBytesToConsume);



    这个newlineLength == 0,说明如果没有读到行尾,所以会继续读取,所以不存在读取一个断行,即行的两部分分别存在于两个分片中。根据这个行为如何避免漏读和重复读分片文件的开头一行呢?答案是读取的时候第一行不读,读到分片结尾的时候多读一行就可以避免这个问题。具体实现在前面的源代码里已经展现了。可见虽然文件被spilt一个个分片,但是读取逻辑并不完全遵循这个分片。会根据   实际情况调整分片。

 以上便是TextFile文件的读取核心代码,接下去我们看一下SequenceFile的行为:  SequenceFileInputFormat源码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

   public  class  SequenceFileInputFormat<K, V>  extends  FileInputFormat<K, V> {

   public  SequenceFileInputFormat() {
     setMinSplitSize(SequenceFile.SYNC_INTERVAL);
   }

   @Override
   protected  FileStatus[] listStatus(JobConf job)  throws  IOException {
     FileStatus[] files =  super .listStatus(job);
     for  ( int  i =  0 ; i < files.length; i++) {
       FileStatus file = files[i];
       if  (file.isDirectory()) {      // it's a MapFile
         Path dataFile =  new  Path(file.getPath(), MapFile.DATA_FILE_NAME);
         FileSystem fs = file.getPath().getFileSystem(job);
         // use the data file
         files[i] = fs.getFileStatus(dataFile);
       }
     }
     return  files;
   }
   //创建出SequenceFileRecordReader
   public  RecordReader<K, V> getRecordReader(InputSplit split,
                                       JobConf job, Reporter reporter)
     throws  IOException {

     reporter.setStatus(split.toString());

     return  new  SequenceFileRecordReader<K, V>(job, (FileSplit) split);
   }

}

 其中 protected boolean isSplitable(FileSystem fs, Path file) 直接继承父类的实现,return true 说明SequeceFile总是可以被切分,其上可见用来读取SequeceFile的内容,让我们看看SequenceFileRecordReader里的借个主要方法的源码实现:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

     private  SequenceFile.Reader in;

      public  SequenceFileRecordReader(Configuration conf, FileSplit split)
     throws  IOException {
     Path path = split.getPath();
     FileSystem fs = path.getFileSystem(conf);
     this .in =  new  SequenceFile.Reader(fs, path, conf);
     this .end = split.getStart() + split.getLength();
     this .conf = conf;

     if  (split.getStart() > in.getPosition())
       in.sync(split.getStart());
      // start位置定位到同步点,sync的说明见之前的Sequence File的介绍博文

     this .start = in.getPosition();
     more = start < end;
     }

     public  synchronized  boolean  next(K key, V value)  throws  IOException {
     if  (!more)  return  false ;
     long  pos = in.getPosition();
     boolean  remaining = (in.next(key) !=  null );
     if  (remaining) {
       getCurrentValue(value);
     }
     if  (pos >= end && in.syncSeen()) {
       more =  false ;
     else  {
       more = remaining;
     }
     return  more;
   }

   protected  synchronized  boolean  next(K key)
     throws  IOException {
     if  (!more)  return  false ;
     long  pos = in.getPosition();
     boolean  remaining = (in.next(key) !=  null );
     if  (pos >= end && in.syncSeen()) {
       more =  false ;
     else  {
       more = remaining;
     }
     return  more;
   }

    protected  synchronized  void  getCurrentValue(V value)
     throws  IOException {
     in.getCurrentValue(value);
   }

   主要调用了SequenceFile.Reader的next方法和getCurrentValue方法,我们来具体看看SequenceFile.Reader中这些方法的实现:

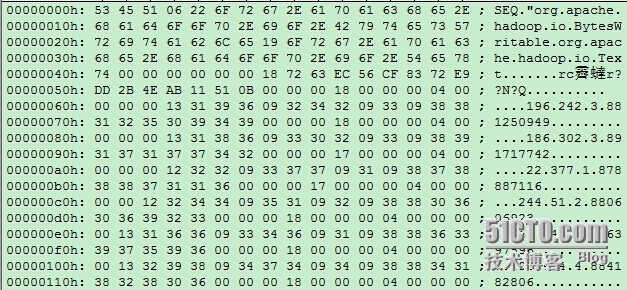

首先是读取文件的一写SEQ特有的信息,解析SEQ头部信息,获取压缩类,key,value的类等等,进行初始化

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
private  void  init( boolean  tempReader)  throws  IOException {
       byte [] versionBlock =  new  byte [VERSION.length];
       in.readFully(versionBlock);

       if  ((versionBlock[ 0 ] != VERSION[ 0 ]) ||
           (versionBlock[ 1 ] != VERSION[ 1 ]) ||
           (versionBlock[ 2 ] != VERSION[ 2 ]))
         throw  new  IOException( this  " not a SequenceFile" ); //判断是否是SEQ文件

       // Set 'version'
       version = versionBlock[ 3 ];
       if  (version > VERSION[ 3 ]) //版本是否正确
         throw  new  VersionMismatchException(VERSION[ 3 ], version);

       if  (version < BLOCK_COMPRESS_VERSION) {
         UTF8 className =  new  UTF8();

         className.readFields(in);
         keyClassName = className.toStringChecked();  // key class name

         className.readFields(in);
         valClassName = className.toStringChecked();  // val class name
       else  {
         keyClassName = Text.readString(in);
         valClassName = Text.readString(in);
       }

       if  (version >  2 ) {                           // if version > 2
         this .decompress = in.readBoolean();        // is compressed?
       else  {
         decompress =  false ;
       }

       if  (version >= BLOCK_COMPRESS_VERSION) {     // if version >= 4
         this .blockCompressed = in.readBoolean();   // is block-compressed?
       else  {
         blockCompressed =  false ;
       }

       // if version >= 5
       // setup the compression codec
       if  (decompress) {
         if  (version >= CUSTOM_COMPRESS_VERSION) {
           String codecClassname = Text.readString(in);
           try  {
             Class<?  extends  CompressionCodec> codecClass
               = conf.getClassByName(codecClassname).asSubclass(CompressionCodec. class );
             this .codec = ReflectionUtils.newInstance(codecClass, conf);
           catch  (ClassNotFoundException cnfe) {
             throw  new  IllegalArgumentException( "Unknown codec: "
                                                codecClassname, cnfe);
           }
         else  {
           codec =  new  DefaultCodec();
           ((Configurable)codec).setConf(conf);
         }
       }

       this .metadata =  new  Metadata();
       if  (version >= VERSION_WITH_METADATA) {     // if version >= 6
         this .metadata.readFields(in);
       }

       if  (version >  1 ) {                           // if version > 1
         in.readFully(sync);                        // read sync bytes
         headerEnd = in.getPos();                   // record end of header
       }

       // Initialize... *not* if this we are constructing a temporary Reader
       if  (!tempReader) {
         valBuffer =  new  DataInputBuffer();
         if  (decompress) {
           valDecompressor = CodecPool.getDecompressor(codec);
           valInFilter = codec.createInputStream(valBuffer, valDecompressor);
           valIn =  new  DataInputStream(valInFilter);
         else  {
           valIn = valBuffer;
         }

         if  (blockCompressed) {
           keyLenBuffer =  new  DataInputBuffer();
           keyBuffer =  new  DataInputBuffer();
           valLenBuffer =  new  DataInputBuffer();

           keyLenDecompressor = CodecPool.getDecompressor(codec);
           keyLenInFilter = codec.createInputStream(keyLenBuffer,
                                                    keyLenDecompressor);
           keyLenIn =  new  DataInputStream(keyLenInFilter);

           keyDecompressor = CodecPool.getDecompressor(codec);
           keyInFilter = codec.createInputStream(keyBuffer, keyDecompressor);
           keyIn =  new  DataInputStream(keyInFilter);

           valLenDecompressor = CodecPool.getDecompressor(codec);
           valLenInFilter = codec.createInputStream(valLenBuffer,
                                                    valLenDecompressor);
           valLenIn =  new  DataInputStream(valLenInFilter);
         }

         SerializationFactory serializationFactory =
           new  SerializationFactory(conf);
         this .keyDeserializer =
           getDeserializer(serializationFactory, getKeyClass());
         if  ( this .keyDeserializer ==  null ) {
           throw  new  IOException(
               "Could not find a deserializer for the Key class: '"
                   + getKeyClass().getCanonicalName() +  "'. "
                   "Please ensure that the configuration '"  +
                   CommonConfigurationKeys.IO_SERIALIZATIONS_KEY +  "' is "
                   "properly configured, if you're using "
                   "custom serialization." );
         }
         if  (!blockCompressed) {
           this .keyDeserializer.open(valBuffer);
         else  {
           this .keyDeserializer.open(keyIn);
         }
         this .valDeserializer =
           getDeserializer(serializationFactory, getValueClass());
         if  ( this .valDeserializer ==  null ) {
           throw  new  IOException(
               "Could not find a deserializer for the Value class: '"
                   + getValueClass().getCanonicalName() +  "'. "
                   "Please ensure that the configuration '"  +
                   CommonConfigurationKeys.IO_SERIALIZATIONS_KEY +  "' is "
                   "properly configured, if you're using "
                   "custom serialization." );
         }
         this .valDeserializer.open(valIn);
       }
     }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
  /** Read the next key/value pair in the file into <code>key</code> and
      * <code>val</code>.  Returns true if such a pair exists and false when at
      * end of file */
     public  synchronized  boolean  next(Writable key, Writable val)
       throws  IOException {
       if  (val.getClass() != getValueClass())
         throw  new  IOException( "wrong value class: " +val+ " is not " +valClass);

       boolean  more = next(key); //读取下一个key

       if  (more) {
         getCurrentValue(val); //获取可以对应的val
       }

       return  more;
     }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
  /** Read the next key in the file into <code>key</code>, skipping its
      * value.  True if another entry exists, and false at end of file. */
     public  synchronized  boolean  next(Writable key)  throws  IOException {
       if  (key.getClass() != getKeyClass())
         throw  new  IOException( "wrong key class: " +key.getClass().getName()
                               + " is not " +keyClass);

       if  (!blockCompressed) { //不是块压缩
         outBuf.reset();

         keyLength = next(outBuf); //获取key的长度
         if  (keyLength <  0 )
           return  false ;

         valBuffer.reset(outBuf.getData(), outBuf.getLength());

         key.readFields(valBuffer); //读取key的内容
         valBuffer.mark( 0 );
         if  (valBuffer.getPosition() != keyLength)
           throw  new  IOException(key +  " read "  + valBuffer.getPosition()
                                 " bytes, should read "  + keyLength);
       else  {
         //Reset syncSeen
         syncSeen =  false ;

         if  (noBufferedKeys ==  0 ) {
           try  {
             readBlock();
           catch  (EOFException eof) {
             return  false ;
           }
         }

         int  keyLength = WritableUtils.readVInt(keyLenIn);

         // Sanity check
         if  (keyLength <  0 ) {
           return  false ;
         }

         //Read another compressed 'key'
         key.readFields(keyIn);
         --noBufferedKeys;
       }

       return  true ;
     }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
/**
      * Get the 'value' corresponding to the last read 'key'.
      * @param val : The 'value' to be read.
      * @throws IOException
      */
     public  synchronized  void  getCurrentValue(Writable val)
       throws  IOException {
       if  (val  instanceof  Configurable) {
         ((Configurable) val).setConf( this .conf);
       }

       // Position stream to 'current' value
       seekToCurrentValue();

       if  (!blockCompressed) {
         val.readFields(valIn);

         if  (valIn.read() >  0 ) {
           LOG.info( "available bytes: "  + valIn.available());
           throw  new  IOException(val+ " read " +(valBuffer.getPosition()-keyLength)
                                 " bytes, should read "  +
                                 (valBuffer.getLength()-keyLength));
         }
       else  {
         // Get the value
         int  valLength = WritableUtils.readVInt(valLenIn); //获取val的长度
         val.readFields(valIn); //读取val值

         // Read another compressed 'value'
         --noBufferedValues;

         // Sanity check
         if  ((valLength <  0 ) && LOG.isDebugEnabled()) {
           LOG.debug(val +  " is a zero-length value" );
         }
       }

     }

以上便是SeqFile文件的读取核心代码。我们从源代码角度预测下两者的区别:


存储大小 查询效率
SeqFile 大(要存key长度,value长度,sync等信息) 好(应为有key长度,value长度等信息所以可以快速定位key或者value并读取)
TextFile 差(需要反复读直到遇到分隔符)

下面我们实践一下看看是不是这样的:

    首先通过wget http://files.grouplens.org/datasets/movielens/ml-100k.zip

    然后使用hive

1
2
3
4
5
6
7
8
CREATE  TABLE  u_data
(  userid  INT
  movieid  INT ,
  rating  INT ,
  unixtime STRING)
  ROW FORMAT DELIMITED
  FIELDS TERMINATED  BY  '\t'  STORED  AS  TEXTFILE;
   LOAD  DATA  LOCAL  INPATH  '/usr/test/hivesourcedata/ml-100k/u.data'  OVERWRITE  INTO  TABLE  u_data;
1
2
3
4
5
6
7
8
  CREATE  TABLE  u_data_seq
  ( userid  INT
   movieid  INT
    rating  INT
     unixtime STRING)
     ROW FORMAT DELIMITED
     FIELDS TERMINATED  BY  '\t'  STORED  AS  SEQUENCEFILE;
     INSERT  OVERWIRTE  TABLE  u_data_seq  SELECT  FROM  u.data;

首先比较下大小:

 3.1M    ./u_data_seq

 1.9M    ./u_data

果然u_data_seq 比u_data大

我们看看u_data_seq的存储内容:


很标准的SEQ文件,但是大家有没有发现没有key,因为hiveSeqFile是空key,见HiveSequenceFileOutputFormat的源码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
public  class  HiveSequenceFileOutputFormat<K,V>  extends  SequenceFileOutputFormat<K,V>
     implements  HiveOutputFormat<K, V> {

   BytesWritable EMPTY_KEY =  new  BytesWritable();

   /**
    * create the final out file, and output an empty key as the key.
    *
    * @param jc
    *          the job configuration file
    * @param finalOutPath
    *          the final output file to be created
    * @param valueClass
    *          the value class used for create
    * @param isCompressed
    *          whether the content is compressed or not
    * @param tableProperties
    *          the tableInfo of this file's corresponding table
    * @param progress
    *          progress used for status report
    * @return the RecordWriter for the output file
    */
   @Override
   public  RecordWriter getHiveRecordWriter(JobConf jc, Path finalOutPath,
       Class<?  extends  Writable> valueClass,  boolean  isCompressed,
       Properties tableProperties, Progressable progress)  throws  IOException {

     FileSystem fs = finalOutPath.getFileSystem(jc);
     final  SequenceFile.Writer outStream = Utilities.createSequenceWriter(jc,
         fs, finalOutPath, BytesWritable. class , valueClass, isCompressed);

     return  new  RecordWriter() {
       @Override
       public  void  write(Writable r)  throws  IOException {
         outStream.append(EMPTY_KEY, r); //key是EMPTY_KEY
       }

       @Override
       public  void  close( boolean  abort)  throws  IOException {
         outStream.close();
       }
     };
   }

}

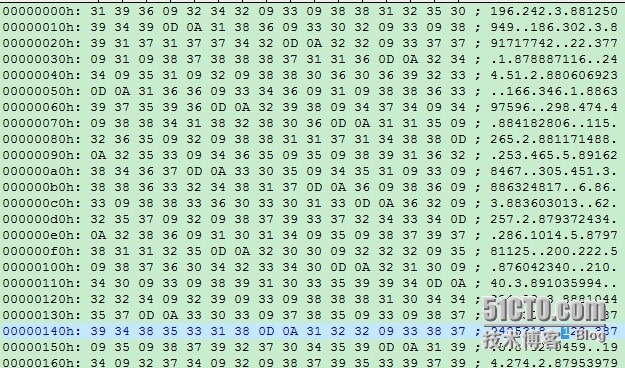

接下去看看u_data的存储内容:


可见也是没key,hive对于TextFile的实现是org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat

接下去我们执行个简单查询,看看谁的查询速度快

hive> select * from u_data_seq where  userid >1000;

Time taken: 15.379 seconds

hive> select * from u_data where  userid>1000;

Time taken: 17.683 seconds

第一个SQL块了2秒多。

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
