本文介绍了网络设备的配置步骤，包括通过CLI设置OSPF路由协议实现全网可达，配置PPP协议进行PAP和CHAP单向及双向认证以增强链路安全性，以及利用MGRE建立隧道并实现NHRP注册，确保多点路由可达。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

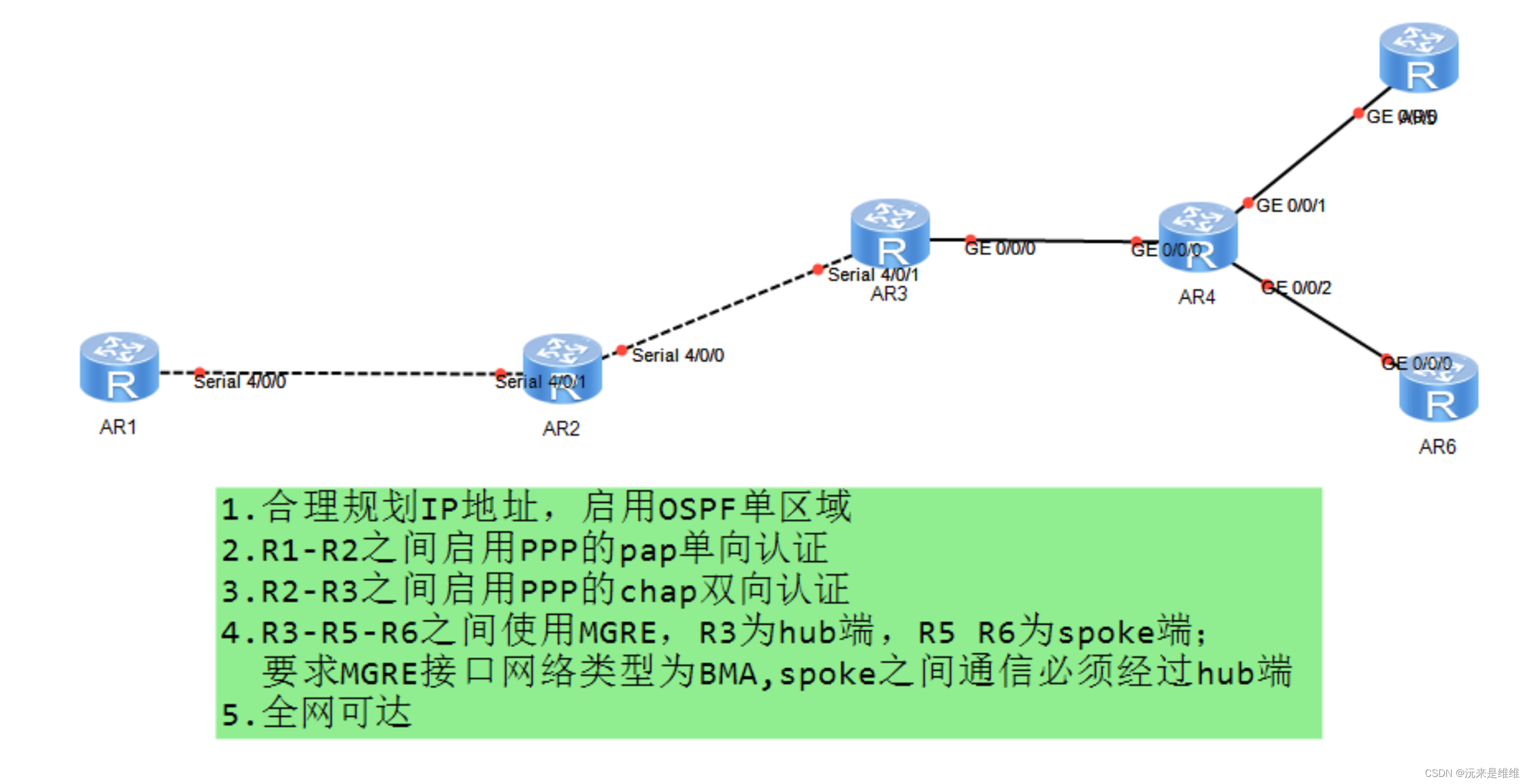

1.合理规划

r1 到r6依次操作

[r1]user-interface console 0
[r1-ui-console0]idle-timeout 0 0
[r1]int lo0
[r1-LoopBack0]ip add 1.1.1.1 24
[r1-LoopBack0]q
[r1]int s4/0/0
[r1-Serial4/0/0]ip add 12.1.1.1  24
[r1-Serial4/0/0]q
[r1]ospf 100
[r1-ospf-100]area 0
[r1-ospf-100-area-0.0.0.0]network 1.1.1.1 0.0.0.0
[r1-ospf-100-area-0.0.0.0]network 12.1.1.0 0.0.0.255
[r1-ospf-100-area-0.0.0.0]network 23.1.1.0 0.0.0.255
[r1-ospf-100-area-0.0.0.0]network 34.1.1.0 0.0.0.255
[r1-ospf-100-area-0.0.0.0]network 45.1.1.0 0.0.0.255
[r1-ospf-100-area-0.0.0.0]network 46.1.1.0 0.0.0.255

2.1.2 ppp pap 单向认证

[r1]aaa
[r1-aaa]local-user kk password cipher kk
Info: Add a new user.
[r1-aaa]local-user kk service-type  ppp
[r1-aaa]int s4/0/0
[r1-Serial4/0/0]ppp authentication-mode pap
[r2]int s4/0/0

[r2-Serial4/0/0]link-protocol  ppp
[r2-Serial4/0/0]dis this
[V200R003C00]
#
interface Serial4/0/0
 link-protocol ppp
 ppp authentication-mode pap
 ip address 12.1.1.1 255.255.255.0

#

3. 2.3 ppp chap 双向认证

[r2]aaa
[r2-aaa]local-user kk password  cipher kk
Info: Add a new user.
[r2-aaa]local-user kk service-type ppp
[r2-aaa]int s4/0/0
[r2-Serial4/0/0]link-protocol ppp
[r2-Serial4/0/0]ppp authentication-mode chap
[r2-Serial4/0/0]ip add 23.1.1.1  255.255.255.0
[r3-Serial4/0/0]dis this
[V200R003C00]
#
interface Serial4/0/0
 link-protocol ppp
 ppp chap user kk

#
return

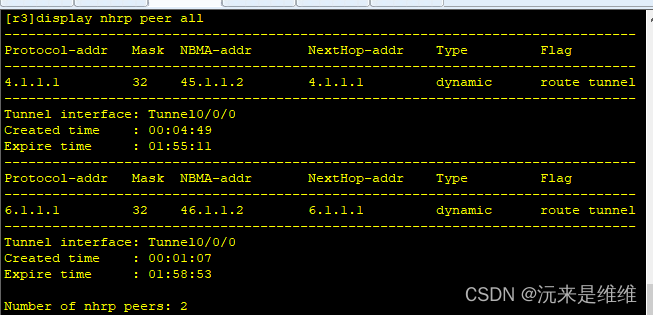

4.3.5.6MGRE

[r3]int Tunnel 0/0/0
[r3-Tunnel0/0/0]ip add 3.1.1.1 255.255.255.0
[r3-Tunnel0/0/0]tunnel-protocol  gre p2mp
[r3-Tunnel0/0/0]source 34.1.1.1
Sep  3 2022 22:16:05-08:00 r3 %%01IFNET/4/LINK_STATE(l)[17]:The line protocol IP
 on the interface Tunnel0/0/0 has entered the UP state.
[r3-Tunnel0/0/0]nhrp entry multicast dynamic
[r3-Tunnel0/0/0]nhrp network-id 3
[r5]int tunnel0/0/0
[r5-Tunnel0/0/0]ip add 4.1.1.1  255.255.255.0
[r5-Tunnel0/0/0]tunnel-protocol  gre p2mp
[r5-Tunnel0/0/0]source 45.1.1.2
Sep  3 2022 22:19:52-08:00 r5 %%01IFNET/4/LINK_STATE(l)[8]:The line protocol IP
on the interface Tunnel0/0/0 has entered the UP state.
[r5-Tunnel0/0/0]nhrp network-id  3
[r5-Tunnel0/0/0]nhrp entry  3.1.1.1  34.1.1.1 register
[r5-Tunnel0/0/0]q
[r6]int Tunnel 0/0/0
[r6-Tunnel0/0/0]ip add 6.1.1.1 255.255.255.0
[r6-Tunnel0/0/0]tunnel-protocol  gre p2mp
[r6-Tunnel0/0/0]source 46.1.1.2
Sep  3 2022 22:24:25-08:00 r6 %%01IFNET/4/LINK_STATE(l)[8]:The line protocol IP
on the interface Tunnel0/0/0 has entered the UP state.
[r6-Tunnel0/0/0]nhrp network-id  3
[r6-Tunnel0/0/0]nhrp entry  3.1.1.1  34.1.1.1 register
[r6-Tunnel0/0/0]q

5.全网可达

每个路由器使用ospf全网可达

[r1]ospf 100
[r1-ospf-100]area 0
[r1-ospf-100-area-0.0.0.0]network 1.1.1.1 0.0.0.0
[r1-ospf-100-area-0.0.0.0]network 12.1.1.0 0.0.0.255
[r1-ospf-100-area-0.0.0.0]network 23.1.1.0 0.0.0.255
[r1-ospf-100-area-0.0.0.0]network 34.1.1.0 0.0.0.255
[r1-ospf-100-area-0.0.0.0]network 45.1.1.0 0.0.0.255
[r1-ospf-100-area-0.0.0.0]network 46.1.1.0 0.0.0.255
