Spring Boot 1.5.19.RELEASE 集成 GRPC

背景
- 环境和过程
- - 环境
  - 过程

背景

Spring Boot是由Pivotal团队提供的全新框架，其设计目的是用来简化新Spring应用的初始搭建以及开发过程。该框架使用了特定的方式来进行配置，从而使开发人员不再需要定义样板化的配置。通过这种方式，Spring Boot致力于在蓬勃发展的快速应用开发领域(rapid application development)成为领导者。

Grpc 由 google 开发，是一款语言中立、平台中立、开源的远程过程调用(RPC)系统。

项目是物联网平台和连接模块获取数据服务，以前都是使用http接口模式做数据传输，一直觉得http有点麻烦，并且rpc是我一直想用的。于是花了点时间查看RPC框架，并且决定以后项目中都使用GRPC去解决不同项目之间的通信问题。

网上Grpc和SpringBoot集成的文章不是很多，大部分都是采用 springboot.grpc.starter的项目，看了一下，版本，不是适合我们目前的项目，项目的springboot版本又不能随意升级，于是尝试SpringBoot集成，并且把步骤分享下。

环境和过程

环境

Spring Boot 1.5.19.RELEASE
Grpc 1.38.0

过程

1: maven 引入：

  	<dependency>
          <groupId>io.grpc</groupId>
          <artifactId>grpc-netty-shaded</artifactId>
          <version>1.38.0</version>
      </dependency>
      <dependency>
          <groupId>io.grpc</groupId>
          <artifactId>grpc-protobuf</artifactId>
          <version>1.38.0</version>
      </dependency>
      <dependency>
          <groupId>io.grpc</groupId>
          <artifactId>grpc-stub</artifactId>
          <version>1.38.0</version>
      </dependency>

2: maven引入编译插件：

kr.motd.maven os-maven-plugin 1.7.0

  <plugins>
  	<!-- proto 打包信息 -->
      <plugin>
          <groupId>org.xolstice.maven.plugins</groupId>
          <artifactId>protobuf-maven-plugin</artifactId>
          <version>0.5.1</version>
          <configuration>
              <protocArtifact>com.google.protobuf:protoc:3.5.1-1:exe:${os.detected.classifier}</protocArtifact>
              <pluginId>grpc-java</pluginId>
              <pluginArtifact>io.grpc:protoc-gen-grpc-java:1.15.0:exe:${os.detected.classifier}</pluginArtifact>
          </configuration>
          <executions>
              <execution>
                  <goals>
                      <goal>compile</goal>
                      <goal>compile-custom</goal>
                  </goals>
              </execution>
          </executions>
      </plugin>
  </plugins>

3: 编写 proto 文件并且放入项目根路径下

syntax = "proto3";

option java_multiple_files = true;
option java_package = "com.yuyuan.internet.modules.rpc";
option java_outer_classname = "EcloudConstructionProtobuf";

option objc_class_prefix = "Grpc";

service GrpcService {
  rpc GetDevicesSensorInfoList (GetDevicesInfoRequest) returns (SensorInfoList) {}
}

message GetDevicesInfoRequest {
  string devicesId = 1;
  string imei 	   = 2;
}

message SensorInfo {
  string id   = 1;
  string name = 2;
  string addr = 3;
  string time = 4;
  string value = 5;
  int32   type = 6;
}

message SensorInfoList {
    repeated SensorInfo sensorInfo = 1;
}

![在这里插入图片描述](https://img-blog.csdnimg.cn/202106031535302.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3RhbndlbmthaTE5ODgwOTAwNA==,size_16,color_FFFFFF,t_70)

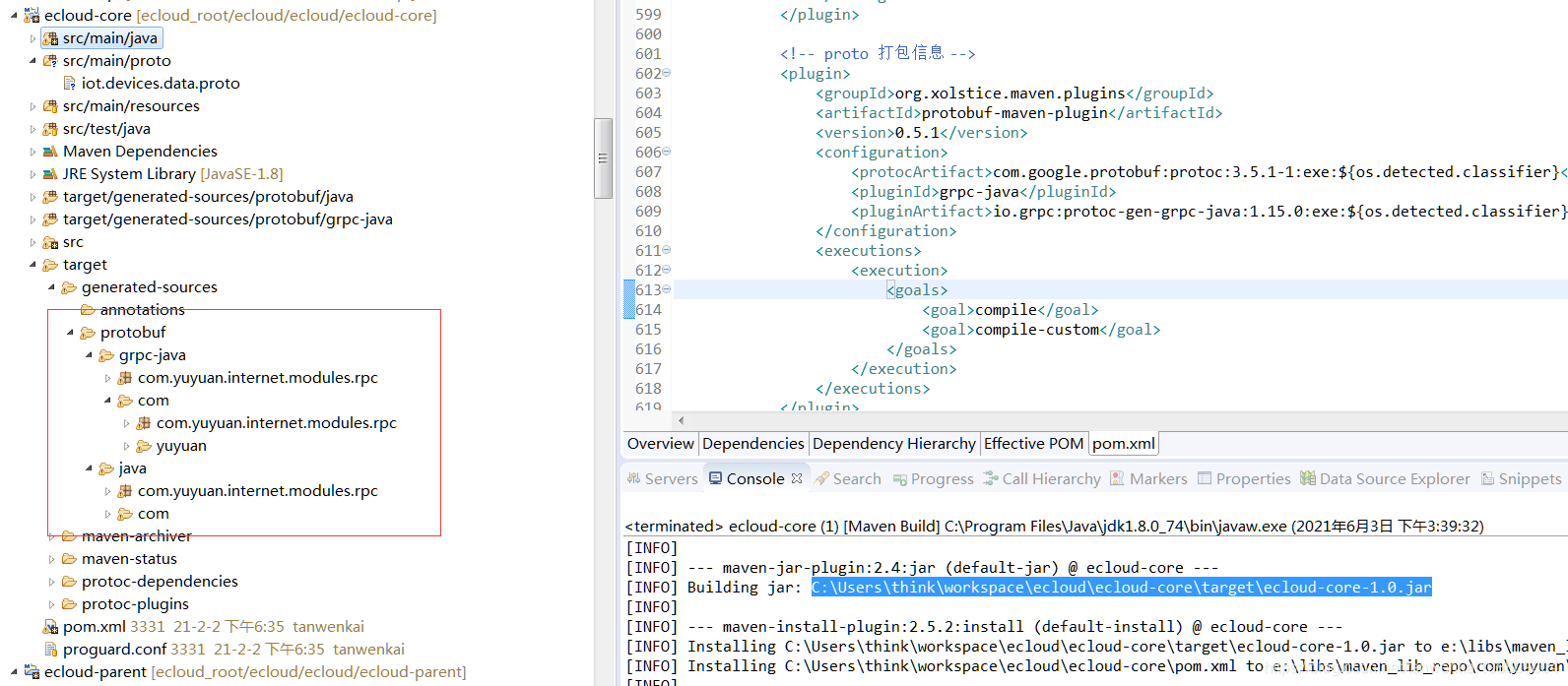

4: 在ecloud-core模块maven运行 clean install 会在根目录生成 protobuf 协议定义的和方法。
grpc-java 和 java 目录中生成java代码。（开发阶段可以把全部java类复制到当前工程包中）
5 服务端项目编写3个java类。
EcloudGrpcService.java 类。实现服务业务代码。

package com.yuyuan.internet.modules.iot.receive.rpc;

import java.util.Set;
import com.yuyuan.internet.modules.iot.receive.task.ReceiveTaskService;
import com.yuyuan.internet.modules.rpc.GetDevicesInfoRequest;
import com.yuyuan.internet.modules.rpc.GrpcServiceGrpc;
import com.yuyuan.internet.modules.rpc.SensorInfo;
import com.yuyuan.internet.modules.rpc.SensorInfoList;
import com.yuyuan.internet.modules.rpc.SensorInfoListOrBuilder;
import io.grpc.stub.StreamObserver;

/***
 * ecloud 设备服务
 * @author tanwenkai
 */
@GrpcService
public class EcloudGrpcService extends GrpcServiceGrpc.GrpcServiceImplBase {

	/***
	 * 获取设备传感器信息 集合
	 */
    @Override
    public void getDevicesSensorInfoList(GetDevicesInfoRequest request, StreamObserver<SensorInfoList> responseObserver) {
        SensorInfoListOrBuilder sensorInfoListOrBuilder = SensorInfoList.newBuilder();
        /**
        id_    = "";
        name_  = "";
        addr_  = "";
        time_  = "";
        value_ = "";
        **/
        if(ReceiveTaskService.deviceNodeDataMap.size()>=1){
        	Set<String> keySet = ReceiveTaskService.deviceNodeDataMap.keySet();
        	for (String key : keySet) {
        		SensorInfo sensorInfo = ReceiveTaskService.deviceNodeDataMap.get(key);
        		((SensorInfoList.Builder) sensorInfoListOrBuilder).addSensorInfo(sensorInfo);
			}
        }
        responseObserver.onNext(((SensorInfoList.Builder) sensorInfoListOrBuilder).build());
        responseObserver.onCompleted();
    }
}

GrpcLauncher.java 类。定义Grpc Server 服务代码。

package com.yuyuan.internet.modules.iot.receive.rpc;

import java.io.IOException;
import java.util.Map;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;
import io.grpc.BindableService;
import io.grpc.Server;
import io.grpc.ServerBuilder;

@Component("grpcLauncher")
public class GrpcLauncher {

	private static Logger logger = LoggerFactory.getLogger(GrpcLauncher.class);

    /**
     * 定义Grpc Server
     */
    private Server server;


    @Value("${grpc.server.port}")
    private Integer grpcServerPort;

    /**
     * GRPC 服务启动方法
     * @param grpcServiceBeanMap
     */
    public void grpcStart(Map<String, Object> grpcServiceBeanMap) {
        try{
        	grpcServerPort = 4321;
            ServerBuilder serverBuilder = ServerBuilder.forPort(grpcServerPort);
            for (Object bean : grpcServiceBeanMap.values()){
                serverBuilder.addService((BindableService) bean);
                logger.info(bean.getClass().getSimpleName() + " is regist in Spring Boot");
            }
            server = serverBuilder.build().start();
            logger.info("grpc server is started at " +  grpcServerPort);
            server.awaitTermination();
            Runtime.getRuntime().addShutdownHook(new Thread(()->{grpcStop();}));
        } catch (IOException e){
            e.printStackTrace();
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }

    /**
     * GRPC 服务Stop方法
     */
    private void grpcStop(){
        if (server != null){
            server.shutdownNow();
        }
    }
}

GrpcService.java 自定义注解，用于获取Spring扫描到的类。

package com.yuyuan.internet.modules.iot.receive.rpc;

import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;
import org.springframework.stereotype.Component;

/**
 * 自定义注解，用于获取Spring扫描到的类
 */
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Component
public @interface GrpcService {
}

Application 类中增加启动代码。

    public static void main(String[] args)  throws Exception{
    	ApplicationContext context =  SpringApplication.run(Application.class, args);
		//下面为增加启动代码。
        Map<String, Object> grpcServiceBeanMap =  context.getBeansWithAnnotation(GrpcService.class);
        GrpcLauncher grpcLauncher = context.getBean("grpcLauncher",GrpcLauncher.class);
        grpcLauncher.grpcStart(grpcServiceBeanMap);

    }

6: 客户端调用

GrpcClientMananer.java

package com.yuyuan.internet.modules.rpc;

import java.util.concurrent.TimeUnit;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;
import io.grpc.ManagedChannel;
import io.grpc.ManagedChannelBuilder;

@Component
public class GrpcClientMananer {

	@Value("${grpc.client.host}")
	private String host;

	@Value("${grpc.client.port}")
	private Integer port;

	public ManagedChannel getChannel() {
		ManagedChannel channel = ManagedChannelBuilder.forAddress(host, port).usePlaintext().disableRetry().idleTimeout(2, TimeUnit.SECONDS).build();
		return channel;
	}
}

EcloudClient.java 使用类。

package com.yuyuan.internet.modules.rpc;

import java.util.List;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import io.grpc.ManagedChannel;

@Component
public class EcloudClient {

	private static Logger logger = LoggerFactory.getLogger(EcloudClient.class);

    @Autowired
    private GrpcClientMananer grpcClientMananer;

    public List<SensorInfo> getSensorInfoList(){
        ManagedChannel channel = grpcClientMananer.getChannel();
        GetDevicesInfoRequest  getDevicesInfoRequest  = GetDevicesInfoRequest.newBuilder().setDevicesId("123").setImei("imei").build();
        //((HelloWorld.getDevicesInfoRequest.Builder) getDevicesInfoRequestOrBuilder).setName("Geek");
        GrpcServiceGrpc.GrpcServiceBlockingStub stub = GrpcServiceGrpc.newBlockingStub(channel);
        SensorInfoList  sensorInfoListObj  = stub.getDevicesSensorInfoList(getDevicesInfoRequest) ;//.welcome(((HelloWorld.getDevicesInfoRequest.Builder) getDevicesInfoRequestOrBuilder).build());
        //System.out.println("getSensorInfoCount:"+sensorInfoList.getSensorInfoCount());
        logger.info("getSensorInfoCount:"+sensorInfoListObj.getSensorInfoCount());
        List<SensorInfo>  sensorInfoList = sensorInfoListObj.getSensorInfoList();
        for (SensorInfo sensorInfo : sensorInfoList) {
            logger.info("sensorInfo,name:"+sensorInfo.getName()+",id:"+sensorInfo.getId()+",addr:"+sensorInfo.getAddr()+",time:"+sensorInfo.getTime()+",value:"+sensorInfo.getValue());
		}
        channel.shutdown();
        return sensorInfoList;
    }
}

调用即可获取到需要到数据。
