盈鹏飞嵌入式T113-s4主板终端信息_tina5 Linux

SBC-T113S产品特性：

• 采用Allwinner公司Cortex-A7双核T113-S3/S4处理器，运行最高速度为1.2GHZ；
• 内置64-bit XuanTie C906 RISC-V协处理器(仅T113-S4支持)；
• 支持JPEG/MJPEG视频编码，最大分辨率1080p@60fps；支持多格式1080P@60fps视频解码 (H.265,H.264, MPEG-1/2/4)；
• 支持RGB666/LVDS/MIPI-DSI，分辨率最高1920x1080；
• 支持128-256M Bytes DDR3 SDRAM,其中T113-S3内置128MB;T113-S4内置256MB；
• 支持SPI NAND存储和启动(默认：256MB)或者EMMC启动(默认：4GB,最大32GB)；
• 支持一路USB2.0 OTG(设计为TYPE-A接口)；支持二路USB2.0 HOST;
• 支持七路RS232通信或者6路RS232和1路RS485(非隔离)；
• 支持一路CAN BUS通信（非隔离）；
• 支持一路10/100M以太网；
• 稳定的操作系统的支持，可预装LINUX 5.4（Preempt）或者OpenWRT；
• 经典尺寸主板，尺寸为120*100MM；

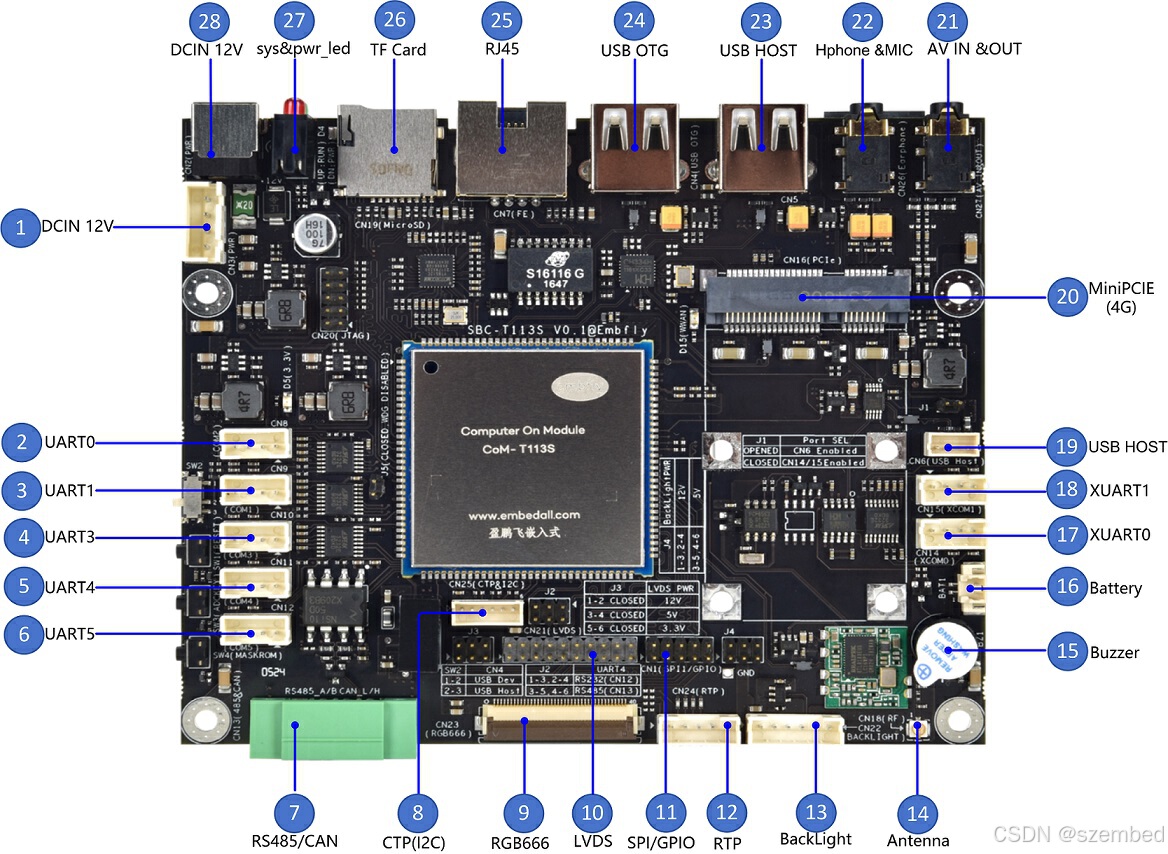

SBC-T113S产品功能评估图：

 T113-s4主板终端信息_tina5 Linux:

[736]fes begin commit:069ed30b88
[739]set pll start
[741]fix vccio detect value:0xc0
[748]periph0 has been enabled
[751]set pll end
[753][pmu]: bus read error
[755]board init ok
[757]beign to init dram
[759]ZQ value = 0x30
[761]get_pmu_exist() = -1
[764]ddr_efuse_type: 0xa
[766]trefi:7.8ms
[768][AUTO DEBUG] single rank and full DQ!
[772]ddr_efuse_type: 0xa
[775]trefi:7.8ms
[777][AUTO DEBUG] rank 0 row = 14
[780][AUTO DEBUG] rank 0 bank = 8
[783][AUTO DEBUG] rank 0 page size = 2 KB
[787]DRAM BOOT DRIVE INFO: V0.34
[790]DRAM CLK = 792 MHz
[792]DRAM Type = 3 (2:DDR2,3:DDR3)
[795]DRAMC ZQ value: 0x7b7bfb
[798]DRAM ODT value: 0x42.
[801]ddr_efuse_type: 0xa
[804]DRAM SIZE = 256 MB
[807]DRAM simple test OK.
[809]rtc standby flag is 0x0, super standby flag is 0x0
[814]init dram ok


U-Boot 2018.07-g6047f84-dirty (Nov 15 2024 - 11:11:51 +0800) Allwinner Technology

[03.479]CPU:   Allwinner Family
[03.482]Model: sun8iw20
[03.484]DRAM:  256 MiB
[03.488]Relocation Offset is: 0cebf000
[03.515]secure enable bit: 0
[03.518]CPU=1008 MHz,PLL6=600 Mhz,AHB=200 Mhz, APB1=100Mhz  MBus=300Mhz
[03.524]gic: normal mode
[03.526]sunxi flash map init
[03.529]line:703 init_clocks
[03.532]init_clocks:finish
[03.534]flash init start
[03.536]workmode = 16,storage type = 0
try card 2
set card number 2
get card number 2
[03.544][mmc]: mmc driver ver uboot2018:2023-07-4 16:18:00
[03.551][mmc]: Is not Boot mode!
[03.553][mmc]: SUNXI SDMMC Controller Version:0x50310
[03.565][mmc]: ************Try SD card 2************
[03.570][mmc]: mmc 2 cmd timeout 100 status 100
[03.574][mmc]: smc 2 err, cmd 8,  RTO
[03.577][mmc]: mmc 2 close bus gating and reset
[03.582][mmc]: mmc 2 cmd timeout 100 status 100
[03.586][mmc]: smc 2 err, cmd 55,  RTO
[03.590][mmc]: mmc 2 close bus gating and reset
[03.594][mmc]: ************Try MMC card 2************
[03.617][mmc]: mmc 2 cmd timeout 100 status 100
[03.621][mmc]: smc 2 err, cmd 8,  RTO
[03.624][mmc]: mmc 2 close bus gating and reset
[03.629][mmc]: mmc 2 cmd timeout 100 status 100
[03.633][mmc]: smc 2 err, cmd 55,  RTO
[03.637][mmc]: mmc 2 close bus gating and reset
[03.653][mmc]: gen_tuning_blk_bus8: total blk 10
[03.657][mmc]: gen_tuning_blk_bus4: total blk 6
[03.661][mmc]: Using 4 bit tuning now
[03.685][mmc]: write_tuning_try_freq: write ok
[03.689][mmc]: Pattern compare ok
[03.692][mmc]: Write tuning pattern ok
[03.696][mmc]: ================== HSSDR52_SDR25...
[03.700][mmc]: skip freq 400000
[03.703][mmc]: skip freq 25000000
[03.706][mmc]: freq: 2-50000000-64-4
[03.947][mmc]: [0-56|57]
[03.949][mmc]: ================== HSDDR52_DDR50...
[03.954][mmc]: skip freq 400000
[03.957][mmc]: freq: 1-25000000-64-4
[04.134][mmc]: freq: 2-50000000-64-4
[04.267][mmc]: [0-37|38] [61-63|3]
[04.270][mmc]: [0-36|37] [61-63|3]
[04.274][mmc]: DS26/SDR12: 0xffffffff 0xffffffff
[04.278][mmc]: HSSDR52/SDR25: 0xff1cffff 0xffffffff
[04.283][mmc]: HSDDR52/DDR50: 0xff1213ff 0xffffffff
[04.287][mmc]: HS200/SDR104: 0xffffffff 0xffffffff
[04.292][mmc]: HS400: 0xffffffff 0xffffffff
[04.296][mmc]: HS400: 0xffffffff 0xffffffff
[04.303][mmc]: Best spd md: 2-HSDDR52/DDR50, freq: 2-50000000, Bus width: 4
[04.309]Loading Environment from SUNXI_FLASH... OK
[04.314]try to burn key
[04.316]out of usb burn from boot: not boot mode
Hit any key to stop autoboot:  0
sunxi work mode=0x10
run usb efex
buf queue page size = 65536
delay time 2500
weak:otg_phy_config
usb init ok
set address 0x39
set address 0x39 ok
SUNXI_EFEX_ERASE_TAG
erase_flag = 0x0
origin_erase_flag = 0x1
FEX_CMD_fes_verify_status
FEX_CMD_fes_verify last err=0
the 0 mbr table is ok
the 1 mbr table is ok
the 2 mbr table is ok
the 3 mbr table is ok
*************MBR DUMP***************
total mbr part 9

part[0] name      :boot-resource
part[0] classname :DISK
part[0] addrlo    :0x8000
part[0] lenlo     :0x8686
part[0] user_type :32768
part[0] keydata   :0
part[0] ro        :0

part[1] name      :env
part[1] classname :DISK
part[1] addrlo    :0x10686
part[1] lenlo     :0x800
part[1] user_type :32768
part[1] keydata   :0
part[1] ro        :0

part[2] name      :env-redund
part[2] classname :DISK
part[2] addrlo    :0x10e86
part[2] lenlo     :0x800
part[2] user_type :32768
part[2] keydata   :0
part[2] ro        :0

part[3] name      :boot
part[3] classname :DISK
part[3] addrlo    :0x11686
part[3] lenlo     :0x8980
part[3] user_type :32768
part[3] keydata   :0
part[3] ro        :0

part[4] name      :rootfs
part[4] classname :DISK
part[4] addrlo    :0x1a006
part[4] lenlo     :0x19999
part[4] user_type :32768
part[4] keydata   :0
part[4] ro        :0

part[5] name      :dsp0
part[5] classname :DISK
part[5] addrlo    :0x3399f
part[5] lenlo     :0x800
part[5] user_type :32768
part[5] keydata   :0
part[5] ro        :0

part[6] name      :private
part[6] classname :DISK
part[6] addrlo    :0x3419f
part[6] lenlo     :0x2800
part[6] user_type :32768
part[6] keydata   :0
part[6] ro        :0

part[7] name      :rootfs_data
part[7] classname :DISK
part[7] addrlo    :0x3699f
part[7] lenlo     :0x2800
part[7] user_type :32768
part[7] keydata   :0
part[7] ro        :0

part[8] name      :UDISK
part[8] classname :DISK
part[8] addrlo    :0x3919f
part[8] lenlo     :0x0
part[8] user_type :32768
part[8] keydata   :0
part[8] ro        :0

total part: 10
mbr 0, 8000, 8000
boot-resource 1, 8686, 8000
env 2, 800, 8000
env-redund 3, 800, 8000
boot 4, 8980, 8000
rootfs 5, 19999, 8000
dsp0 6, 800, 8000
private 7, 2800, 8000
rootfs_data 8, 2800, 8000
UDISK 9, 0, 8000
[07.320]erase all part start
need erase flash: 0
[07.324]read item0 copy0
[07.332]Item0 (Map) magic is bad
[07.335]the secure storage item0 copy0 magic is bad
[07.343]Item0 (Map) magic is bad
[07.345]the secure storage item0 copy1 magic is bad
[07.350]Item0 (Map) magic is bad
[07.353]the secure storage map is empty
[07.356]no item name set-active-boot-slot in the map
erase secure storage failed
private part exist
GPT:boot-resource: 12000         1a685
GPT:env         : 1a686         1ae85
GPT:env-redund  : 1ae86         1b685
GPT:boot        : 1b686         24005
GPT:rootfs      : 24006         3d99e
GPT:dsp0        : 3d99f         3e19e
GPT:private     : 3e19f         4099e
GPT:rootfs_data : 4099f         4319e
GPT:UDISK       : 4319f         71ffde
begin to store data
part 0 name boot-resource
keydata = 0x0
part 1 name env
keydata = 0x0
part 2 name env-redund
keydata = 0x0
part 3 name boot
keydata = 0x0
part 4 name rootfs
keydata = 0x0
part 5 name dsp0
keydata = 0x0
part 6 name private
keydata = 0x0
find keypart private
keypart read start: 0x3419f, sectors 0x2800
keypart part private read  0x3419f, sectors 0x2800
part 7 name rootfs_data
keydata = 0x0
part 8 name UDISK
keydata = 0x0
begin to erase
[07.563]erase all part start
finish erase
rewrite
write primary GPT success
write Backup GPT success
[07.576]update partition map
keypart write start: 0x3419f, sectors 0x2800
flash exit
SUNXI_EFEX_MBR_TAG
mbr size = 0x10000
write primary GPT success
write Backup GPT success
[07.719]update partition map
FEX_CMD_fes_verify_status
FEX_CMD_fes_verify last err=0
******Has init
FEX_CMD_fes_verify_value, start 0x8000, size high 0x0:low 0x124000
FEX_CMD_fes_verify_value 0x5d1f529
FEX_CMD_fes_verify_value, start 0x10686, size high 0x0:low 0x20000
FEX_CMD_fes_verify_value 0xe350aad3
FEX_CMD_fes_verify_value, start 0x10e86, size high 0x0:low 0x20000
FEX_CMD_fes_verify_value 0xe350aad3
FEX_CMD_fes_verify_value, start 0x11686, size high 0x0:low 0xc65000
FEX_CMD_fes_verify_value 0x16f2acfc
FEX_CMD_fes_verify_value, start 0x1a006, size high 0x0:low 0x2a60000
FEX_CMD_fes_verify_value 0xe89dc663
FEX_CMD_fes_verify_value, start 0x3399f, size high 0x0:low 0x4ecb0
FEX_CMD_fes_verify_value 0x2e679ba6
bootfile_mode=4
SUNXI_EFEX_BOOT1_TAG
boot1 size = 0x150000, max size = 0x400000
uboot size = 0x150000
storage type = 2
FEX_CMD_fes_verify_status
FEX_CMD_fes_verify last err=0
bootfile_mode=4
SUNXI_EFEX_BOOT0_TAG
boot0 size = 0xa000
[12.363][mmc]: write mmc 2 info ok
dram para[0] = 318
dram para[1] = 3
dram para[2] = 7b7bfb
dram para[3] = 1
dram para[4] = 10e2
dram para[5] = 1000000
dram para[6] = 1c70
dram para[7] = 42
dram para[8] = 18
dram para[9] = 0
dram para[10] = 4a2195
dram para[11] = 2423190
dram para[12] = 8b061
dram para[13] = b4787896
dram para[14] = 0
dram para[15] = 48484848
dram para[16] = 48
dram para[17] = 1621121e
dram para[18] = 0
dram para[19] = 0
dram para[20] = 80000
dram para[21] = 340000
dram para[22] = 25
dram para[23] = b4006103
dram para[24] = 0
dram para[25] = 0
dram para[26] = 0
dram para[27] = 0
dram para[28] = 0
dram para[29] = 0
dram para[30] = 0
dram para[31] = 0
storage type = 2
FEX_CMD_fes_verify_status
FEX_CMD_fes_verify last err=0
sunxi_efex_next_action=2
exit usb
next work 2
[28]HELLO! BOOT0 is starting!OT
[31]BOOT0 commit : 069ed30b88
[34]set pll start
[40]periph0 has been enabled
[43]set pll end
[45][pmu]: bus read error
[47]board init ok
[49]enable_jtag
[51]ZQ value = 0x30
[52]get_pmu_exist() = -1
[55]DRAM BOOT DRIVE INFO: V0.34
[58]DRAM CLK = 792 MHz
[60]DRAM Type = 3 (2:DDR2,3:DDR3)
[63]DRAMC ZQ value: 0x7b7bfb
[66]DRAM ODT value: 0x42.
[69]ddr_efuse_type: 0xa
[72]DRAM SIZE = 256 MB
[78]DRAM simple test OK.
[81]rtc standby flag is 0x0, super standby flag is 0x0
[86]dram size =256
[88]card no is 2
[90]sdcard 2 line count 4
[92][mmc]: mmc driver ver 2021-05-21 14:47
[102][mmc]: Wrong media type 0x0, but host sdc2, try mmc first
[107][mmc]: ***Try MMC card 2***
[132][mmc]: RMCA OK!
[134][mmc]: mmc 2 bias 0
[138][mmc]: MMC 5.1
[140][mmc]: HSSDR52/SDR25 4 bit
[143][mmc]: 50000000 Hz
[145][mmc]: 3648 MB
[147][mmc]: ***SD/MMC 2 init OK!!!***
[242]Loading boot-pkg Succeed(index=0).
[246]Entry_name        = u-boot
[253]Entry_name        = optee
[257]Entry_name        = dtb
[260]tunning data addr:0x430003e8
[263]Jump to second Boot.
M/TC: OP-TEE version: fbed9b20 (gcc version 5.3.1 20160412 (Linaro GCC 5.3-2016.05)) #1 Tue Dec 19 03:21:45 UTC 2023 arm
E/TC:0 0 platform_standby_fdt_parse:126 no pmu0 node
E/TC:0 0 sunxi_twi_parse_from_dt:121 no pmu node


U-Boot 2018.07-g6047f84-dirty (Nov 15 2024 - 11:11:51 +0800) Allwinner Technology

[00.334]CPU:   Allwinner Family
[00.337]Model: sun8iw20
[00.339]DRAM:  256 MiB
[00.342]Relocation Offset is: 0cebf000
[00.370]secure enable bit: 0
E/TC:0   fdt_get
