配置系统环境

修改/etc/hosts文件

192.168.36.128 master
192.168.36.129 worker1
192.168.36.130 worker2

192.168.36.128，192.168.36.129，192.168.36.130都是Ubuntu20 Server LTS，都是虚拟机。

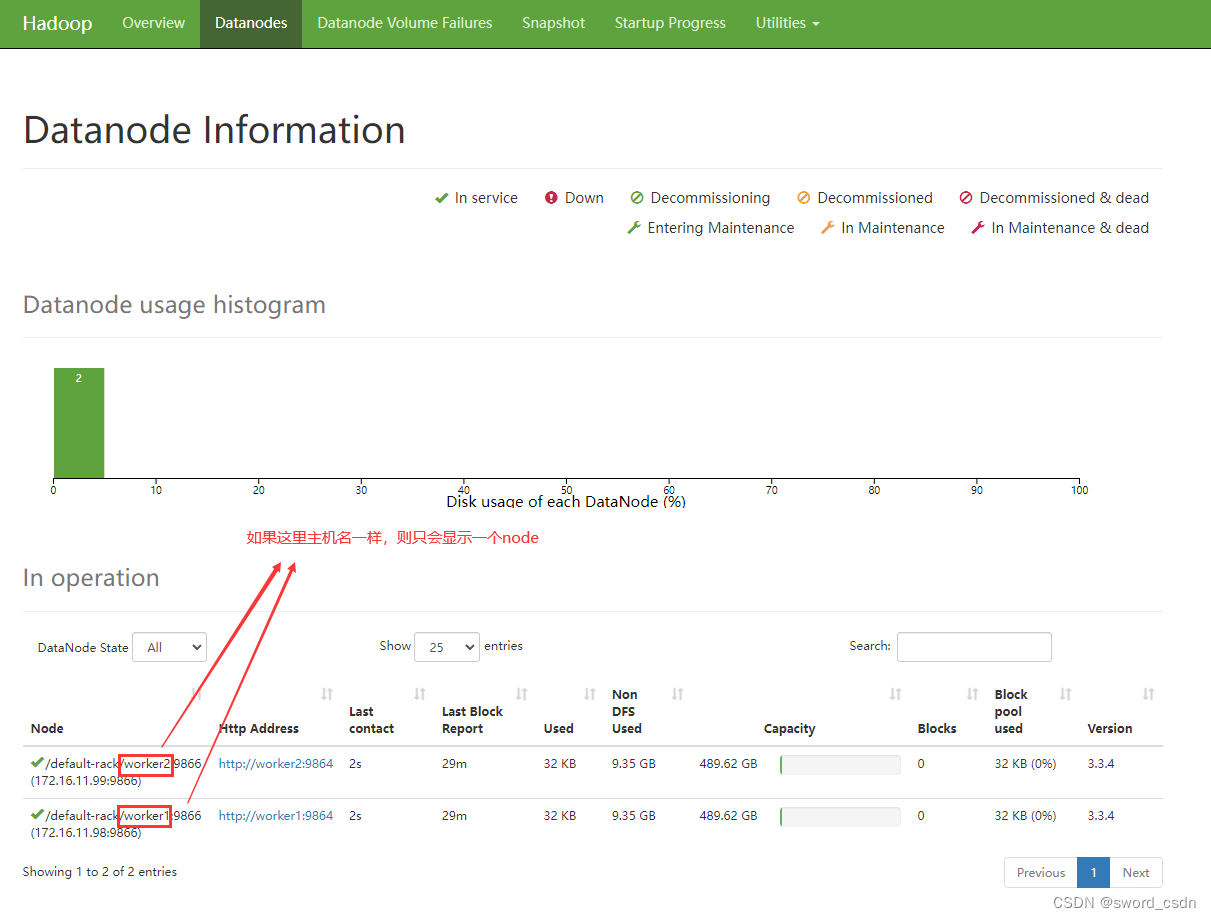

除了需要在hosts文件中修改之外，每台机器需要用以下命令修改主机名，否则，在使用192.168.36.128:50070查看hadoop集群时会发现，overview面板中的live nodes数量为2（两个worker），datanodes面板中的node只有1个，原因可能是因为两个worker的主机名重复

hostnamectl set-hostname master

然后需要reboot重启。

安装ssh并实现无密码登录

确认在每台机器上都安装ssh，确认后对ssh进行配置。
修改ssh的配置文件如下，配置文件的位置是/etc/ssh/sshd_config

Port 22
PermitRootLogin yes
PubkeyAuthentication yes
PasswordAuthentication yes
UsePAM yes

配置修改完成后重启sshd服务

systemctl restart sshd

在master上生成ssh秘钥，公钥，并将公钥拷贝到每个worker节点，这里是worker1和worker2（hadoop4…）

ssh-keygen -t rsa //注：在三次需要填密码的地方直接Enter
scp  ~/.ssh/id_rsa.pub root@worker1:~/.ssh/

注意：如果某个节点的~/.ssh/不存在，可以自己用ssh命令连接一下自己，那么该文件夹就会自动创建
在每个节点里面操作，生成authorized_keys

cat ~/.ssh/id_rsa.pub>>~/.ssh/authorized_keys

测试能不能使用ssh连自己

[root@localhost sbin]# ssh master

注意：如果出现下面的情况.

ECDSA host key for hadoop1 has changed and you have requested strict checking.
Host key verification failed.

则使用下面命令，原来的known_hosts文件会被保存为known_hosts.old，新的known_hosts会生成

[root@localhost sbin]# ssh-keygen -R master
# Host hadoop1 found: line 2
/root/.ssh/known_hosts updated.
Original contents retained as /root/.ssh/known_hosts.old

此时再连接，应该就可以成功了，对于hadoop2也做同样的ssh配置操作。

安装大数据组件

获取大数据组件
链接：https://pan.baidu.com/s/1oVtPeiKUnAfrcofHO5VfoQ
提取码：atbk
压缩包中包含：hadoop(3.3.4)，jdk(1.8)，scala(2.12.17)，zookeeper(3.6.1)，template文件夹，setup.sh

使用简易部署脚本setup.sh进行配置

在每台机器上执行简易部署脚本完成各个组件的配置

#!/bin/bash

function log() {
    echo "$(date '+%Y-%m-%d %H:%M:%S') ""$@"
}

CRTDIR=$(pwd)
JDK_DIR="$CRTDIR""/jdk"
HADOOP_DIR="$CRTDIR""/hadoop"
SCALA_DIR="$CRTDIR""/scala"
SPARK_DIR="$CRTDIR""/spark"
TEMPLATE_CONF_DIR="$CRTDIR""/template/"
ZK_DIR="$CRTDIR""/zookeeper"
MASTER="master"
WORKERS="worker1,worker2"
#"/etc/profile"
ENV="/etc/profile"


log "checking components jdk,hadoop,scala,spark,zookeeper..."
if [ ! -d $JDK_DIR ]; then
    log "jdk is not found"
    exit -1
fi

if [ ! -d $HADOOP_DIR ]; then
    log "hadoop is not found"
    exit -1
fi

if [ ! -d $SCALA_DIR ]; then
    log "scala is not found"
    exit -1
fi

if [ ! -d $SPARK_DIR ]; then
    log "spark is not found"
    exit -1
fi

if [ ! -d $ZK_DIR ]; then
    log "zookeeper is not found"
    exit -1
fi

log "Installing JDK..."
if [ -z $JAVA_HOME ]; then
    log "JAVA_HOME is not found,using the JDK in the package to install..."
    log "Configuring JDK's environment..."
    echo "export JAVA_HOME=$JDK_DIR" >>$ENV
    echo 'export CLASSPATH=$CLASSPATH:$JAVA_HOME/lib:$JAVA_HOME/jre/lib' >>$ENV
    echo 'export PATH=$JAVA_HOME/bin:$JAVA_HOME/jre/bin:$PATH:$HOME/bin' >>$ENV
else
    log "JDK already existed"
fi
log "The JDK's environment was configured successfully"
source $ENV
java -version

#----------------------------------------------Hadoop start------------------------------------------------
log "Installing Hadoop..."
log "Configuring core-site.xml..."
FILE_NAME="core-site.xml"
CORE_SITE_TMP="$TEMPLATE_CONF_DIR""$FILE_NAME"
CORE_SITE_TEMPLATE="$CORE_SITE_TMP"".template"
cp $CORE_SITE_TEMPLATE $CORE_SITE_TMP
sed -i "s|MASTER|$MASTER|g" $CORE_SITE_TMP
sed -i "s|CRTDIR|$CRTDIR|g" $CORE_SITE_TMP
CORE_SITE="$HADOOP_DIR""/etc/hadoop/""$FILE_NAME"
CORE_SITE_BAK="$CORE_SITE"".bak"
rm -rf $CORE_SITE_BAK
mv $CORE_SITE $CORE_SITE_BAK
cp $CORE_SITE_TMP $CORE_SITE

log "Configuring hdfs-site.xml..."
FILE_NAME="hdfs-site.xml"
HDFS_SITE_TMP="$TEMPLATE_CONF_DIR""$FILE_NAME"
HDFS_SITE_TEMPLATE="$HDFS_SITE_TMP"".template"
cp $HDFS_SITE_TEMPLATE $HDFS_SITE_TMP
sed -i "s|MASTER|$MASTER|g" $HDFS_SITE_TMP
sed -i "s|CRTDIR|$CRTDIR|g" $HDFS_SITE_TMP
HDFS_SITE="$HADOOP_DIR""/etc/hadoop/""$FILE_NAME"
HDFS_SITE_BAK="$HDFS_SITE"".bak"
rm -rf $HDFS_SITE_BAK
mv $HDFS_SITE $HDFS_SITE_BAK
cp $HDFS_SITE_TMP $HDFS_SITE

log "Configuring mapred-site.xml..."
FILE_NAME="mapred-site.xml"
MAPRED_SITE_TMP="$TEMPLATE_CONF_DIR""$FILE_NAME"
MAPRED_SITE_TEMPLATE="$MAPRED_SITE_TMP"".template"
cp $MAPRED_SITE_TEMPLATE $MAPRED_SITE_TMP
sed -i "s|MASTER|$MASTER|g" $MAPRED_SITE_TMP
MAPRED_SITE="$HADOOP_DIR""/etc/hadoop/""$FILE_NAME"
MAPRED_SITE_BAK="$MAPRED_SITE"".bak"
rm -rf $MAPRED_SITE_BAK
mv $MAPRED_SITE $MAPRED_SITE_BAK
cp $MAPRED_SITE_TMP $MAPRED_SITE

log "Configuring yarn-site.xml..."
FILE_NAME="yarn-site.xml"
YARN_SITE_TMP="$TEMPLATE_CONF_DIR""$FILE_NAME"
YARN_SITE_TEMPLATE="$YARN_SITE_TMP"".template"
cp $YARN_SITE_TEMPLATE $YARN_SITE_TMP
sed -i "s|MASTER|$MASTER|g" $YARN_SITE_TMP
YARN_SITE="$HADOOP_DIR""/etc/hadoop/""$FILE_NAME"
YARN_SITE_BAK="$YARN_SITE"".bak"
rm -rf $YARN_SITE_BAK
mv $YARN_SITE $YARN_SITE_BAK
cp $YARN_SITE_TMP $YARN_SITE

log "Configuring workers file..."
FILE_NAME="workers"
WORKERS_FILE_TMP="$TEMPLATE_CONF_DIR""$FILE_NAME"
WORKERS_FILE_TEMPLATE="$WORKERS_FILE_TMP"".template"
cp $WORKERS_FILE_TEMPLATE $WORKERS_FILE_TMP
WORKERS_CONT=${WORKERS//,/\\n}
sed -i "s|WORKERS|$WORKERS_CONT|g" $WORKERS_FILE_TMP
WORKERS_FILE="$HADOOP_DIR""/etc/hadoop/""$FILE_NAME"
WORKERS_FILE_BAK="$WORKERS_FILE"".bak"
rm -rf $WORKERS_FILE_BAK
mv $WORKERS_FILE $WORKERS_FILE_BAK
cp $WORKERS_FILE_TMP $WORKERS_FILE

log "Configuring hadoop-env.sh..."
FILE_NAME="hadoop-env.sh"
HADOOP_ENV_TMP="$TEMPLATE_CONF_DIR""$FILE_NAME"
HADOOP_ENV_TEMPLATE="$HADOOP_ENV_TMP"".template"
cp $HADOOP_ENV_TEMPLATE $HADOOP_ENV_TMP
sed -i "s|JDKHOME|$JDK_DIR|g" $HADOOP_ENV_TMP
HADOOP_ENV_FILE="$HADOOP_DIR""/etc/hadoop/""$FILE_NAME"
HADOOP_ENV_BAK="$HADOOP_ENV_FILE"".bak"
rm -rf $HADOOP_ENV_BAK
mv $HADOOP_ENV_FILE $HADOOP_ENV_BAK
cp $HADOOP_ENV_TMP $HADOOP_ENV_FILE
log "Configuration files of Hadoop was configured successfully"

log "Configuring Hadoop environment..."
if [ -z $HADOOP_HOME ]; then
    log "HADOOP_HOME is not found,configuring..."
    echo "export HADOOP_HOME=$HADOOP_DIR" >>$ENV
    echo 'export PATH=$PATH:$HADOOP_HOME/bin:$HADOOP_HOME/sbin' >>$ENV
else
    log "HADOOP_HOME already existed,skipping..."
fi

if [ -z $HDFS_DATANODE_USER ]; then
    log "HDFS_DATANODE_USER is not found,configuring..."
    echo "export HDFS_DATANODE_USER=root" >>$ENV
else
    log "HDFS_DATANODE_USER already existed,skipping..."
fi

if [ -z $HDFS_DATANODE_SECURE_USER ]; then
    log "HDFS_DATANODE_SECURE_USER is not found,configuring..."
    echo "export HDFS_DATANODE_SECURE_USER=hdfs" >>$ENV
else
    log "HDFS_DATANODE_SECURE_USER already existed,skipping..."
fi

if [ -z $HDFS_NAMENODE_USER ]; then
    log "HDFS_NAMENODE_USER is not found,configuring..."
    echo "export HDFS_NAMENODE_USER=root" >>$ENV
else
    log "HDFS_NAMENODE_USER already existed,skipping..."
fi

if [ -z $HDFS_SECONDARYNAMENODE_USER ]; then
    log "HDFS_SECONDARYNAMENODE_USER is not found,configuring..."
    echo "export HDFS_SECONDARYNAMENODE_USER=root" >>$ENV
else
    log "HDFS_SECONDARYNAMENODE_USER already existed,skipping..."
fi

if [ -z $YARN_RESOURCEMANAGER_USER ]; then
    log "YARN_RESOURCEMANAGER_USER is not found,configuring..."
    echo "export YARN_RESOURCEMANAGER_USER=root" >>$ENV
else
    log "YARN_RESOURCEMANAGER_USER already existed,skipping..."
fi

if [ -z $YARN_NODEMANAGER_USER ]; then
    log "YARN_NODEMANAGER_USER is not found,configuring..."
    echo "export YARN_NODEMANAGER_USER=root" >>$ENV
else
    log "YARN_NODEMANAGER_USER already existed,skipping..."
fi
log "Hadoop's environment was configured successfully"
source $ENV
hadoop version
#----------------------------------------------Hadoop end------------------------------------------------
#----------------------------------------------Scala start------------------------------------------------
log "Installing Scala..."
log "Configuring scala environment..."
if [ -z $SCALA_HOME ]; then
    log "SCALA_HOME is not found,configuring..."
    echo "export SCALA_HOME=$SCALA_DIR" >>$ENV
    echo 'export PATH=$SCALA_HOME/bin:$PATH' >>$ENV
else
    log "SCALA_HOME already existed,skipping..."
fi
log " Scala's environment was configured successfully"
source $ENV
scala -version
#----------------------------------------------Scala end------------------------------------------------
#----------------------------------------------Spark start------------------------------------------------
log "Installing Spark..."
log "Configuring slaves file..."
FILE_NAME="slaves"
SLAVES_FILE_TMP="$TEMPLATE_CONF_DIR""$FILE_NAME"
SLAVES_TEMPLATE="$SLAVES_FILE_TMP"".template"
cp $SLAVES_TEMPLATE $SLAVES_FILE_TMP
WORKERS_TMP=${WORKERS//,/\\n}
sed -i "s|WORKERS|$WORKERS_TMP|g" $SLAVES_FILE_TMP
SLAVES_FILE="$SPARK_DIR""/conf/""workers"
SLAVES_FILE_BAK="$SLAVES_FILE"".bak"
rm -rf $SLAVES_FILE_BAK
mv $SLAVES_FILE $SLAVES_FILE_BAK
cp $SLAVES_FILE_TMP $SLAVES_FILE

log "Configuring spark-config.sh..."
FILE_NAME="spark-config.sh"
SPARK_CONFIG_TMP="$TEMPLATE_CONF_DIR""$FILE_NAME"
SPARK_CONFIG_TEMPLATE="$SPARK_CONFIG_TMP"".template"
cp $SPARK_CONFIG_TEMPLATE $SPARK_CONFIG_TMP
sed -i "s|JDKHOME|$JDK_DIR|g" $SPARK_CONFIG_TMP
SPARK_CONFIG_FILE="$SPARK_DIR""/conf/""$FILE_NAME"
SPARK_CONFIG_BAK="$SPARK_CONFIG_FILE"".bak"
rm -rf $SPARK_CONFIG_BAK
mv $SPARK_CONFIG_FILE $SPARK_CONFIG_BAK
cp $SPARK_CONFIG_TMP $SPARK_CONFIG_FILE
log "Configuration files of Spark was configured successfully"

log "Configuring Spark environment..."
if [ -z $SPARK_HOME ]; then
    log "SPARK_HOME is not found,configuring..."
    echo "export SPARK_HOME=$SPARK_DIR" >>$ENV
    echo 'export PATH=$PATH:$SPARK_HOME/bin' >>$ENV
else
    log "SPARK_HOME already existed,skipping..."
fi

if [ -z $SPARK_MASTER_HOST ]; then
    log "SPARK_MASTER_HOST is not found,configuring..."
    echo "export SPARK_MASTER_HOST=$MASTER" >>$ENV
else
    log "SPARK_MASTER_HOST already existed,skipping..."
fi

if [ -z $SPARK_WORKER_MEMORY ]; then
    log "SPARK_WORKER_MEMORY is not found,configuring..."
    echo 'export SPARK_WORKER_MEMORY=2g' >>$ENV
else
    log "SPARK_WORKER_MEMORY already existed,skipping..."
fi

if [ -z $SPARK_WORKER_CORES ]; then
    log "SPARK_WORKER_CORES is not found,configuring..."
    echo 'export SPARK_WORKER_CORES=2' >>$ENV
else
    log "SPARK_WORKER_CORES already existed,skipping..."
fi

if [ -z $SPARK_WORKER_INSTANCES ]; then
    log "SPARK_WORKER_INSTANCES is not found,configuring..."
    echo 'export SPARK_WORKER_INSTANCES=2' >>$ENV
else
    log "SPARK_WORKER_INSTANCES already existed,skipping..."
fi

if [ -z "$SPARK_DAEMON_JAVA_OPTS" ]; then
    log "SPARK_DAEMON_JAVA_OPTS is not found,configuring..."
    CLUSTERS="$MASTER"":2181"
    WORKER_ARR=(${WORKERS//,/ })
    for item in ${WORKER_ARR[@]}; do
        CLUSTERS="$CLUSTERS"",""$item"":2181"
    done
    echo 'export SPARK_DAEMON_JAVA_OPTS="-Dspark.deploy.recoveryMode=ZOOKEEPER -Dspark.deploy.zookeeper.url='"$CLUSTERS"' -Dspark.deploy.zookeeper.dir='"$ZK_DIR"'/data/"' >>$ENV
else
    log "SPARK_DAEMON_JAVA_OPTS already existed,skipping..."
fi
#----------------------------------------------Spark end------------------------------------------------
#----------------------------------------------Zookeeper Start------------------------------------------------
log "Installing Zookeeper..."
log "Configuring zoo.cfg..."
FILE_NAME="zoo.cfg"
ZOOCFG_TMP="$TEMPLATE_CONF_DIR""$FILE_NAME"
ZOOCFG_TEMPLATE="$ZOOCFG_TMP"".template"
cp $ZOOCFG_TEMPLATE $ZOOCFG_TMP
WORKERS_ARR=(${WORKERS//,/ })
COUNT=1
ZK_CLUSTERS="server.1=""$MASTER"":2888:3888\n"
for item in ${WORKERS_ARR[@]}; do
    COUNT=$[$COUNT+1]
    ZK_CLUSTERS="$ZK_CLUSTERS""server\.$COUNT=$item\:2888\:3888\n"
done
sed -i "s|ZK_CLUSTERS|$ZK_CLUSTERS|g" $ZOOCFG_TMP
sed -i "s|CRTDIR|$CRTDIR|g" $ZOOCFG_TMP
ZOOCFG_FILE="$ZK_DIR""/conf/""$FILE_NAME"
ZOOCFG_FILE_BAK="$ZOOCFG_FILE"".bak"
rm -rf $ZOOCFG_FILE_BAK
mv $ZOOCFG_FILE $ZOOCFG_FILE_BAK
cp $ZOOCFG_TMP $ZOOCFG_FILE
echo "1" > $ZK_DIR/data/myid
log "Configuration files of Zookeeper was configured successfully"
#----------------------------------------------Zookeeper end------------------------------------------------

注意：zookeeper集群模式下还要配置一个myid文件,这个文件需要放在dataDir（在zoo.cfg中可以找到）目录下，文件里面只有一个值，对应server的编号（就是zoo.cfg文件中server.A=B:C:D中的A）在各自的机器上设置ServerID标识，
例如：192.168.36.128:2888的是1，192.168.36.129的是2，192.168.36.130的是3，

echo "1" > /home/sword/DC/zookeeper/data/myid

启动Zookeeper

在master，worker1，worker2启动zkServer.sh

./zkServer.sh start

查看zookeeper状态

./zkServer.sh status

ZooKeeper JMX enabled by default
Using config: /home/sword/DC/zookeeper/bin/../conf/zoo.cfg
Client port found: 2181. Client address: localhost.
Mode: leader

启动Hadoop

先初始化hadoop

hdfs namenode -format

然后进入到hadoop的安装路径的sbin目录启动hdfs

start-all.sh

浏览器中输入ip:50070测试启动的节点（启动可能会比较慢，需要等待才会出现两个）
在这里插入图片描述

启动Spark

进入spark的安装路径的sbin目录，启动master和slaves

./start-all.sh

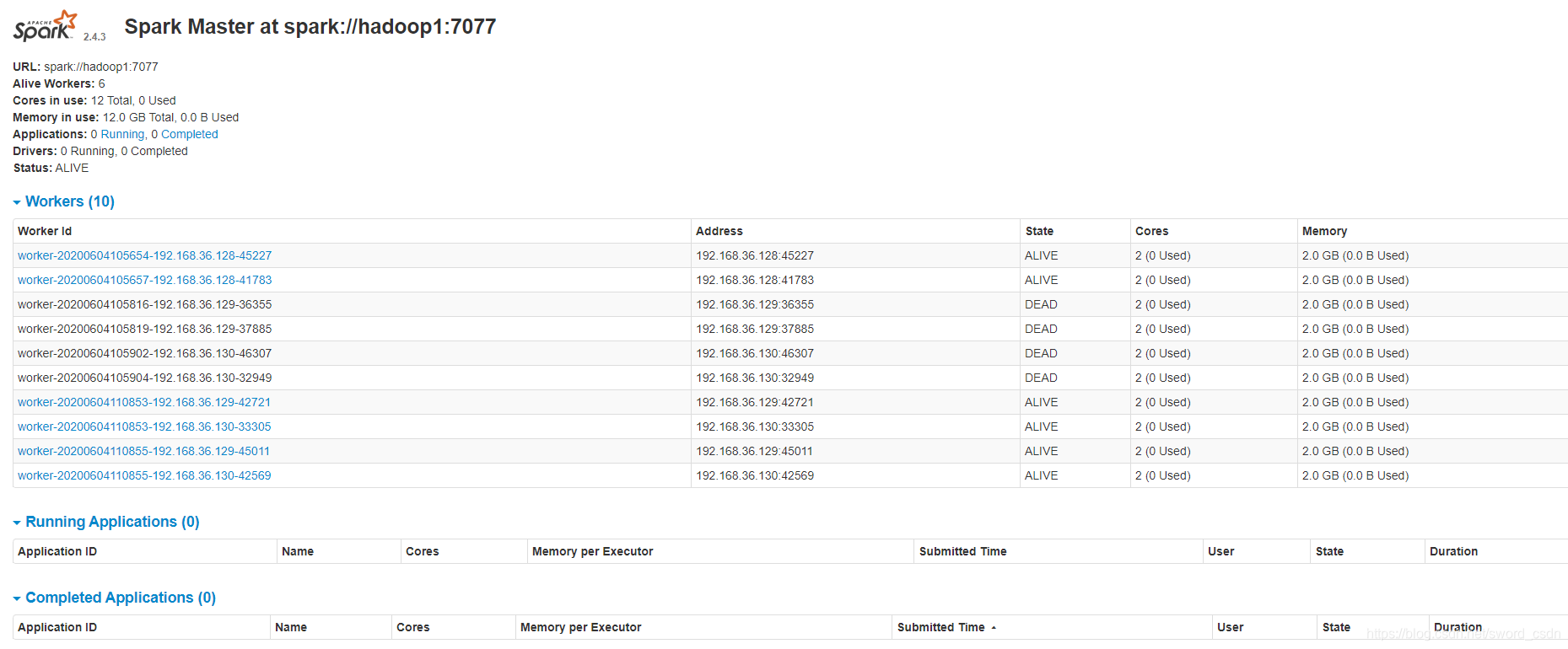

在浏览器上输入http://192.168.36.128:8081/

在这里插入图片描述
附上Spark程序的maven pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>
    <groupId>com.edata.bigdata</groupId>
    <artifactId>edata-base</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <java.version>1.8</java.version>
        <scala.version>2.12</scala.version>
<!--        <scala.binary.version>2.12</scala.binary.version>-->
        <spark.version>3.3.1</spark.version>
        <hadoop.version>3.1.2</hadoop.version>
        <posgresql.version>42.1.1</posgresql.version>
        <mongo.version>10.0.4</mongo.version>
        <nebula.version>3.0.0</nebula.version>
        <flink.version>1.14.3</flink.version>
        <zookeeper.version>3.6.1</zookeeper.version>
<!--        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> -->
    </properties>

    <modules>
        <module>edata-base-component</module>
    </modules>

    <dependencies>


        <!--Postgresql-->
        <!-- <dependency>
            <groupId>org.postgresql</groupId>
            <artifactId>postgresql</artifactId>
            <version>42.3.1</version>
        </dependency> -->

        <!--mongodb-->
        <dependency>
            <groupId>org.mongodb.spark</groupId>
            <artifactId>mongo-spark-connector</artifactId>
            <version>${mongo.version}</version>
        </dependency>

        <!--Spark-->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-core_${scala.version}</artifactId>
            <version>${spark.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-streaming_${scala.version}</artifactId>
            <version>${spark.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-streaming-kafka-0-10_${scala.version}</artifactId>
            <version>${spark.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-sql_${scala.version}</artifactId>
            <version>${spark.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-hive_${scala.version}</artifactId>
            <version>${spark.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-mllib_${scala.version}</artifactId>
            <version>${spark.version}</version>
        </dependency>

        <dependency>
            <groupId>com.vesoft</groupId>
            <artifactId>nebula-spark-connector</artifactId>
            <version>${nebula.version}</version>
        </dependency>

        <!--ZooKeeper-->
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>${zookeeper.version}</version>
        </dependency>
    </dependencies>
    <build>
<!--        <sourceDirectory>src/main/scala</sourceDirectory>-->
<!--        <testSourceDirectory>src/test/scala</testSourceDirectory>-->
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>${java.version}</source>
                    <target>${java.version}</target>
                    <encoding>UTF-8</encoding>
                    <showWarnings>true</showWarnings>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.scala-tools</groupId>
                <artifactId>maven-scala-plugin</artifactId>
                <version>2.15.2</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>testCompile</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
<!--            <plugin>-->
<!--                <groupId>org.apache.maven.plugins</groupId>-->
<!--                <artifactId>maven-surefire-plugin</artifactId>-->
<!--                <version>2.19</version>-->
<!--                <configuration>-->
<!--                    <skip>true</skip>-->
<!--                </configuration>-->
<!--            </plugin>-->
        </plugins>
    </build>
</project>
