SpringBoot2.1 集成 Mybatis Generator 1.3.7#

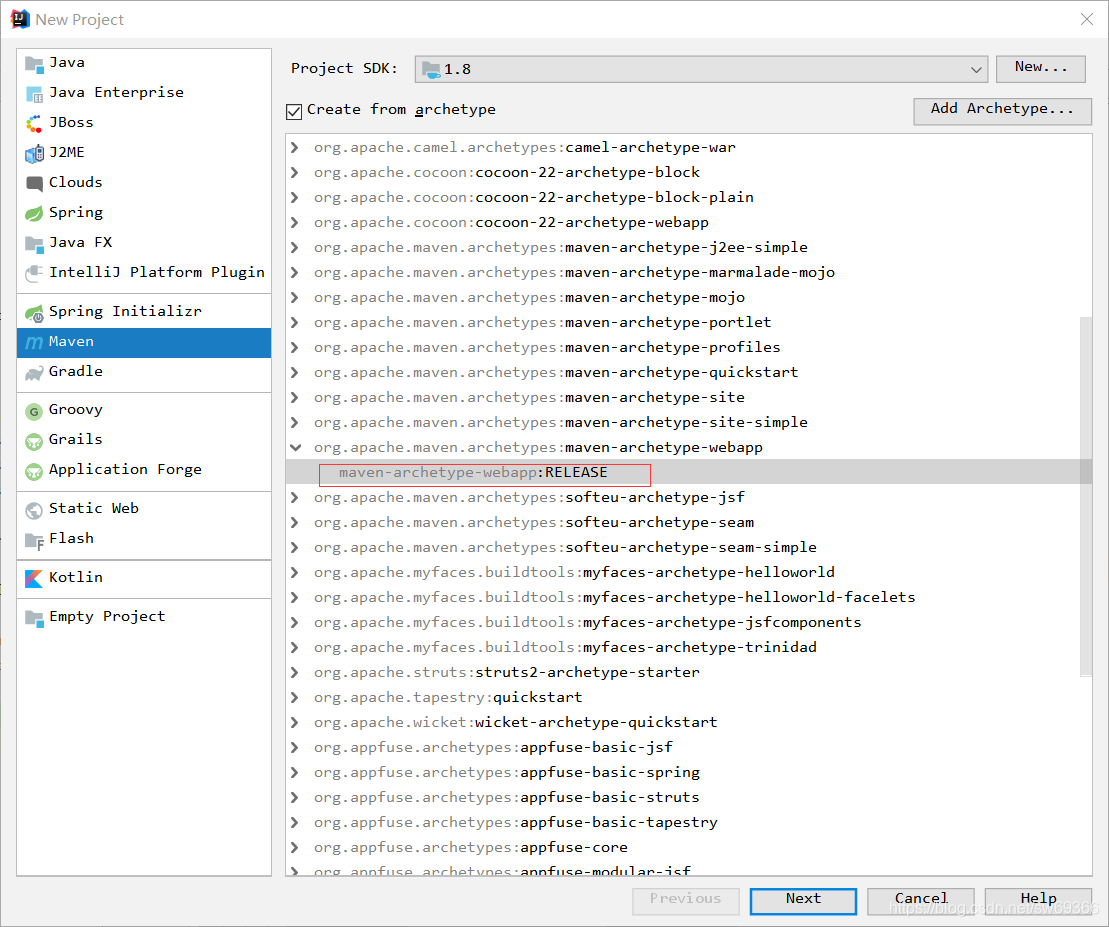

Idea新建项目如图选择

maven-archetype-webapp:RELEASE

等待 IDEA 自动创建完成，如下图

开始集成SpringBoot 和 Mybatis generator

pom.xml

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>spring-boot</groupId>
    <artifactId>s_mybatis_generator</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>

    <name>s_mybatis_generator Maven Webapp</name>
    <!-- FIXME change it to the project's website -->
    <url>http://www.example.com</url>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.0.BUILD-SNAPSHOT</version>
    </parent>


    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.7</maven.compiler.source>
        <maven.compiler.target>1.7</maven.compiler.target>
        <mybatis.generator.configurationFile>${basedir}/src/main/resources/generatorConfig.xml
        </mybatis.generator.configurationFile>
    </properties>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>
        <!-- https://mvnrepository.com/artifact/io.netty/netty-all -->
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
            <version>4.1.32.Final</version>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/commons-io/commons-io -->
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.6</version>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.38</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/com.squareup.okhttp3/okhttp -->
        <dependency>
            <groupId>com.squareup.okhttp3</groupId>
            <artifactId>okhttp</artifactId>
            <version>3.11.0</version>
        </dependency>


        <!-- https://mvnrepository.com/artifact/com.alibaba/fastjson -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.49</version>
        </dependency>


        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.4.6</version>
        </dependency>

        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.2</version>
        </dependency>


    </dependencies>

    <build>
        <finalName>s_mybatis_generator</finalName>

        <plugins>

            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <fork>true</fork>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>8</source>
                    <target>8</target>
                </configuration>
            </plugin>


            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.7</version>
            </plugin>

        </plugins>


        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
            </resource>
        </resources>

    </build>
</project>

配置 application.properties

server.port=9999
logging.level.root=INFO
logging.file=./sb.log
logging.file.x=./sb_x.log
spring.http.encoding.charset=UTF-8
server.tomcat.uri-encoding=UTF-8
server.servlet.session.timeout=3600S

spring.datasource.url=jdbc:mysql://127.0.0.1:3306/chat?useSSL=false
spring.datasource.username=root
spring.datasource.password=root
spring.datasource.driver-class-name=com.mysql.jdbc.Driver

spring.mvc.static-path-pattern=/**

spring.jackson.time-zone=GMT+8
spring.jackson.date-format=yyyy-MM-dd HH:mm:ss

spring.thymeleaf.cache=false


mybatis.mapper-locations=classpath:sbmybatis/test/mapper/xml/*.xml
mybatis.type-aliases-package=classpath:sbmybatis.test.mapper

配置 generatorConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
    <!-- 数据库驱动 -->
    <classPathEntry location="src/main/resources/mysql.jar"/>
    <context id="MysqlTables" targetRuntime="MyBatis3">

        <!--<plugin type="com.xineryun.api.core.mybatis.XmlExtensionsPlugin"/>-->

        <plugin type="org.mybatis.generator.plugins.ToStringPlugin"/>
        <plugin type="org.mybatis.generator.plugins.RowBoundsPlugin"/>
        <plugin type="org.mybatis.generator.plugins.SerializablePlugin">
            <property name="suppressJavaInterface" value="false"/>
        </plugin>
        <plugin type="org.mybatis.generator.plugins.CaseInsensitiveLikePlugin"/>
        <plugin type="org.mybatis.generator.plugins.EqualsHashCodePlugin"/>
        <commentGenerator>
            <property name="suppressDate" value="false"/>
            <!-- 是否去除自动生成的注释 true：是 ： false:否 -->
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>

        <!--数据库链接URL，用户名、密码 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost:3306/chat" userId="root"
                        password="root">
        </jdbcConnection>

        <javaTypeResolver>
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- 生成模型的包名和位置 -->
        <javaModelGenerator targetPackage="sbmybatis.test.mapper.model"
                            targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>

        <!-- 生成映射文件的包名和位置 -->
        <sqlMapGenerator targetPackage="sbmybatis.test.mapper.xml"
                         targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>


        <javaClientGenerator type="XMLMAPPER" targetPackage="sbmybatis.test.mapper"
                             targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>

        <!-- 需要生成的表 -->

        <table tableName="users" domainObjectName="Users">
            <generatedKey column="id" sqlStatement="mysql" identity="true"/>
        </table>


    </context>
</generatorConfiguration>

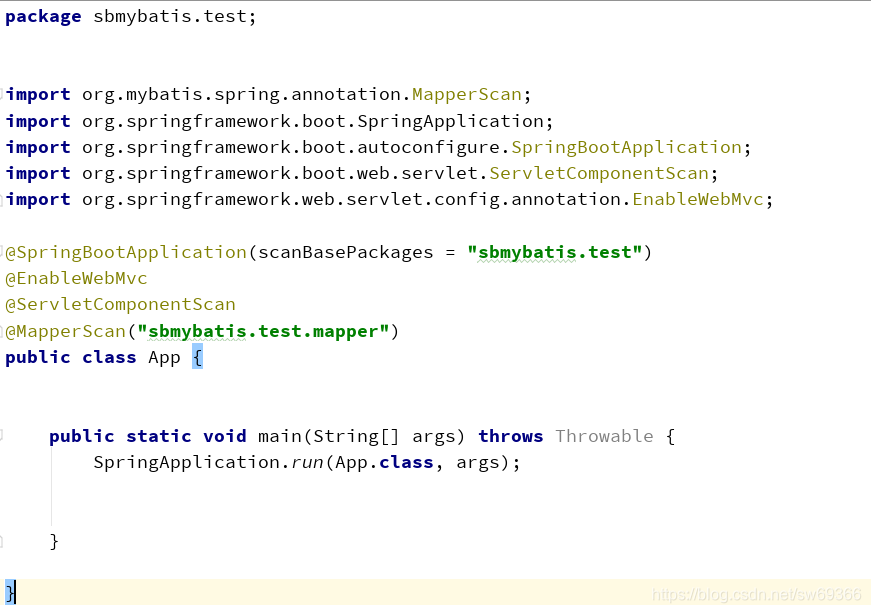

编写 SpringBoot 启动类

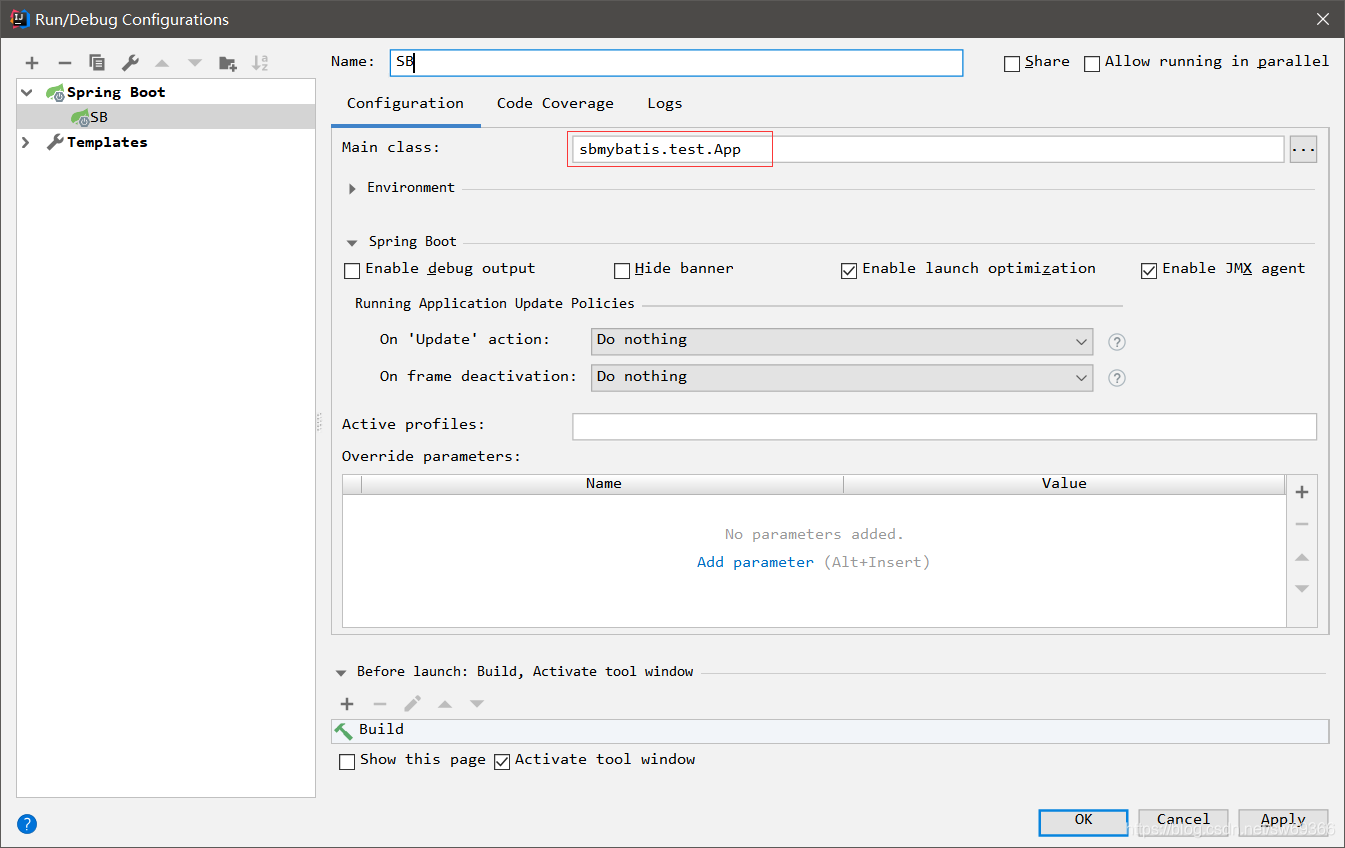

在IDEA 中配置 SpringBoot 的启动类

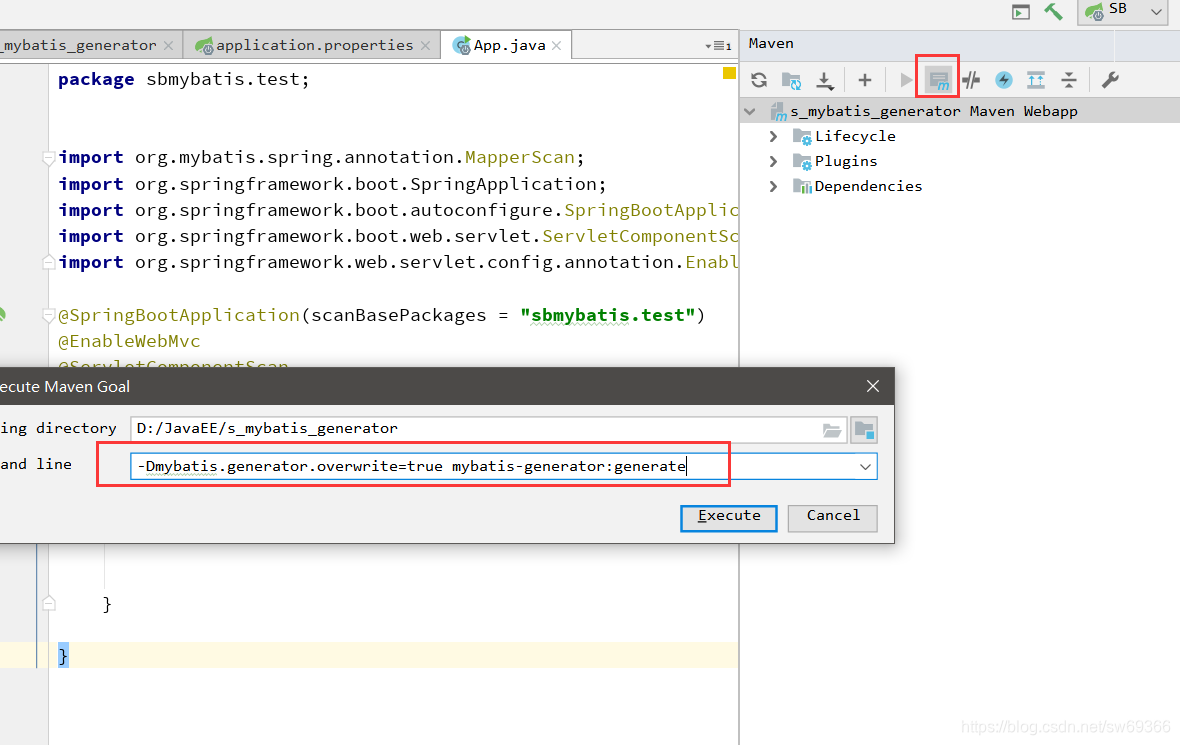

执行 Maven 命令生成自动的 mapper 和 xml 文件

-Dmybatis.generator.overwrite=true mybatis-generator:generate

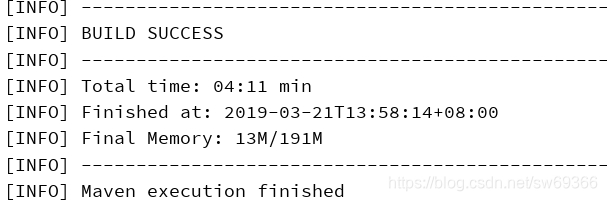

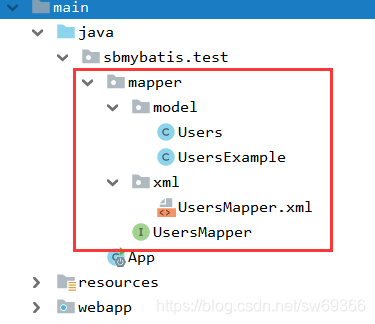

如下图，文件生成成功

在本地MYSQL 里创建测试表

CREATE TABLE `users` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `create_date` datetime DEFAULT CURRENT_TIMESTAMP,
  `user_name` varchar(32) NOT NULL,
  `user_status` varchar(32) DEFAULT NULL,
  `user_height` int(11) DEFAULT '0',
  `user_wright` int(11) DEFAULT '0',
  `user_gender` int(11) DEFAULT '0',
  `user_body_type` varchar(32) DEFAULT 'Unknown',
  `user_hair_color` varchar(32) DEFAULT 'Unknown',
  `user_location` varchar(256) DEFAULT 'Unknown',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;

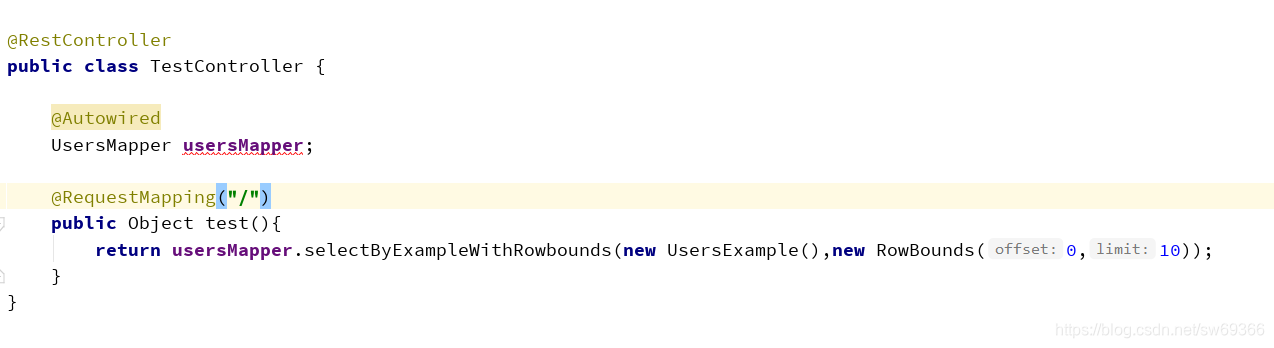

表创建好之后，创建测试 Controller

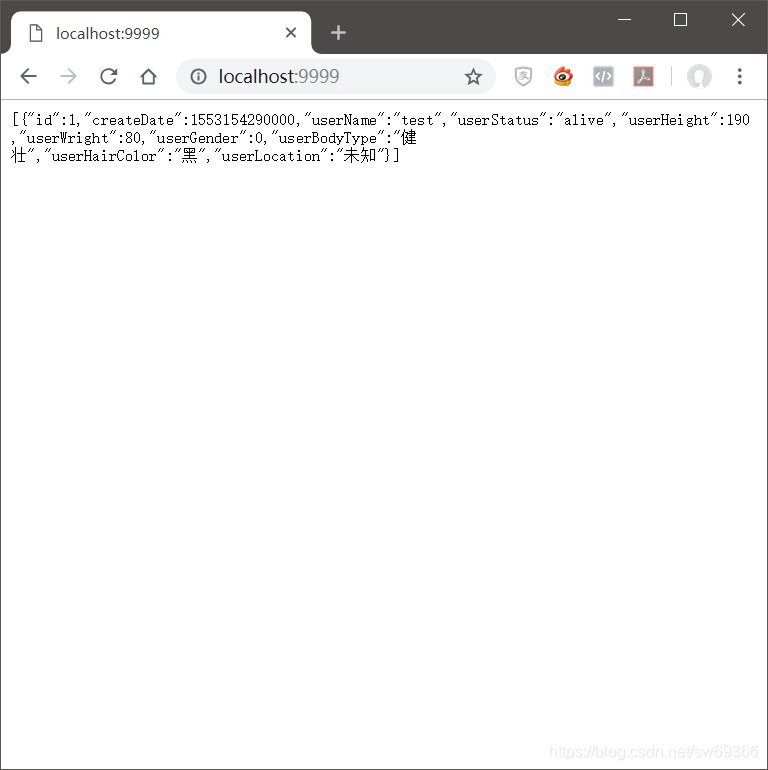

成功启动应用
