spark-sql-kafka streaming 首个batch日志太多导致异常退出

最近遇到了spark structured streaming从kafka读取数据时，首个批处理查询读取的日志太多导致程序崩溃，查找资料未果，只能从连接kafka的jar包源码入手，查看是否可以限制单个批量读取的最大日志数，最终通过修改源码重新编译实现该功能。

spark-sql-kafka在实现流式处理数据的时候，每次先读取前一个batch的topic-partition-offset，然后通过KafkaConsumer读取最新的offset，读取这期间的各个分区的日志，封装为rdd[Row]，然后进行各种处理。

这次主要修改了两个地方，一是在读取kafka数据的时候将每个分区的end-offset保存起来；二是在返回每个分区最新offset的时候，与已保存的前一次end-offset对比，如果大于程序能够处理的单个分区日志数量，则只返回前一次end-offset与单个分区日志数上限的和，表示maxnumber_per_partition_per_batch，这样spark每个批量最多处理的数据大小就是kafka的分区数量乘以单个分区的上限。

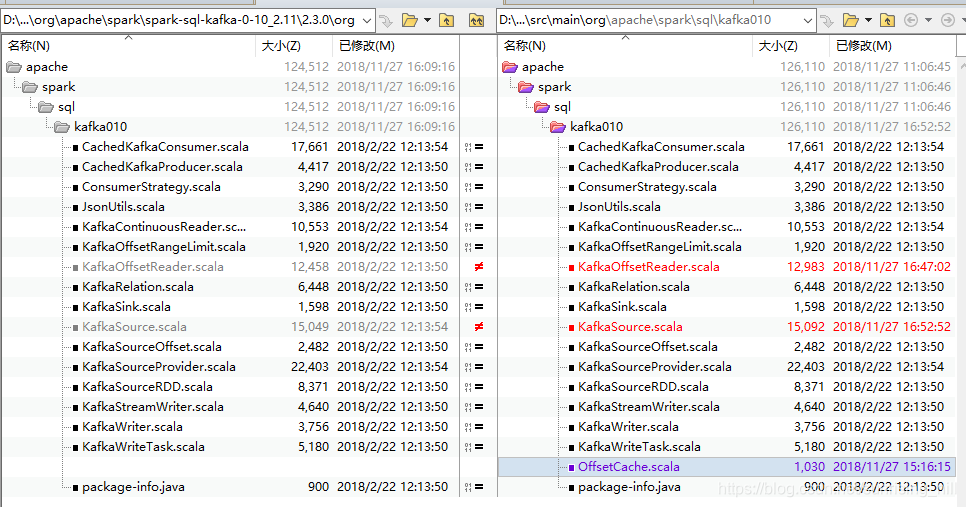

修改的对应文件为：

KafkaSource.scala

  override def getBatch(start: Option[Offset], end: Offset): DataFrame = {
    // Make sure initialPartitionOffsets is initialized
    initialPartitionOffsets

    logInfo(s"GetBatch called with start = $start, end = $end")
    val untilPartitionOffsets = KafkaSourceOffset.getPartitionOffsets(end)
    // On recovery, getBatch will get called before getOffset
    if (currentPartitionOffsets.isEmpty) {
      currentPartitionOffsets = Some(untilPartitionOffsets)
    }
    OffsetCache.pushOffsetInfo(end.json())
    if (start.isDefined && start.get == end) {
      return sqlContext.internalCreateDataFrame(
        sqlContext.sparkContext.emptyRDD, schema, isStreaming = true)
    }
    val fromPartitionOffsets = start match {
      case Some(prevBatchEndOffset) =>
        KafkaSourceOffset.getPartitionOffsets(prevBatchEndOffset)
      case None =>
        initialPartitionOffsets
    }
    ...
}

KafkaOffsetReader.scala

def fetchLatestOffsets(): Map[TopicPartition, Long] = runUninterruptibly {
    withRetriesWithoutInterrupt {
      // Poll to get the latest assigned partitions
      consumer.poll(0)
      val partitions = consumer.assignment()
      consumer.pause(partitions)
      logDebug(s"Partitions assigned to consumer: $partitions. Seeking to the end.")

      consumer.seekToEnd(partitions)
      val batchSize = 10000
      val partitionOffsets = partitions.asScala.map(p => p -> consumer.position(p)).toMap.map(p => {
        var offset: Long = p._2
        if (OffsetCache.topic_patition_offset_map.contains(p._1.topic())) {
          val partitionOffsetMap = OffsetCache.topic_patition_offset_map(p._1.topic())
          if (partitionOffsetMap.contains(p._1.partition())) {
            val preOffset = partitionOffsetMap(p._1.partition())
            if (offset - preOffset > batchSize) {
              offset = preOffset + batchSize
            }
          }
        }
        (p._1, offset)
      })
      logDebug(s"Got latest offsets for partition : $partitionOffsets")
      partitionOffsets
    }
  }

新加的文件OffsetCache.scala

package org.apache.spark.sql.kafka010

import com.google.gson.Gson

import scala.collection.JavaConversions._
import scala.collection.mutable

object OffsetCache {

    val gson = new Gson
    val topic_patition_offset_map = mutable.Map[String, mutable.Map[Int, Long]]()

    def pushOffsetInfo(json: String): Unit = {
        val topicPartOffsetMap = gson.fromJson(json, classOf[java.util.Map[String, java.util.Map[String, Double]]])
        topicPartOffsetMap.foreach(topic_map => {
            val partition_offset_map: mutable.Map[Int, Long] = topic_patition_offset_map.getOrElse(topic_map._1, mutable.Map[Int, Long]())
            topic_map._2.foreach(partition_offset => {
                partition_offset_map.put(partition_offset._1.toInt, partition_offset._2.toLong)
            })
            topic_patition_offset_map.put(topic_map._1, partition_offset_map)
        })
        println(s"topic_patition_offset_map         $topic_patition_offset_map")
    }
}
