十、Hystrix 参数详解

本文详细介绍了 Hystrix 的各种参数及其配置方法,包括 CommandProperties、CircuitBreaker、Metrics 等相关属性,帮助读者深入理解并正确配置 Hystrix。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

Hystrix属性优先级
1、内置全局默认值(Global default from code),默认值
如果某属性未通过下面的任何方式进行设置,则默认使用内置全局默认值。

2、动态全局默认属性(Dynamic global default property),默认属性
可以通过此方式来更改某属性的全局默认值。

3、内置实例默认值(Instance default from code),实例默认
可以在写代码的时候,设置某个属性的值。
例如:
public HystrixCommandInstance(int id) {
super(Setter.withGroupKey(HystrixCommandGroupKey.Factory.asKey("ExampleGroup"))
.andCommandPropertiesDefaults(HystrixCommandProperties.Setter()
.withExecutionTimeoutInMilliseconds(500)));
this.id = id;
}

4、动态配置实例属性(Dynamic instance property),实例属性
可以通过动态配置某特定实例的属性值,来覆盖前面三种的值。
例如下面的属性:
hystrix.command.HystrixCommandKey.execution.isolation.thread.timeoutInMilliseconds
可以使用通过 HystrixCommandKey 的名称来替换属性中的HystrixCommandKey,这样就完成了动态配置实例属性,例如:
hystrix.command.SubscriberGetAccount.execution.isolation.thread.timeoutInMilliseconds

上面四种设置属性值的优先级为:4 > 3 > 2 > 1




Hystrix 参数详解

Command Properties
一、Execution相关的属性
1、execution.isolation.strategy:隔离策略,默认是Thread, 可选Thread|Semaphore。
注意:在设置线程隔离策略时,推荐 HystrixCommand 使用 Thread,HystrixObservableCommand 使用 Semaphore。
默认属性:hystrix.command.default.execution.isolation.strategy
实例属性:hystrix.command.HystrixCommandKey.execution.isolation.strategy
例如:
HystrixCommandProperties.Setter()
.withExecutionIsolationStrategy(ExecutionIsolationStrategy.THREAD)

2、execution.timeout.enabled: 执行是否启用超时,默认启用true
默认属性:hystrix.command.default.execution.timeout.enabled
实例属性:hystrix.command.HystrixCommandKey.execution.timeout.enabled
例如:
HystrixCommandProperties.Setter()
.withExecutionTimeoutEnabled(boolean value)

3、execution.isolation.thread.timeoutInMilliseconds:命令执行超时时间,超过此时间,HystrixCommand被标记为TIMEOUT,并执行回退逻辑,默认1000ms
注意:超时会作用在HystrixCommand.queue(),即使调用者没有调用 get() 去获得 Future 对象。
默认属性:hystrix.command.default.execution.isolation.thread.timeoutInMilliseconds
实例属性:hystrix.command.HystrixCommandKey.execution.isolation.thread.timeoutInMilliseconds
例如:
HystrixCommandProperties.Setter()
.withExecutionTimeoutInMilliseconds(int value)

4、execution.isolation.thread.interruptOnTimeout: 发生超时是否中断,默认true
默认属性:hystrix.command.default.execution.isolation.thread.interruptOnTimeout
实例属性:hystrix.command.HystrixCommandKey.execution.isolation.thread.interruptOnTimeout
例如:
HystrixCommandProperties.Setter()
.withExecutionIsolationThreadInterruptOnTimeout(boolean value)

5、execution.isolation.thread.interruptOnCancel: 执行取消运行是否中断,默认false
默认属性:hystrix.command.default.execution.isolation.thread.interruptOnCancel
实例属性:hystrix.command.HystrixCommandKey.execution.isolation.thread.interruptOnCancel
例如:
HystrixCommandProperties.Setter()
.withExecutionIsolationThreadInterruptOnCancel(boolean value)


6、execution.isolation.semaphore.maxConcurrentRequests: 最大并发请求数,默认10,该参数当使用ExecutionIsolationStrategy.SEMAPHORE策略时才有效。如果达到最大并发请求数,请求会被拒绝。理论上选择semaphore size的原则和选择thread size一致,但选用semaphore时每次执行的单元要比较小且执行速度快(ms级别),否则的话应该用thread。
semaphore应该占整个容器(tomcat)的线程池的一小部分。
默认属性:hystrix.command.default.execution.isolation.semaphore.maxConcurrentRequests
实例属性:hystrix.command.HystrixCommandKey.execution.isolation.semaphore.maxConcurrentRequests
例如:
HystrixCommandProperties.Setter()
.withExecutionIsolationSemaphoreMaxConcurrentRequests(int value)



二、Fallback相关的属性
这些参数可以应用于Hystrix的THREAD和SEMAPHORE策略

1、fallback.enabled: 当执行失败或者请求被拒绝,是否会尝试调用hystrixCommand.getFallback() 。默认true
默认属性:hystrix.command.default.fallback.enabled
实例属性:hystrix.command.HystrixCommandKey.fallback.enabled
例如:
HystrixCommandProperties.Setter()
.withFallbackEnabled(boolean value)


2、fallback.isolation.semaphore.maxConcurrentRequests: 如果并发数达到该设置值,请求会被拒绝和抛出异常并且fallback不会被调用。默认10
默认属性:hystrix.command.default.fallback.isolation.semaphore.maxConcurrentRequests
实例属性:hystrix.command.HystrixCommandKey.fallback.isolation.semaphore.maxConcurrentRequests
例如:
HystrixCommandProperties.Setter()
.withFallbackIsolationSemaphoreMaxConcurrentRequests(int value)


三、Circuit Breaker相关的属性
1、circuitBreaker.enabled: 用来跟踪circuit的健康性,如果未达标则让request短路。默认true
默认属性:hystrix.command.default.circuitBreaker.enabled
实例属性:hystrix.command.HystrixCommandKey.circuitBreaker.enabled
例如:
HystrixCommandProperties.Setter()
.withCircuitBreakerEnabled(boolean value)

2、circuitBreaker.requestVolumeThreshold: 一个rolling window内最小的请求数。如果设为20,那么当一个rolling window的时间内(比如说1个rolling window是10秒)收到19个请求,即使19个请求都失败,也不会触发circuit break。默认20
默认属性:hystrix.command.default.circuitBreaker.requestVolumeThreshold
实例属性:hystrix.command.HystrixCommandKey.circuitBreaker.requestVolumeThreshold
例如:
HystrixCommandProperties.Setter()
.withCircuitBreakerRequestVolumeThreshold(int value)


3、circuitBreaker.sleepWindowInMilliseconds: 触发短路的时间值,当该值设为5000时,则当触发circuit break后的5000毫秒内都会拒绝request,也就是5000毫秒后才会关闭circuit。默认5000
默认属性:hystrix.command.default.circuitBreaker.sleepWindowInMilliseconds
实例属性:hystrix.command.HystrixCommandKey.circuitBreaker.sleepWindowInMilliseconds
例如:
HystrixCommandProperties.Setter()
.withCircuitBreakerSleepWindowInMilliseconds(int value)


4、circuitBreaker.errorThresholdPercentage:错误比率阀值,如果错误率>=该值,circuit会被打开,并短路所有请求触发fallback。默认50
默认属性:hystrix.command.default.circuitBreaker.errorThresholdPercentage
实例属性:hystrix.command.HystrixCommandKey.circuitBreaker.errorThresholdPercentage
例如:
HystrixCommandProperties.Setter()
.withCircuitBreakerErrorThresholdPercentage(int value)


5、circuitBreaker.forceOpen: 强制打开熔断器,如果打开这个开关,那么拒绝所有request,默认false
该属性优先级比circuitBreaker.forceClosed高。
默认属性:hystrix.command.default.circuitBreaker.forceOpen
实例属性:hystrix.command.HystrixCommandKey.circuitBreaker.forceOpen
例如:
HystrixCommandProperties.Setter()
.withCircuitBreakerForceOpen(boolean value)

6、circuitBreaker.forceClosed: 强制关闭熔断器 如果这个开关打开,circuit将一直关闭且忽略circuitBreaker.errorThresholdPercentage
默认属性:hystrix.command.default.circuitBreaker.forceClosed
实例属性:hystrix.command.HystrixCommandKey.circuitBreaker.forceClosed
例如:
HystrixCommandProperties.Setter()
.withCircuitBreakerForceClosed(boolean value)


四、Metrics相关参数
1、metrics.rollingStats.timeInMilliseconds: 设置统计的时间窗口值的毫秒值,circuit break 的打开会根据1个rolling window的统计来计算。若rolling window被设为10000毫秒,则rolling window会被分成n个buckets,每个bucket包含success,failure,timeout,rejection的次数的统计信息。默认10000。


默认属性:hystrix.command.default.metrics.rollingStats.timeInMilliseconds
实例属性:hystrix.command.HystrixCommandKey.metrics.rollingStats.timeInMilliseconds
例如:
HystrixCommandProperties.Setter()
.withMetricsRollingStatisticalWindowInMilliseconds(int value)

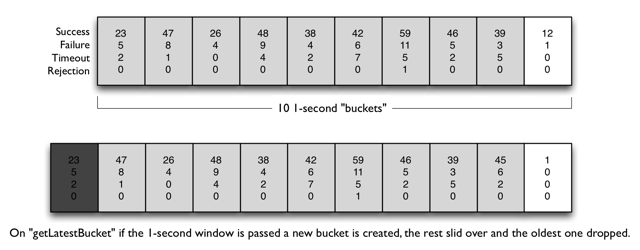

2、metrics.rollingStats.numBuckets: 设置一个rolling window被划分的数量,若numBuckets=10,rolling window=10000,那么一个bucket的时间即1秒。必须符合rolling window % numberBuckets == 0,否则会抛出异常。默认10
默认属性:hystrix.command.default.metrics.rollingStats.numBuckets
实例属性:hystrix.command.HystrixCommandKey.metrics.rollingStats.numBuckets
例如:
HystrixCommandProperties.Setter()
.withMetricsRollingStatisticalWindowBuckets(int value)


3、metrics.rollingPercentile.enabled: 执行时是否enable指标的计算和跟踪,默认true
默认属性:hystrix.command.default.metrics.rollingPercentile.enabled
实例属性:hystrix.command.HystrixCommandKey.metrics.rollingPercentile.enabled
例如:
HystrixCommandProperties.Setter()
.withMetricsRollingPercentileEnabled(boolean value)


4、metrics.rollingPercentile.timeInMilliseconds: 设置rolling percentile window的时间,默认60000
默认属性:hystrix.command.default.metrics.rollingPercentile.timeInMilliseconds
实例属性:hystrix.command.HystrixCommandKey.metrics.rollingPercentile.timeInMilliseconds
例如:
HystrixCommandProperties.Setter()
.withMetricsRollingPercentileWindowInMilliseconds(int value)


5、metrics.rollingPercentile.numBuckets: 设置rolling percentile window的numberBuckets。逻辑同上。默认6
默认属性:hystrix.command.default.metrics.rollingPercentile.numBuckets
实例属性:hystrix.command.HystrixCommandKey.metrics.rollingPercentile.numBuckets
例如:
HystrixCommandProperties.Setter()
.withMetricsRollingPercentileWindowBuckets(int value)


6、metrics.rollingPercentile.bucketSize: 如果bucket size=100,window=10s,若这10s里有500次执行,只有最后100次执行会被统计到bucket里去。增加该值会增加内存开销以及排序的开销。默认100
默认属性:hystrix.command.default.metrics.rollingPercentile.bucketSize
实例属性:hystrix.command.HystrixCommandKey.metrics.rollingPercentile.bucketSize
例如:
HystrixCommandProperties.Setter()
.withMetricsRollingPercentileBucketSize(int value)


7、metrics.healthSnapshot.intervalInMilliseconds: 记录health 快照(用来统计成功和错误绿)的间隔,默认500ms
默认属性:hystrix.command.default.metrics.healthSnapshot.intervalInMilliseconds
实例属性:hystrix.command.HystrixCommandKey.metrics.healthSnapshot.intervalInMilliseconds
例如:
HystrixCommandProperties.Setter()
.withMetricsHealthSnapshotIntervalInMilliseconds(int value)


五、Request Context 相关参数
1、requestCache.enabled:默认true,需要重载getCacheKey(),返回null时不缓存
默认属性:hystrix.command.default.requestCache.enabled
实例属性:hystrix.command.HystrixCommandKey.requestCache.enabled
例如:
HystrixCommandProperties.Setter()
.withRequestCacheEnabled(boolean value)


2、requestLog.enabled:记录日志到HystrixRequestLog,默认true
默认属性:hystrix.command.default.requestLog.enabled
实例属性:hystrix.command.HystrixCommandKey.requestLog.enabled
例如:
HystrixCommandProperties.Setter()
.withRequestLogEnabled(boolean value)



六、Collapser Properties 相关参数
1、requestCache.enabled: 设置请求缓存是否对HystrixCollapser.execute() and HystrixCollapser.queue()的调用起作用。,默认true
默认属性:hystrix.collapser.default.requestCache.enabled
实例属性:hystrix.collapser.HystrixCollapserKey.requestCache.enabled
例如:
HystrixCollapserProperties.Setter()
.withRequestCacheEnabled(boolean value)


2、maxRequestsInBatch: 单次批处理的最大请求数,达到该数量触发批处理,默认Integer.MAX_VALUE
默认属性:hystrix.collapser.default.maxRequestsInBatch
实例属性:hystrix.collapser.HystrixCollapserKey.maxRequestsInBatch
例如:
HystrixCollapserProperties.Setter()
.withMaxRequestsInBatch(int value)


3、timerDelayInMilliseconds: 触发批处理的延迟,也可以为创建批处理的时间+该值,默认10
默认属性:hystrix.collapser.default.timerDelayInMilliseconds
实例属性:hystrix.collapser.HystrixCollapserKey.timerDelayInMilliseconds
例如:
HystrixCollapserProperties.Setter()
.withTimerDelayInMilliseconds(int value)


ThreadPool Properties
线程数默认值10适用于大部分情况(有时可以设置得更小),如果需要设置得更大,那有个基本得公式可以follow:
requests per second at peak when healthy × 99th percentile latency in seconds + some breathing room
每秒最大支撑的请求数 × 99%平均响应时间 + 缓存值
比如:每秒能处理1000个请求,99%的请求响应时间是60ms,那么公式是:
1000×0.060 + 12 = 72

基本得原则是保持线程池尽可能小,他主要是为了释放压力,防止资源被阻塞。
当一切都是正常的时候,线程池一般仅会有1到2个线程激活来提供服务

1、coreSize: 设置核心线程池大小,默认10
默认属性:hystrix.threadpool.default.coreSize
实例属性:hystrix.threadpool.HystrixThreadPoolKey.coreSize
例如:
HystrixThreadPoolProperties.Setter()
.withCoreSize(int value)

2、maximumSize:设置线程池最大值。这个是在不开启拒绝HystrixCommand的情况下支持的最大并发数。这个属性起作用的前提是设置了allowMaximumSizeToDrivergeFromCoreSize。
默认属性:hystrix.threadpool.default.maximumSize
实例属性:hystrix.threadpool.HystrixThreadPoolKey.maximumSize
例如:
HystrixThreadPoolProperties.Setter()
.withMaximumSize(int value)


3、maxQueueSize: BlockingQueue的最大队列数,当设为-1,会使用SynchronousQueue,值为正时使用LinkedBlcokingQueue。该设置只会在初始化时有效,之后不能修改threadpool的queue size,除非reinitialising thread executor。默认-1。
默认属性:hystrix.threadpool.default.maxQueueSize
实例属性:hystrix.threadpool.HystrixThreadPoolKey.maxQueueSize
例如:
HystrixThreadPoolProperties.Setter()
.withMaxQueueSize(int value)


4、queueSizeRejectionThreshold: 即使maxQueueSize没有达到,达到queueSizeRejectionThreshold该值后,请求也会被拒绝。因为maxQueueSize不能被动态修改,这个参数将允许我们动态设置该值。if maxQueueSize == -1,该字段将不起作用。默认5
默认属性:hystrix.threadpool.default.queueSizeRejectionThreshold
实例属性:hystrix.threadpool.HystrixThreadPoolKey.queueSizeRejectionThreshold
例如:
HystrixThreadPoolProperties.Setter()
.withQueueSizeRejectionThreshold(int value)


5、keepAliveTimeMinutes: 如果corePoolSize和maxPoolSize设成一样(默认实现)该设置无效。如果coreSize小于maximumSize,那么该属性控制一个线程从实用完成到被释放的时间。默认1(分钟)。
默认属性:hystrix.threadpool.default.keepAliveTimeMinutes
实例属性:hystrix.threadpool.HystrixThreadPoolKey.keepAliveTimeMinutes
例如:
HystrixThreadPoolProperties.Setter()
.withKeepAliveTimeMinutes(int value)



6、allowMaximumSizeToDivergeFromCoreSize:该属性允许maximumSize起作用。属性值可以等于或者大于coreSize值,设置coreSize小于maximumSize的线程池能够支持maximumSize的并发数,但是会将不活跃的线程返回到系统中去。
默认属性:hystrix.threadpool.default.allowMaximumSizeToDivergeFromCoreSize
实例属性:hystrix.threadpool.HystrixThreadPoolKey.allowMaximumSizeToDivergeFromCoreSize
例如:
HystrixThreadPoolProperties.Setter()
.withAllowMaximumSizeToDivergeFromCoreSize(boolean value)

7、metrics.rollingStats.timeInMilliseconds:设置统计的滚动窗口的时间段大小。该属性是线程池保持指标时间长短。默认值 10000(毫秒)
默认属性:hystrix.threadpool.default.metrics.rollingStats.timeInMilliseconds
实例属性:hystrix.threadpool.HystrixThreadPoolKey.metrics.rollingStats.timeInMilliseconds
例如:
HystrixThreadPoolProperties.Setter()
.withMetricsRollingStatisticalWindowInMilliseconds(int value)


8、metrics.rollingStats.numBuckets:设置滚动的统计窗口被分成的桶(bucket)的数目。默认值 10。
注意:”metrics.rollingStats.timeInMilliseconds % metrics.rollingStats.numBuckets == 0"必须为true,否则会抛出异常。即任何能被metrics.rollingStats.timeInMilliseconds整除的值。
默认属性:hystrix.threadpool.default.metrics.rollingStats.numBuckets
实例属性:hystrix.threadpool.HystrixThreadPoolProperties.metrics.rollingStats.numBuckets
例如:
HystrixThreadPoolProperties.Setter()
.withMetricsRollingStatisticalWindowBuckets(int value)







### Hystrix 参数配置及说明 #### 配置方式概述 在 Spring 框架中,Hystrix 的配置主要依赖于 `@HystrixCommand` 注解。此注解允许开发者指定一系列参数来自定义命令的行为[^2]。 #### 使用 DefaultProperties 提供默认配置 为了减少重复代码,在同一个类中有多个需要熔断保护的方法时,可以利用 `@DefaultProperties` 注解为这些方法提供一组共享的默认属性设置。这使得即使不单独为每个方法指明具体选项也能应用一致性的行为模式。 #### 关键参数详解 ##### 断路器阈值设定 - **错误百分比触发点**: 通过 `circuitBreaker.errorThresholdPercentage` 可以调整当达到多少比例的服务调用失败后应该开启断路机制,默认情况下该数值被设为50%。这意味着一旦超过一半以上的请求未能成功完成,则自动切换到 fallback 处理流程[^4]。 ```yaml hystrix: command: default: circuitBreaker: errorThresholdPercentage: 70 # 自定义错误率门限至70% ``` ##### 超时时间控制 另一个重要的方面是对服务响应超时时长的规定。可以通过如下所示的方式修改全局或特定命令的最大等待秒数: ```java @HystrixCommand(commandProperties = { @HystrixProperty(name="execution.isolation.thread.timeoutInMilliseconds", value="2000")}) public String exampleMethod(){ // method implementation here... } ``` 这段代码片段展示了如何将某个函数内部操作的时间上限限定为两秒钟;如果在此期间内未收到回应则立即激活备用方案[^3]。 ##### 请求缓存策略 对于那些具有相同输入参数的数据读取型接口来说,启用缓存功能能够有效减轻服务器负载压力并提高性能表现。只需简单地向目标方法添加相应的标记即可实现这一点: ```java @CacheResult @HystrixCommand public User getUserById(Long id){ return userRepository.findOne(id); } ``` 上述例子中的 `@CacheResult` 就是用来指示 Hystrix 对返回的结果实施本地存储以便后续快速检索使用的装饰符之一[^1]。
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
