springboot整合swagger

关于springboot整合swagger（2.0以下版本）

主要有以下步骤:
1.引入springboot相关jar
2.引入wagger相关支持包
3.需要生成离线文件-需要引入相关包(必须在根目录建立docx/asciidoc主要是根据你的pom.xml定义的路径读取地址)
4.项目代码：https://github.com/chuanshow/swagger.git
5.springboot版本高于2.0时(需要将springfox-staticdocs这个包升级成2.6.1以上)
[项目目录结构如下]
(https://img-blog.youkuaiyun.com/20180822152515336?watermark/2/text/aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3N1blJlc3Q=/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70)

1.pom.xml全部内容

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.yyt.swagger</groupId>
    <artifactId>springboot</artifactId>
    <version>1.0-SNAPSHOT</version>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.1.RELEASE</version>
    </parent>

    <properties>
        <snippetsDirectory>${project.build.directory}/generated-snippets</snippetsDirectory>

        <asciidoctor.input.directory>${project.basedir}/docs/asciidoc</asciidoctor.input.directory>
        <generated.asciidoc.directory>${project.build.directory}/asciidoc</generated.asciidoc.directory>
        <asciidoctor.html.output.directory>${project.build.directory}/asciidoc/html</asciidoctor.html.output.directory>
        <asciidoctor.pdf.output.directory>${project.build.directory}/asciidoc/pdf</asciidoctor.pdf.output.directory>

    </properties>

    <dependencies>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>

        <!--WEB层-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--测试-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
        <!--Swagger2-->
        <!--在线文档-->
        <!--swagger本身不支持spring mvc的，springfox把swagger包装了一下，让他可以支持springmvc-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
        </dependency>
        <!--离线文档-->
        <dependency>
            <groupId>org.springframework.restdocs</groupId>
            <artifactId>spring-restdocs-mockmvc</artifactId><!--$NO-MVN-MAN-VER$-->
        </dependency>
        <!--springfox-staticdocs 生成静态文档-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-staticdocs</artifactId>
        </dependency>
    </dependencies>

    <build>
        <finalName>springboot</finalName>
        <plugins>
          <plugin>

                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <!--Maven通过Maven Surefire Plugin插件执行单元测试-->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
            </plugin>
            <!-- Run the generated asciidoc through Asciidoctor to generate
                 other documentation types, such as PDFs or HTML5 -->
            <!--通过Asciidoctor使得asciidoc生成其他的文档格式，例如：PDF 或者HTML5-->
            <plugin>
                <groupId>org.asciidoctor</groupId>
                <artifactId>asciidoctor-maven-plugin</artifactId>
                 <version>1.5.3</version>
                <!-- Include Asciidoctor PDF for pdf generation -->
                <!--生成PDF-->
                <dependencies>
                    <dependency>
                        <groupId>org.asciidoctor</groupId>
                        <artifactId>asciidoctorj-pdf</artifactId>
                        <version>1.5.0-alpha.14</version>
                    </dependency>
                    <!-- Comment this section to use the default jruby artifact provided by the plugin -->
                    <dependency>
                        <groupId>org.jruby</groupId>
                        <artifactId>jruby-complete</artifactId>
                        <version>1.7.21</version>
                    </dependency>
                </dependencies>

                <!-- Configure generic document generation settings -->
                <!--文档生成配置-->
                <configuration>
                    <sourceDirectory>${asciidoctor.input.directory}</sourceDirectory>
                    <sourceDocumentName>index.adoc</sourceDocumentName>
                    <attributes>
                        <doctype>book</doctype>
                        <toc>left</toc>
                        <toclevels>3</toclevels>
                        <numbered></numbered>
                        <hardbreaks></hardbreaks>
                        <sectlinks></sectlinks>
                        <sectanchors></sectanchors>
                        <generated>${generated.asciidoc.directory}</generated>
                    </attributes>
                </configuration>
                <!-- Since each execution can only handle one backend, run
                   separate executions for each desired output type -->
                <!--因为每次执行只能处理一个后端，所以对于每个想要的输出类型，都是独立分开执行-->
                <executions>
                    <!--html5-->
                    <execution>
                        <id>output-html</id>
                        <phase>test</phase>
                        <goals>
                            <goal>process-asciidoc</goal>
                        </goals>
                        <configuration>
                            <backend>html5</backend>
                            <outputDirectory>${asciidoctor.html.output.directory}</outputDirectory>
                        </configuration>
                    </execution>
                    <!--pdf-->
                    <execution>
                        <id>output-pdf</id>
                        <phase>test</phase>
                        <goals>
                            <goal>process-asciidoc</goal>
                        </goals>
                        <configuration>
                            <backend>pdf</backend>
                            <outputDirectory>${asciidoctor.pdf.output.directory}</outputDirectory>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>


    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>1.2.8</version>
            </dependency>
            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-swagger2</artifactId>
                <version>2.6.1</version>
            </dependency>
            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-swagger-ui</artifactId>
                <version>2.6.1</version>
            </dependency>
            <dependency>
                <groupId>org.springframework.restdocs</groupId>
                <artifactId>spring-restdocs-mockmvc</artifactId>
                 <version>2.0.1.RELEASE</version>
            </dependency>
            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-staticdocs</artifactId>
                <version>2.6.1</version>
            </dependency>

        </dependencies>
    </dependencyManagement>
</project>

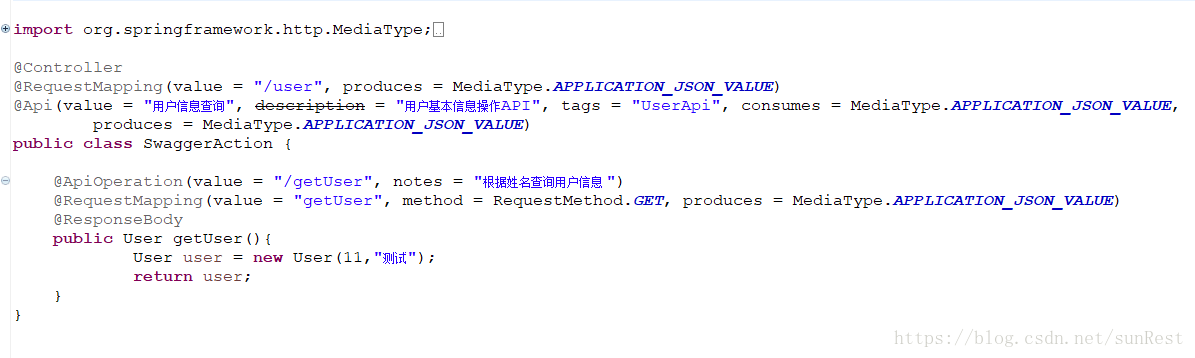

2.controller内容

3.swaggerConfig配置

4.test（必须要test才可以生成相应的离线文件）

@WebAppConfiguration
@AutoConfigureMockMvc
@AutoConfigureRestDocs(outputDir = "target/generated-snippets")
@RunWith(SpringRunner.class)
@SpringBootTest

public class TestSwagger {
     private String snippetDir = "target/generated-snippets";
        private String outputDir  = "target/asciidoc";
        @Autowired
        private MockMvc mockMvc;

        @After
        public void Test() throws Exception {
            // 得到swagger.json,写入outputDir目录中
            mockMvc.perform(get("/v2/api-docs").accept(MediaType.APPLICATION_JSON))
                    .andDo(SwaggerResultHandler.outputDirectory(outputDir).build())
                    .andExpect(status().isOk())
                    .andReturn();

            // 读取上一步生成的swagger.json转成asciiDoc,写入到outputDir
            // 这个outputDir必须和插件里面<generated></generated>标签配置一致
            Swagger2MarkupConverter.from(outputDir + "/swagger.json")
                    .withPathsGroupedBy(GroupBy.TAGS)// 按tag排序
                    .withMarkupLanguage(MarkupLanguage.ASCIIDOC)// 格式
                    .withExamples(snippetDir)
                    .build()
                    .intoFolder(outputDir);// 输出
        }

        @Test
        public void TestApi() throws Exception {
            mockMvc.perform(get("/user/getUser").param("name", "FLY")
                    .accept(MediaType.APPLICATION_JSON))
                    .andExpect(status().isOk())
                    .andDo(MockMvcRestDocumentation.document("getUser", preprocessResponse(prettyPrint())));

            User user = new User();
            user.setId(12);
            user.setName("FLY");

        }
