RuoYi-Cloud-Plus 配置

RuoYi-Cloud-Plus

一、官网

dromara/RuoYi-Cloud-PlusRuoYi-Cloud-Plus

1.拉取代码 ：

2.部署配置Mysql--导入sql  数据表

注意：数据库引擎使用InnoDB  表使用：utf8mb4   utf8mb4_general_ci

3.部署配置Redis

4.配置nacos数据库：

5.配置项目nacos地址：

6.配置启动ruoyi-system,ruoyi-gateway,ruoyi-auth

异常处理：

--数据库链接异常：

Failed to invoke the method queryList in the service org.dromara.system.api.RemoteTenantService. Tried 1 times of the providers [172.20.97.234:20880] (1/1) from the registry 127.0.0.1:8848 on the consumer 172.20.97.234 using the dubbo version 3.2.7. Last error is: Invoke remote method timeout. method: queryList, provider: DefaultServiceInstance{serviceName='ruoyi-system', host='172.20.97.234', port=20880, enabled=true, healthy=true, metadata={dubbo.endpoints=[{"port":20880,"protocol":"dubbo"}], dubbo.metadata.revision=f8137857f8320592cb62ce1195b68250, dubbo.metadata.storage-type=remote, timestamp=1715937990951}}, service{name='org.dromara.system.api.RemoteTenantService',group='null',version='null',protocol='dubbo',port='20880',params={side=provider, release=3.2.7, methods=queryByTenantId,queryList, logger=slf4j, deprecated=false, dubbo=2.0.2, interface=org.dromara.system.api.RemoteTenantService, service-name-mapping=true, generic=false, metadata-type=remote, application=ruoyi-system, prefer.serialization=fastjson2,hessian2, dynamic=true},}, cause: Timeout after 3000ms waiting for result.

以上问题为数据库链接异常，排查数据库。

参考：dromara/RuoYi-Cloud-Plus

二、Mac本地接入

1、创建网段

在Mac上：替换所有网络模式为自己定义的网段（或注释网断设置）

	network_mode: "mynet"

:::info
网段设定可参考Docker网络模式--network_mode
:::

2、启动基础容器

修改minio映射路径

-v /home/minio/data:/data改成-v /home/minio/data:/mnt/data

cd docker
docker-compose up -d mysql nginx-web redis minio

3、建表

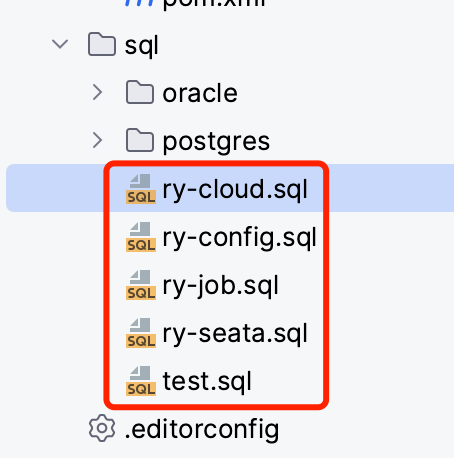

分别建立数据库，运行以下SQL文件

DROP DATABASE IF EXISTS `ry-cloud`;

CREATE DATABASE `ry-cloud` DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci;

USE `ry-cloud`;

:::warning
注：test.sql应在ry-cloud库内执行
:::

4、运行nacos

更改nacos的MySQL配置

# db.url.0=jdbc:mysql://127.0.0.1:3306/ry-config?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=UTC&allowPublicKeyRetrieval=true
# db.user.0=root
# db.password.0=root

db.url.0=jdbc:mysql://mysql:3306/ry-config?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=UTC&allowPublicKeyRetrieval=true
db.user.0=root
db.password.0=ruoyi123

对配置后的ruoyi-nacos进行打包

docker build -t ruoyi/ruoyi-nacos:1.8.0 ruoyi-visual/ruoyi-nacos/.

cd docker
docker-compose up -d nacos

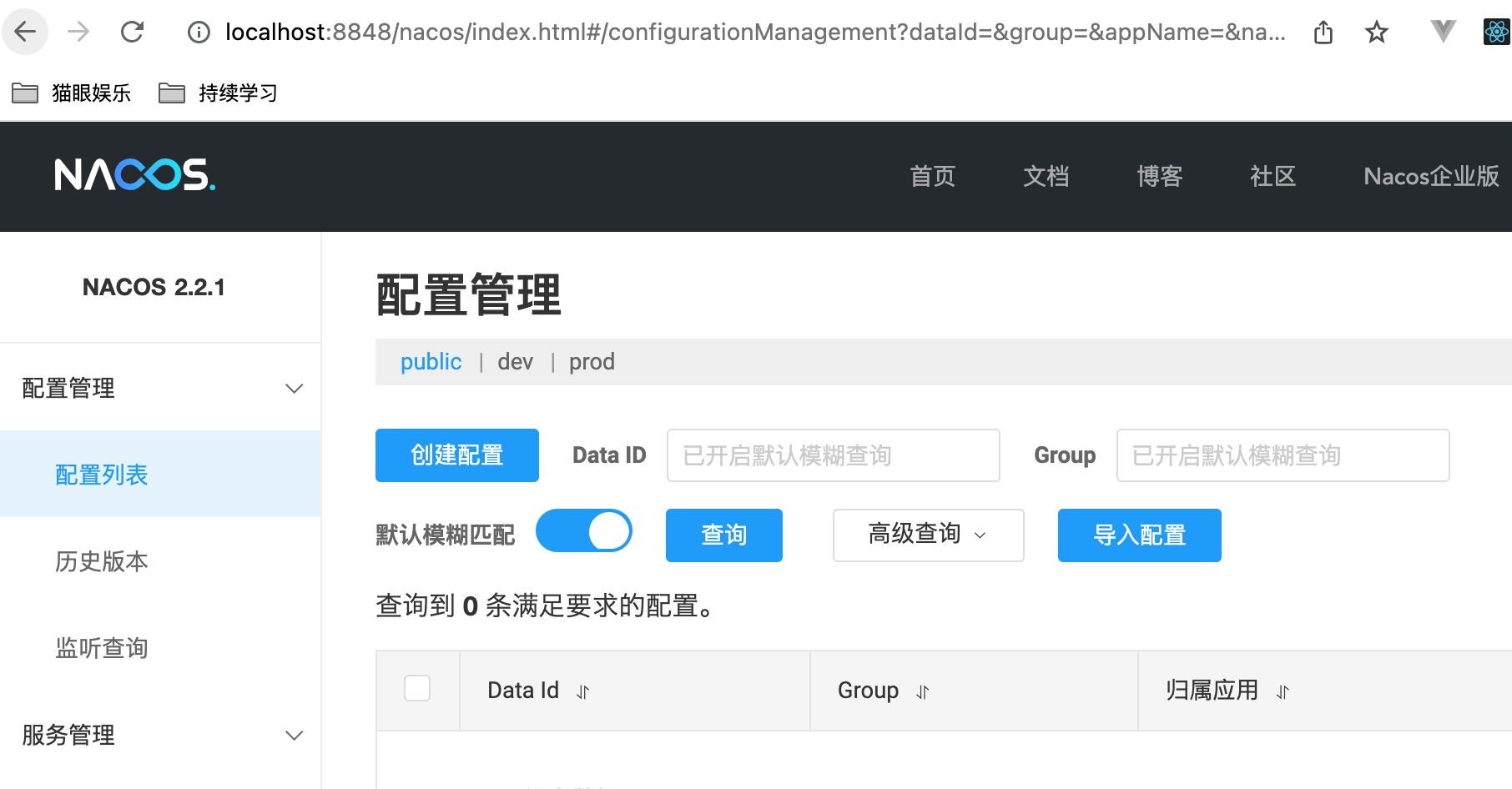

启动成功


进入后台页面
localhost:8848/nacos/index.html


更改跟pom.xml的nacos地址

<profile>
    <id>dev</id>
    <properties>
        <!-- 环境标识，需要与配置文件的名称相对应 -->
        <profiles.active>dev</profiles.active>
        <nacos.server>nacos:8848</nacos.server>
        <nacos.discovery.group>DEFAULT_GROUP</nacos.discovery.group>
        <nacos.config.group>DEFAULT_GROUP</nacos.config.group>
        <logstash.address>127.0.0.1:4560</logstash.address>
    </properties>
    <activation>
        <!-- 默认环境 -->
        <activeByDefault>true</activeByDefault>
    </activation>
</profile>

5、更改nacos配置

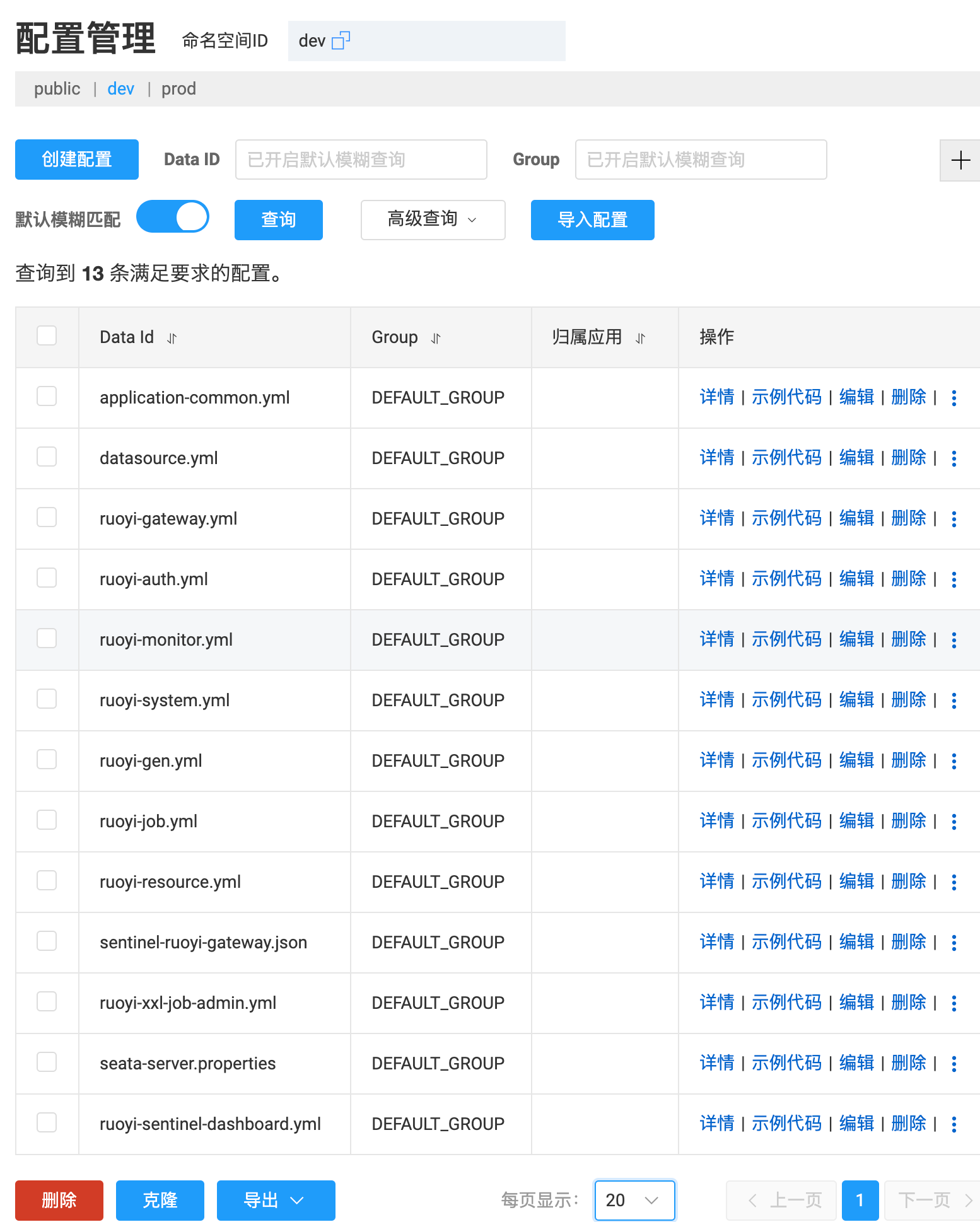

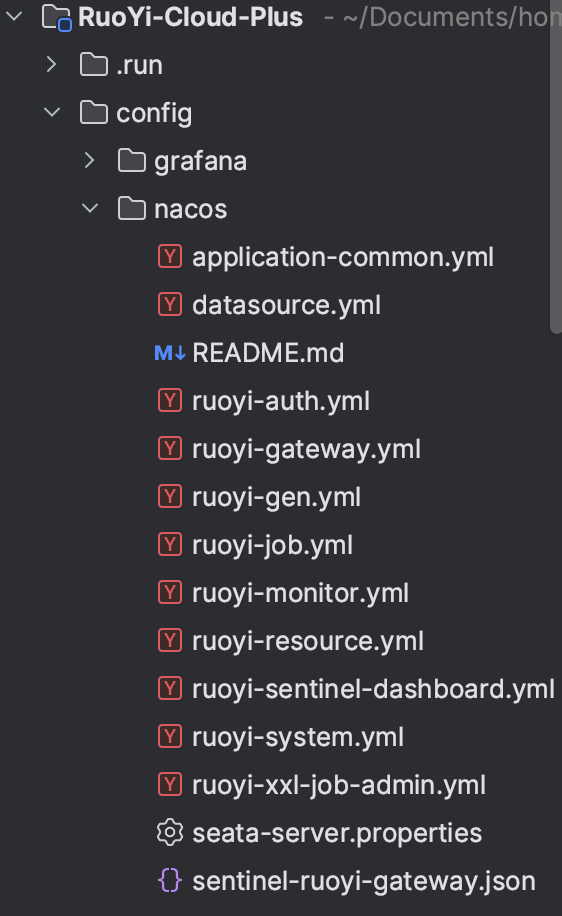

将config/nacos目录下的文件依次拷贝到dev环境的nacos配置




更改数据源配置

datasource:
  system-master:
    # localhost --> mysql
    url: jdbc:mysql://mysql:3306/ry-cloud?useUnicode=true&characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=true&serverTimezone=GMT%2B8&rewriteBatchedStatements=true
    username: root
    password: ruoyi123
  gen:
    url: jdbc:mysql://mysql:3306/ry-cloud?useUnicode=true&characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=true&serverTimezone=GMT%2B8&rewriteBatchedStatements=true
    username: root
    password: ruoyi123
  job:
    url: jdbc:mysql://mysql:3306/ry-job?useUnicode=true&characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=true&serverTimezone=GMT%2B8&rewriteBatchedStatements=true
    username: root
    password: ruoyi123

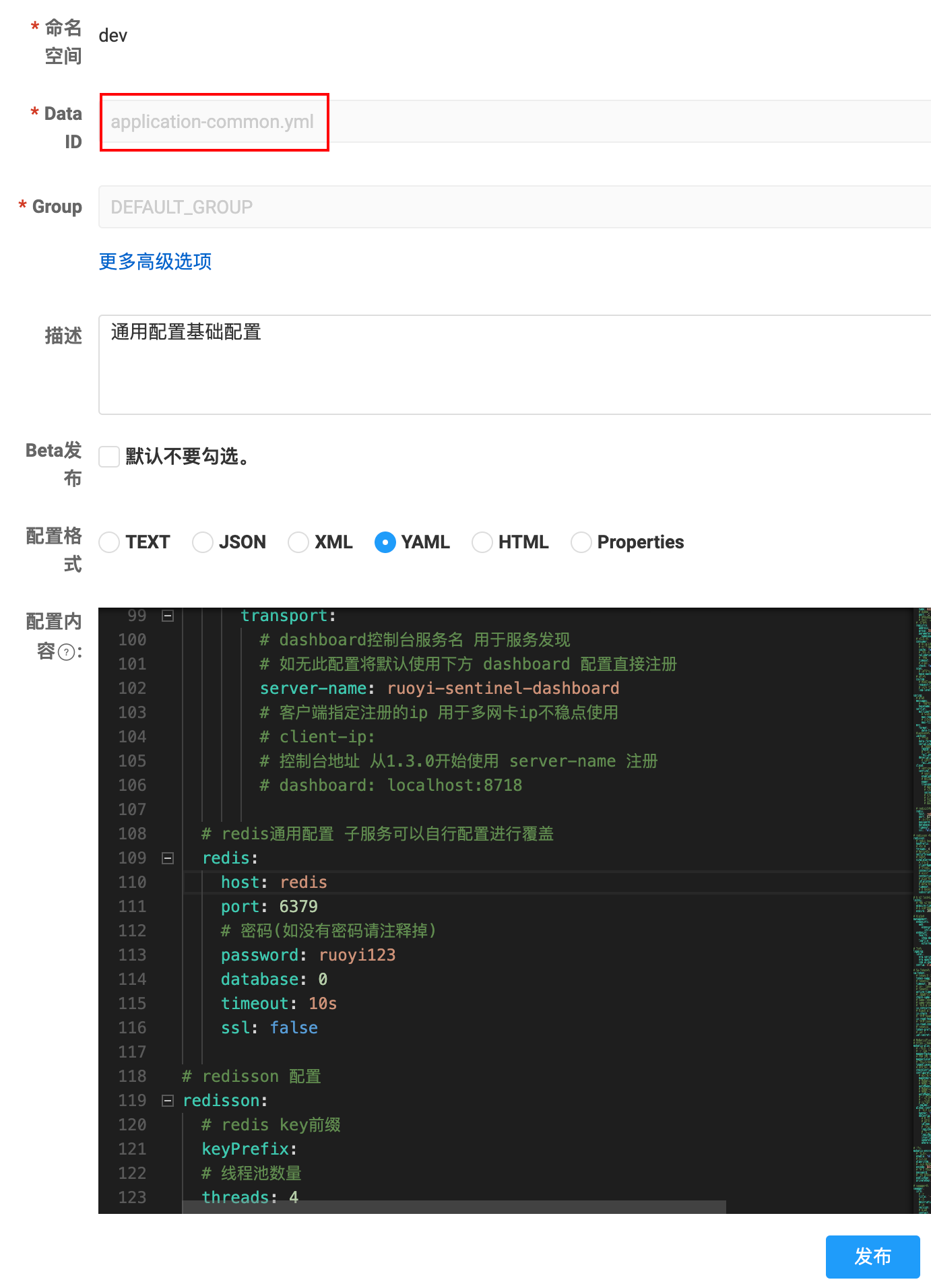

更改redis配置


6、构建核心项目镜像

项目打包

mvn clean install -U -D maven.test.skip=true -P dev

构建镜像

docker build -t ruoyi/ruoyi-monitor:1.8.0 ruoyi-visual/ruoyi-monitor/.
# docker build -t ruoyi/ruoyi-nacos:1.8.0 ruoyi-visual/ruoyi-nacos/.
docker build -t ruoyi/ruoyi-seata-server:1.8.0 ruoyi-visual/ruoyi-seata-server/.
docker build -t ruoyi/ruoyi-sentinel-dashboard:1.8.0 ruoyi-visual/ruoyi-sentinel-dashboard/.
docker build -t ruoyi/ruoyi-xxl-job-admin:1.8.0 ruoyi-visual/ruoyi-xxl-job-admin/.
docker build -t ruoyi/ruoyi-gateway:1.8.0 ruoyi-gateway/.
docker build -t ruoyi/ruoyi-auth:1.8.0 ruoyi-auth/.
docker build -t ruoyi/ruoyi-system:1.8.0 ruoyi-modules/ruoyi-system/.
docker build -t ruoyi/ruoyi-gen:1.8.0 ruoyi-modules/ruoyi-gen/.
docker build -t ruoyi/ruoyi-job:1.8.0 ruoyi-modules/ruoyi-job/.
docker build -t ruoyi/ruoyi-resource:1.8.0 ruoyi-modules/ruoyi-resource/.

运行容器

cd docker
docker-compose up -d seata-server sentinel ruoyi-monitor ruoyi-xxl-job-admin

7、业务服务

cd docker
docker-compose up -d ruoyi-gateway ruoyi-auth ruoyi-system ruoyi-resource

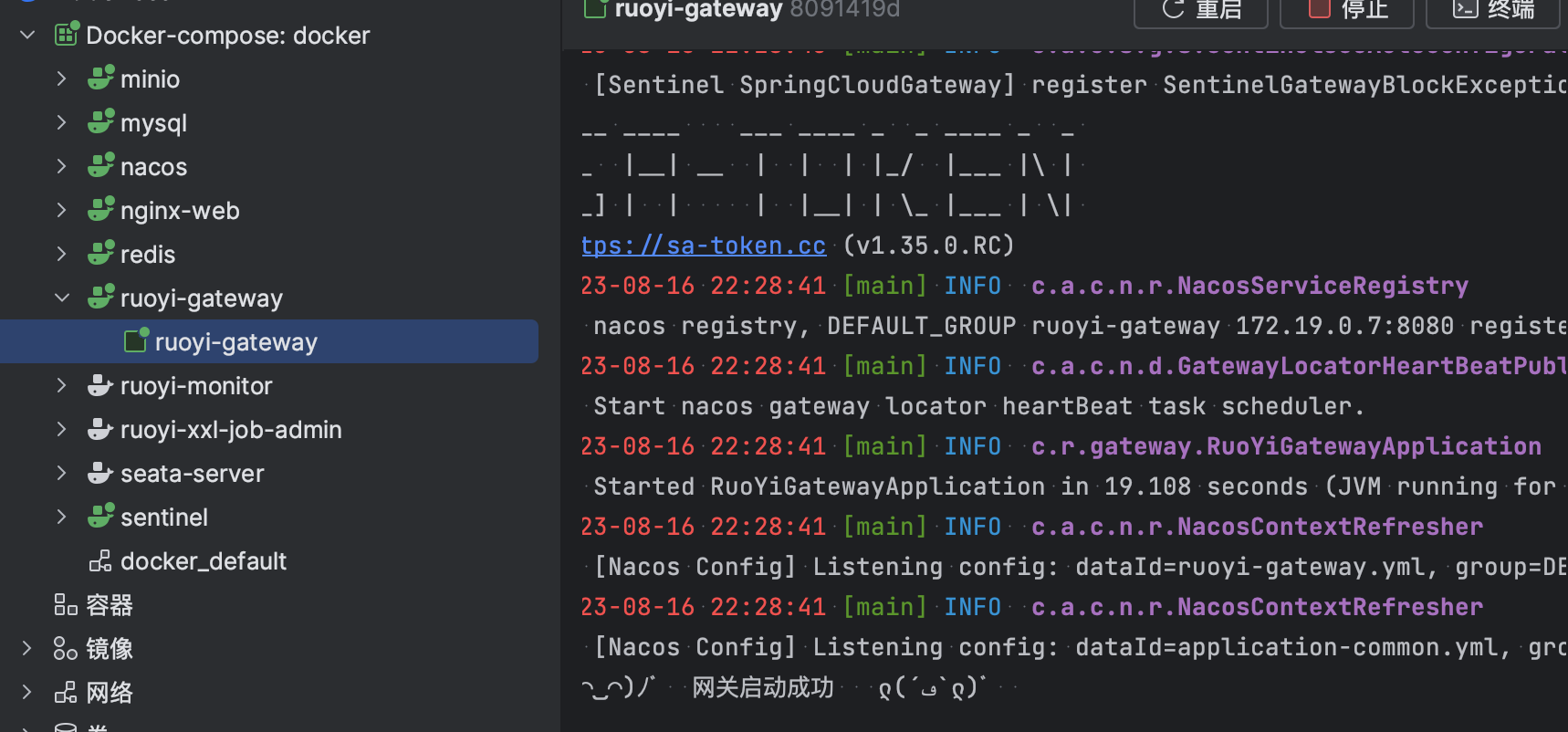

网关测试成功（说明mysql/redis配置成功）


全部业务服务启动成功


8、启动前端项目

# 进入项目目录
cd ruoyi-ui-vue3

# 安装依赖
npm install --registry=https://registry.npmmirror.com

# 启动服务
npm run dev

# 构建生产环境 yarn build:prod
# 前端访问地址 http://localhost:80
