本文详细介绍了在Ubuntu 18系统上编译FFmpeg 3.2.1的过程，包括所需工具的下载与安装，环境配置，以及编译脚本的编写。特别关注了与Android NDK的交叉编译，生成适用于Android平台的静态库。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

///Ubuntu FFmpeg 编译

第一次编译的时候遇到很多问题，各种测试，最后终于成功。。。

准备：FFmepg3.2.1

下载链接：http://ffmpeg.org/releases/ffmpeg-3.2.1.tar.gz

Ubuntu 18

下载连接：http://211.162.127.20/files/1239000006D7AC14/mirrors.yun-idc.com/ubuntu-releases/18.10/ubuntu-18.10-desktop-amd64.iso

下载完成安装之后可能没有安装make工具，自己安装即可

NDK下载

https://dl.google.com/android/ndk/android-ndk-r9b-linux-x86_64.tar.bz2

环境准备完成后，开始准备脚本build_android.sh

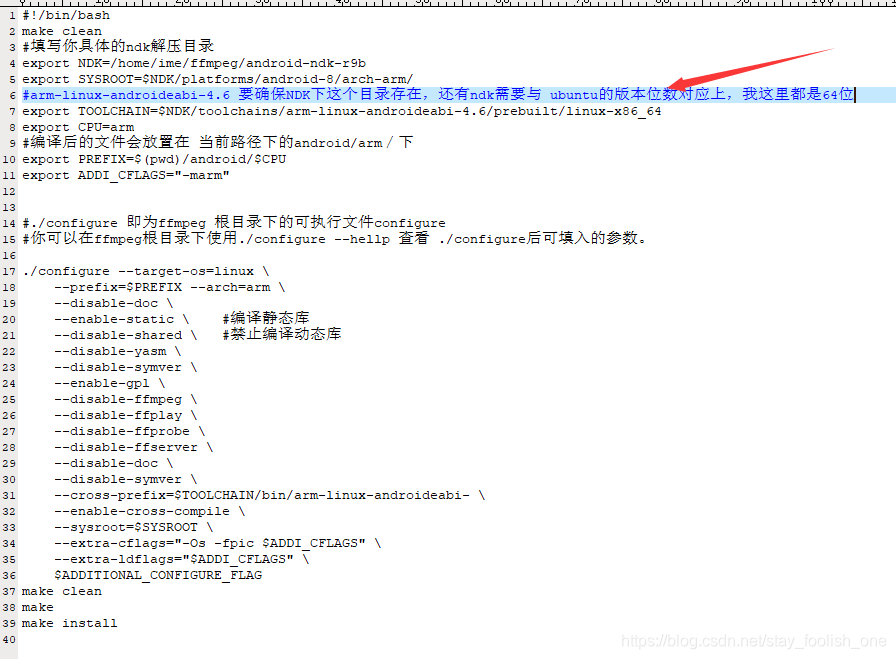

build_android.sh

#!/bin/bash
make clean
#填写你具体的ndk解压目录
export NDK=/home/ime/ffmpeg/android-ndk-r9b
export SYSROOT=$NDK/platforms/android-8/arch-arm/
#arm-linux-androideabi-4.6 要确保NDK下这个目录存在，还有ndk需要与 ubuntu的版本位数对应上，我这里都是64位
export TOOLCHAIN=$NDK/toolchains/arm-linux-androideabi-4.6/prebuilt/linux-x86_64
export CPU=arm
#编译后的文件会放置在 当前路径下的android/arm／下
export PREFIX=$(pwd)/android/$CPU
export ADDI_CFLAGS="-marm"


#./configure 即为ffmpeg 根目录下的可执行文件configure
#你可以在ffmpeg根目录下使用./configure --hellp 查看 ./configure后可填入的参数。

./configure --target-os=linux \
    --prefix=$PREFIX --arch=arm \
    --disable-doc \
    --enable-static \    #编译静态库
    --disable-shared \   #禁止编译动态库
    --disable-yasm \
    --disable-symver \
    --enable-gpl \
    --disable-ffmpeg \
    --disable-ffplay \
    --disable-ffprobe \
    --disable-ffserver \
    --disable-doc \
    --disable-symver \
    --cross-prefix=$TOOLCHAIN/bin/arm-linux-androideabi- \
    --enable-cross-compile \
    --sysroot=$SYSROOT \
    --extra-cflags="-Os -fpic $ADDI_CFLAGS" \
    --extra-ldflags="$ADDI_CFLAGS" \
    $ADDITIONAL_CONFIGURE_FLAG
make clean
make
make install

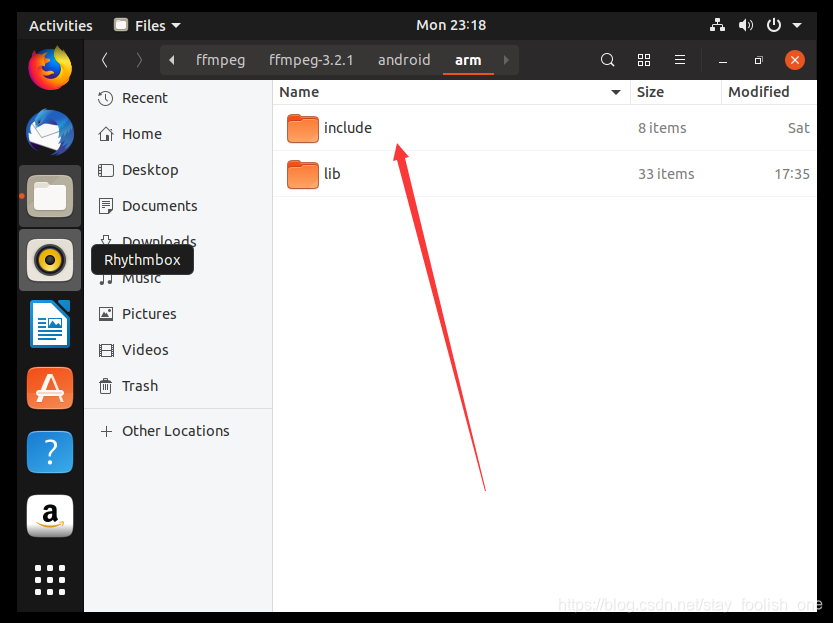

编译完成后会生成这两个目录 ubuntu

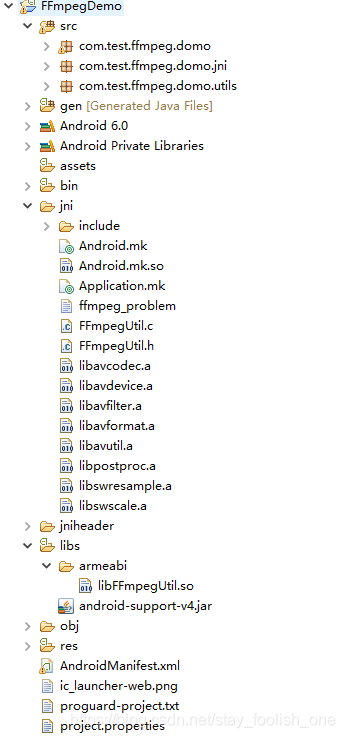

最后在eclispse上建立工程并编译测试

android.mk如下

# Copyright (C) 2009 The Android Open Source Project
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

LOCAL_PATH := $(call my-dir)

include $(call all-subdir-makefiles)

include $(CLEAR_VARS)
$(warning jnipath=$(LOCAL_PATH)) #在Android.mk中打印输出信息的方法是：$(warning string)或者$(error string)  $(info string)
LOCAL_MODULE := avcodec
LOCAL_SRC_FILES := libavcodec.a
LOCAL_CFLAGS :=-Ilibavcodec
LOCAL_EXPORT_C_INCLUDES := libavcodec
LOCAL_EXPORT_CFLAGS := -Ilibavcodec
LOCAL_EXPORT_LDLIBS := -llog
include $(PREBUILT_STATIC_LIBRARY)	#编译动态库

include $(CLEAR_VARS)
LOCAL_MODULE := avdevice
LOCAL_SRC_FILES := libavdevice.a
LOCAL_CFLAGS :=-Ilibavdevice
LOCAL_EXPORT_C_INCLUDES := libavdevice
LOCAL_EXPORT_CFLAGS := -Ilibavdevice
LOCAL_EXPORT_LDLIBS := -llog
include $(PREBUILT_STATIC_LIBRARY)

include $(CLEAR_VARS)
LOCAL_MODULE := avfilter
LOCAL_SRC_FILES := libavfilter.a
LOCAL_CFLAGS :=-Ilibavfilter
LOCAL_EXPORT_C_INCLUDES := libavfilter
LOCAL_EXPORT_CFLAGS := -Ilibavfilter
LOCAL_EXPORT_LDLIBS := -llog
include $(PREBUILT_STATIC_LIBRARY)

include $(CLEAR_VARS)
LOCAL_MODULE := libavformat
LOCAL_SRC_FILES := libavformat.a
LOCAL_CFLAGS :=-Ilibavformat
LOCAL_EXPORT_C_INCLUDES := libavformat
LOCAL_EXPORT_CFLAGS := -Ilibavformat
LOCAL_EXPORT_LDLIBS := -llog
include $(PREBUILT_STATIC_LIBRARY)

include $(CLEAR_VARS)
LOCAL_MODULE := avutil
LOCAL_SRC_FILES := libavutil.a
LOCAL_CFLAGS :=-Ilibavutil
LOCAL_EXPORT_C_INCLUDES := libavutil
LOCAL_EXPORT_CFLAGS := -Ilibavutil
LOCAL_EXPORT_LDLIBS := -llog
include $(PREBUILT_STATIC_LIBRARY)

include $(CLEAR_VARS)
LOCAL_MODULE := postproc
LOCAL_SRC_FILES := libpostproc.a
LOCAL_CFLAGS :=-Ilibpostproc
LOCAL_EXPORT_C_INCLUDES := libpostproc
LOCAL_EXPORT_CFLAGS := -Ilibpostproc
LOCAL_EXPORT_LDLIBS := -llog
include $(PREBUILT_STATIC_LIBRARY)

include $(CLEAR_VARS)
LOCAL_MODULE := swresample
LOCAL_SRC_FILES := libswresample.a
LOCAL_CFLAGS :=-Ilibswresample
LOCAL_EXPORT_C_INCLUDES := libswresample
LOCAL_EXPORT_CFLAGS := -Ilibswresample
LOCAL_EXPORT_LDLIBS := -llog
include $(PREBUILT_STATIC_LIBRARY)

include $(CLEAR_VARS)
LOCAL_MODULE := swscale
LOCAL_SRC_FILES := libswscale.a
LOCAL_CFLAGS :=-Ilibswscale
LOCAL_EXPORT_C_INCLUDES := libswscale
LOCAL_EXPORT_CFLAGS := -Ilibswscale
LOCAL_EXPORT_LDLIBS := -llog
include $(PREBUILT_STATIC_LIBRARY)

include $(CLEAR_VARS)
LOCAL_MODULE    := FFmpegUtil
LOCAL_SRC_FILES := FFmpegUtil.c
LOCAL_C_INCLUDES := $(LOCAL_PATH)/include
#$(warning LOCAL_C_INCLUDES=$(LOCAL_PATH)/include)
LOCAL_LDLIBS    := -llog -lm -lz -ljnigraphics

###the flowing static libaraies must order
LOCAL_STATIC_LIBRARIES += avformat avcodec avutil swscale avfilter avdevice swresample postproc

include $(BUILD_SHARED_LIBRARY)

完成

编译过程中遇到的问题

javah生成方法名字

1、

javah -classpath 包名文件夹路径 -d 头文件输出路径 -jni 包名.类名（不带.class）

-classpath <路径> 用于装入类的路径。注意是包名文件夹的路径，不是class的路径，如果没有包名的话就是class的路径。

-jni 生成 JNI样式的头文件（默认）

javah -classpath classes -d jniheader -jni com.test.ffmpeg.domo.jni.FFmpegJni

路径中包含bitmap失败情况处理：

没有找到Bitmap是因为Java没有Bitmap类，将对应的C:\Users\Administrator\AppData\Local\Android\Sdk\platforms\android-25\android.jar包添加到classpath即可，注意两个路径中间加分号。全部命令为：

Eg:

javah -classpath D:\adt-bundle-windows-x86_64-20131030\sdk\platforms\android-19\android.jar;classes -d jniheader -jni com.test.ffmpeg.domo.jni.FFmpegJni
