一、前言

本文通过实现简单的订单支付业务，来对微服务架构的构建进行练习。

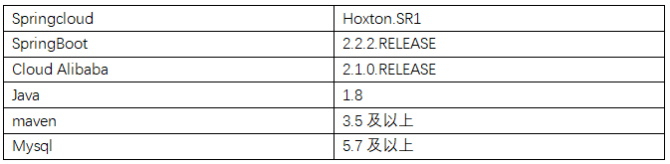

二、技术及版本选择

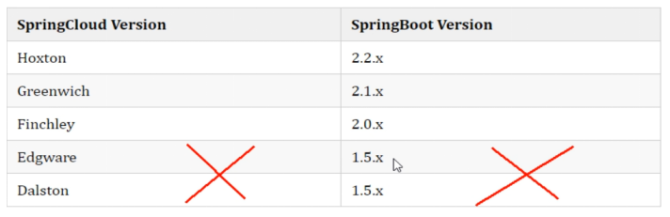

Springcloud和Springboot版本对应关系

三、创建project工作空间

创建父工程:父工程pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">

  <modelVersion>4.0.0</modelVersion>
  <groupId>com.exercise.springcloud</groupId>
  <artifactId>cloud2020</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>pom</packaging>

  <!-- 统一管理jar包版本 -->
  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
    <junit.version>4.12</junit.version>
    <log4j.version>1.2.17</log4j.version>
    <lombok.version>1.16.18</lombok.version>
    <mysql.version>5.1.47</mysql.version>
    <druid.version>1.1.16</druid.version>
    <mybatis.spring.boot.version>1.3.0</mybatis.spring.boot.version>
  </properties>

  <!-- 子模块继承之后，提供作用：锁定版本+子modlue不用写groupId和version  -->
  <dependencyManagement>
    <dependencies>
      <!--spring boot 2.2.2-->
      <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-dependencies</artifactId>
        <version>2.2.2.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
      <!--spring cloud Hoxton.SR1-->
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>Hoxton.SR1</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
      <!--spring cloud alibaba 2.1.0.RELEASE-->
      <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-alibaba-dependencies</artifactId>
        <version>2.1.0.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>

      <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>${mysql.version}</version>
      </dependency>
      <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid</artifactId>
        <version>${druid.version}</version>
      </dependency>
      <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
        <version>${mybatis.spring.boot.version}</version>
      </dependency>
      <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>${junit.version}</version>
      </dependency>
      <dependency>
        <groupId>log4j</groupId>
        <artifactId>log4j</artifactId>
        <version>${log4j.version}</version>
      </dependency>
      <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <version>${lombok.version}</version>
        <optional>true</optional>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
        <configuration>
          <fork>true</fork>
          <addResources>true</addResources>
        </configuration>
      </plugin>
    </plugins>
  </build>
</project>

四、微服务工程构建

cloud-provider-payment8001微服务提供者支付模块

（1）创建cloud-provider-payment8001

（2）改写pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.exercise.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-provider-payment8001</artifactId>

    <dependencies>
        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-web -->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/com.alibaba/druid -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-jdbc -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-devtools -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
           <scope>runtime</scope>
            <optional>true</optional>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-test -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

    </dependencies>

</project>

（3）写YML：创建application.yml

server:
  port: 8001

spring:
  application:
    name: cloud-payment-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: org.gjt.mm.mysql.Driver
    url: jdbc:mysql://localhost:3306/db2020?useUnicode=true&characterEncoding=utf-8&useSSL=false
    username: root
    password: 123456

mybatis:
  mapperLocations: classpath:mapper/*.xml
  type-aliases-package: com.exercise.springcloud.entities

（4）主启动PaymentMain8001

package com.exercise.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @Date 2020/10/17 17:10
 * @Version 1.0
 */
@SpringBootApplication
public class PaymentMain8001 {

    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8001.class,args);
    }
}

（5）业务类

1、创建表SQL

CREATE TABLE payment (
 id BIGINT(20) NOT NULL AUTO_INCREMENT COMMENT ID,
 'serial' VARCHAR(200) DEFAULT,
 PRIMARY KEY(id)
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

2、创建主实体类Payment

package com.exercise.springcloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment implements Serializable {
    private Long id;
    private String serial;
}

Json封装体CommonResult

package com.exercise.springcloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult <T>{

    private Integer code;
    private String message;
    private T data;

    public CommonResult(Integer code,String message){
        this(code,message,null);
    }
}

3、创建dao：PaymentDao
4、mybatis的映射文件PaymentMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.exercise.springcloud.dao.PaymentDao">

    <insert id="create" parameterType="Payment" useGeneratedKeys="true" keyProperty="id">
            insert into payment(serial) values(${serial});

    </insert>

    <resultMap id="BaseResultMap" type="com.exercise.springcloud.entities.Payment">
        <id column="id" property="id" jdbcType="BIGINT"></id>
        <id column="serial" property="serial" jdbcType="VARCHAR"></id>
    </resultMap>
    <select id="getPaymentById"  parameterType="Long" resultMap="BaseResultMap">
            select * from payment where id=#{id}
    </select>
</mapper>

5、创建PaymentService

package com.exercise.springcloud.service;

import com.exercise.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Param;

public interface PaymentService {

    public int create(Payment payment); //写

    public Payment getPaymentById(@Param("id") Long id);  //读取
}

6、创建实现类PaymentServiceImpl.在此我向大家推荐一个架构学习交流圈。交流学习伪鑫：1253431195（里面有大量的面试题及答案）里面会分享一些资深架构师录制的视频录像：有Spring，MyBatis，Netty源码分析，高并发、高性能、分布式、微服务架构的原理，JVM性能优化、分布式架构等这些成为架构师必备的知识体系。还能领取免费的学习资源，目前受益良多

package com.exercise.springcloud.service.impl;

import com.exercise.springcloud.dao.PaymentDao;
import com.exercise.springcloud.entities.Payment;
import com.exercise.springcloud.service.PaymentService;
import org.apache.ibatis.annotations.Param;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

@Service
public class PaymentServiceImpl implements PaymentService {

    @Resource
    private PaymentDao paymentDao;
    public int create(Payment payment){
        return paymentDao.create(payment);
    }
    public Payment getPaymentById( Long id){
        return paymentDao.getPaymentById(id);
    }
}

7、创建controller

package com.exercise.springcloud.controller;

import com.exercise.springcloud.entities.CommonResult;
import com.exercise.springcloud.entities.Payment;
import com.exercise.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

@RestController
@Slf4j
public class PaymentController {

    @Resource
    private PaymentService paymentService;

    @PostMapping(value = "/payment/create")
    public CommonResult create(Payment payment){
       int result = paymentService.create(payment);
       log.info("*****插入结果："+result);
       if (result>0){  //成功
           return new CommonResult(200,"插入数据库成功",result);
       }else {
           return new CommonResult(404,"插入数据库失败",null);
       }
    }
    @GetMapping(value = "/payment/get/{id}")
    public CommonResult getPaymentById(@PathVariable("id") Long id){
        Payment payment = paymentService.getPaymentById(id);
        log.info("*****查询结果："+payment);
        if (payment!=null){  //说明有数据，能查询成功
            return new CommonResult(200,"查询成功",payment);
        }else {
            return new CommonResult(404,"没有对应记录，查询ID："+id,null);
        }
    }
}

（6）测试

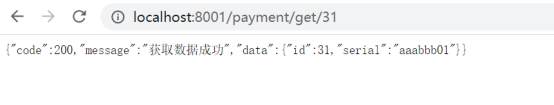

查询数据：

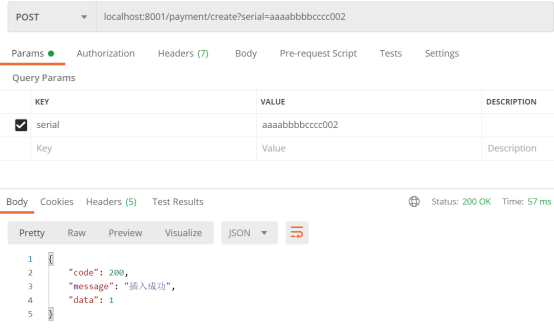

插入数据：
