Spring Cloud -- 路由网关（Zuul）

Zuul介绍

Zuul的主要功能是路由转发和过滤器。路由功能是微服务的一部分，比如／api/user转发到到user服务，/api/shop转发到到shop服务。zuul默认和Ribbon结合实现了负载均衡的功能。

搭建Spring Cloud网关

创建工程service-zuul

Maven依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com</groupId>
	<artifactId>service-zuul</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>service-zuul</name>
	<description>Demo project for Spring Boot</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.3.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
		<spring-cloud.version>Finchley.RELEASE</spring-cloud.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-zuul</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>

在其入口applicaton类加上注解@EnableZuulProxy，开启zuul的功能：

@SpringBootApplication
@EnableEurekaClient
@EnableZuulProxy
public class ServiceZuulApplication {

	public static void main(String[] args) {
		SpringApplication.run(ServiceZuulApplication.class, args);
	}
}

application.yml

eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka/
server:
  port: 8769
spring:
  application:
    name: service-zuul
zuul:
  routes:
    api-a:
      path: /api-member/**
      service-id: service-member
    api-b:
      path: /api-order/**
      service-id: service-order

 演示效果

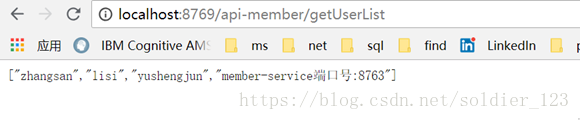

发送请求http://127.0.0.1:8769/api-member/getUserList

转发到http://127.0.0.1:8763/getUserList

服务过滤



@Component
public class MyFilter extends ZuulFilter {

    private static Logger log = LoggerFactory.getLogger(MyFilter.class);

    @Override
    public String filterType() {
        return "pre";
    }

    @Override
    public int filterOrder() {
        return 0;
    }

    public boolean shouldFilter() {
        return true;
    }

    public Object run() {
        RequestContext ctx = RequestContext.getCurrentContext();
        HttpServletRequest request = ctx.getRequest();
        log.info(String.format("%s >>> %s", request.getMethod(), request.getRequestURL().toString()));
        Object accessToken = request.getParameter("token");
        if (accessToken != null) {
            return null;
        }
        log.warn("token is empty");
        ctx.setSendZuulResponse(false);
        ctx.setResponseStatusCode(401);
        try {
            ctx.getResponse().getWriter().write("token is empty");
        } catch (Exception e) {
        }
        return null;

    }

}

filterType：返回一个字符串代表过滤器的类型，在zuul中定义了四种不同生命周期的过滤器类型，具体如下：

• pre：路由之前
• routing：路由之时
• post： 路由之后
• error：发送错误调用

filterOrder：过滤的顺序

shouldFilter：这里可以写逻辑判断，是否要过滤，本文true,永远过滤。

run：过滤器的具体逻辑。可用很复杂，包括查sql，nosql去判断该请求到底有没有权限访问。

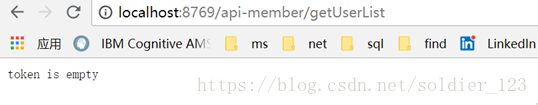

如果请求参数中没有传入token参数 直接返回报错信息

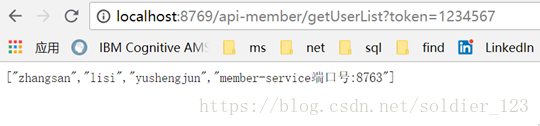

传入token参数可以正常访问请求
