为了节省内存空间,灵活处理不同长度范围的字符串,redis 定义了几种 sdshdr(X)
数据结构,对不同长度的字符串数据进行存储。

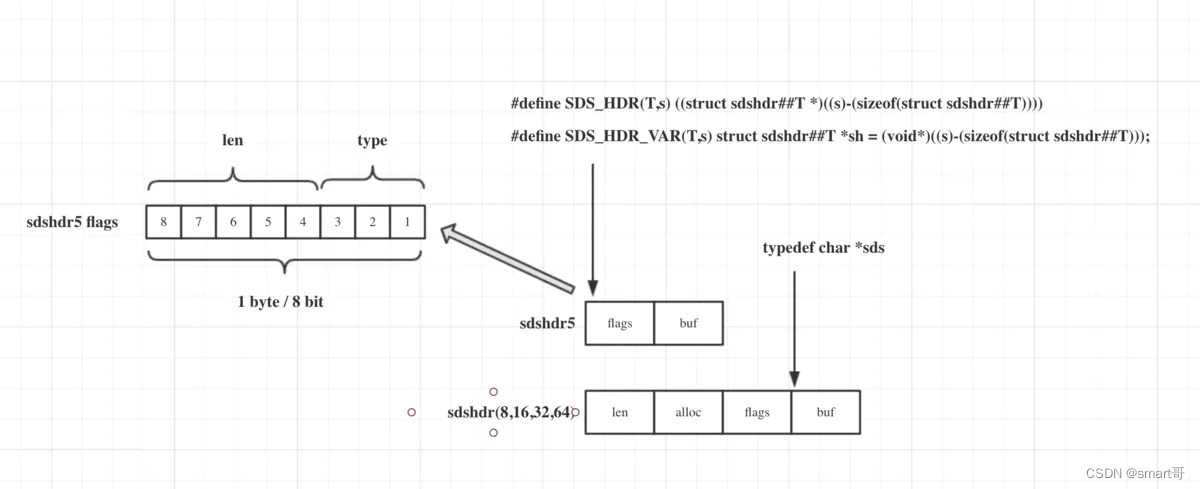

1. 数据结构
为了节省内存空间,灵活处理不同长度范围的字符串
- redis 定义了
sdshdr(X)
几种数据结构,可以查看数据结构大小
。 - 同时 struct 数据结构没有进行内存对齐。
typedef char *sds;
#define SDS_HDR(T,s) ((struct sdshdr##T *)((s)-(sizeof(struct sdshdr##T))))
#define SDS_HDR_VAR(T,s) struct sdshdr##T *sh = (void*)((s)-(sizeof(struct sdshdr##T)));
/* Note: sdshdr5 is never used, we just access the flags byte directly.
* However is here to document the layout of type 5 SDS strings. */
struct __attribute__ ((__packed__)) sdshdr5 {
// 当字符串很小时, `flags` 是一个8 个字节的组合字符,前 3 bit 是字符串类型,后面5bit是字符串长度。
unsigned char flags; /* 3 lsb of type, and 5 msb of string length */
char buf[];
};
struct __attribute__ ((__packed__)) sdshdr8 {
uint8_t len; /* used */
uint8_t alloc; /* excluding the header and null terminator */
unsigned char flags; /* 3 lsb of type, 5 unused
