Golang http之server源码详解

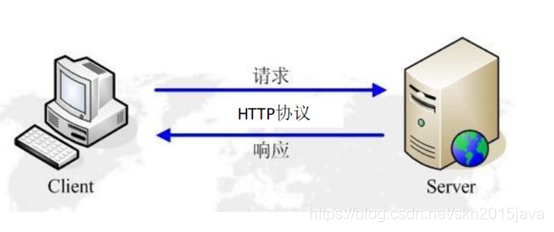

       http 是典型的 C/S 架构，客户端向服务端发送请求（request），服务端做出应答（response）。HTTP server–简而言之就是一个支持http协议的服务，http是一个相对简单的请求—响应的协议，通常是运行在TCP连接之上， 通过客户端发送请求到服务端，获取服务端的响应。

我们先看一个简单的http  server例子

    package main

	import (
		"io"
		"net/http"
		"log"
	)

	// hello world, the web server
	func HelloServer(w http.ResponseWriter, req *http.Request) {
		io.WriteString(w, "hello, world!\n")
	}

	func main() {
        //路由注册
		http.HandleFunc("/hello", HelloServer)
        //开启一个http服务
		log.Fatal(http.ListenAndServe(":8086", nil))
	}

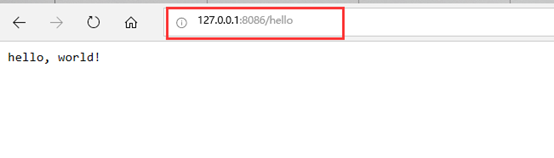

当服务器启动后，浏览器访问：http://127.0.0.1:8086/hello

网页上会显示：

以上就是http 服务的一个简单demo，下面我们主要从源码来分析http server



源码分析

 一、  常用概念

  1.Handler接口

 type Handler interface {
	ServeHTTP(ResponseWriter, *Request)
}

   作用：Handler封装了处理客户端的请求逻辑及创建返回响应的逻辑，一个http server需要实现Handler接口。



2.Server结构体

//Server定义一个HTTP 服务
type Server struct {
   //监听的TCP地址
   Addr    string  // TCP address to listen on, ":http" if empty
   //要调用的处理函数，如果为nil，则默认用http.DefaultServeMux
   Handler Handler // handler to invoke, http.DefaultServeMux if nil

   // TLSConfig optionally provides a TLS configuration for use
   // by ServeTLS and ListenAndServeTLS. Note that this value is
   // cloned by ServeTLS and ListenAndServeTLS, so it's not
   // possible to modify the configuration with methods like
   // tls.Config.SetSessionTicketKeys. To use
   // SetSessionTicketKeys, use Server.Serve with a TLS Listener
   // instead.
   /*
   TLSConfig可以选择提供TLS  配置 用于使用ServeTLS 和 ListenAndServeTLS
   */
   TLSConfig *tls.Config

   // ReadTimeout is the maximum duration for reading the entire
   // request, including the body.
   //
   // Because ReadTimeout does not let Handlers make per-request
   // decisions on each request body's acceptable deadline or
   // upload rate, most users will prefer to use
   // ReadHeaderTimeout. It is valid to use them both.
   //ReadTimeout读取请求的最长时间，包括正文
   ReadTimeout time.Duration

   // ReadHeaderTimeout is the amount of time allowed to read
   // request headers. The connection's read deadline is reset
   // after reading the headers and the Handler can decide what
   // is considered too slow for the body.
   //ReadHeaderTimeout是允许读取请求头的最长时间
   //读完请求头后会重置超时间，并且Handler可以判断太慢的body
   ReadHeaderTimeout time.Duration

   // WriteTimeout is the maximum duration before timing out
   // writes of the response. It is reset whenever a new
   // request's header is read. Like ReadTimeout, it does not
   // let Handlers make decisions on a per-request basis.
   //WriteTimeout是写入响应之前的最大持续时间。 只要读取新请求的标头，它就会重置。 与ReadTimeout一样，它不允许处理程序根据请求做出决策。
   WriteTimeout time.Duration

   // IdleTimeout is the maximum amount of time to wait for the
   // next request when keep-alives are enabled. If IdleTimeout
   // is zero, the value of ReadTimeout is used. If both are
   // zero, ReadHeaderTimeout is used.
   //当开启keep-alives时，IdleTimeout是等待下个请求的最长时间，如果IdleTimeout是0，则使用ReadTimeout，如果ReadTimeout也是0，则使用ReadHeaderTimeout
   IdleTimeout time.Duration

   // MaxHeaderBytes controls the maximum number of bytes the
   // server will read parsing the request header's keys and
   // values, inc
