第一步安装erlang环境：

下载：
由于rabbitmq是erlang来写的，所以需要安装erlang环境：
https://www.erlang-solutions.com/resources/download.html
安装：

yum -y install esl-erlang_23.0.2-1_centos_7_amd64.rpm

检测erlang：

erl

第二步安装RabbitMQ

下载：

http://www.rabbitmq.com/download.html

安装rabbitmq：

yum -y install rabbitmq-server-3.8.5-1.el7.noarch.rpm

查看rabbitmq的插件：
rabbitmq-plugins list
使用命令安装rabbitmq管理插件：rabbitmq-plugins enable rabbitma_management

启动rabbitmq：systemctl start rabbitmq-server.service
查看rabbitmq状态：systemctl status rabbitmq-server.service

访问ip:15672
用户名密码默认guest

出现警告：User can only log in via localhost
解决方法：
cd /etc/rabbitmq/
创建： vim rabbitmq.config

添加：
[{rabbit,[{loopback_users,[]}]}].


重启rabbitmq：systemctl restart rabbitmq-server.service

记得开放服务器防火墙和安全组的端口号！！！

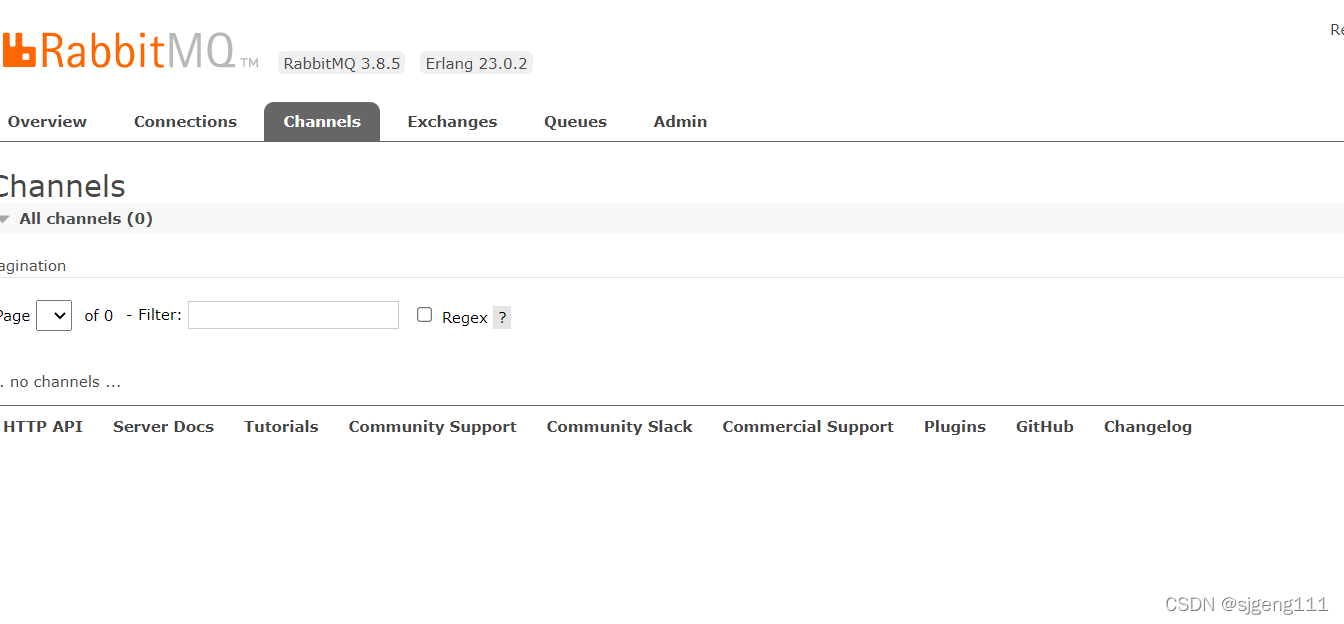

管控台插件页面：
在这里插入图片描述

第三步整合springboot

创建springboot项目添加依赖：

<!--amqp依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>

application.yml添加配置:

#RabbitMq
  rabbitmq:
    #服务器
    host: *.*.*.*
    #用户名
    username: guest
    #密码
    password: guest
    #虚拟主机
    virtual-host: /
    #端口
    port: 5672
    listener:
      simple:
        #消费者最小数量
        concurrency: 10
        #消费者最大数量
        max-concurrency: 10
        #限制消费者每次只处理一条消息，处理完再继续下一条消息
        prefetch: 1
        #启动时是否默认启动容器，默认true
        auto-startup: true
        #被拒绝时重新进入队列
        default-requeue-rejected: true
    template:
      retry:
        #发布重试,默认false
        enabled: true
        #重试时间，默认1000ms
        initial-interval: 1000ms
        #重试最大次数，默认3次
        max-attempts: 3
        #重试最大间隔时间
        max-interval: 10000ms
        #重试的间隔乘数 比如2.0  第一次就等10s 第二次就等20s，第三次就等40s
        multiplier: 1

hello入门案例：

创建rabbitmq配置类：RabbitMQConfig

import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;



/**
 * @description: Rabbitmq配置类  生产者---队列---消费者
 * @author
 * @date 2022/2/17 16:33
 * @version 1.0
 */
@Configuration
public class RabbitMQConfig {
    @Bean
    public Queue queue(){
        return new Queue("queue",true);
    }
}

创建生产者：MQSender

import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

/**
 * @description: TODO
 * @author 孙
 * @date 2022/2/17 16:38
 * @version 1.0
 */
@Service
@Slf4j
public class MQSender {
    @Autowired
    private RabbitTemplate rabbitTemplate;

    public void send(Object msg){
        log.info("发送消息"+msg);
        rabbitTemplate.convertAndSend("queue",msg);
    }

}

创建接收者：MQReceiver

import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Service;


/**
 * @description: 接收者
 * @author 孙
 * @date 2022/2/17 16:41
 * @version 1.0
 */
@Service
@Slf4j
public class MQReceiver {
    @RabbitListener(queues = "queue")
    public void receive(Object msg){
        log.info("接收消息："+ msg);
    }
}

编写测试接口：

/**
	 * @description: mq测试
	 * @param:
	 * @return:
	 * @author 孙
	 * @date: 2022/2/17 16:46
	 */
	@RequestMapping("/mq")
	@ResponseBody
	public void mq(){
		mqSender.send("Hello");
	}

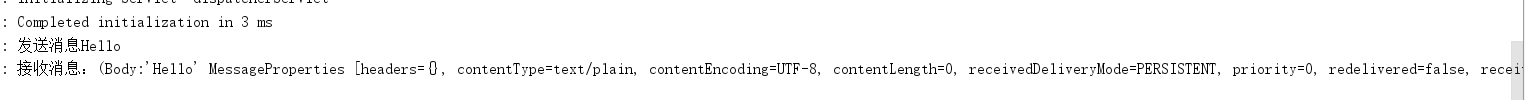

在这里插入图片描述

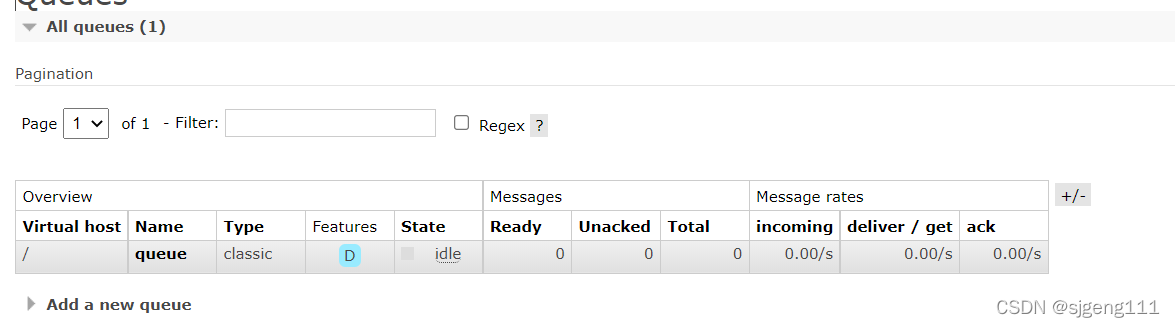

在rabbitmq控制台就会有数据显示：

fanout模式

RabbitMQConfig配置类：

import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.FanoutExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;



/**
 * @description: Rabbitmq配置类  生产者---队列---消费者
 * @author
 * @date 2022/2/17 16:33
 * @version 1.0
 */
@Configuration
public class RabbitMQConfig {
    //fanout模式创建队列与交换机
    private static final String Queue01="queue_fanout01";
    private static final String Queue02="queue_fanout02";
    private static final String EXCHANGE="fanoutExchange";

    @Bean
    public Queue queue(){
        return new Queue("queue",true);
    }

    //创建队列与交换机实例
    @Bean
    public Queue queue01(){
        return new Queue(Queue01);
    }
    @Bean
    public Queue queue02(){
        return new Queue(Queue02);
    }
    @Bean
    public FanoutExchange fanoutExchange(){
        return new FanoutExchange(EXCHANGE);
    }

    //交换机与队列进行绑定
    @Bean
    public Binding binding01(){
        return BindingBuilder.bind(queue01()).to(fanoutExchange());
    }

    @Bean
    public Binding binding02(){
        return BindingBuilder.bind(queue02()).to(fanoutExchange());
    }
}

生产者MQSender 生产者向交换机发送消息：


import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

/**
 * @description: TODO
 * @author 孙
 * @date 2022/2/17 16:38
 * @version 1.0
 */
@Service
@Slf4j
public class MQSender {
    @Autowired
    private RabbitTemplate rabbitTemplate;

    public void send(Object msg){
        log.info("发送消息"+msg);
        rabbitTemplate.convertAndSend("queue",msg);
    }

    public void send02(Object msg){//使用交换机向队列推送消息
        log.info("发送消息"+msg);
        rabbitTemplate.convertAndSend("fanoutExchange","",msg);
    }

}

接收者MQReceiver ：


/**
 * @description: 接收者
 * @author 孙
 * @date 2022/2/17 16:41
 * @version 1.0
 */
@Service
@Slf4j
public class MQReceiver {
    @RabbitListener(queues = "queue")
    public void receive(Object msg){
        log.info("接收消息："+ msg);
    }

    //获取队列中的消息
    @RabbitListener(queues = "queue_fanout01")
    public void receive01(Object msg){
        log.info("QUEUE01接收消息："+msg);
    }

    //获取队列中的消息
    @RabbitListener(queues = "queue_fanout02")
    public void receive02(Object msg){
        log.info("QUEUE接收消息:"+msg);
    }
}

测试：

/**
	 * @description: fanout模式
	 * @param: []
	 * @return: void
	 * @author 孙
	 * @date: 2022/2/18 11:35
	 */
	 @RequestMapping("/mq/fanout")
	 @ResponseBody
	 public void mq01() {
	 	mqSender.send02("Hello");
	 }

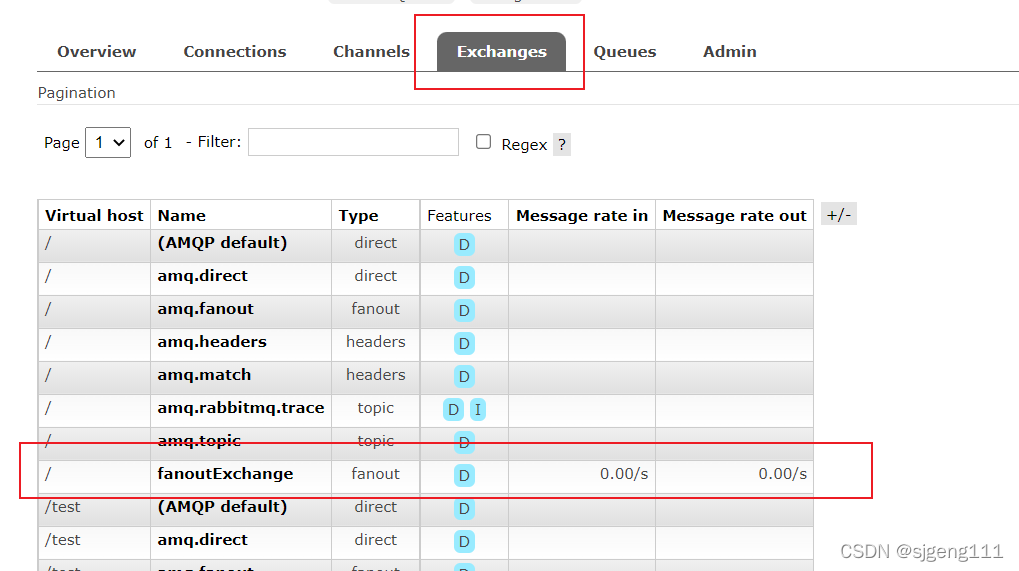

交换机：
在这里插入图片描述

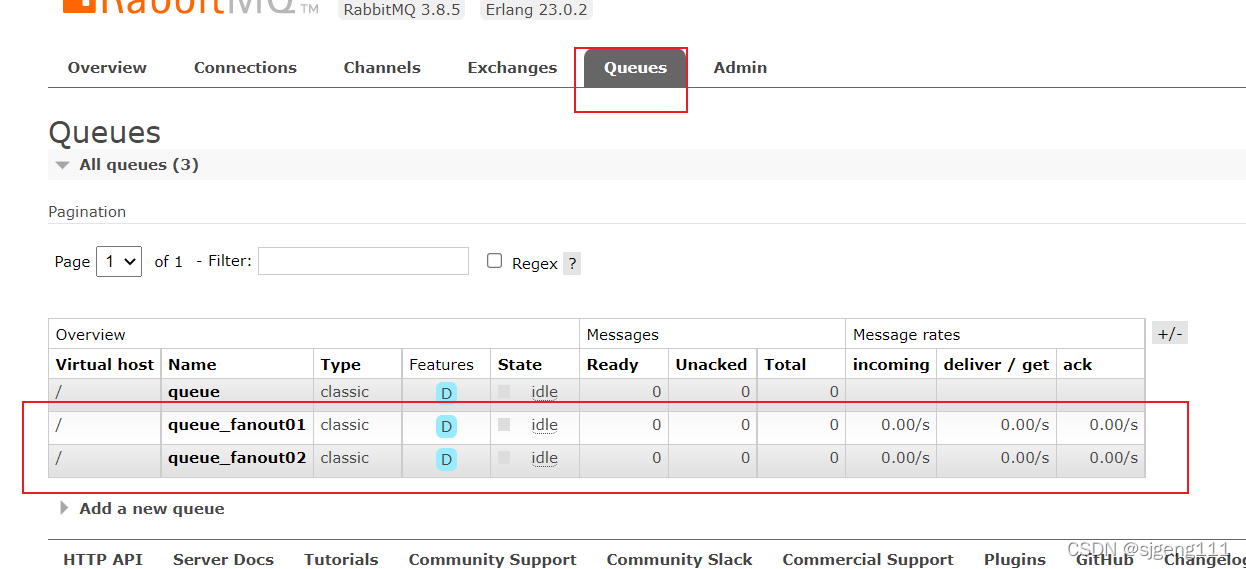

队列：

Direct模式：

就是在fanout基础上添加了路由，可以让交换的消息传入到指定的队列中

direct配置类 RabbitMQDirectConfig ：


import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.DirectExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;



/**
 * @description: rabbitmq的direct模式
 * @author 孙
 * @date 2022/2/21 11:02
 * @version 1.0
 */
@Configuration
public class RabbitMQDirectConfig {
    private static final String QUEUE01="queue_direct01";
    private static final String QUEUE02="queue_direct02";
    private static final String EXCHANGE="directExchange";
    private static final String ROUTINGKEY01="queue.red";
    private static final String ROUTINGKEY02="queue.green";

    @Bean
    public Queue queeu01(){
        return new Queue(QUEUE01);
    }

    @Bean
    public Queue queue02(){
        return new Queue(QUEUE02);
    }

    @Bean
    public DirectExchange directExchange(){
        return new DirectExchange(EXCHANGE);
    }
    //绑定队列交换机路由
    @Bean
    public Binding binding01(){
        return BindingBuilder.bind(queeu01()).to(directExchange()).with(ROUTINGKEY01);
    }
    @Bean
    public Binding binding02(){
        return BindingBuilder.bind(queue02()).to(directExchange()).with(ROUTINGKEY02);
    }

}

发送消息：

//direct模式：引入交换机队列路由,根据路由发送到指定的队列中
    public void send03(Object msg){
        log.info("发送red消息"+msg);
        rabbitTemplate.convertAndSend("directExchange","queue.red",msg);
    }

    public void send04(Object msg){
        log.info("发送green消息"+msg);
        rabbitTemplate.convertAndSend("directExchange","queue.green",msg);
    }

接收消息

 @RabbitListener(queues = "queue_direct01")
    public void receive03(Object msg){
        log.info("QUEUE01接收消息"+msg);
    }

    @RabbitListener(queues = "queue_direct02")
    public void receive04(Object msg){
        log.info("QUEUE02接收消息"+msg);
    }

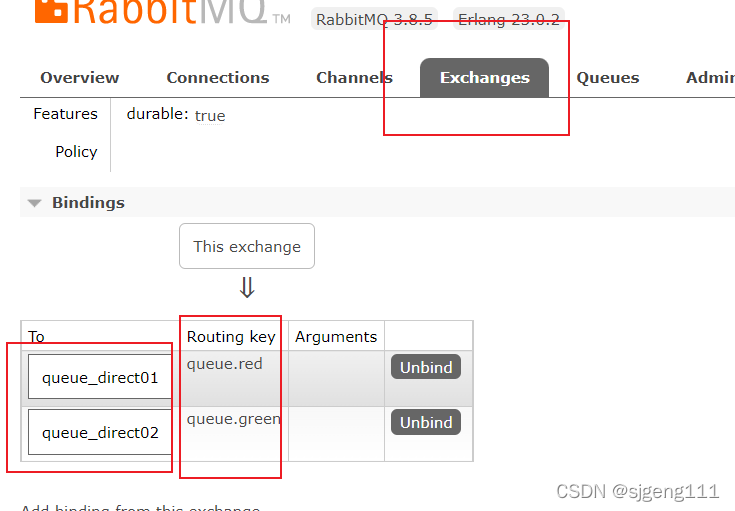

在这里插入图片描述

topic模式

对direct模式的加强，路由可以使用匹配符进行匹配（#匹配0个或者无数个，*匹配1个）

topic配置类：RabbitMQTopicConfig


import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.core.TopicExchange;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;



/**
 * @description: MQ的topic模式
 * @author 孙
 * @date 2022/2/23 16:03
 * @version 1.0
 */
@Configuration
public class RabbitMQTopicConfig {
    private static final String QUEUE01="queue_topic01";
    private static final String QUEUE02="queue_topic02";
    private static final String EXCHANGE="topicExchange";
    private static final String ROUTINGKEY01="#.queue.#";//#匹配0个或者无数个
    private static final String ROUTINGKEY02="*.queue.#";//*匹配1个

    @Bean
    public Queue queue01(){
        return new Queue(QUEUE01);
    }

    @Bean
    public Queue queue02(){
        return new Queue(QUEUE02);
    }

    @Bean
    public TopicExchange topicExchange(){
        return new TopicExchange(EXCHANGE);
    }

    @Bean
    public Binding binding01(){
        return BindingBuilder.bind(queue01()).to(topicExchange()).with(ROUTINGKEY01);
    }

    @Bean
    public Binding binding02(){
        return BindingBuilder.bind(queue02()).to(topicExchange()).with(ROUTINGKEY02);
    }
}

发送：MQSender

 public void send05(Object msg){
        log.info("发送消息（QUEUE01接收）："+msg);
        rabbitTemplate.convertAndSend("topicExchange","queue.red.msg",msg);
    }

    public void send06(Object msg){
        log.info("发送消息（QUEUE02接收）："+msg);
        rabbitTemplate.convertAndSend("topicExchange","msg.queue.green.abc");
    }

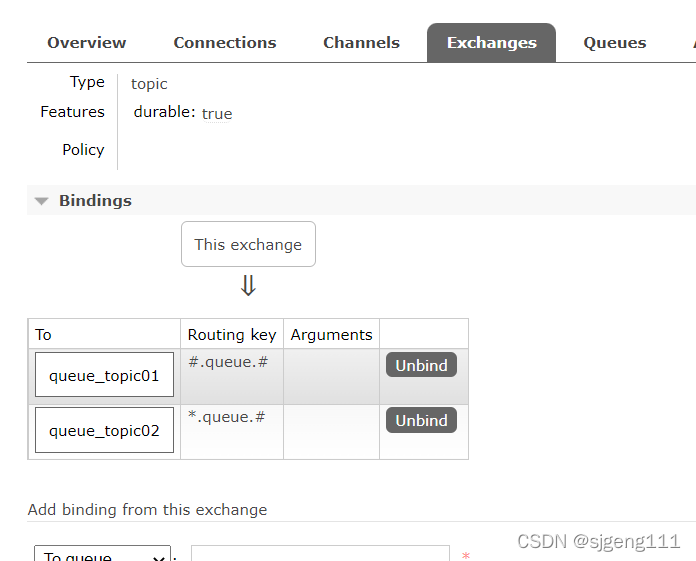

在这里插入图片描述

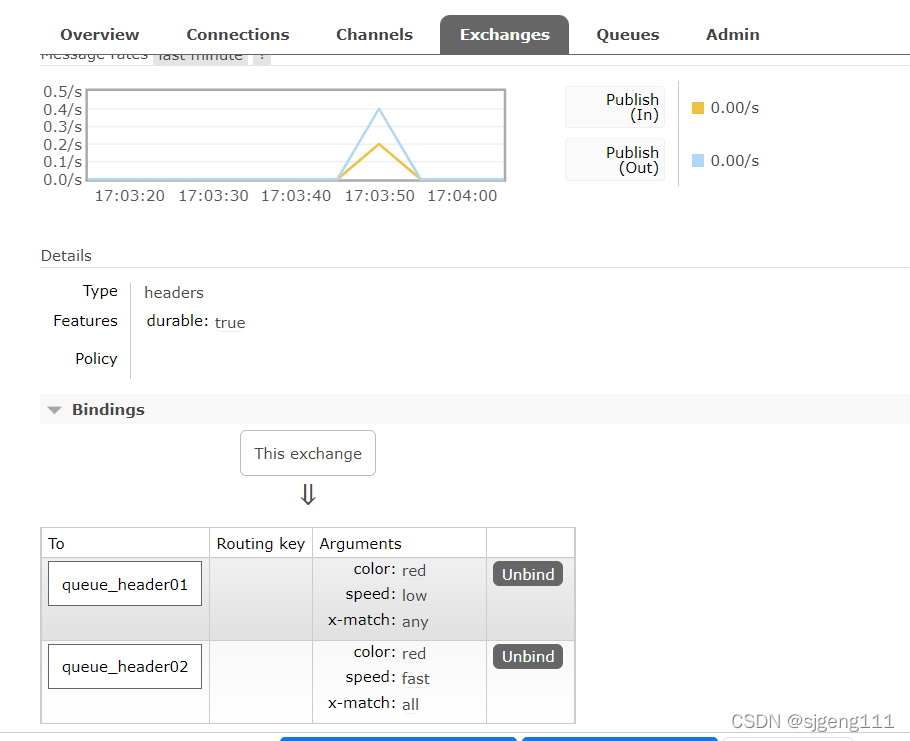

Header模式

配置类：


import org.springframework.amqp.core.*;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.HashMap;
import java.util.Map;

/**
 * @description: TODO
 * @author 孙
 * @date 2022/2/23 16:38
 * @version 1.0
 */
@Configuration
public class RabbitMQHeadersConfig {
    private  static final String QUEUE01="queue_header01";
    private static final String QUEUE02="queue_header02";
    private static final String EXCHANGE="headerExchange";

    @Bean
    public Queue queue01(){
        return new Queue(QUEUE01);
    }
    @Bean
    public Queue query02(){
        return new Queue(QUEUE02);
    }
    @Bean
    public HeadersExchange headersExchange(){
        return new HeadersExchange(EXCHANGE);
    }

    @Bean
    public Binding binding01(){
        Map<String,Object> map=new HashMap<>();
        map.put("color","red");
        map.put("speed","low");
        return BindingBuilder.bind(queue01()).to(headersExchange()).whereAny(map).match();//任意匹配

    }

    @Bean
    public Binding binding02(){
         HashMap<String, Object> map = new HashMap<>();
         map.put("color","red");
         map.put("speed","fast");
         return BindingBuilder.bind(query02()).to(headersExchange()).whereAll(map).match();//匹配全部

    }

}

发送消息

 public void send07(String msg){
        log.info("发送消息被两个queue接收："+msg);
         MessageProperties properties = new MessageProperties();
         properties.setHeader("color","red");
         properties.setHeader("speed","normal");
         Message message = new Message(msg.getBytes(),properties);
         rabbitTemplate.convertAndSend("headerExchange","",message);



    }
    public void send08(String msg){
        log.info("发送消息被1个queue接收："+msg);
        MessageProperties properties = new MessageProperties();
        properties.setHeader("color","red");
        properties.setHeader("speed","fast");
        Message message = new Message(msg.getBytes(),properties);
        rabbitTemplate.convertAndSend("headerExchange","",message);



    }

接收消息

 @RabbitListener(queues = "queue_header01")
    public void receive07(Message msg){
        log.info("QUEUE01接收消息"+msg);
        log.info("QUEUE01接收消息"+new String(msg.getBody()));
    }

    @RabbitListener(queues = "queue_header02")
    public void receive08(Message msg){
        log.info("QUEUE02接收消息："+msg);
        log.info("QUEUE02接收消息"+new String(msg.getBody()));
    }

测试

@RequestMapping("/mq/header01")
	@ResponseBody
	public void mq07(){
		mqSender.send07("hello red");
	}
	@RequestMapping("/mq/header02")
	@ResponseBody
	public void mq08(){
		mqSender.send08("hello green");
	}

在这里插入图片描述
