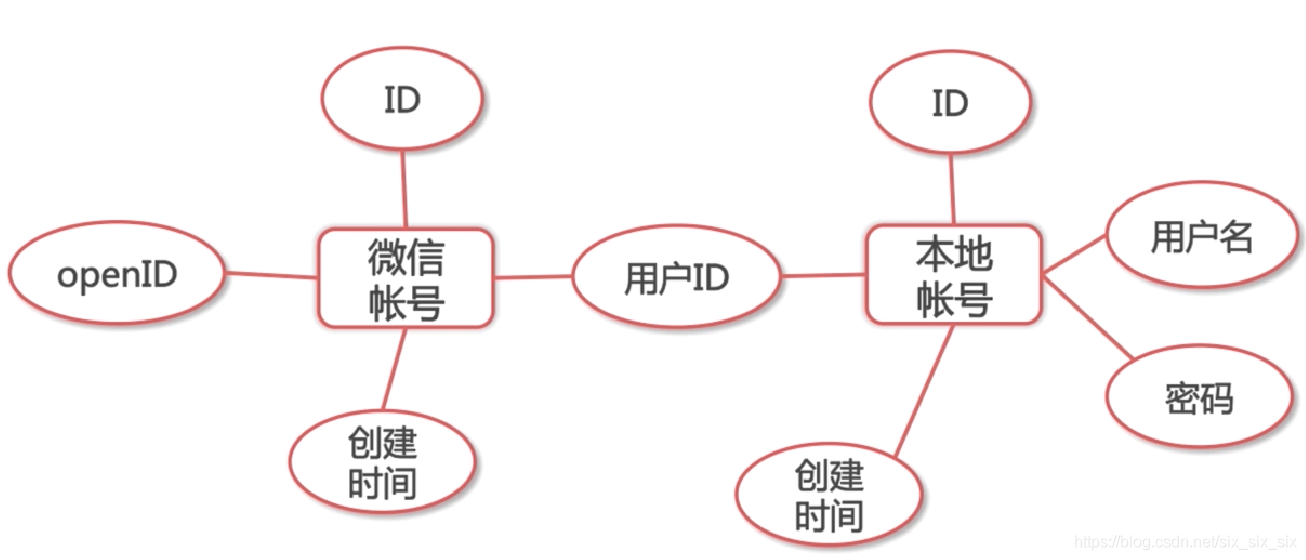

一、微信登录实体类和本地验证实体类（这两个实体类都与用户实体类相关联）

在这里插入图片描述

package com.lzx.o2o.entity;

import java.util.Date;

/**
 * 微信登录实体类
 *
 * @author lzx
 *
 */
public class WechatAuth {
	// 主键ID
	private Long wechatAuthId;
	// 微信获取用户信息的凭证，对于某个公众号具有唯一性
	private String openId;
	// 创建时间
	private Date createTime;
	// 用户信息
	private PersonInfo personInfo;

	public Long getWechatAuthId() {
		return wechatAuthId;
	}

	public void setWechatAuthId(Long wechatAuthId) {
		this.wechatAuthId = wechatAuthId;
	}

	public String getOpenId() {
		return openId;
	}

	public void setOpenId(String openId) {
		this.openId = openId;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public PersonInfo getPersonInfo() {
		return personInfo;
	}

	public void setPersonInfo(PersonInfo personInfo) {
		this.personInfo = personInfo;
	}

}


DROP TABLE IF EXISTS `tb_wechat_auth`;
CREATE TABLE `tb_wechat_auth` (
  `wechat_auth_id` int(10) NOT NULL AUTO_INCREMENT,
  `user_id` int(10) NOT NULL,
  `open_id` varchar(80) NOT NULL DEFAULT '',
  `create_time` datetime DEFAULT NULL,
  PRIMARY KEY (`wechat_auth_id`),
  UNIQUE KEY `open_id` (`open_id`),
  KEY `fk_wechatauth_profile` (`user_id`),
  CONSTRAINT `fk_wechatauth_profile` FOREIGN KEY (`user_id`) REFERENCES `tb_person_info` (`user_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

package com.lzx.o2o.entity;

import java.util.Date;

/**
 * 本地验证实体类，主要用来做帐号密码的登录
 *
 * @author lzx
 *
 */
public class LocalAuth {
	// 主键ID
	private Long localAuthId;
	// 帐号
	private String username;
	// 密码
	private String password;
	// 创建时间
	private Date createTime;
	// 最近一次的更新时间
	private Date lastEditTime;
	// 个人信息，关系为一一对应
	private PersonInfo personInfo;

	public Long getLocalAuthId() {
		return localAuthId;
	}

	public void setLocalAuthId(Long localAuthId) {
		this.localAuthId = localAuthId;
	}

	public String getUsername() {
		return username;
	}

	public void setUsername(String username) {
		this.username = username;
	}

	public String getPassword() {
		return password;
	}

	public void setPassword(String password) {
		this.password = password;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getLastEditTime() {
		return lastEditTime;
	}

	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

	public PersonInfo getPersonInfo() {
		return personInfo;
	}

	public void setPersonInfo(PersonInfo personInfo) {
		this.personInfo = personInfo;
	}

}


DROP TABLE IF EXISTS `tb_local_auth`;
CREATE TABLE `tb_local_auth` (
  `local_auth_id` int(10) NOT NULL AUTO_INCREMENT,
  `user_id` int(10) NOT NULL,
  `username` varchar(128) NOT NULL,
  `password` varchar(128) NOT NULL,
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  PRIMARY KEY (`local_auth_id`),
  UNIQUE KEY `uk_local_profile` (`username`),
  KEY `fk_localauth_profile` (`user_id`),
  CONSTRAINT `fk_localauth_profile` FOREIGN KEY (`user_id`) REFERENCES `tb_person_info` (`user_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

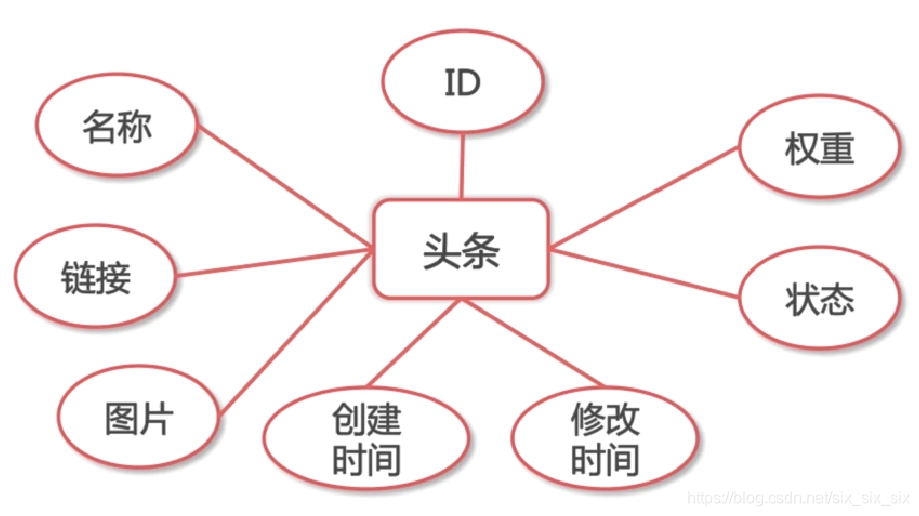

二、头条实体类

在这里插入图片描述

package com.lzx.o2o.entity;

import java.util.Date;

/**
 * 头条实体类
 *
 * @author lzx
 *
 */
public class HeadLine {
	// 主键ID
	private Long lineId;
	// 头条名字
	private String lineName;
	// 头条链接，点击头条会进入相应链接中
	private String lineLink;
	// 头条图片
	private String lineImg;
	// 权重，越大越排前显示
	private Integer priority;
	// 0.不可用 1.可用
	private Integer enableStatus;
	// 创建时间
	private Date createTime;
	// 最近一次的更新时间
	private Date lastEditTime;

	public Long getLineId() {
		return lineId;
	}

	public void setLineId(Long lineId) {
		this.lineId = lineId;
	}

	public String getLineName() {
		return lineName;
	}

	public void setLineName(String lineName) {
		this.lineName = lineName;
	}

	public String getLineLink() {
		return lineLink;
	}

	public void setLineLink(String lineLink) {
		this.lineLink = lineLink;
	}

	public String getLineImg() {
		return lineImg;
	}

	public void setLineImg(String lineImg) {
		this.lineImg = lineImg;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Integer getEnableStatus() {
		return enableStatus;
	}

	public void setEnableStatus(Integer enableStatus) {
		this.enableStatus = enableStatus;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getLastEditTime() {
		return lastEditTime;
	}

	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

}


DROP TABLE IF EXISTS `tb_head_line`;
CREATE TABLE `tb_head_line` (
  `line_id` int(100) NOT NULL AUTO_INCREMENT,
  `line_name` varchar(1000) DEFAULT NULL,
  `line_link` varchar(2000) NOT NULL,
  `line_img` varchar(2000) NOT NULL,
  `priority` int(2) DEFAULT NULL,
  `enable_status` int(2) NOT NULL DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  PRIMARY KEY (`line_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

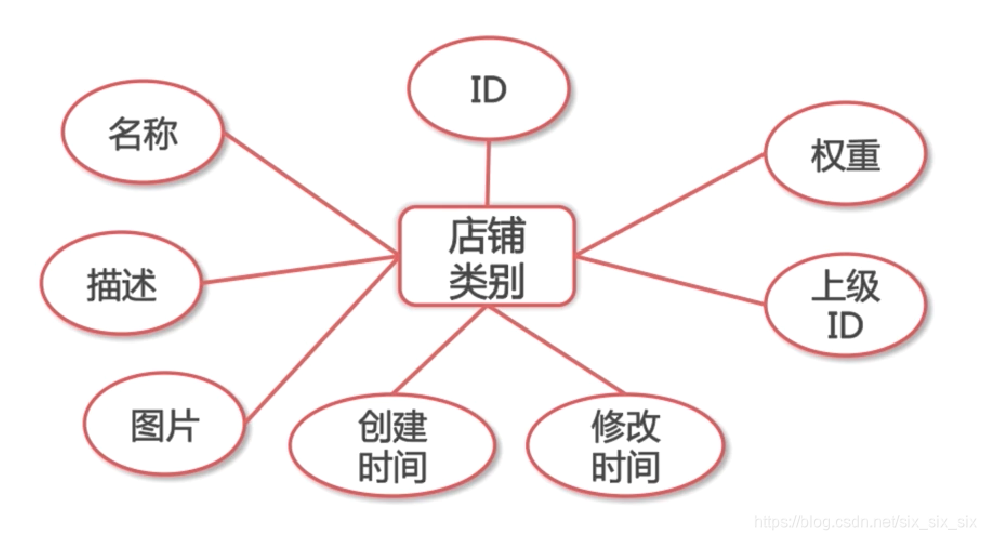

三、店铺类别实体类

在这里插入图片描述

package com.lzx.o2o.entity;

import java.util.Date;

/**
 * 店铺类别实体类
 *
 * @author lzx
 *
 */
public class ShopCategory {

	// 主键ID
	private Long shopCategoryId;
	// 类别名
	private String shopCategoryName;
	// 类别描述
	private String shopCategoryDesc;
	// 类别图片地址(针对一级类别)
	private String shopCategoryImg;
	// 权重，越大越排前显示
	private Integer priority;
	// 创建时间
	private Date createTime;
	// 最近的更新时间
	private Date lastEditTime;
	// 父类别
	private ShopCategory parent;

	public Long getShopCategoryId() {
		return shopCategoryId;
	}

	public void setShopCategoryId(Long shopCategoryId) {
		this.shopCategoryId = shopCategoryId;
	}

	public String getShopCategoryName() {
		return shopCategoryName;
	}

	public void setShopCategoryName(String shopCategoryName) {
		this.shopCategoryName = shopCategoryName;
	}

	public String getShopCategoryDesc() {
		return shopCategoryDesc;
	}

	public void setShopCategoryDesc(String shopCategoryDesc) {
		this.shopCategoryDesc = shopCategoryDesc;
	}

	public String getShopCategoryImg() {
		return shopCategoryImg;
	}

	public void setShopCategoryImg(String shopCategoryImg) {
		this.shopCategoryImg = shopCategoryImg;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getLastEditTime() {
		return lastEditTime;
	}

	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

	public ShopCategory getParent() {
		return parent;
	}

	public void setParent(ShopCategory parent) {
		this.parent = parent;
	}
}


DROP TABLE IF EXISTS `tb_shop_category`;
CREATE TABLE `tb_shop_category` (
  `shop_category_id` int(11) NOT NULL AUTO_INCREMENT,
  `shop_category_name` varchar(100) NOT NULL DEFAULT '',
  `shop_category_desc` varchar(1000) DEFAULT '',
  `shop_category_img` varchar(2000) DEFAULT NULL,
  `priority` int(2) NOT NULL DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  `parent_id` int(11) DEFAULT NULL,
  PRIMARY KEY (`shop_category_id`),
  KEY `fk_shop_category_self` (`parent_id`),
  CONSTRAINT `fk_shop_category_self` FOREIGN KEY (`parent_id`) REFERENCES `tb_shop_category` (`shop_category_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

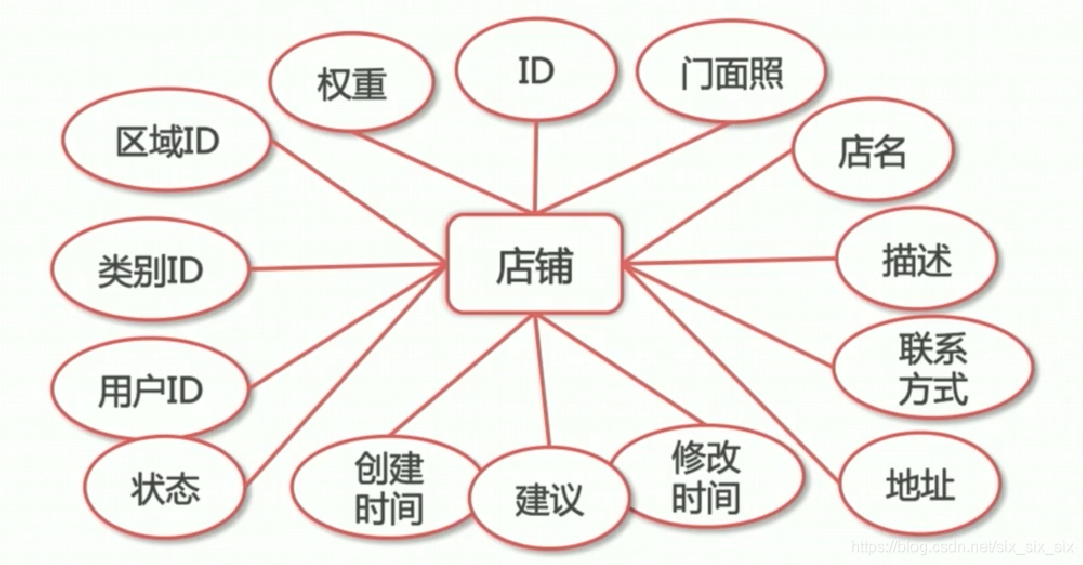

四、店铺实体类

在这里插入图片描述

package com.lzx.o2o.entity;

import java.util.Date;

/**
 * 店铺实体类
 *
 * @author lzx
 *
 */
public class Shop {
	// 主键ID
	private Long shopId;
	// 店铺名称
	private String shopName;
	// 店铺简介
	private String shopDesc;
	// 店铺地址
	private String shopAddr;
	// 店铺号码
	private String phone;
	// 店铺门面图片地址
	private String shopImg;
	// 权重，越大越排前显示
	private Integer priority;
	// 创建时间
	private Date createTime;
	// 最近一次更新的时间
	private Date lastEditTime;
	// -1.不可用 0.审核中 1.可用
	private Integer enableStatus;
	// 超级管理员给店家的提醒，包括为什么审核不通过等
	private String advice;
	// 店铺所属区域
	private Area area;
	// 店铺是属于哪个店家的
	private PersonInfo owner;
	// 店铺类别
	private ShopCategory shopCategory;

	public Long getShopId() {
		return shopId;
	}

	public void setShopId(Long shopId) {
		this.shopId = shopId;
	}

	public String getShopName() {
		return shopName;
	}

	public void setShopName(String shopName) {
		this.shopName = shopName;
	}

	public String getShopDesc() {
		return shopDesc;
	}

	public void setShopDesc(String shopDesc) {
		this.shopDesc = shopDesc;
	}

	public String getShopAddr() {
		return shopAddr;
	}

	public void setShopAddr(String shopAddr) {
		this.shopAddr = shopAddr;
	}

	public String getPhone() {
		return phone;
	}

	public void setPhone(String phone) {
		this.phone = phone;
	}

	public String getShopImg() {
		return shopImg;
	}

	public void setShopImg(String shopImg) {
		this.shopImg = shopImg;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getLastEditTime() {
		return lastEditTime;
	}

	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

	public Integer getEnableStatus() {
		return enableStatus;
	}

	public void setEnableStatus(Integer enableStatus) {
		this.enableStatus = enableStatus;
	}

	public String getAdvice() {
		return advice;
	}

	public void setAdvice(String advice) {
		this.advice = advice;
	}

	public Area getArea() {
		return area;
	}

	public void setArea(Area area) {
		this.area = area;
	}

	public PersonInfo getOwner() {
		return owner;
	}

	public void setOwner(PersonInfo owner) {
		this.owner = owner;
	}

	public ShopCategory getShopCategory() {
		return shopCategory;
	}

	public void setShopCategory(ShopCategory shopCategory) {
		this.shopCategory = shopCategory;
	}

}


DROP TABLE IF EXISTS `tb_shop`;
CREATE TABLE `tb_shop` (
  `shop_id` int(10) NOT NULL AUTO_INCREMENT,
  `owner_id` int(10) NOT NULL COMMENT '店铺创建人',
  `area_id` int(5) DEFAULT NULL,
  `shop_category_id` int(11) DEFAULT NULL,
  `shop_name` varchar(256) NOT NULL,
  `shop_desc` varchar(1024) DEFAULT NULL,
  `shop_addr` varchar(200) DEFAULT NULL,
  `phone` varchar(128) DEFAULT NULL,
  `shop_img` varchar(1024) DEFAULT NULL,
  `priority` int(3) DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  `enable_status` int(2) NOT NULL DEFAULT '0',
  `advice` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`shop_id`),
  KEY `fk_shop_area` (`area_id`),
  KEY `fk_shop_profile` (`owner_id`),
  KEY `fk_shop_shopcate` (`shop_category_id`),
  CONSTRAINT `fk_shop_area` FOREIGN KEY (`area_id`) REFERENCES `tb_area` (`area_id`),
  CONSTRAINT `fk_shop_profile` FOREIGN KEY (`owner_id`) REFERENCES `tb_person_info` (`user_id`),
  CONSTRAINT `fk_shop_shopcate` FOREIGN KEY (`shop_category_id`) REFERENCES `tb_shop_category` (`shop_category_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
