SAP ABAP通过ABAP2XLSX对EXCEL的操作方法2（控制输入值从下拉框选DATA VALIDATION）

---

需求

excel单元格控制输入值从下拉框选第二种简单方法

---

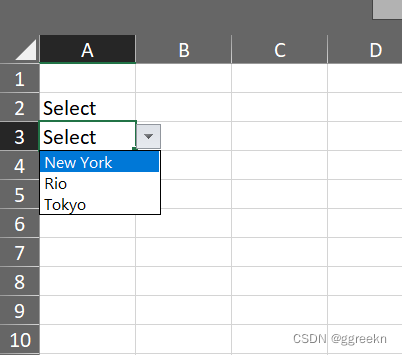

一、效果

二、实现

1.代码

&---------------------------------------------------------------------
*& Report ZDEMO_EXCEL45
*&
&---------------------------------------------------------------------
*&
*&
&---------------------------------------------------------------------
REPORT zdemo_excel45.

CONSTANTS:
gc_ws_title_validation TYPE zexcel_sheet_title VALUE ‘Validation’.

DATA:
lo_excel TYPE REF TO zcl_excel,
lo_worksheet TYPE REF TO zcl_excel_worksheet,
lo_range TYPE REF TO zcl_excel_range,
lv_validation_string TYPE string,
lo_data_validation TYPE REF TO zcl_excel_data_validation,
lv_row TYPE zexcel_cell_row.

CONSTANTS:
gc_save_file_name TYPE string VALUE ‘45_ShowDropdown.xlsx’.

INCLUDE zdemo_excel_outputopt_incl.

START-OF-SELECTION.

*** Sheet Admin

*** Creates active sheet
CREATE OBJECT lo_excel.

*** Get active sheet
lo_worksheet = lo_excel->get_active_worksheet( ).

*** Set sheet name “Validation”
lo_worksheet->set_title( gc_ws_title_validation ).

*** short validations can be entered as string (<254Char)
lv_validation_string = ‘“New York, Rio, Tokyo”’.

*** create validation object
lo_data_validation = lo_worksheet->add_new_data_validation( ).

*** create new validation from validation string
lo_data_validation->type = zcl_excel_data_validation=>c_type_list.
lo_data_validation->formula1 = lv_validation_string.
lo_data_validation->cell_row = 2.
lo_data_validation->cell_row_to = 4.
lo_data_validation->cell_column = ‘A’.
lo_data_validation->cell_column_to = ‘A’.
lo_data_validation->allowblank = ‘X’.
lo_data_validation->showdropdown = ‘X’.

*** add some fields with validation
lv_row = 2.
WHILE lv_row <= 4.
lo_worksheet->set_cell( ip_row = lv_row ip_column = ‘A’ ip_value = ‘Select’ ).
lv_row = lv_row + 1.
ENDWHILE.

*** Create output
lcl_output=>output( lo_excel ).

---

总结

以上
