[集群监控]使用cAdvisor + Heapster + InfluxDB + Grafana

架构和组件

---

组件功能

• cAdvisor：容器数据收集。
• Heapster：集群监控数据收集，汇总所有节点监控数据。
• InfluxDB：时序数据库，存储监控数据。
• Grafana：可视化展示。

架构图

工作流程

cAdvisor负责收集节点的状态信息，然后Heapster会通过kubelet向每一个节点请求cAdvisor收集的信息，并将信息存储在InfluxDB中，Grafana通过InfluxDB中的信息进行前端的展示。

部署

---

cAdvisor

cAdvisor默认是安装的，可以通过浏览器访问节点的4194端口进行测试。

cAdvisor会收集当前节点的信息和容器的信息，主要会收集网络和磁盘IO，文件系统大小、内存使用情况等。

但是，cAdvisor只会收集实时的数据，并不会做持久化存储

InfluxDB

# cat influxdb.yaml

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: monitoring-influxdb
  namespace: kube-system
spec:
  replicas: 1
  template:
    metadata:
      labels:
        task: monitoring
        k8s-app: influxdb
    spec:
      containers:
      - name: influxdb
        image: registry.cn-hangzhou.aliyuncs.com/google-containers/heapster-influxdb-amd64:v1.1.1
        volumeMounts:
        - mountPath: /data
          name: influxdb-storage
      volumes:
      - name: influxdb-storage
        emptyDir: {}

---

apiVersion: v1
kind: Service
metadata:
  labels:
    task: monitoring
    # For use as a Cluster add-on (https://github.com/kubernetes/kubernetes/tree/master/cluster/addons)
    # If you are NOT using this as an addon, you should comment out this line.
    kubernetes.io/cluster-service: 'true'
    kubernetes.io/name: monitoring-influxdb
  name: monitoring-influxdb
  namespace: kube-system
spec:
  ports:
  - port: 8086
    targetPort: 8086
  selector:
    k8s-app: influxdb

创建pod和service：

kubectl create -f influxdb.yaml

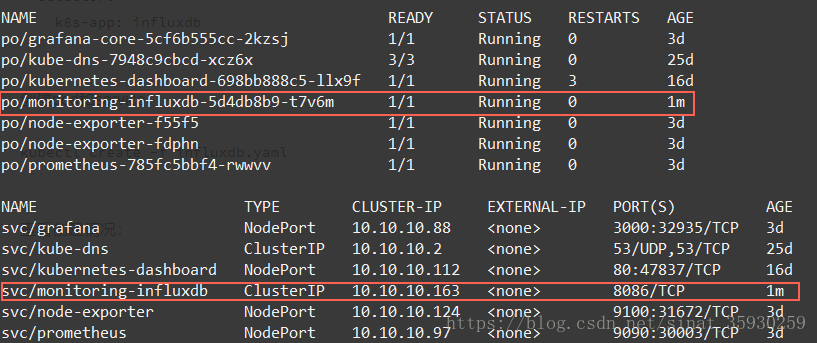

查看创建情况：

Heapster

# cat heapster.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: heapster
  namespace: kube-system

---

kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: heapster
subjects:
  - kind: ServiceAccount
    name: heapster
    namespace: kube-system
roleRef:
  kind: ClusterRole
  name: cluster-admin
  apiGroup: rbac.authorization.k8s.io

---

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: heapster
  namespace: kube-system
spec:
  replicas: 1
  template:
    metadata:
      labels:
        task: monitoring
        k8s-app: heapster
    spec:
      serviceAccountName: heapster
      containers:
      - name: heapster
        image: registry.cn-hangzhou.aliyuncs.com/google-containers/heapster-amd64:v1.4.2
        imagePullPolicy: IfNotPresent
        command:
        - /heapster
        - --source=kubernetes:https://kubernetes.default
        - --sink=influxdb:http://monitoring-influxdb:8086

---

apiVersion: v1
kind: Service
metadata:
  labels:
    task: monitoring
    # For use as a Cluster add-on (https://github.com/kubernetes/kubernetes/tree/master/cluster/addons)
    # If you are NOT using this as an addon, you should comment out this line.
    kubernetes.io/cluster-service: 'true'
    kubernetes.io/name: Heapster
  name: heapster
  namespace: kube-system
spec:
  ports:
  - port: 80
    targetPort: 8082
  selector:
    k8s-app: heapster

创建pod和svc：

kubectl create -f heapster.yaml

查看创建情况：

Grafana

# cat grafana.yaml

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: monitoring-grafana
  namespace: kube-system
spec:
  replicas: 1
  template:
    metadata:
      labels:
        task: monitoring
        k8s-app: grafana
    spec:
      containers:
      - name: grafana
        image: registry.cn-hangzhou.aliyuncs.com/google-containers/heapster-grafana-amd64:v4.4.1
        ports:
          - containerPort: 3000
            protocol: TCP
        volumeMounts:
        - mountPath: /var
          name: grafana-storage
        env:
        - name: INFLUXDB_HOST
          value: monitoring-influxdb
        - name: GRAFANA_PORT
          value: "3000"
          # The following env variables are required to make Grafana accessible via
          # the kubernetes api-server proxy. On production clusters, we recommend
          # removing these env variables, setup auth for grafana, and expose the grafana
          # service using a LoadBalancer or a public IP.
        - name: GF_AUTH_BASIC_ENABLED
          value: "false"
        - name: GF_AUTH_ANONYMOUS_ENABLED
          value: "true"
        - name: GF_AUTH_ANONYMOUS_ORG_ROLE
          value: Admin
        - name: GF_SERVER_ROOT_URL
          # If you're only using the API Server proxy, set this value instead:
          value: /api/v1/proxy/namespaces/kube-system/services/monitoring-grafana/
          #value: /
      volumes:
      - name: grafana-storage
        emptyDir: {}

---

apiVersion: v1
kind: Service
metadata:
  labels:
    # For use as a Cluster add-on (https://github.com/kubernetes/kubernetes/tree/master/cluster/addons)
    # If you are NOT using this as an addon, you should comment out this line.
    kubernetes.io/cluster-service: 'true'
    kubernetes.io/name: monitoring-grafana
  name: monitoring-grafana
  namespace: kube-system
spec:
  # In a production setup, we recommend accessing Grafana through an external Loadbalancer
  # or through a public IP.
  # type: LoadBalancer
  type: NodePort
  ports:
  - port : 80
    targetPort: 3000
  selector:
    k8s-app: grafana

创建svc和pod：

kubectl create -f grafana.yaml

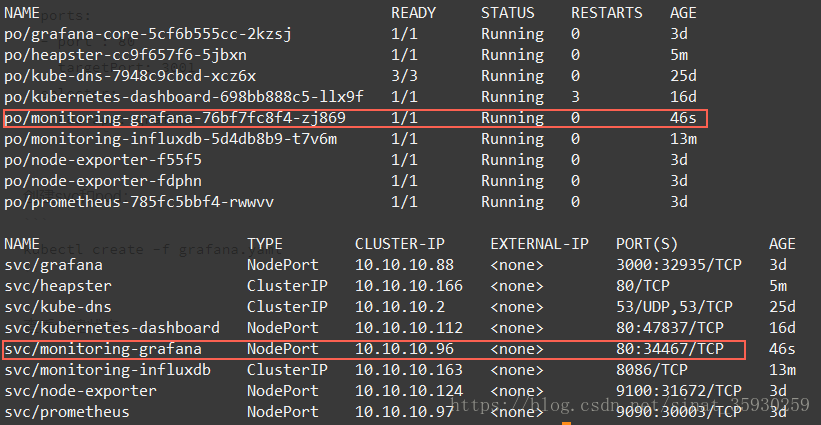

查看创建状态：

访问测试

---

想要访问grafana有两种方式：第一种是通过apiserver的非安全端口进行访问，第二种是通过proxy代理的端口访问

通过apiserver的非安全端口访问

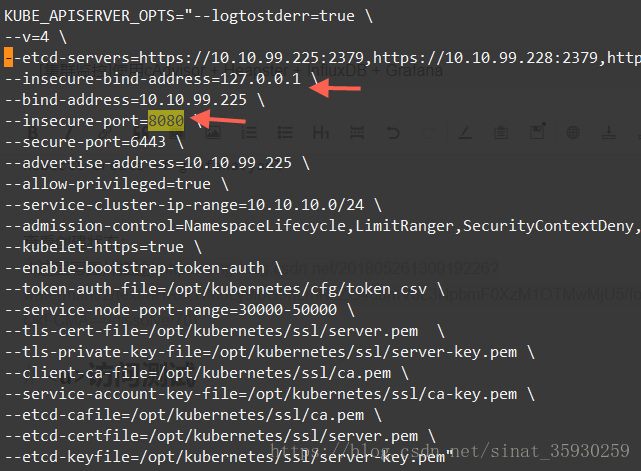

apiserver的非安全端口就是在配置文件中定义的insecure：

首先修改一下这个地址：

# vim /opt/kubernetes/cfg/kube-apiserver

--insecure-bind-address=10.10.99.225

重启apiserver：

systemctl restart kube-apiserver.service

通过浏览器访问：

http://10.10.99.225:8080/api/v1/proxy/namespaces/kube-system/services/monitoring-grafana/
