一、基础概念

1.1 spring mvc是什么？

Spring 框架提供了构建 Web 应用程序的全功能 MVC 模块。使用 Spring 可插入的 MVC 架构，可以选择是使用内置的 Spring Web 框架还是 Struts 这样的 Web 框架。通过策略接口，Spring 框架是高度可配置的，而且包含多种视图技术，例如 JavaServer Pages（JSP）技术、Velocity、Tiles、iText 和 POI。Spring MVC 框架并不知道使用的视图，所以不会强迫您只使用 JSP 技术。

Spring MVC 分离了控制器、模型对象、分派器以及解析视图的角色，这种分离让它们更容易进行定制。

自我总结：

简单的说就是web应用程序MVC架构的一种实现框架

Spring MVC的优点：

容易和其它View框架（Titles等）无缝集成，采用IOC便于测试。
它是一个典型的教科书式的mvc构架，而不像struts等都是变种或者不是完全基于mvc系统的框架，spring适用于初学者或者想了解mvc的人。
它和tapestry一样是一个纯正的servlet系统，这也是它和tapestry相比
struts所没有的优势。而且框架本身有代码，而且看起来也不费劲比较简单可以理解。

1.2 Spring MVC的运行流程简介

客户端请求提交到DispatcherServlet
由DispatcherServlet控制器查询一个或多个HandlerMapping，找到处理请求的Controller
DispatcherServlet将请求提交到Controller类，Controller调用业务逻辑处理后，返回ModelAndView
DispatcherServlet查询一个或多个ViewResoler视图解析器，找到ModelAndView指定的视图
视图负责将结果显示到客户端

二、实现原理

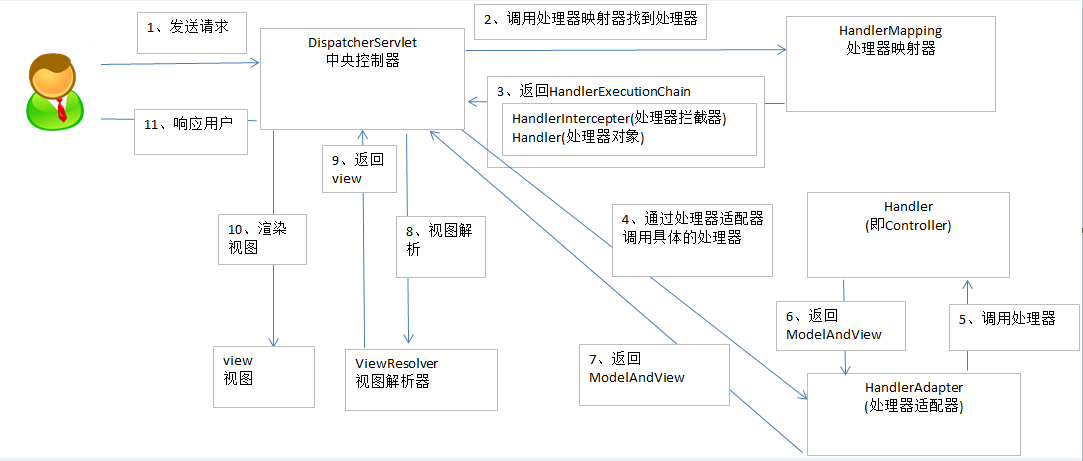

2.1 spring mvc整体处理流程

这里写图片描述

各个组件职责
1.DisPatcherServlet（前端控制器）：调用init方法进行初始化，调用doDispatch(request, response)方法进行请求逻辑处理

2.HandlerMapping（处理器映射器）：调用HandlerMapping的getHandler方法找到获得HandlerExecutionChain，没有找到则返回404.
HandlerExecutionChain对象里面就包含了handler和interceptors，即找到@RequestMapping注解配置对应的Controller类和method

3.HandlerAdapter（处理器适配器：根据HandlerMapping所映射的方法，找到适合的处理器交给相应的处理器进行处理。并且会对视图类型进行适配。

4.HandLer：处理器（需要程序员开发），对所适配的方法进行处理。

2.2 核心组件

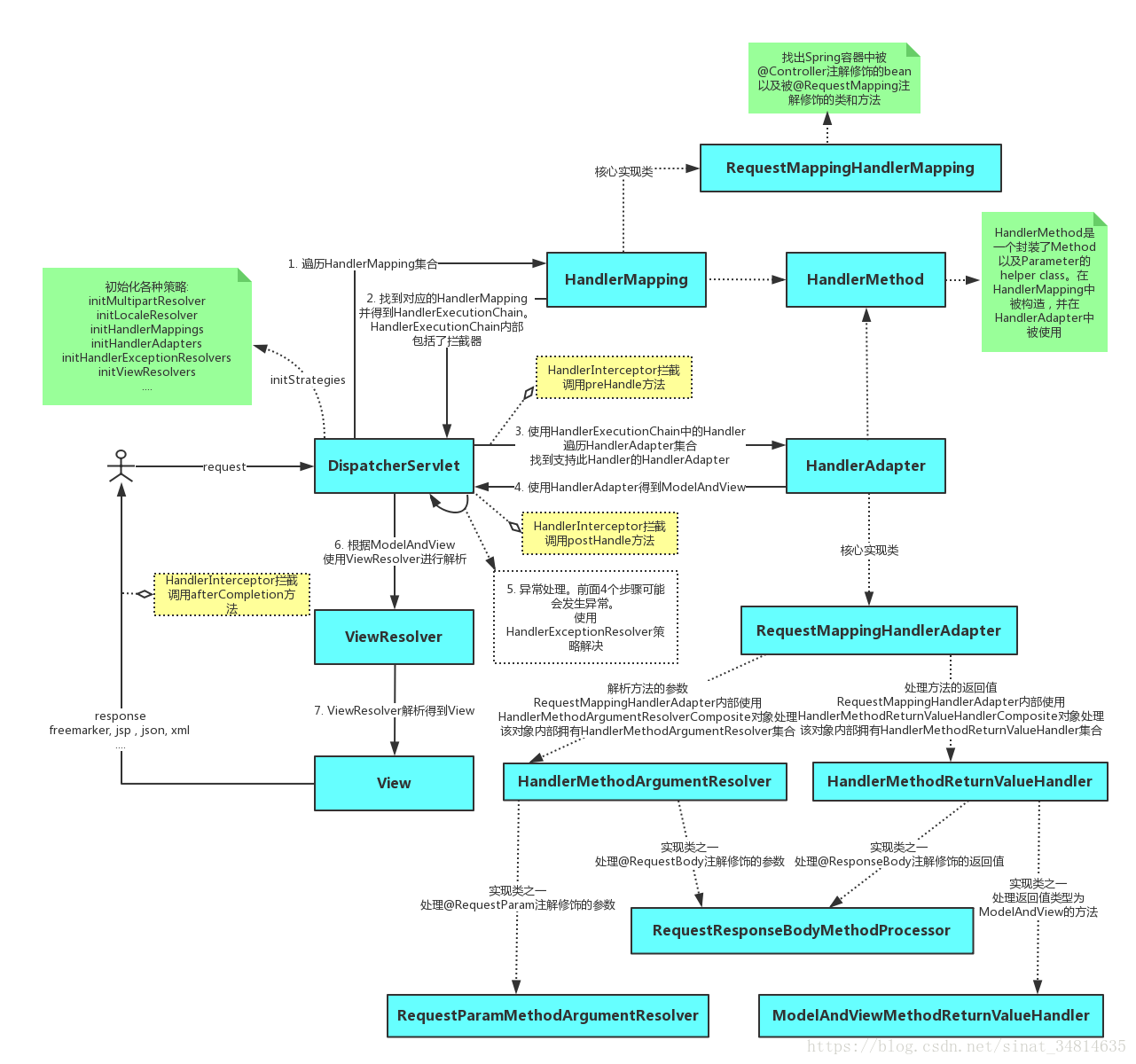

各个组件的合作关系如下：

这里写图片描述

2.2.1 DisPatcherServlet

其结构如图
这里写代码片

DisPatcherServlet实际上继承了HttpServlet,既可以说spring MVC实质就是对servlet的实现。

各个组件的责任

HttpServletBean

主要做一些初始化的工作，将web.xml中配置的参数设置到Servlet中。比如servlet标签的子标签init-param标签中配置的参数。

FrameworkServlet

将Servlet与Spring容器上下文关联。其实也就是初始化FrameworkServlet的属性webApplicationContext，这个属性代表SpringMVC上下文，它有个父类上下文，既web.xml中配置的ContextLoaderListener监听器初始化的容器上下文。FrameworkServlet会实现service方法，而DispatcherServlet不会实现service方法，DispatcherServlet只是重写了doService方法。

DispatcherServlet

初始化各个功能的实现类。比如异常处理、视图处理、请求映射处理等。

HttpServletBean：

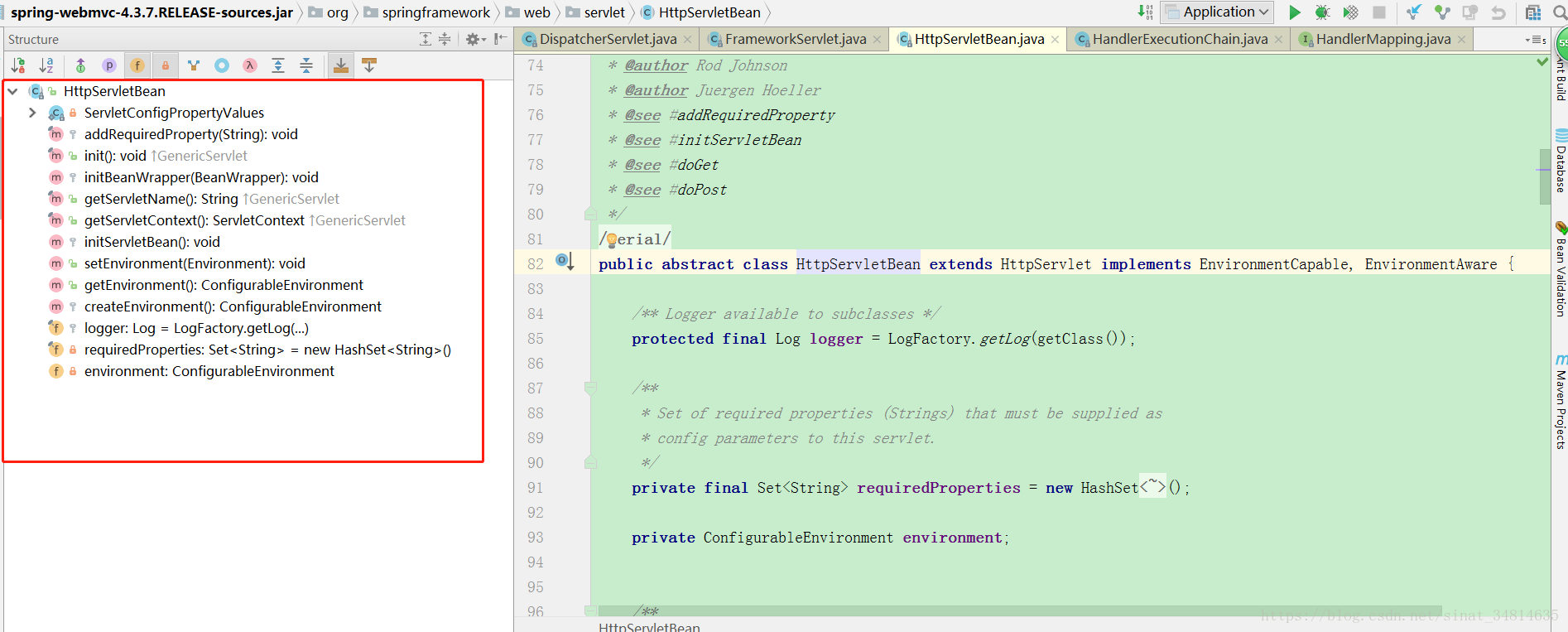

主要做参与创建工作，不会涉及进行请求的处理。该类的结构如图

这里写图片描述

FrameworkServlet：
FrameworkServlet重写了HttpServlet的service方法，所以web的请求实际上是交给了FrameworkServlet的service方法进行了处理。
其源码如下：

/**
	 * Override the parent class implementation in order to intercept PATCH requests.
	 */
	@Override
	protected void service(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		HttpMethod httpMethod = HttpMethod.resolve(request.getMethod());
		if (HttpMethod.PATCH == httpMethod || httpMethod == null) {
			//真正的处理逻辑
			processRequest(request, response);
		}
		else {
			super.service(request, response);
		}
	}

processRequest(request, response)方法源码如下

/**
	 * Process this request, publishing an event regardless of the outcome.
	 * <p>The actual event handling is performed by the abstract
	 * {@link #doService} template method.
	 */
	protected final void processRequest(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		long startTime = System.currentTimeMillis();
		Throwable failureCause = null;

		LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
		LocaleContext localeContext = buildLocaleContext(request);

		RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();
		ServletRequestAttributes requestAttributes = buildRequestAttributes(request, response, previousAttributes);

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
		asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new RequestBindingInterceptor());

		initContextHolders(request, localeContext, requestAttributes);

		try {
			//真正的处理逻辑
			doService(request, response);
		}
		catch (ServletException ex) {
			failureCause = ex;
			throw ex;
		}
		catch (IOException ex) {
			failureCause = ex;
			throw ex;
		}
		catch (Throwable ex) {
			failureCause = ex;
			throw new NestedServletException("Request processing failed", ex);
		}

		finally {
			resetContextHolders(request, previousLocaleContext, previousAttributes);
			if (requestAttributes != null) {
				requestAttributes.requestCompleted();
			}

			if (logger.isDebugEnabled()) {
				if (failureCause != null) {
					this.logger.debug("Could not complete request", failureCause);
				}
				else {
					if (asyncManager.isConcurrentHandlingStarted()) {
						logger.debug("Leaving response open for concurrent processing");
					}
					else {
						this.logger.debug("Successfully completed request");
					}
				}
			}

			publishRequestHandledEvent(request, response, startTime, failureCause);
		}
	}

正真请求处理的实际上是doService(request, response)，更据模板设计模式的思想，doService的具体实现将会交给下层进行实现，即交给了DispatcherServlet的doService方法进行处理。

DispatcherServlet的doService方法的源码如下

/**
	 * Exposes the DispatcherServlet-specific request attributes and delegates to {@link #doDispatch}
	 * for the actual dispatching.
	 */
	@Override
	protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
		if (logger.isDebugEnabled()) {
			String resumed = WebAsyncUtils.getAsyncManager(request).hasConcurrentResult() ? " resumed" : "";
			logger.debug("DispatcherServlet with name '" + getServletName() + "'" + resumed +
					" processing " + request.getMethod() + " request for [" + getRequestUri(request) + "]");
		}

		// Keep a snapshot of the request attributes in case of an include,
		// to be able to restore the original attributes after the include.
		Map<String, Object> attributesSnapshot = null;
		if (WebUtils.isIncludeRequest(request)) {
			attributesSnapshot = new HashMap<String, Object>();
			Enumeration<?> attrNames = request.getAttributeNames();
			while (attrNames.hasMoreElements()) {
				String attrName = (String) attrNames.nextElement();
				if (this.cleanupAfterInclude || attrName.startsWith("org.springframework.web.servlet")) {
					attributesSnapshot.put(attrName, request.getAttribute(attrName));
				}
			}
		}

		// Make framework objects available to handlers and view objects.
		request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, getWebApplicationContext());
		request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
		request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
		request.setAttribute(THEME_SOURCE_ATTRIBUTE, getThemeSource());

		FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
		if (inputFlashMap != null) {
			request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
		}
		request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
		request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);

		try {
			//最终的核心实现是交给了doDispatch进行处理
			doDispatch(request, response);
		}
		finally {
			if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
				// Restore the original attribute snapshot, in case of an include.
				if (attributesSnapshot != null) {
					restoreAttributesAfterInclude(request, attributesSnapshot);
				}
			}
		}
	}

DispatcherServlet的doService方法实际最终的核心实现是交给了doDispatch进行处理

1.初始化

DispatcherServlet初始化的逻辑主要是在initStrategies方法里面进行基本实现的。
org.springframework.web.servlet.DispatcherServlet#initStrategies
源码分析如下

/**
	 * This implementation calls {@link #initStrategies}.
	 */
	@Override
	protected void onRefresh(ApplicationContext context) {
		initStrategies(context);
	}

	/**
	 * Initialize the strategy objects that this servlet uses.
	 * <p>May be overridden in subclasses in order to initialize further strategy objects.
	 */
	protected void initStrategies(ApplicationContext context) {
		initMultipartResolver(context);
		initLocaleResolver(context);
		initThemeResolver(context);
		initHandlerMappings(context);
		initHandlerAdapters(context);
		initHandlerExceptionResolvers(context);
		initRequestToViewNameTranslator(context);
		initViewResolvers(context);
		initFlashMapManager(context);
	}

2.处理请求

更据前面的分析springmvc的请求链为：
FrameworkServlet的service(HttpServletRequest request, HttpServletResponse response)方法
到Service方法的processRequest(request, response)
到processRequest的doService(request, response)
到DispatcherServlet的doService
到doService的doDispatch(request, response);

故DispatcherServlet正真进行处理请求逻辑核心是在doDispatch方法里进行实现的
源码分析如下

/**
	 * Process the actual dispatching to the handler.
	 * <p>The handler will be obtained by applying the servlet's HandlerMappings in order.
	 * The HandlerAdapter will be obtained by querying the servlet's installed HandlerAdapters
	 * to find the first that supports the handler class.
	 * <p>All HTTP methods are handled by this method. It's up to HandlerAdapters or handlers
	 * themselves to decide which methods are acceptable.
	 * @param request current HTTP request
	 * @param response current HTTP response
	 * @throws Exception in case of any kind of processing failure
	 */
	protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			ModelAndView mv = null;
			Exception dispatchException = null;

			try {
				processedRequest = checkMultipart(request);
				multipartRequestParsed = (processedRequest != request);

				// Determine handler for the current request.
				//获取HandlerExecutionChain
				mappedHandler = getHandler(processedRequest);
				//没有找到handler就进行提示404
				if (mappedHandler == null || mappedHandler.getHandler() == null) {
					noHandlerFound(processedRequest, response);
					return;
				}

				// Determine handler adapter for the current request.
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

				// Process last-modified header, if supported by the handler.
				String method = request.getMethod();
				boolean isGet = "GET".equals(method);
				if (isGet || "HEAD".equals(method)) {
					long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
					if (logger.isDebugEnabled()) {
						logger.debug("Last-Modified value for [" + getRequestUri(request) + "] is: " + lastModified);
					}
					if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
						return;
					}
				}
				//调用HandlerInterceptor的preHandle方法
				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				// Actually invoke the handler.
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

				if (asyncManager.isConcurrentHandlingStarted()) {
					return;
				}

				applyDefaultViewName(processedRequest, mv);
				//调用HandlerInterceptor的postHandle方法
				mappedHandler.applyPostHandle(processedRequest, response, mv);
			}
			catch (Exception ex) {
				dispatchException = ex;
			}
			catch (Throwable err) {
				// As of 4.3, we're processing Errors thrown from handler methods as well,
				// making them available for @ExceptionHandler methods and other scenarios.
				dispatchException = new NestedServletException("Handler dispatch failed", err);
			}
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}
		catch (Exception ex) {
			triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
		}
		catch (Throwable err) {
			triggerAfterCompletion(processedRequest, response, mappedHandler,
					new NestedServletException("Handler processing failed", err));
		}
		finally {
			if (asyncManager.isConcurrentHandlingStarted()) {
				// Instead of postHandle and afterCompletion
				if (mappedHandler != null) {
					mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
				}
			}
			else {
				// Clean up any resources used by a multipart request.
				if (multipartRequestParsed) {
					cleanupMultipart(processedRequest);
				}
			}
		}
	}

2.2.2 HandlerMapping

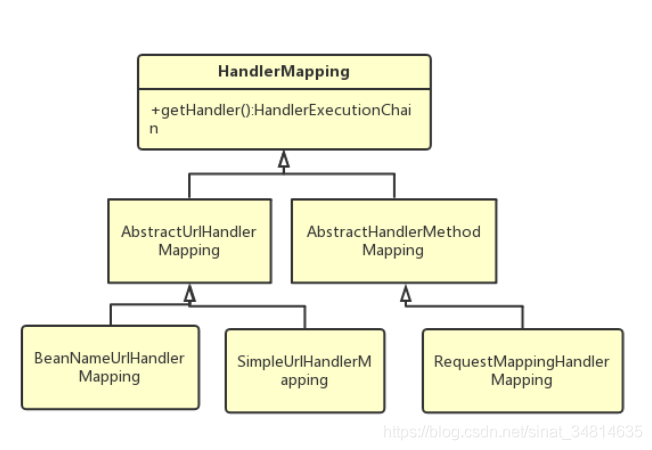

HandlerMapping接口的结构图：

在这里插入图片描述
HandlerMapping接口只有一个方法getHandler，它的作用就是更据HttpServletRequest找到对应的Handler和interceptors，它的方法如下：

public interface HandlerMapping {

	/**
	 * Return a handler and any interceptors for this request. The choice may be made
	 * on request URL, session state, or any factor the implementing class chooses.
	 * <p>The returned HandlerExecutionChain contains a handler Object, rather than
	 * even a tag interface, so that handlers are not constrained in any way.
	 * For example, a HandlerAdapter could be written to allow another framework's
	 * handler objects to be used.
	 * <p>Returns {@code null} if no match was found. This is not an error.
	 * The DispatcherServlet will query all registered HandlerMapping beans to find
	 * a match, and only decide there is an error if none can find a handler.
	 * @param request current HTTP request
	 * @return a HandlerExecutionChain instance containing handler object and
	 * any interceptors, or {@code null} if no mapping found
	 * @throws Exception if there is an internal error
	 */
	HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception;

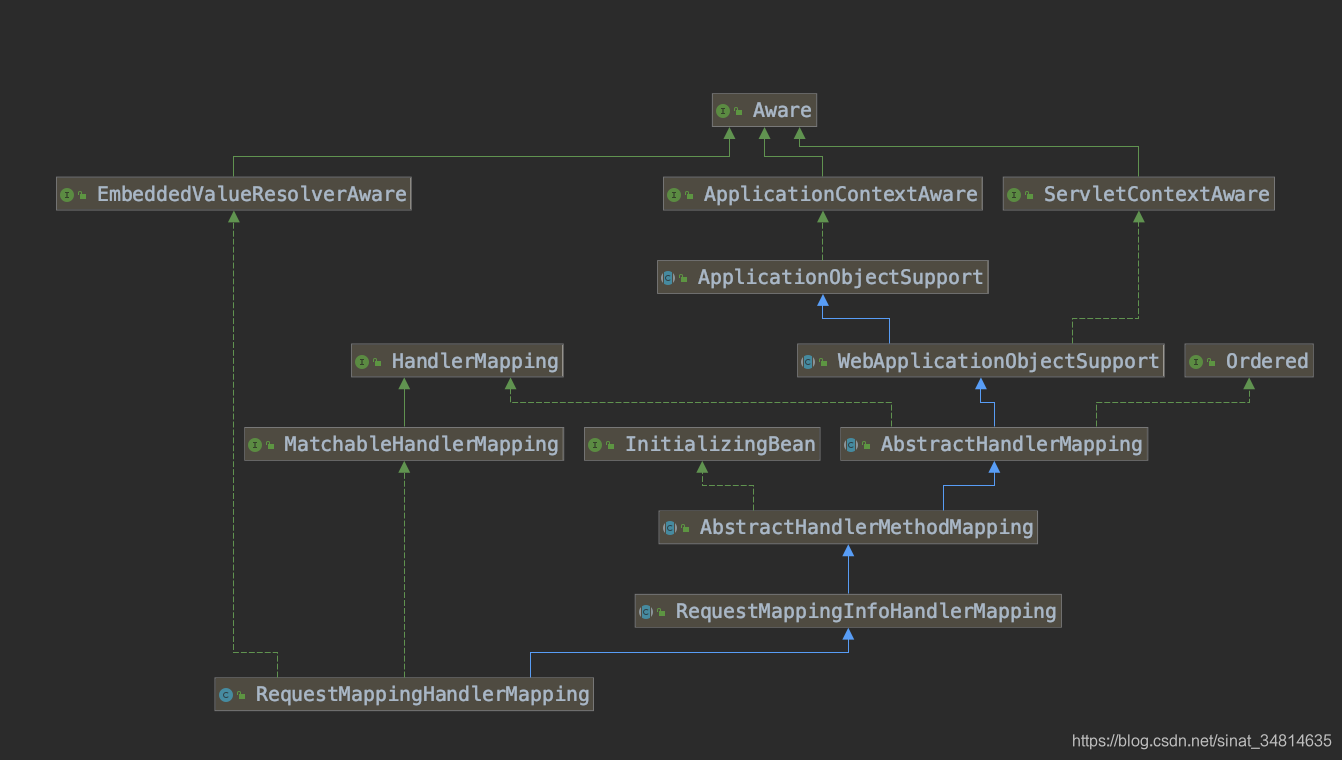

HandlerMapping接口的实现类主要为RequestMappingHandlerMapping类，其结构：

在这里插入图片描述

获取Handler的逻辑是遍历所有的HandlerMapping的getHandler方法直到找到对应的handler(可以理解为匹配@RequestMapping(“/account/queryAccountByConditionPager”)上的路径，匹配上了就表示找到了对应的Handler)，

其org.springframework.web.servlet.DispatcherServlet#getHandler源码如下：

/**
	 * Return the HandlerExecutionChain for this request.
	 * <p>Tries all handler mappings in order.
	 * @param request current HTTP request
	 * @return the HandlerExecutionChain, or {@code null} if no handler could be found
	 */
	protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
		for (HandlerMapping hm : this.handlerMappings) {
			if (logger.isTraceEnabled()) {
				logger.trace(
						"Testing handler map [" + hm + "] in DispatcherServlet with name '" + getServletName() + "'");
			}
			HandlerExecutionChain handler = hm.getHandler(request);
			if (handler != null) {
				return handler;
			}
		}
		return null;
	}

实现了HandlerMapping接口的类主要有以下几种，一般的实现是通过RequestMappingHandlerMapping类来进行实现的。

这里写图片描述
RequestMappingHandlerMapping类是使用AbstractHandlerMapping的getHandler方法来获取HandlerExecutionChain的。

其中org.springframework.web.servlet.handler.AbstractHandlerMapping#getHandler源码如下：

/**
	 * Look up a handler for the given request, falling back to the default
	 * handler if no specific one is found.
	 * @param request current HTTP request
	 * @return the corresponding handler instance, or the default handler
	 * @see #getHandlerInternal
	 */
	@Override
	@Nullable
	public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
		Object handler = getHandlerInternal(request);
		if (handler == null) {
			handler = getDefaultHandler();
		}
		if (handler == null) {
			return null;
		}
		// Bean name or resolved handler?
		if (handler instanceof String) {
			String handlerName = (String) handler;
			handler = obtainApplicationContext().getBean(handlerName);
		}

		HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);
		if (CorsUtils.isCorsRequest(request)) {
			CorsConfiguration globalConfig = this.globalCorsConfigSource.getCorsConfiguration(request);
			CorsConfiguration handlerConfig = getCorsConfiguration(handler, request);
			CorsConfiguration config = (globalConfig != null ? globalConfig.combine(handlerConfig) : handlerConfig);
			executionChain = getCorsHandlerExecutionChain(request, executionChain, config);
		}
		return executionChain;
	}

获取getHandlerInternal方法可以看到是返回的是HandlerMethod。
其org.springframework.web.servlet.handler.AbstractHandlerMethodMapping#getHandlerInternal源码如下：

/**
	 * Look up a handler method for the given request.
	 */
	@Override
	protected HandlerMethod getHandlerInternal(HttpServletRequest request) throws Exception {
		String lookupPath = getUrlPathHelper().getLookupPathForRequest(request);
		if (logger.isDebugEnabled()) {
			logger.debug("Looking up handler method for path " + lookupPath);
		}
		this.mappingRegistry.acquireReadLock();
		try {
			HandlerMethod handlerMethod = lookupHandlerMethod(lookupPath, request);
			if (logger.isDebugEnabled()) {
				if (handlerMethod != null) {
					logger.debug("Returning handler method [" + handlerMethod + "]");
				}
				else {
					logger.debug("Did not find handler method for [" + lookupPath + "]");
				}
			}
			return (handlerMethod != null ? handlerMethod.createWithResolvedBean() : null);
		}
		finally {
			this.mappingRegistry.releaseReadLock();
		}
	}

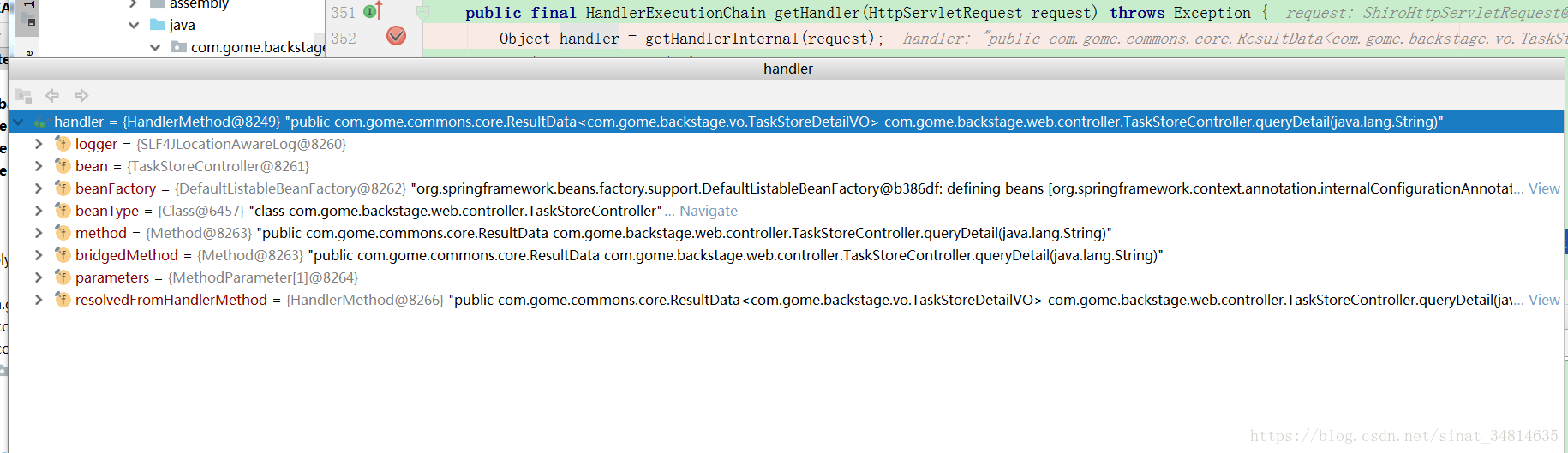

获取到的Handler的数据结构如下

这里写图片描述

Handler的实列为HandlerMethod，他主要负责准备数据，他持有了Method属性，可以invoke方法执行具体请求。

HandlerMethod

HandlerMethod的结构如下：

public class HandlerMethod {

	/** Logger that is available to subclasses */
	protected final Log logger = LogFactory.getLog(getClass());

	private final Object bean;

	@Nullable
	private final BeanFactory beanFactory;

	private final Class<?> beanType;

	private final Method method;

	private final Method bridgedMethod;

	private final MethodParameter[] parameters;

	@Nullable
	private HttpStatus responseStatus;

	@Nullable
	private String responseStatusReason;

	@Nullable
	private HandlerMethod resolvedFromHandlerMethod;
}

Handler实际上就是spring容器中被@Controller标识的bean及被@RequestMapping标识的method,即处理请求的类及所对应的方法

2.2.3 HandlerAdapter

HandlerAdapter接口的结构图：

在这里插入图片描述
一般实现类为RequestMappingHandlerAdapter类。

HandlerAdapter才是真正使用handler来进行处理开发者的业务逻辑的。其源码如下

public interface HandlerAdapter {

	/**
	 *  判断当前的 HandlerAdapter 是否支持这个 Handler
	 * Given a handler instance, return whether or not this {@code HandlerAdapter}
	 * can support it. Typical HandlerAdapters will base the decision on the handler
	 * type. HandlerAdapters will usually only support one handler type each.
	 * <p>A typical implementation:
	 * <p>{@code
	 * return (handler instanceof MyHandler);
	 * }
	 * @param handler handler object to check
	 * @return whether or not this object can use the given handler
	 */
	boolean supports(Object handler);

	/**
	 * 利用参数中的 Handler 处理请求
	 * Use the given handler to handle this request.
	 * The workflow that is required may vary widely.
	 * @param request current HTTP request
	 * @param response current HTTP response
	 * @param handler handler to use. This object must have previously been passed
	 * to the {@code supports} method of this interface, which must have
	 * returned {@code true}.
	 * @throws Exception in case of errors
	 * @return ModelAndView object with the name of the view and the required
	 * model data, or {@code null} if the request has been handled directly
	 */
	ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception;

	/**
	 * Same contract as for HttpServlet's {@code getLastModified} method.
	 * Can simply return -1 if there's no support in the handler class.
	 * @param request current HTTP request
	 * @param handler handler to use
	 * @return the lastModified value for the given handler
	 * @see javax.servlet.http.HttpServlet#getLastModified
	 * @see org.springframework.web.servlet.mvc.LastModified#getLastModified
	 */
	long getLastModified(HttpServletRequest request, Object handler);

HandlerAdapter最主要的就是supports和handle方法，supports方法用来找到支持Handler的HandlerAdapter，handle方法用来处理请求。

1.获取HandlerAdapter

获取HandlerAdapter与获取handler的思路非常相似，也是通过遍历的方式，遍历所有的HandlerAdapter来找到对应的HandlerAdapter，其源码如下

/**
	 * Return the HandlerAdapter for this handler object.
	 * @param handler the handler object to find an adapter for
	 * @throws ServletException if no HandlerAdapter can be found for the handler. This is a fatal error.
	 */
	protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
		for (HandlerAdapter ha : this.handlerAdapters) {
			if (logger.isTraceEnabled()) {
				logger.trace("Testing handler adapter [" + ha + "]");
			}
			//找到对应的HandlerAdapter
			if (ha.supports(handler)) {
				return ha;
			}
		}
		throw new ServletException("No adapter for handler [" + handler +
				"]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
	}

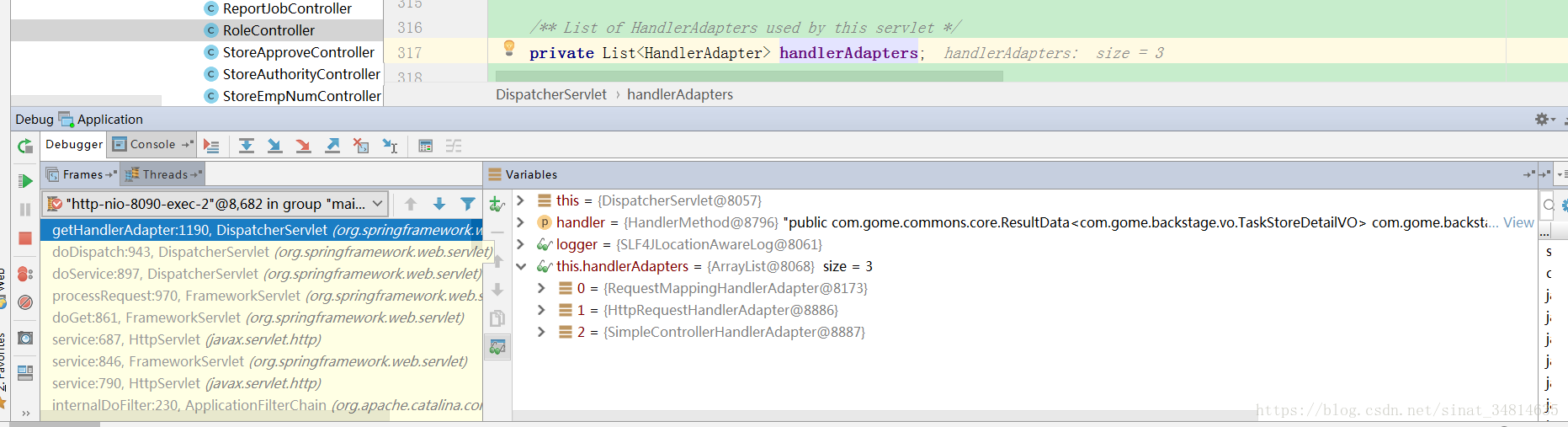

实现了HandlerAdapter接口的类主要有以下几种，一般的实现是通过RequestMappingHandlerAdapter类来进行实现的

这里写图片描述

找到对应的HandlerAdapter接口的实现类就可以处理业务了，调用HandlerAdapter接口的handle方法进行处理，如下

				// Actually invoke the handler.
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

三. Spring MVC中的拦截器

1. HandlerInterceptor 接口

spring mvc 提供了org.springframework.web.servlet.HandlerInterceptor接口用来控制拦截，源码如下：

public interface HandlerInterceptor {


	boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler)
			throws Exception;


	void postHandle(
			HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView)
			throws Exception;


	void afterCompletion(
			HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex)
			throws Exception;

}

preHandle:在业务处理器处理请求之前被调用。预处理，可以进行编码、安全控制等处理；

postHandle:在业务处理器处理请求执行完成后，生成视图之前执行。后处理（调用了Service并返回ModelAndView，但未进行页面渲染），有机会修改ModelAndView；

afterCompletion:在DispatcherServlet完全处理完请求后被调用，可用于清理资源等。返回处理（已经渲染了页面），可以根据ex是否为null判断是否发生了异常，进行日志记录；

1. HandlerInterceptorAdapter类

Spring MVC提供的org.springframework.web.servlet.handler.HandlerInterceptorAdapter这个适配器，继承此类，可以非常方便的实现自己的拦截器。

HandlerInterceptorAdapter的源码如下：

public abstract class HandlerInterceptorAdapter implements AsyncHandlerInterceptor {

	public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler)throws Exception {
	        return true;
	}
	public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView)throws Exception {
	}
	public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex)throws Exception {
	}
}

它的主要作用是对HandlerInterceptor接口进行了默认实现，即使用到默认适配器模式。

2. HandlerExecutionChain组件

它包含了三个核心属性

Object handler；不做过多介绍，存储的对象是HandlerMethod

HandlerInterceptor[] interceptors ：所有的HandlerInterceptor的数组

List interceptorList：所有的HandlerInterceptor的链表

HandlerExecutionChain主要就用来执行HandlerInterceptor接口中的方法。其部分源码如下：

/**
	 * Apply preHandle methods of registered interceptors.
	 * @return {@code true} if the execution chain should proceed with the
	 * next interceptor or the handler itself. Else, DispatcherServlet assumes
	 * that this interceptor has already dealt with the response itself.
	 */
	boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HandlerInterceptor[] interceptors = getInterceptors();
		if (!ObjectUtils.isEmpty(interceptors)) {
			for (int i = 0; i < interceptors.length; i++) {
				HandlerInterceptor interceptor = interceptors[i];
				if (!interceptor.preHandle(request, response, this.handler)) {
					triggerAfterCompletion(request, response, null);
					return false;
				}
				this.interceptorIndex = i;
			}
		}
		return true;
	}

	/**
	 * Apply postHandle methods of registered interceptors.
	 */
	void applyPostHandle(HttpServletRequest request, HttpServletResponse response, @Nullable ModelAndView mv)
			throws Exception {

		HandlerInterceptor[] interceptors = getInterceptors();
		if (!ObjectUtils.isEmpty(interceptors)) {
			for (int i = interceptors.length - 1; i >= 0; i--) {
				HandlerInterceptor interceptor = interceptors[i];
				interceptor.postHandle(request, response, this.handler, mv);
			}
		}
	}

这个拦截器链执行流程核心为通过遍历执行。

2. 拦截器执行流程

在这里插入图片描述

3. 拦截器获取参数

在拦截器中获取接口参数的时候需要分两种情况：

情况一：接口使用 @RequestParam 接收参数
情况二：接口使用 @RequestBody 接收参数

针对情况一，代码写起来就非常简单了，我们只需要在拦截器中通过request.getParameterMap() 来获得全部 Parameter 参数就可以了；但是当接口使用 @RequestBody 接收参数时，我们在拦截器中使用同样的方法获取参数，就会出现流已关闭的异常，也就导致参数读取失败了 … 这是因为 Spring 已经对 @RequestBody 提前进行处理，而 HttpServletReqeust 获取输入流时仅允许读取一次，所以会报java.io.IOException: Stream closed。
俗话说“繁琐问题必有猥琐解法”，既然 HttpServletReqeust 获取输入流时仅允许读取一次，那么我们就可以重新构建 ServletRequest ，让输入流支持二次读取就可以了 ( •̀ ω •́ )y

1.带@RequestBody注解

直接上代码吧

1.定义过滤器，所有请求先进入过滤器，并将 request 进行处理


/**
 * 公司处理拦截器
 *
 * @author daiwei
 */
@Slf4j
public class CpCompanyInterceptor implements AsyncHandlerInterceptor {

    /**
     * 白名单
     */
    private static final List<String> blacklistUri = Lists.newArrayList(
            "/common/queryMyCompanies",
            "/common/chooseCurrentCompany");

    /**
     * 调度任务请求
     */
    private static final List<String> schedulerListUri = Lists.newArrayList(
            "/proPre/commitGenerateProPre",
            "/proPre/commitInventoryProPre",
            "/proPre/refreshProPre");

    @Autowired
    CommonBo commonBo;

    @Autowired
    TokenService tokenService;

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        MDC.put("tid", UUID.randomUUID().toString());
        if (!(handler instanceof HandlerMethod)) {
            return true;
        }
        // 白名单放行
        String requestURI = request.getRequestURI();
        boolean matchBlack = blacklistUri.stream().anyMatch(p -> Objects.equals(p, requestURI));
        if (matchBlack) {
            return true;
        }
        boolean matchScheduler = schedulerListUri.stream().anyMatch(p -> Objects.equals(p, requestURI));
        if (matchScheduler) {
            Map parameterMap = convertParameterToMap(request);
            SecurityContextHolder.set(SecurityConstants.CURRENT_COMPANY_CODE, parameterMap.get("companyCode"));
            SecurityContextHolder.set(SecurityConstants.CURRENT_COMPANY_NAME, parameterMap.get("companyName"));
            MDC.put("company", parameterMap.get("companyName").toString());
            return true;
        }


        // 获取当前的用户
        LoginUser loginUser = tokenService.getLoginUser(request);
        if (log.isDebugEnabled()) {
            log.debug("=============当前用户信息={}", JSONUtil.toJsonStr(loginUser));
        }
        //这里直接放行,为了兼容knife4j等静态资源. 登录的校验应该由上层拦截器拦截
        if (Objects.isNull(loginUser)) {
            return true;
        }

        //当前已经选择使用的公司
        CompanyDto myChooseCompany = loginUser.getCurrentCompanyDto();

        if (Objects.nonNull(myChooseCompany)) {
            SecurityContextHolder.set(SecurityConstants.CURRENT_COMPANY_CODE, myChooseCompany.getCompanyCode());
            SecurityContextHolder.set(SecurityConstants.CURRENT_COMPANY_NAME, myChooseCompany.getCompanyName());
            MDC.put("company", myChooseCompany.getCompanyName());
            return true;
        }

        List<CompanyBaseVo> companyBaseVoList = commonBo.queryMyCompany();
        if (CollectionUtil.isEmpty(companyBaseVoList)) {
            log.error("当前用户无公司权限!username={}", loginUser.getUsername());
            throw new NotCompanyException(I18nGeneralConstants.PERMISSION_DENIED);
        }
        if (companyBaseVoList.size() >= 2) {
            log.error("当前用户有多个公司,请先选择对应公司!username={}", loginUser.getUsername());
            throw new NotCompanyException(I18nPoultryConstants.EXCEED_ONE_COMPANY_ERROR);
        }
        CompanyBaseVo currentCompany = ListUtil.findFirst(companyBaseVoList);
        SecurityContextHolder.set(SecurityConstants.CURRENT_COMPANY_CODE, currentCompany.getCompanyCode());
        SecurityContextHolder.set(SecurityConstants.CURRENT_COMPANY_NAME, currentCompany.getCompanyName());
        MDC.put("company", currentCompany.getCompanyName());
        return true;
    }

    private Map convertParameterToMap(HttpServletRequest request) throws IOException {
        if (Objects.equals(HttpMethod.POST.name(), request.getMethod().toUpperCase())
                && Objects.equals(MediaType.APPLICATION_JSON_VALUE, request.getContentType())) {
            RequestWrapper requestWrapper = new RequestWrapper(request);
            Map map = JSONUtil.toBean(requestWrapper.getRequestBody(), Map.class);
            return map;
        }
        Map<String, String[]> parameterMap = request.getParameterMap();
        return ServletUtils.getParamMap(request);
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object arg2, Exception arg3)
            throws Exception {
        MDC.remove("company");
        MDC.remove("tid");
    }


}

2.工具类，获取请求的 body 体

package com.cpsc.poultry.interceptor;


import javax.servlet.ReadListener;
import javax.servlet.ServletInputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletRequestWrapper;
import java.io.BufferedReader;
import java.io.ByteArrayInputStream;
import java.io.IOException;
import java.io.InputStreamReader;
import java.nio.charset.StandardCharsets;

/**
 * @author daiwei
 */
public class RequestWrapper extends HttpServletRequestWrapper {

    private String requestBody;


    public RequestWrapper(HttpServletRequest request) throws IOException {
        super(request);
        this.requestBody = parseRequestBody(request);

    }

    /**
     * @return
     * @throws IOException
     */
    @Override
    public ServletInputStream getInputStream() throws IOException {
        final ByteArrayInputStream bais = new ByteArrayInputStream(requestBody.getBytes(StandardCharsets.UTF_8));
        return new ServletInputStream() {

            @Override
            public boolean isFinished() {
                return false;
            }

            @Override
            public boolean isReady() {
                return false;
            }

            @Override
            public void setReadListener(ReadListener listener) {

            }

            @Override
            public int read() {
                return bais.read();
            }
        };
    }

    public String getRequestBody() {
        return requestBody;
    }

    private String parseRequestBody(HttpServletRequest request) {
        String line = "";
        StringBuilder body = new StringBuilder();
        int counter = 0;
        try {
            // 读取POST提交的数据内容
            BufferedReader reader = new BufferedReader(new InputStreamReader(request.getInputStream()));
            while ((line = reader.readLine()) != null) {
                if (counter > 0) {
                    body.append("rn");
                }
                body.append(line);
                counter++;
            }
        } catch (IOException e) {
            e.printStackTrace();
        }

        return body.toString();
    }


    @Override
    public BufferedReader getReader() throws IOException {
        return new BufferedReader(new InputStreamReader(this.getInputStream()));
    }

}

重要组件
1.HttpServletRequestWrapper
可以继承HttpServletRequestWrapper来重写request的相关方法。其部分源码如下：

public class HttpServletRequestWrapper extends ServletRequestWrapper implements HttpServletRequest {
/**
      * The default behavior of this method is to return getParameter(String name)
     * on the wrapped request object.
     */

    public String getParameter(String name) {
	return this.request.getParameter(name);
    }
  /**
      * The default behavior of this method is to return getParameterMap()
     * on the wrapped request object.
     */
    public Map getParameterMap() {
	return this.request.getParameterMap();
    }
}

思考

1.spring的controller是单例还是多例，怎么保证并发的安全。

Spring中的Bean默认是单例模式的，框架并没有对bean进行多线程的封装处理。故是线程不安全的。

那如何保证并发的安全？

1.最简单的办法就是改变bean的作用域把 "singleton"改为’‘protopyte’ 这样每次请求Bean就相当于是 new Bean() 这样就可以保证线程的
安全了。但在实际中并不这样使用，因为增加了jvm的内存开销。

2.另一种看变量是否是有状态的。

有状态就是有数据存储功能，比如一些全局变量。
无状态就是不会保存数据 controller、service和dao层本身并不是线程安全的，只是如果只是调用里面的方法，而且多线程调用一个实例的方法，会在内存中复制变量，这是自己的线程的工作内存，是安全的。

3.看变量是想线程私有还是共享。

线程私有：那么就使用ThreadLocal把变量变为线程私有的。
线程共享：那么就只能使用synchronized、lock、CAS等这些实现线程同步的方法了。

扩展：
Spring 中的 Bean 是线程安全的吗？

对于单例存在线程共享，故不是线程安全的，但作用域如果是为多例的，每个线程会有一个实例故是线程安全的。

参考资料

1.SpringMVC源码分析系列https://www.cnblogs.com/fangjian0423/p/springMVC-directory-summary.html
2.SpringMVC流程架构图 https://www.cnblogs.com/HigginCui/p/5856780.html
3.书籍《看透springmvc源代码分析与实践》
4.Spring MVC中的拦截器/过滤器HandlerInterceptorAdapter的使用 https://www.cnblogs.com/EasonJim/p/7704740.html

5.springMVC源码分析–HandlerInterceptor拦截器调用过程（二）https://blog.youkuaiyun.com/qq924862077/article/details/53541678?utm_medium=distribute.pc_relevant_t0.none-task-blog-BlogCommendFromMachineLearnPai2-1.channel_param&depth_1-utm_source=distribute.pc_relevant_t0.none-task-blog-BlogCommendFromMachineLearnPai2-1.channel_param
