将多模块系统的controller信息生成为思维导图工具类

多模块下理解业务和查找问题不是很方便，个人认为一张含有url信息的思维导图还是蛮重要的，此处分享一个工具类，可以将各个模块的信息汇总生成一张思维导图，方便业务理解和方法定位。

设计思路：继承BeanPostProcessor，在每个类加载前解析类的注解信息生成对应的文本写入到markdown(.MD)文件中，通过免费的XMind Zen导入生成思维导图。

使用方式：将此类放置于共同模块下，使用时复制进去改改对应的生成信息然后依次运行各模块即可。使用完删除或者注释@Component注解

代码如下：

package com.lance.common.config;

import com.sun.deploy.util.StringUtils;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.springframework.beans.BeansException;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.beans.factory.config.BeanPostProcessor;
import org.springframework.stereotype.Component;
import org.springframework.stereotype.Controller;
import org.springframework.util.CollectionUtils;
import org.springframework.web.bind.annotation.*;

import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.lang.reflect.Method;
import java.nio.charset.StandardCharsets;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.Comparator;
import java.util.List;
import java.util.stream.Collectors;


/**
 * 将controller生成MD文档
 *
 * @author lance
 */
@Component
@SuppressWarnings("unchecked")
public class GenerateControllerMapping implements BeanPostProcessor
{
    /**
     * 项目名 MD文档内容最高级节点，即xMind最高级节点
     */
    private static final String PROJECT_NAME = "Sample API";
    /**
     * 生成哪个包下的controller(此处主要是过滤框架的controller)
     */
    private static final String SCAN_PACKAGE = "lance";
    /**
     * 文档生成路径(会创建文件但不会创建文件夹)
     */
    private static final String MD_PATH = "C:\\Users\\lance\\Desktop\\Sample.md";

    private static final String WRAP = "\n";
    private static final String POUND = "#";
    private static final String SPACE = " ";
    private static final String DASH_AND_SPACE = "- ";
    private static final String COLON_AND_SPACE = ": ";

    /**
     * 模块名 MD文档内容次高级节点，即xMind次高级节点
     */
    @Value("${server.servlet.context-path}")
    private String moduleName;
    /**
     * 是否生成模块名的层级，一个module中只生成一次此层级，即在生成的第一个controller文本信息中加入
     */
    private boolean generateModuleLayer = true;

    @Override
    public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException
    {
        // 扫描名字叫controller及在SCAN_PACKAGE下的类
        if (beanName.toLowerCase().contains("controller") && bean.getClass().getPackage().toString().contains(SCAN_PACKAGE))
        {
            // 解析含controller相关注解的类
            RestController restController = bean.getClass().getAnnotation(RestController.class);
            Controller controller = bean.getClass().getAnnotation(Controller.class);
            if (restController == null && controller == null)
            {
                return bean;
            }

            // 解析controller的RequestMapping注解，组装信息
            RequestMapping requestMapping = bean.getClass().getAnnotation(RequestMapping.class);
            String controllerMappingMsg = "";
            if (requestMapping != null)
            {
                String controllerMappingUrl = appendStrListMsg(Arrays.asList(requestMapping.value()));
                String controllerMappingMethod = appendStrListMsg(formatRequestMethods(requestMapping.method()));
                controllerMappingUrl = controllerMappingUrl.isEmpty() ? "" : " URL: " + controllerMappingUrl;
                controllerMappingMethod = controllerMappingMethod.isEmpty() ? "" : " TYPE: " + controllerMappingMethod;

                if (!controllerMappingUrl.isEmpty() || !controllerMappingMethod.isEmpty())
                {
                    controllerMappingMsg = "[" + controllerMappingUrl + controllerMappingMethod + " ]";
                }
            }

            StringBuilder controllerInfoBuffer = new StringBuilder();
            if (generateModuleLayer)
            {
                controllerInfoBuffer.append(appendDuplicatedCharacter(POUND, 2)).append(SPACE).append(moduleName).append(WRAP);
                controllerInfoBuffer.append(WRAP);
                generateModuleLayer = false;
            }
            controllerInfoBuffer.append(appendDuplicatedCharacter(POUND, 3)).append(SPACE).append(beanName).append(controllerMappingMsg).append(WRAP);

            // 解析每个方法，生成方法的http请求方式及地址
            Method[] methods = bean.getClass().getMethods();
            List<MethodMap> methodMaps = analysisAndBuildMethods(methods);
            methodMaps.forEach(methodMap -> controllerInfoBuffer.append(DASH_AND_SPACE).append(methodMap.getRequestTypesStr()).append(COLON_AND_SPACE).append(methodMap.getRequestUrlsStr()).append(WRAP));
            appendMsgToFile(controllerInfoBuffer.toString());
            controllerInfoBuffer.setLength(0);
            System.out.println("####-Generated:" + beanName);
            return bean;
        }
        return bean;
    }

    @Override
    public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException
    {
        return bean;
    }

    /**
     * 获取requestMapping等的相关信息
     */
    private MappingResult getMappingUrls(Method method)
    {
        RequestMapping requestMapping = method.getAnnotation(RequestMapping.class);
        if (requestMapping != null)
        {
            RequestMethod[] requestMethod = requestMapping.method();
            return new MappingResult(formatRequestMethods(requestMethod), Arrays.asList(requestMapping.value()));
        }
        PutMapping putMapping = method.getAnnotation(PutMapping.class);
        if (putMapping != null)
        {
            return new MappingResult(Arrays.asList(RequestMethod.PUT.toString()), Arrays.asList(putMapping.value()));
        }
        DeleteMapping deleteMapping = method.getAnnotation(DeleteMapping.class);
        if (deleteMapping != null)
        {
            return new MappingResult(Arrays.asList(RequestMethod.DELETE.toString()), Arrays.asList(deleteMapping.value()));
        }
        PostMapping postMapping = method.getAnnotation(PostMapping.class);
        if (postMapping != null)
        {
            return new MappingResult(Arrays.asList(RequestMethod.POST.toString()), Arrays.asList(postMapping.value()));
        }
        GetMapping getMapping = method.getAnnotation(GetMapping.class);
        if (getMapping != null)
        {
            return new MappingResult(Arrays.asList(RequestMethod.GET.toString()), Arrays.asList(getMapping.value()));
        }
        PatchMapping patchMapping = method.getAnnotation(PatchMapping.class);
        if (patchMapping != null)
        {
            return new MappingResult(Arrays.asList(RequestMethod.PATCH.toString()), Arrays.asList(patchMapping.value()));
        }
        return null;
    }

    /**
     * 将RequestMethod枚举属性转为String
     */
    private List<String> formatRequestMethods(RequestMethod[] requestMethod)
    {
        return Arrays.stream(requestMethod).map(Enum::name).collect(Collectors.toList());
    }

    /**
     * 解析方法信息并生成信息串
     */
    private List<MethodMap> analysisAndBuildMethods(Method[] methods)
    {
        List<MethodMap> methodMaps = new ArrayList<>(methods.length);

        Arrays.stream(methods).forEach(method ->
        {
            MappingResult mappingResult = getMappingUrls(method);
            if (mappingResult == null)
            {
                return;
            }

            List<String> httpRequestTypes = mappingResult.getRequestTypes();
            List<String> requestMappingUrls = mappingResult.getRequestUrls();
            String httpRequestTypeStr;
            String requestMappingUrlStr;

            if (CollectionUtils.isEmpty(httpRequestTypes))
            {
                httpRequestTypeStr = "ALL";
            }
            else
            {
                httpRequestTypeStr = appendStrListMsg(httpRequestTypes);
            }

            if (CollectionUtils.isEmpty(requestMappingUrls))
            {
                requestMappingUrlStr = "";
            }
            else
            {
                requestMappingUrlStr = appendStrListMsg(requestMappingUrls);
            }
            methodMaps.add(new MethodMap(httpRequestTypeStr, requestMappingUrlStr));
        });

        methodMaps.sort(Comparator.comparing(MethodMap::getRequestTypesStr).thenComparing(MethodMap::getRequestUrlsStr));
        return methodMaps;
    }

    /**
     * 将list转为 x,y,z
     */
    private String appendStrListMsg(List<String> list)
    {
        return StringUtils.join(list, ",");
    }

    /**
     * 针对#等需要多次拼接的字符串提供的一个简单方法，传入次数返回拼接对应次数的信息
     */
    private String appendDuplicatedCharacter(String duplicatedCharacter, int round)
    {
        StringBuilder sb = new StringBuilder();
        for (int i = 0; i < round; i++)
        {
            sb.append(duplicatedCharacter);
        }
        return sb.toString();
    }

    /**
     * 将信息写入文本中
     */
    private void appendMsgToFile(String appendMsg)
    {
        FileOutputStream fos = null;
        String initHeader = "";
        try
        {
            File file = new File(MD_PATH);
            if (!file.exists())
            {
                file.createNewFile();
                initHeader = POUND + SPACE + PROJECT_NAME + WRAP;
            }
            fos = new FileOutputStream(MD_PATH, true);
            fos.write((initHeader + appendMsg).getBytes(StandardCharsets.UTF_8));
        }
        catch (IOException e)
        {
            e.printStackTrace();
        }
        finally
        {
            try
            {
                if (fos != null)
                {
                    fos.close();
                }
            }
            catch (IOException e)
            {
                e.printStackTrace();
            }
        }
    }

    @Data
    @AllArgsConstructor
    @NoArgsConstructor
    class MappingResult
    {
        List requestTypes;
        List requestUrls;
    }

    @Data
    @AllArgsConstructor
    @NoArgsConstructor
    class MethodMap
    {
        String requestTypesStr;
        String requestUrlsStr;
    }
}

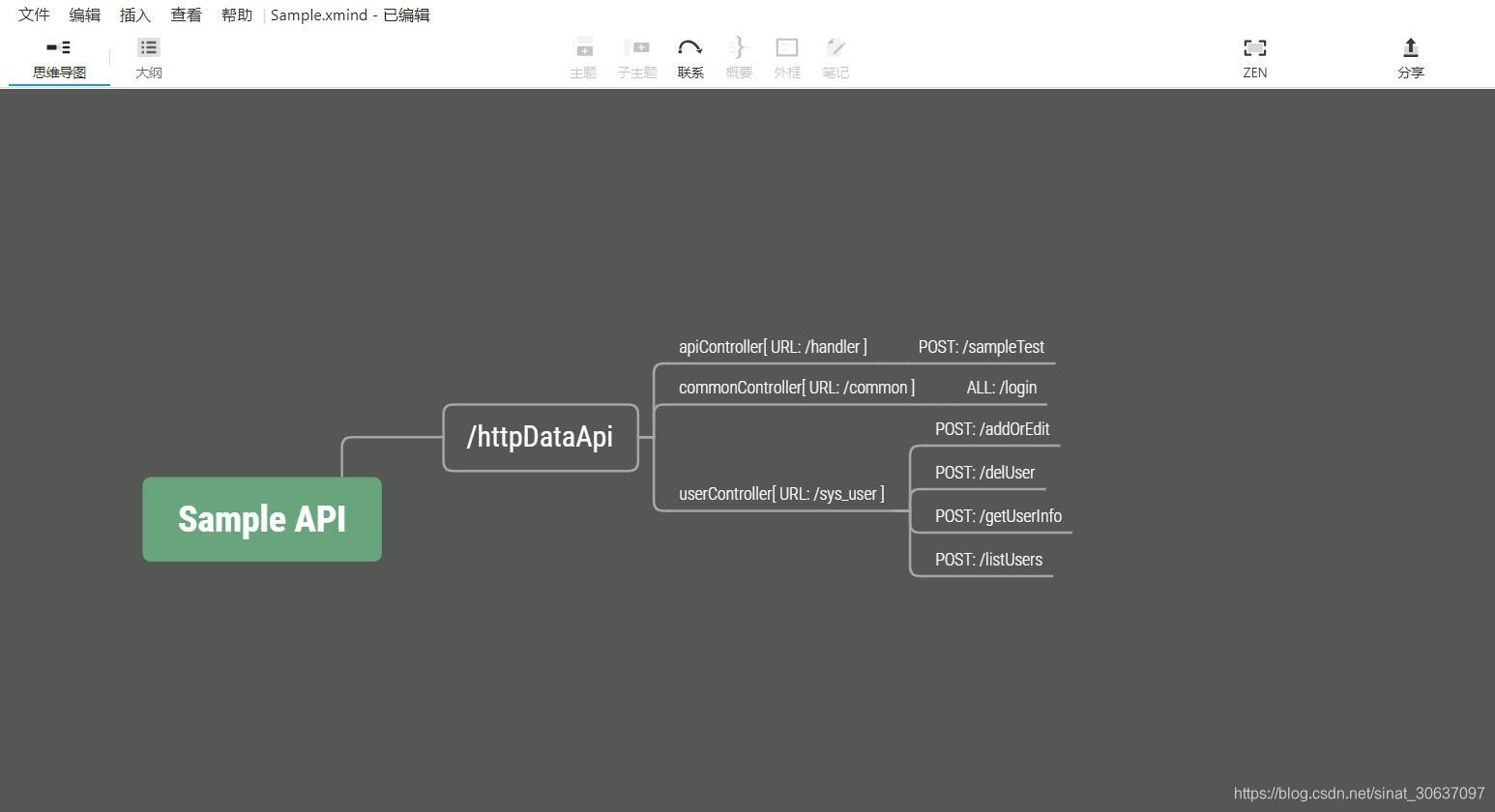

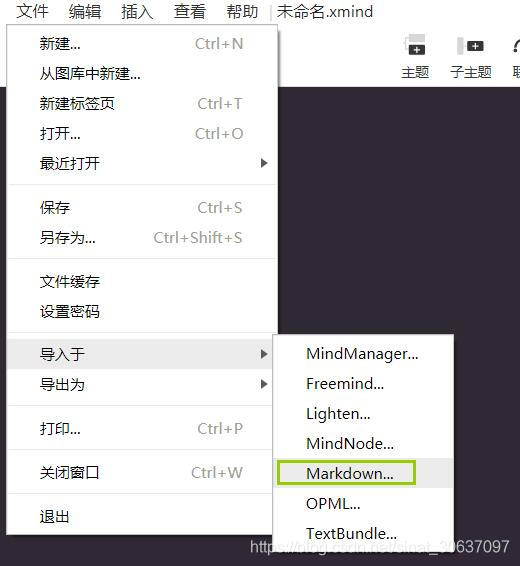

运行完生成MD文件后，使用XMInd Zen导入即可：
