机器学习基石 - The VC Dimension

机器学习基石上 (Machine Learning Foundations)—Mathematical Foundations
Hsuan-Tien Lin, 林轩田，副教授 (Associate Professor)，资讯工程学系 (Computer Science and Information Engineering)

The VC Dimension

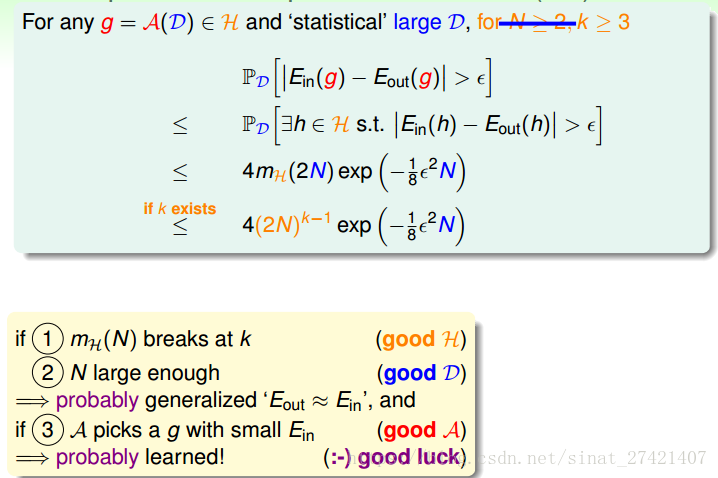

Recap

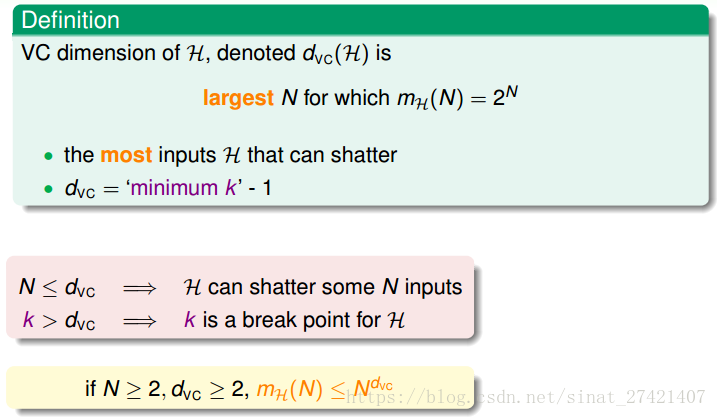

Definition of VC Dimension

VC Dimension

the formal name of maximum non-break point

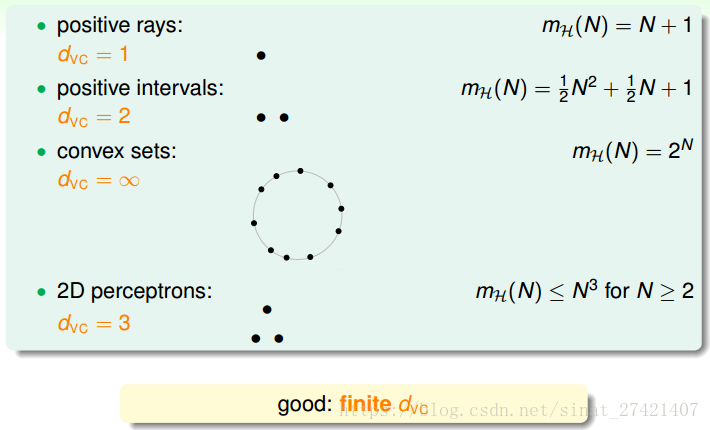

the Four VC Dimensions

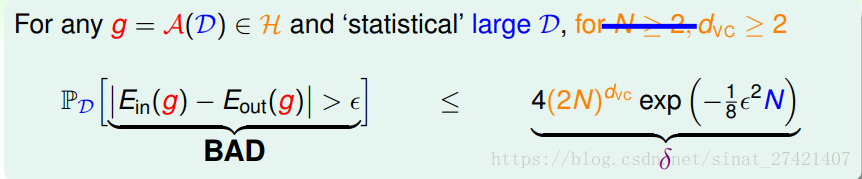

VC Dimension and Learning

• finite $d_{VC}\Longrightarrow g$ can generalize $E_{out}(g)\approx E_{in}(g)$
• regardless of learning algorithm $\mathcal A$、input distribution $P$、target function $f$

VC Dimension of Perceptrons

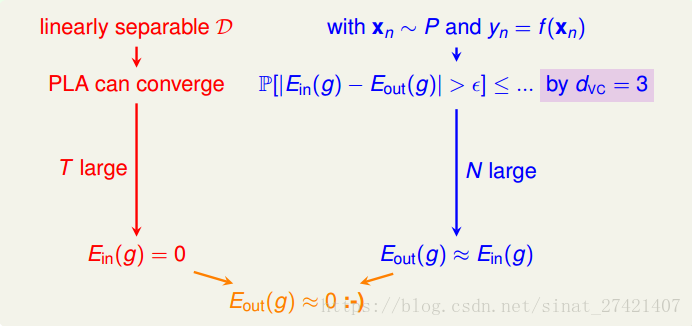

2D PLA Revisited

d-D perceptrons: $d_{VC}=d+1\ ?$

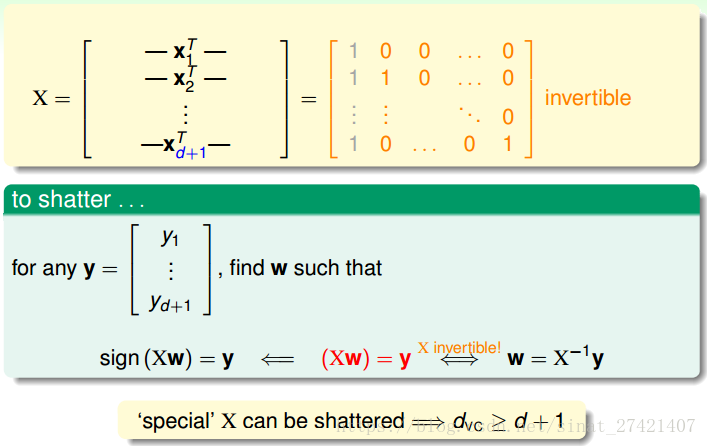

$d_{VC}\geq d+1$

- There are some $d + 1$ inputs we can shatter.
- 每一行代表一个点
- 灰色部分（第一列）视作第 0 维，是常数，代表 threshhold
- $\mathbf X$ 可逆
- 任意的 $\mathbf Y$ 都可以表示出来

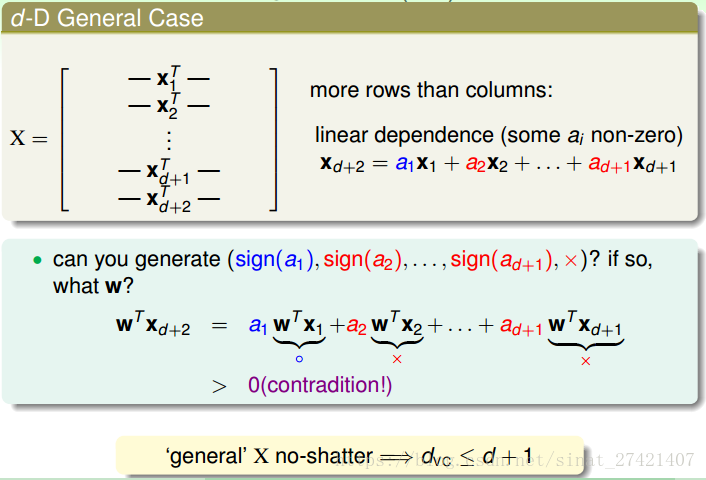

$d_{VC}\leq d+1$

• We cannot shatter any set of $d + 2$ inputs.
• linear dependence restricts dichotomy
• 任意一个可以 shatter 的 $d+1$ 向量组再加一维
• $\mathbf X_{d+2}$ 能被前 $d+1$ 个向量线性表出

Physical Intuition of VC Dimension

Degrees of Freedom 自由度

• $d_{VC} ≈ free\; parameters$

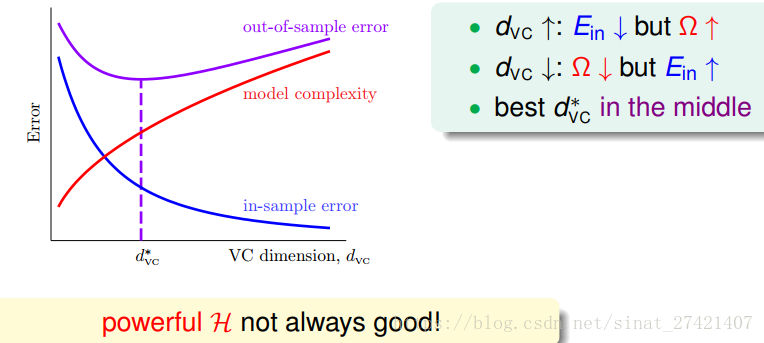

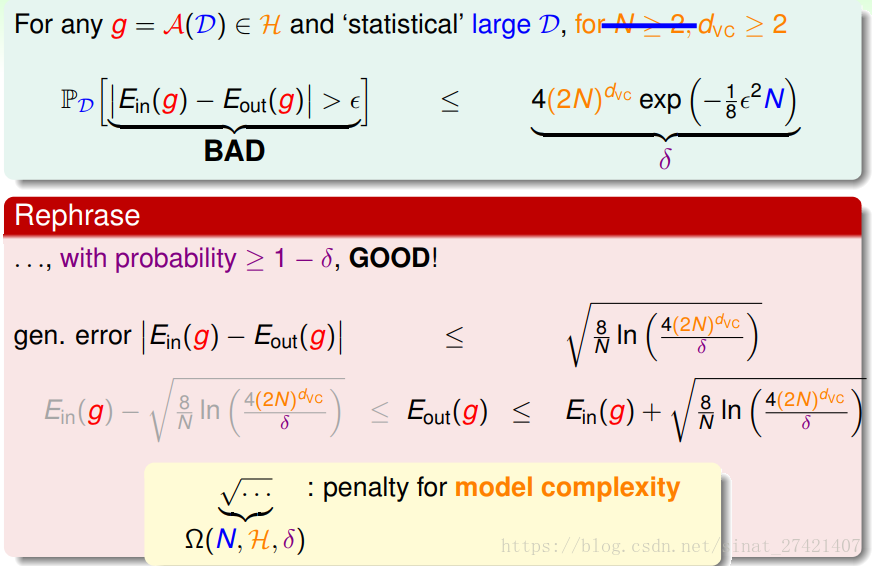

Penalty for Model Complexity

• with a high probability, $E_{out}\le E_{in}+\Omega (N,\mathcal H,\delta)$

• The VC Message


Sample Complexity

• theory: $N ≈ 10000\ d_{VC}$

• practical: $N ≈ 10\ d_{VC}$ often enough!

• Looseness of VC Bound
