centos7下weblogic12c静默安装_centos7 weblogic12c 创建集群-优快云博客

本文链接：https://blog.youkuaiyun.com/sin30_zhangdj/article/details/111478523

项目需求，需要搭建一个基于centos7，jenkins，Weblogic12c的自动部署服务器，于是结合网上的一些资料现已成功应用到生产环境中，供有兴趣的小伙伴参考。

1.环境列表

centos7
weblogic12c
JDK 8.X
svn
jenkins
Jenkins-2.X Jenkins官网：https://jenkins.io/index.html
Jenkins资源地址(各个版本及插件)：http://mirrors.jenkins.io

1.1Weblogic12c下载

http://www.oracle.com/technetwork/middleware/weblogic/downloads/wls-for-dev-1703574.html
选择Generic下载，此处需要Oracle账号登录（没有就注册一个问题不大）

1.2安装环境配置

1.2.1新建用户组 weblogic

groupadd weblogic

1.2.2新建用户weblogic12c 并修改用户密码

useradd -g weblogic weblogic	##添加用户，并用-g参数来制定 weblogic用户组

passwd weblogic ##passwd命令修改密码

1.2.3安装JDK

[root@localhost home]# tar xf jdk-8u261-linux-x64.tar.gz -C /usr/local/
[root@localhost home]# ln -vs /usr/local/jdk1.8.0_261/bin/java* /usr/bin/
"/usr/bin/java" -> "/usr/local/jdk1.8.0_261/bin/java"
"/usr/bin/javac" -> "/usr/local/jdk1.8.0_261/bin/javac"
"/usr/bin/javadoc" -> "/usr/local/jdk1.8.0_261/bin/javadoc"
"/usr/bin/javafxpackager" -> "/usr/local/jdk1.8.0_261/bin/javafxpackager"
"/usr/bin/javah" -> "/usr/local/jdk1.8.0_261/bin/javah"
"/usr/bin/javap" -> "/usr/local/jdk1.8.0_261/bin/javap"
"/usr/bin/javapackager" -> "/usr/local/jdk1.8.0_261/bin/javapackager"
"/usr/bin/java-rmi.cgi" -> "/usr/local/jdk1.8.0_261/bin/java-rmi.cgi"
"/usr/bin/javaws" -> "/usr/local/jdk1.8.0_261/bin/javaws"
[root@localhost home]# java -version
java version "1.8.0_261"
Java(TM) SE Runtime Environment (build 1.8.0_261-b12)
Java HotSpot(TM) 64-Bit Server VM (build 25.261-b12, mixed mode)

1.3Weblogic安装

1.3.1创建初始化文件

目录结构如下：

[weblogic@localhost ~]$ cd /home/weblogic/install/
[weblogic@localhost install]$ ll
总用量 1245900
-rw-rw-r--. 1 weblogic weblogic       946 2月  20 10:03 create_domain.rsp
-rw-r--r--. 1 weblogic weblogic 637756056 2月  20 09:09 fmw_14.1.1.0.0_wls_lite_Disk1_1of1.zip
-rw-r--r--. 1 weblogic weblogic 638026223 7月  22 2020 fmw_14.1.1.0.0_wls_lite_generic.jar
-rw-rw-r--. 1 weblogic weblogic       102 2月  20 09:56 oraInst.loc
-rw-rw-r--. 1 weblogic weblogic      1288 2月  20 09:57 wls.rsp

创建oraInst.loc文件

[weblogic@localhost install]$ cat oraInst.loc
#Oracle Installer Location File Location
inst_group=weblogic
inventory_loc=/home/weblogic/oraInventoy

创建 wls.rsp响应文件

[weblogic@localhost install]$ cat wls.rsp
[ENGINE]

#DO NOT CHANGE THIS.

Response File Version=1.0.0.0.0

[GENERIC]

#The oracle home location. This can be an existing Oracle Home or a new Oracle Home

ORACLE_HOME=/home/weblogic/Oracle/Middleware

#Set this variable value to the Installation Type selected. e.g. WebLogic Server, Coherence, Complete with Examples.

INSTALL_TYPE=WebLogic Server

#Provide the My Oracle Support Username. If you wish to ignore Oracle Configuration Manager configuration provide empty string for user name.

MYORACLESUPPORT_USERNAME=

#Provide the My Oracle Support Password

MYORACLESUPPORT_PASSWORD=<SECURE VALUE>

#Set this to true if you wish to decline the security updates. Setting this to true and providing empty string for My Oracle Support username will ignore the Oracle Configuration Manager configuration

DECLINE_SECURITY_UPDATES=true

#Set this to true if My Oracle Support Password is specified

SECURITY_UPDATES_VIA_MYORACLESUPPORT=false

#Provide the Proxy Host

PROXY_HOST=

#Provide the Proxy Port

PROXY_PORT=

#Provide the Proxy Username

PROXY_USER=

#Provide the Proxy Password

PROXY_PWD=<SECURE VALUE>

#Type String (URL format) Indicates the OCM Repeater URL which should be of the format [scheme[Http/Https]]://[repeater host]:[repeater port]

COLLECTOR_SUPPORTHUB_URL=

1.3.2配置文件准备好后，开始静默安装

java -jar fmw_14.1.1.0.0_wls_lite_generic.jar -silent -responseFile /home/weblogic/install/wls.rsp -invPtrLoc /home/weblogic/install/oraInst.loc

[weblogic@localhost install]$ java -jar fmw_14.1.1.0.0_wls_lite_generic.jar -silent -responseFile /home/weblogic/install/wls.rsp -invPtrLoc /home/weblogic/install/oraInst.loc
启动程序日志文件为/tmp/OraInstall2021-02-20_09-59-06AM/launcher2021-02-20_09-59-06AM.log。
正在提取安装程序... . . . . . . 完成
检查 CPU 速度是否大于 300 MHz。   实际为 2393.998 MHz    通过
检查交换空间: 必须大于 512 MB。   实际为 2047 MB    通过
检查此平台是否需要 64 位 JVM。   实际为64    通过 (不需要 64 位)
检查临时空间: 必须大于 300 MB。   实际为 46581 MB    通过
准备从/tmp/OraInstall2021-02-20_09-59-06AM启动 Oracle Universal Installer
日志:/tmp/OraInstall2021-02-20_09-59-06AM/install2021-02-20_09-59-06AM.log
版权所有 (c) 1996, 2020, Oracle 和/或其关联公司。保留所有权利。
正在读取响应文件...
跳过软件更新
开始检查: CertifiedVersions
预期的结果: oracle-6, oracle-7, redhat-7, redhat-6, SuSE-11, SuSE-12, SuSE-15之一
实际结果: redhat-null
检查完成。此次检查的总体结果为: 通过
CertifiedVersions 检查: 成功。


开始检查: CheckJDKVersion
预期的结果: 1.8.0_191
实际结果: 1.8.0_261
检查完成。此次检查的总体结果为: 通过
CheckJDKVersion 检查: 成功。


已启用此会话的验证。
正在验证数据
复制文件
完成百分比: 10
完成百分比: 20
完成百分比: 30
完成百分比: 40
完成百分比: 50
完成百分比: 60
完成百分比: 70
完成百分比: 80
完成百分比: 90
完成百分比: 100

Oracle Fusion Middleware 14.1.1 WebLogic Server and Coherence 14.1.1.0.0 的 安装 已成功完成。
日志已成功复制到/home/weblogic/oraInventoy/logs。

1.3.4创建domain

此递归创建域的路径，我这和weblogic安装路径保持一致

[weblogic@localhost install]$ mkdir -p ~/Oracle/Middleware/user_projects/domains/base_domain/

在install/目录下创建域的参数文件（用户名，密码，端口等)

[weblogic@localhost install]$ cat create_domain.rsp
read template from "/home/weblogic/Oracle/Middleware/wlserver/common/templates/wls/wls.jar";

set JavaHome "/usr/local/jdk1.8.0_261";

set ServerStartMode "dev";

find Server "AdminServer" as AdminServer;

set AdminServer.ListenAddress "";

set AdminServer.ListenPort "8001";

set AdminServer.SSL.Enabled "true";

set AdminServer.SSL.ListenPort "8002";

//We can directly create a new managed server.

create Server "base" as BASE;

set BASE.ListenAddress "";

set BASE.ListenPort "8003";

//set BASE.SSL.Enabled "true";

//set BASE.SSL.ListenPort "8004″;

//Create Machine

create Machine "base" as Machinename;

//use templates default weblogic user

find User "weblogic" as u1;

set u1.password "weblogic123";

//create a new user

create User "weblogic2" as u2;

set u2.password "weblogic123";

write domain to "/home/weblogic/Oracle/Middleware/user_projects/domains/base_domain/";

//The domain name will be "demo-domain"

close template;

需要进入到如下目录进行配置：

[weblogic@localhost install]$ cd /home/weblogic/Oracle/Middleware/wlserver/common/bin/

出现以下内容：（说明安装成功）

[weblogic@localhost bin]$ ./config.sh -mode=silent -silent_script=/home/weblogic/install/create_domain.rsp -logfile=/home/weblogic/install/create_domain.log
WARNING: This is a deprecated script. Please invoke the config.sh script under oracle_common/common/bin.
<< read template from "/home/weblogic/Oracle/Middleware/wlserver/common/templates/wls/wls.jar"
>>  succeed: read template from "/home/weblogic/Oracle/Middleware/wlserver/common/templates/wls/wls.jar"
<< set config option JavaHome to "/usr/local/jdk1.8.0_261"
>>  succeed: set config option JavaHome to "/usr/local/jdk1.8.0_261"
<< set config option ServerStartMode to "dev"
>>  succeed: set config option ServerStartMode to "dev"
<< find Server "AdminServer" as AdminServer
>>  succeed: find Server "AdminServer" as AdminServer
<< set AdminServer attribute ListenAddress to ""
>>  succeed: set AdminServer attribute ListenAddress to ""
<< set AdminServer attribute ListenPort to "8001"
>>  succeed: set AdminServer attribute ListenPort to "8001"
<< set AdminServer attribute SSL!Enabled to "true"
>>  succeed: set AdminServer attribute SSL!Enabled to "true"
<< set AdminServer attribute SSL!ListenPort to "8002"
>>  succeed: set AdminServer attribute SSL!ListenPort to "8002"
<< create Server "base" as BASE
>>  succeed: create Server "base" as BASE
<< set BASE attribute ListenAddress to ""
>>  succeed: set BASE attribute ListenAddress to ""
<< set BASE attribute ListenPort to "8003"
>>  succeed: set BASE attribute ListenPort to "8003"
<< create Machine "base" as Machinename
>>  succeed: create Machine "base" as Machinename
<< find User "weblogic" as u1
>>  succeed: find User "weblogic" as u1
<< set u1 attribute Password to "********"
>>  succeed: set u1 attribute Password to "********"
<< create User "weblogic2" as u2
>>  succeed: create User "weblogic2" as u2
<< set u2 attribute Password to "********"
>>  succeed: set u2 attribute Password to "********"
<< write Domain to "/home/weblogic/Oracle/Middleware/user_projects/domains/base_domain/"
..................................................
>>  succeed: write Domain to "/home/weblogic/Oracle/Middleware/user_projects/domains/base_domain/"
<< close template
>>  succeed: close template

注：过程可能较慢耐心等待

1.3.5安装并创建成功后验证

启动项目

[weblogic@localhost bin]$ pwd
/home/weblogic/Oracle/Middleware/user_projects/domains/base_domain/bin
[weblogic@localhost bin]$ ./startWebLogic.sh

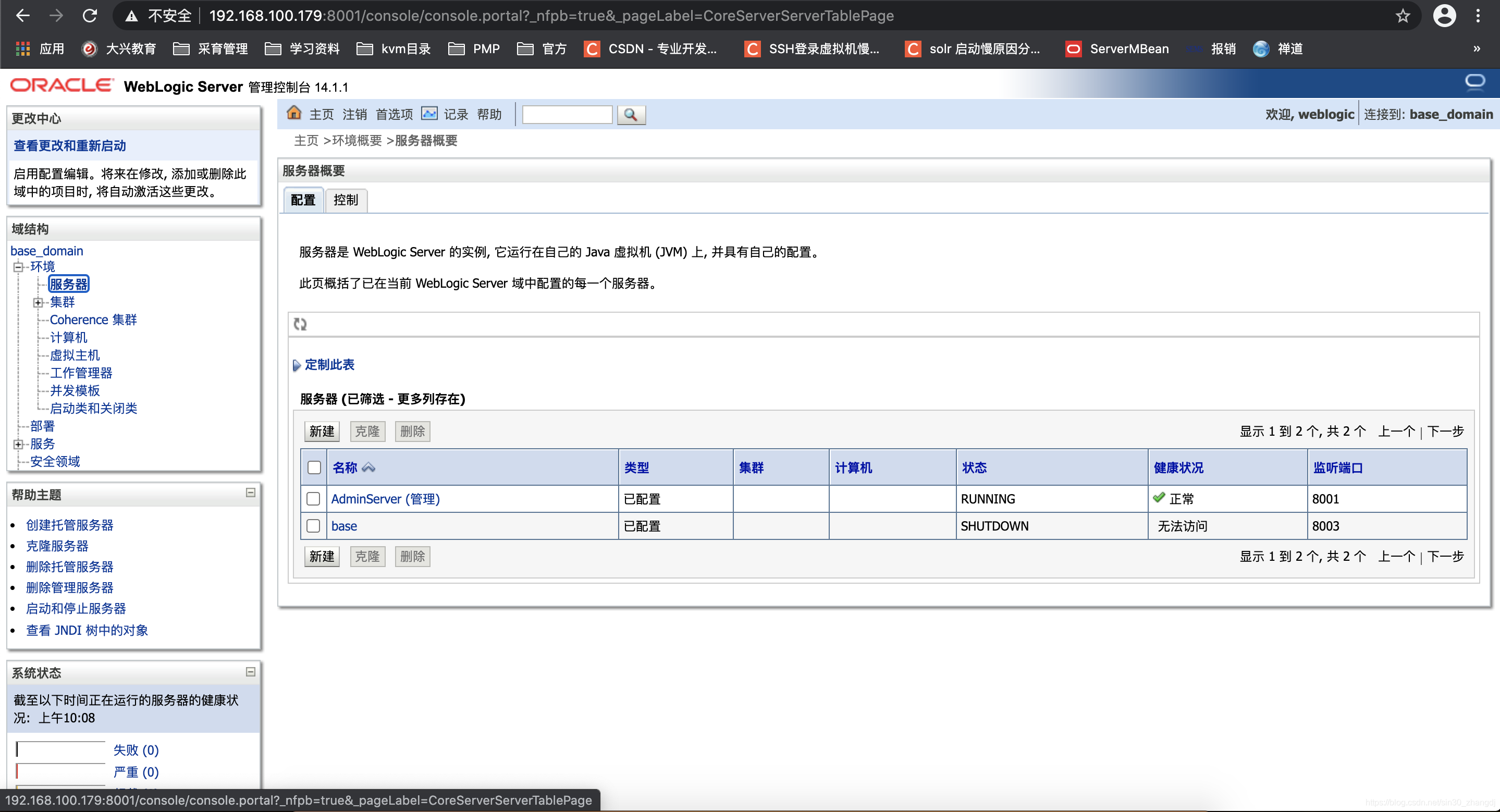

http://192.168.100.179:8001/console/ 在这里插入图片描述

1.3.5启动脚本

后续试验后补齐启动脚本
