虚拟内存(Virtual Memory)

转自http://www.cnblogs.com/shuaiwhu/archive/2012/11/22/2749043.html

Each process has its own virtual address space, so the virtual address 0xdead0000 in one process's address space will represent a different physical page than the page represented by 0xdead0000 in another process. Each process has it's own mapping from virtual addresses to physical addresses, virtual addresses are often reused between processes.

Basic Paramaters
Symbol	Description
N = 2n	Number of addresses in virtual address space
M = 2m	Number of addresses in physical address space
P = 2p	Page size (bytes)
Components of a virtual address (VA)
Symbol	Description
VPO	Virtual page offset (bytes)
VPN	Virtual page number
TLBI	TLB index
TLBT	TLB tag
Components of a physical address (PA)
Symbol	Description
PPO	Physical page offset(bytes)
PPN	Physical page number
CO	Byte offset within cache block
CI	Cache index
CT	Cache tag

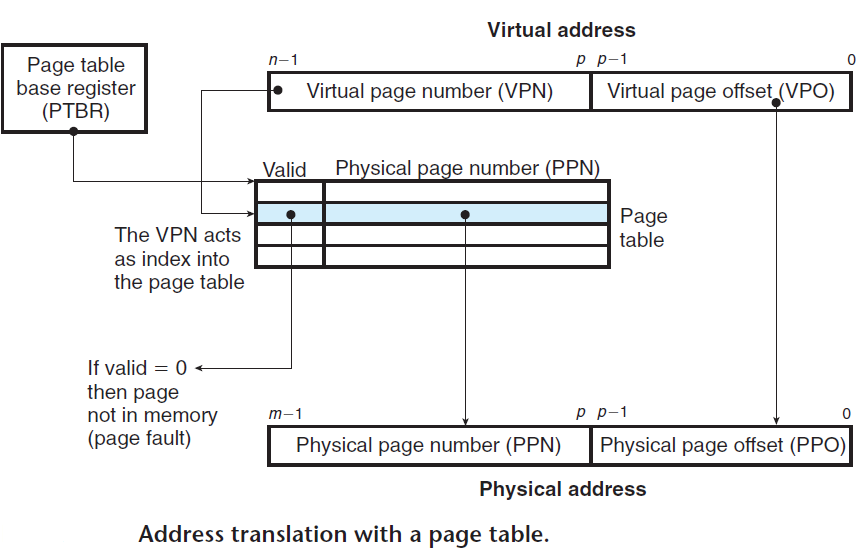

As we have seen, every time the CPU generates a virtual address, the MMU must refer to a PTE in order to translate the virtual address into a physical address. In the worst case, this requires an additional fetch from memory, at a cost of tens to hundreds of cycles. If the PTE happens to be cached in L1, then the cost goes down to one or two cycles. However, many systems try to eliminate even this cost by including a small cache of PTEs in the MMU called a translation lookaside buffer (TLB).

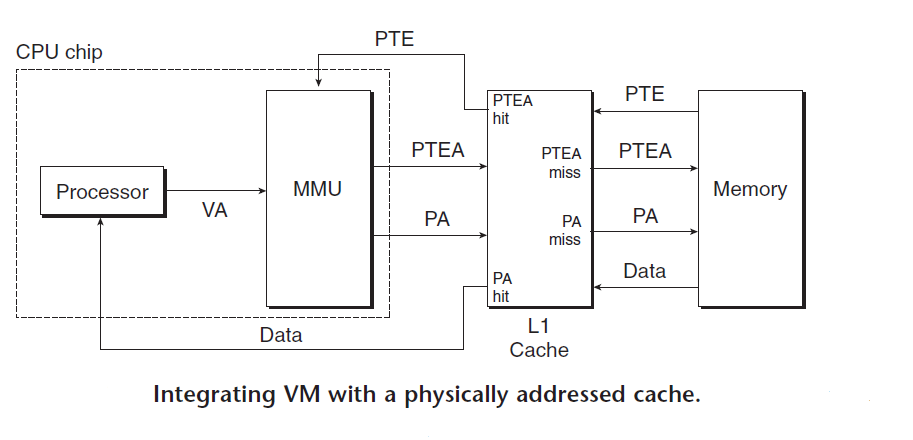

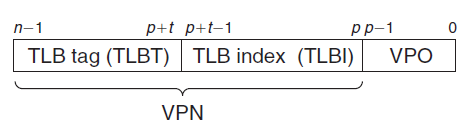

A TLB is a small, virtually addressed cache where each line holds a block consisting of a single PTE. A TLB usually has a high degree of associativity. As shown below, the index and tag fields that are used for set selection and line matching are extracted from the virtual page number in the virtual address. If the TLB has T = 2^t sets, then the TLB index (TLBI) consists of the t least significant bits of the VPN, and the TLB tag (TLBT) consists of the remaining bits in the VPN.

Two-level paging scheme

---
