Flex 2 技巧 - 圓角容器遮罩

Flex 2 很多容器都有支援圓角邊框的設定 cornerRadius

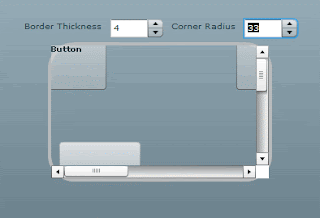

不過容器的物件卻會超出圓角邊界
使用上不太方便~~

以下利用另一個圓角物件當作 Mask,遮住超出圓角的物件

view plain |  copy to clipboard |  print |  ? |
∙∙∙∙∙∙∙∙∙10∙∙∙∙∙∙∙∙20∙∙∙∙∙∙∙∙30∙∙∙∙∙∙∙∙40∙∙∙∙∙∙∙∙50∙∙∙∙∙∙∙∙60∙∙∙∙∙∙∙∙70∙∙∙∙∙∙∙∙80∙∙∙∙∙∙∙∙90∙∙∙∙∙∙∙∙100∙∙∙∙∙∙∙110∙∙∙∙∙∙∙120∙∙∙∙∙∙∙130∙∙∙∙∙∙∙140∙∙∙∙∙∙∙150
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <mx:Application xmlns:mx="http://www.adobe.com/2006/mxml" layout="vertical">
  3.  <mx:HBox>
  4.   <mx:Label text="Border Thickness"/>
  5.   <mx:NumericStepper id="step1" maximum="100" value="6"/>
  6.   <mx:Label text="Corner Radius"/>
  7.   <mx:NumericStepper id="step2" maximum="100" value="16"/>
  8.  </mx:HBox>
  9.  <mx:Canvas width="80%" height="80%" id="c1"
  10.   borderStyle="solid" borderThickness="{step1.value}" cornerRadius="{step2.value}">
  11.   <mx:Canvas width="100%" height="100%" id="c2"
  12.    borderStyle="solid" borderThickness="0" cornerRadius="{step2.value - step1.value}"
  13.    backgroundColor="#0" cacheAsBitmap="true"/>
  14.   <mx:Canvas width="100%" height="100%" mask="{c2}" cacheAsBitmap="true">
  15.    <mx:Button x="-32" y="-45" width="100" height="100" label="Button"/>
  16.    <mx:Button x="228" y="-45" width="100" height="100" label="Button"/>
  17.    <mx:Button x="390" y="119" width="100" height="100" label="Button"/>
  18.    <mx:Button x="10" y="119" width="100" height="100" label="Button"/>
  19.    <mx:Button x="218" y="263" width="100" height="100" label="Button"/>
  20.    <mx:Button x="598" y="323" width="100" height="100" label="Button"/>
  21.    <mx:Button x="598" y="-37" width="100" height="100" label="Button"/>
  22.    <mx:Button x="-45" y="280" width="100" height="100" label="Button"/>
  23.   </mx:Canvas>
  24.  </mx:Canvas>
  25. </mx:Application>

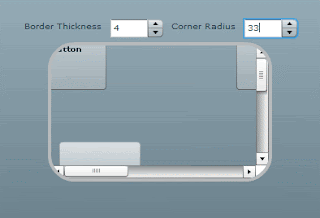

    執行效果:

    轉載請註明出處  http://ticore.blogspot.com/2007/09/flex-2.html
