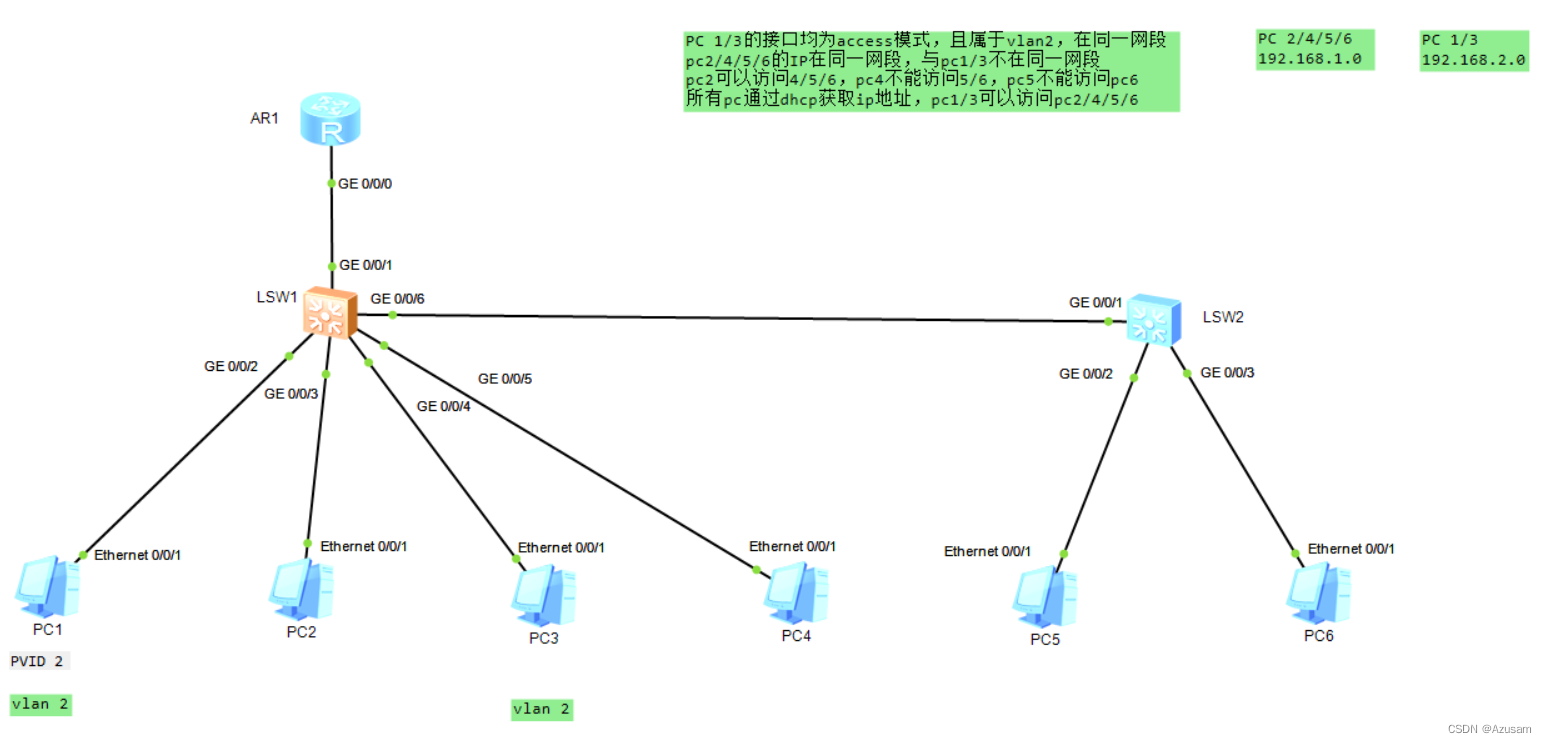

HCIP VLAN实验



交换机创建VLAN

 [LWS1]vlan batch 2 to 6

 [LWS2]vlan batch 2 to 6

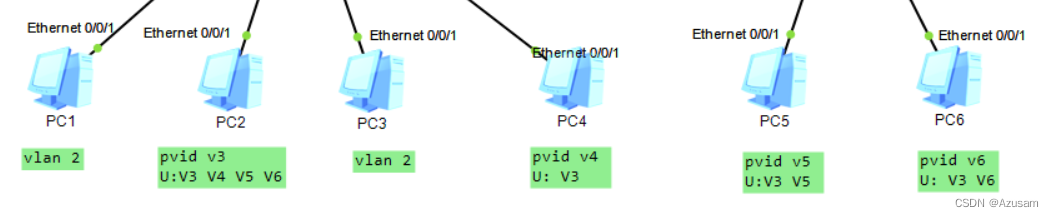

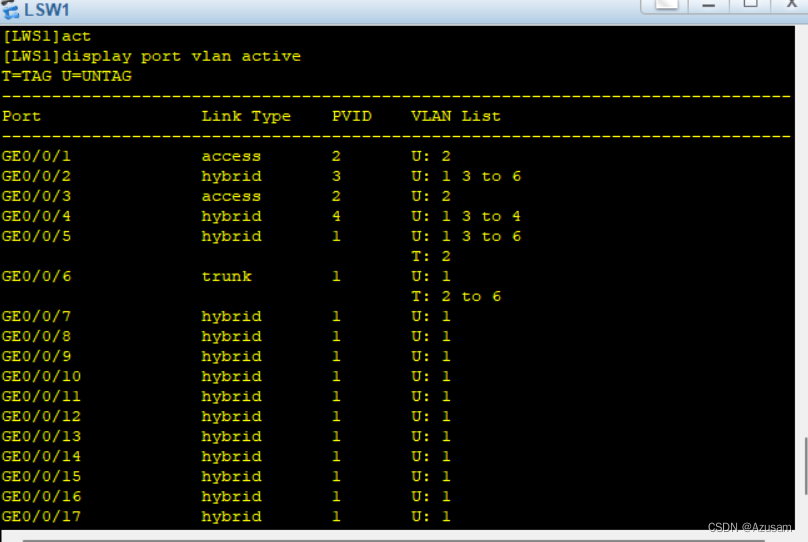

将接口接入VLAN(配置策略)

[LSW1]int g0/0/1
[LWS1-GigabitEthernet0/0/1]port link-type access
[LWS1-GigabitEthernet0/0/1]port default vlan 2

[LWS1]int g0/0/2

[LWS1-GigabitEthernet0/0/2]port link-type hybrid
[LWS1-GigabitEthernet0/0/2]port hybrid pvid vlan 3
[LWS1-GigabitEthernet0/0/2]port hybrid untagged vlan 3 4 5 6

[LSW1]int g0/0/3
[LWS1-GigabitEthernet0/0/3]port link-type access
[LWS1-GigabitEthernet0/0/3]port default vlan 2

[LWS1]int g0/0/4

[LWS1-GigabitEthernet0/0/2]port link-type hybrid
[LWS1-GigabitEthernet0/0/2]port hybrid pvid vlan 4

[LWS1-GigabitEthernet0/0/4]port hybrid untagged vlan 3 4

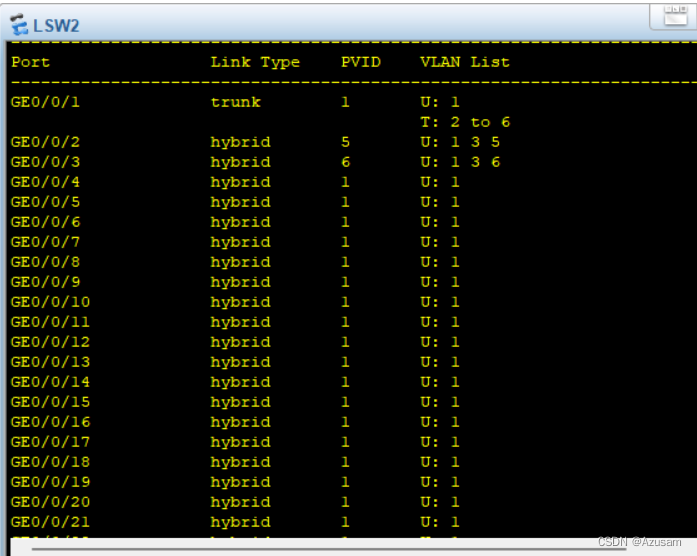

[LWS2]int g0/0/2

[LWS2-GigabitEthernet0/0/2]port link-type hybrid
[LWS2-GigabitEthernet0/0/2]port hybrid pvid vlan 5
[LWS2-GigabitEthernet0/0/2]port hybrid untagged vlan 3 5

[LWS2]int g0/0/3

[LWS2-GigabitEthernet0/0/2]port link-type hybrid
[LWS2-GigabitEthernet0/0/2]port hybrid pvid vlan 6

[LSW2-GigabitEthernet0/0/3]undo port hybrid untagged vlan 3 6

 trunk干道

接口g0/0/6  SW1与SW2

[LWS1-GigabitEthernet0/0/5]int g 0/0/6
[LWS1-GigabitEthernet0/0/6]port link-type trunk

[LWS1-GigabitEthernet0/0/6]port trunk allow-pass vlan all

[LSW2]int g 0/0/1
[LSW2-GigabitEthernet0/0/1]port link-type trunk
[LSW2-GigabitEthernet0/0/1]port trunk allow-pass vlan all

接口g0/0/1  R1与SW1

[LWS1-GigabitEthernet0/0/3]int g 0/0/5
[LWS1-GigabitEthernet0/0/5]port link-type hybrid
[LWS1-GigabitEthernet0/0/5]port hybrid untagged vlan 3 4 5 6
[LWS1-GigabitEthernet0/0/5]port hybrid tagged vlan 2

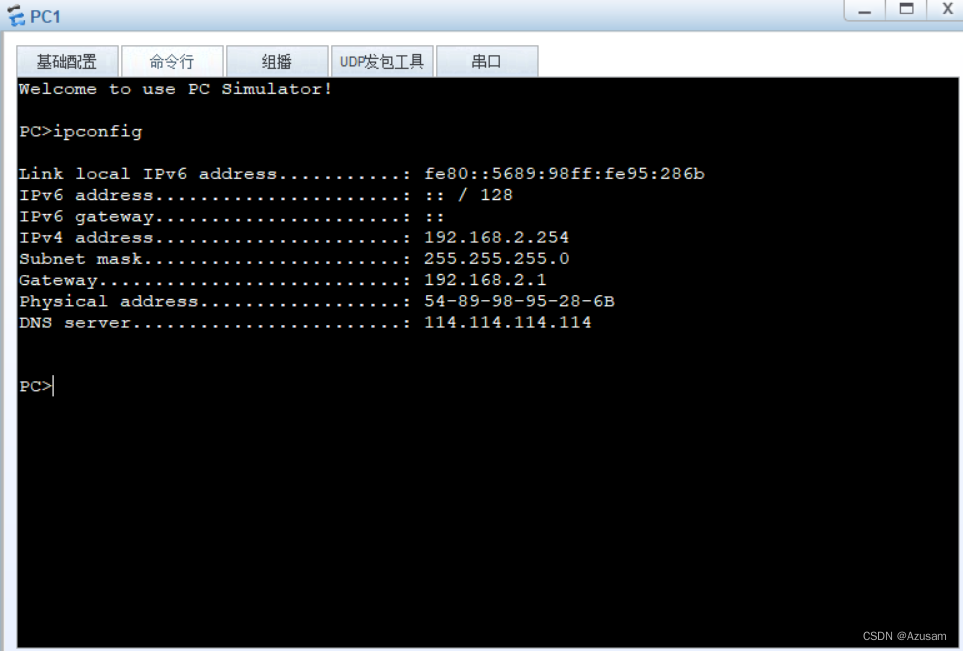

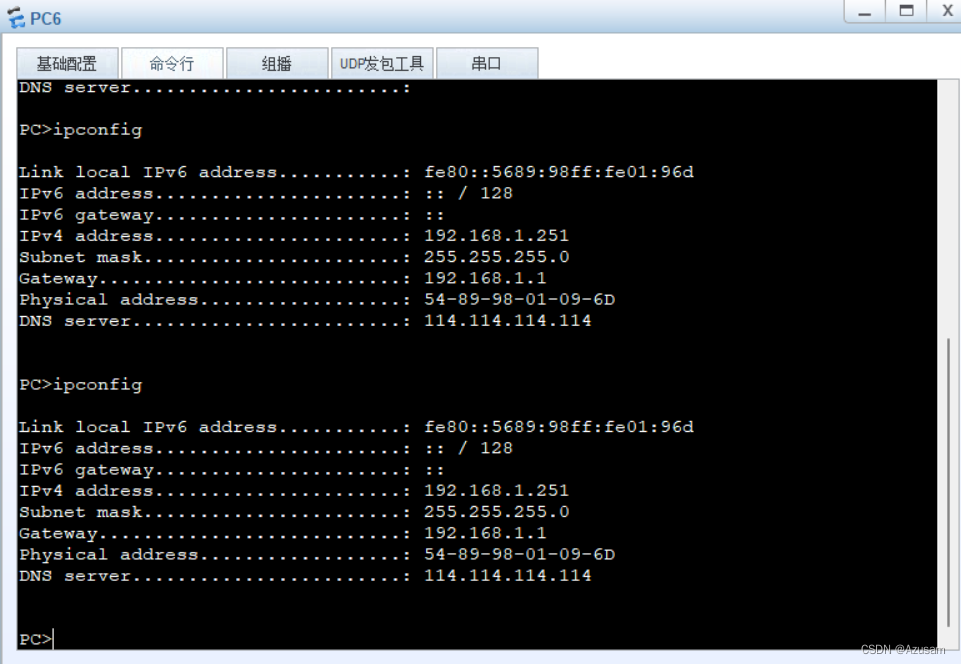

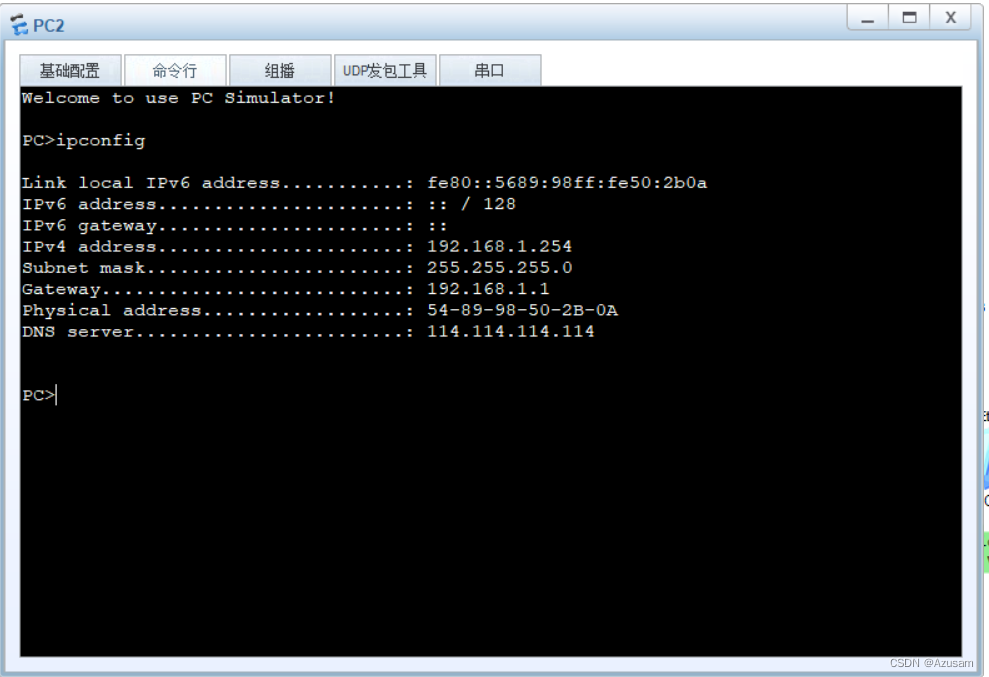

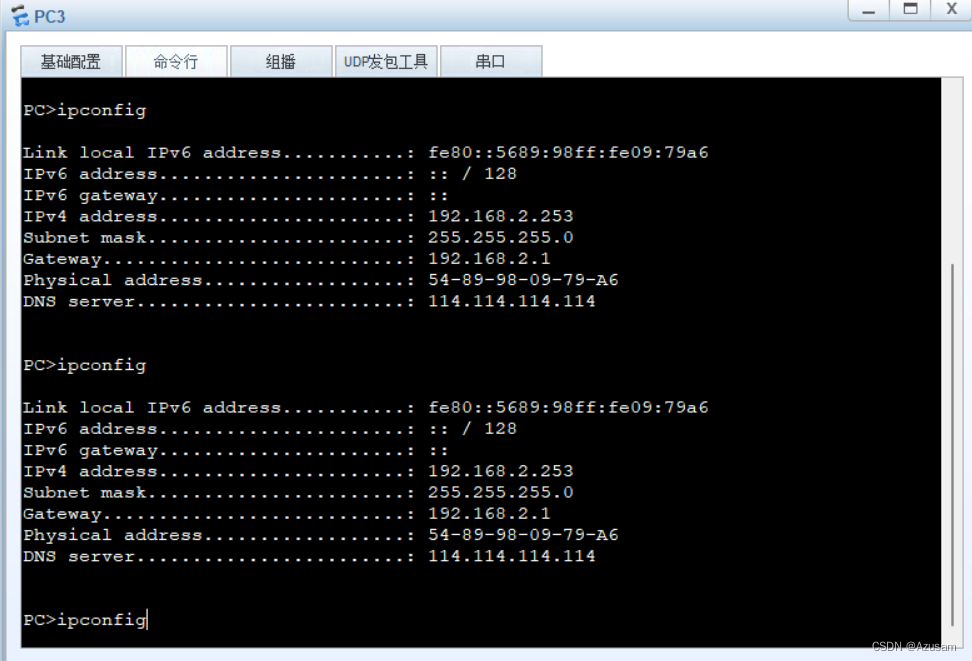

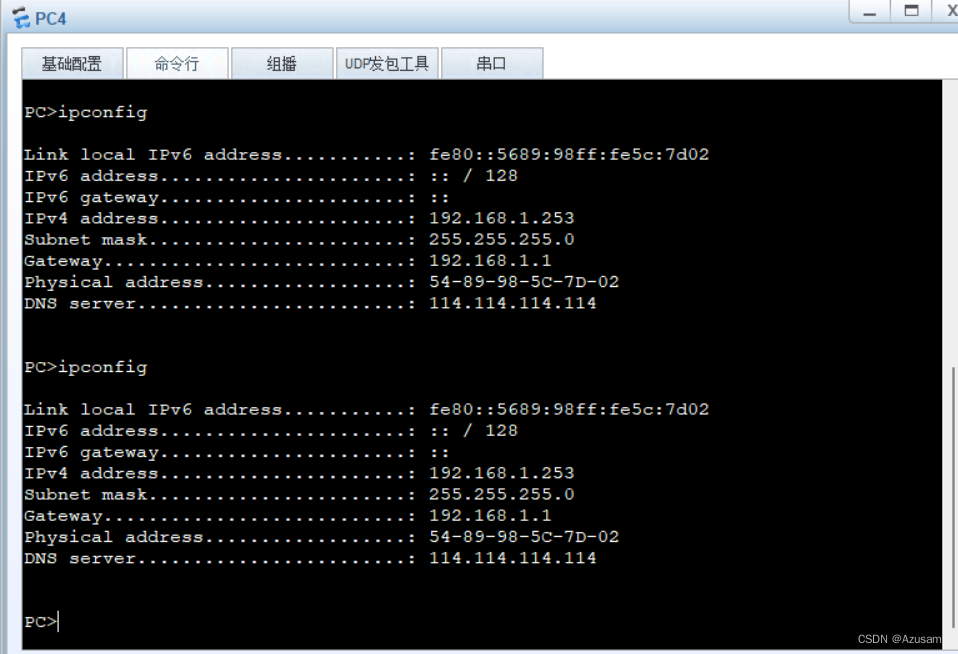

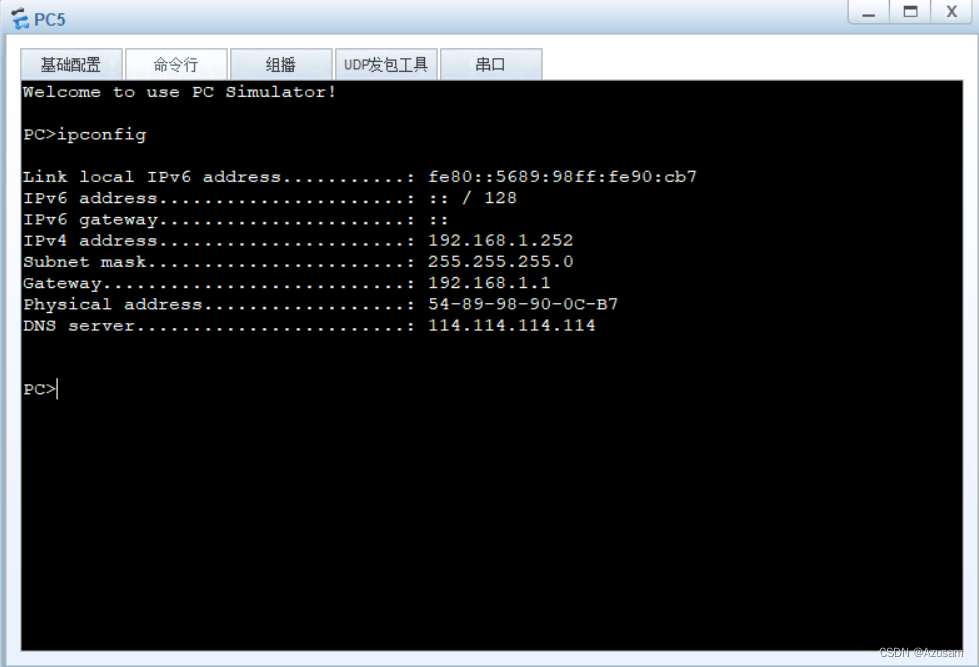

开启DHCP服务，建立路由

[R3]dhcp enable

[R3]int g0/0/0
[R3-GigabitEthernet0/0/0]ip add 192.168.1.1 24
[R3-GigabitEthernet0/0/0]int g0/0/0.1
[R3-GigabitEthernet0/0/0.1]ip add 192.168.2.1 24
[R3-GigabitEthernet0/0/0.1]dot1q termination vid 2
R3-GigabitEthernet0/0/0.1]arp broadcast enable

[R3ip pool 1
[R3-ip-pool-1]network 192.168.1.0 mask 24
[R3-ip-pool-1]gateway-list 192.168.1.1
[R3-ip-pool-1]dns-list 114.114.114.114
[R3-ip-pool-1]q
[R3]ip pool 2
[R3-ip-pool-2]network 192.168.2.0 mask 24
[R3-ip-pool-2]gateway-list 192.168.2.1
[R3-ip-pool-2]dns-list 114.114.114.114
[R3-ip-pool-2]q
[R3]int g0/0/0
[R3-GigabitEthernet0/0/0]dhcp select global
[R3-GigabitEthernet0/0/0]int g0/0/0.1
[R3-GigabitEthernet0/0/0.1]dhcp select global
