SAP请求传输完自动发送邮件

小甲：老师，我又郁闷了，你作为国内ABAP一。。。

老白：捏住！又来这一套，这回是啥事儿啊？

小甲：嘿嘿，我这不是去一个公司做实施项目嘛，他们的PRD和DEV、QAS不在同一个传输域，是完全独立的一个系统，彼此间网络是不是能物理连通都不清楚，我们的请求传输到QAS后，需要BASIS手工下载后再传输到PRD。这就导致啥呢，首先传输完毕后我们在DEV的请求日志里面看不到传输结果，因为到QAS后就断开了，其次有时候BASIS在传输完后也没有立即给我们反馈，也不知道是不是请求已经传输了，是不是传输有错误，总之，就导致挺忐忑的吧。

老白：那怎么着才能让你不忐忑呢？

小甲：我觉着如果请求传输完立马给我发一个邮件，告诉我传输的结果，我既能及时知道了请求已经传输，也能知道是不是出错了，就很爽！

老白：每天传那么多请求，有那么多系统要照看，你觉着BASIS能抽出空来给你及时发邮件吗？

小甲：谁说让BASIS发邮件了啊？系统发啊！系统自动发！增强、出口、BADI、Plug in，用啥我不管，反正是能发就行。

老白：这又是让我给你写程序了吧？

小甲：明知故问。。。

老白：好一个狂徒！我要是不写呢？

小甲：这么好的一个点子，我不信你能经得起诱惑，嘿嘿

老白：苍天哪大地啊，我竟然被你拿捏的死死的。。。话说这个程序似乎真的挺有用的，事不宜迟我这就动手！

小甲：切，高明的猎手往往以猎物的姿态。。。

老白：你嘟囔啥呢？

小甲：没啥没啥，你赶紧写呀

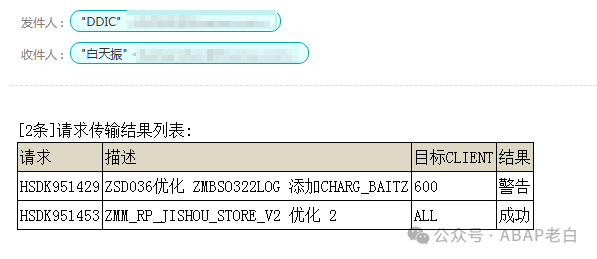

老白：已经写好了，过来看看吧。下面这个就是请求传输完系统自动发送的邮件，传输完的瞬间就收到了呢，因为是选中两个请求一起传的，所以有两条

小甲：哇塞，牛X了！给我讲讲怎么实现的呗

老白：其实很简单，有一个BADI，CTS_IMPORT_FEEDBACK，就是在请求传输完触发的，只要实现这个BADI的FEEDBACK_AFTER_IMPORT方法，然后配置一个请求所有者的邮箱配置表，在方法里面按照配置表发送邮件就好了。但是呢，这个发邮件的过程跟一般程序不太一样，如果按照一般的方式，你肯定无法收到邮件。

小甲：这就奇怪了，BADI都有了，我还不是想干啥干啥？有啥不一样？

老白：因为Client 000！众所周知啊，请求的传输是TP触发000 Client的JOB RDDIMPDP来实现数据字典、程序、表内容等等的写入的，所以呢，这个BADI也是在000 Client触发的，它是运行在000 Client的，又因为000 Client一般不允许登录，也没有配置发邮件所需要的SCOT配置，故而无法发送。

小甲：这个好办，我反手就是一个RFC！我用RFC连接到PRD的生产Client再发送总可以了吧？

老白：这个固然是可以，但是你RFC用谁的账号设置呢？谁肯让你用呢？

小甲：那我要是用RFC连到DEV呢？在DEV随便建一个账号

老白：你不是说PRD完全独立的一个系统吗？说不定网络之间都不通，不能保证能建RFC哦。再说了，即便是能建，这个做法也很烦啊

小甲：说的也是，那老师你说怎么解决这个问题呢？

老白：如果你能跟BASIS说得上话呢，就让BASIS协助在000配置一下SCOT，然后邮箱配置表配置为跨Client，一次配置所有Client都能用，然后直接发邮件就可以了。

小甲：那要是不认识BASIS也说不上话呢？

老白：那就使用SAP Event配合JOB，BADI的代码在000 Client触发Event后，生产Client的JOB就启动了，然后根据表内存的数据，就能发送了呀

小甲：老师，实不相瞒，这个SAP Event触及到我的知识盲区了。。

老白：就是事务码SM62，好了，给你说了，现在你已经会了

小甲：。。。

老白：我看看总共都是做了哪些开发啊，啰里啰嗦的还不少，罗列一下哈

1、创建表ZCTS01 和 ZCTS02，注意都没有MANDT字段！ZCTS02用来维护请求所有者的账户和邮箱，需要生成表格维护，以使用SM30来维护账号对应的邮箱

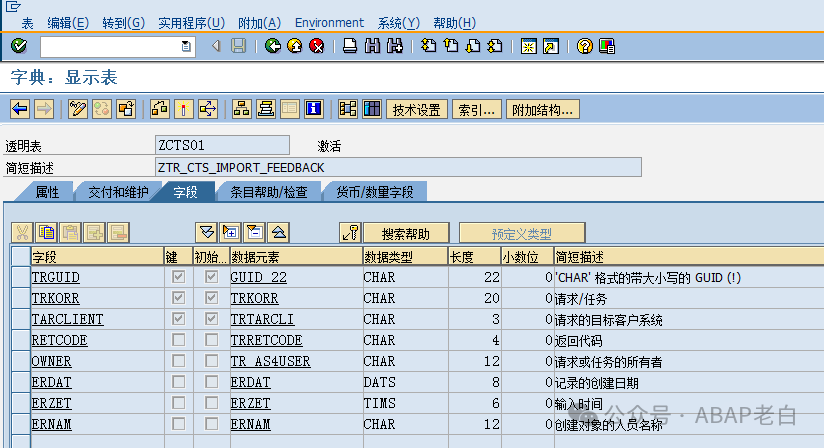

ZCTS01:
TRGUID  GUID_22
TRKORR  TRKORR
TARCLIENT  TRTARCLI
RETCODE  TRRETCODE
OWNER  TR_AS4USER
ERDAT  ERDAT
ERZET  ERZET
ERNAM  ERNAM

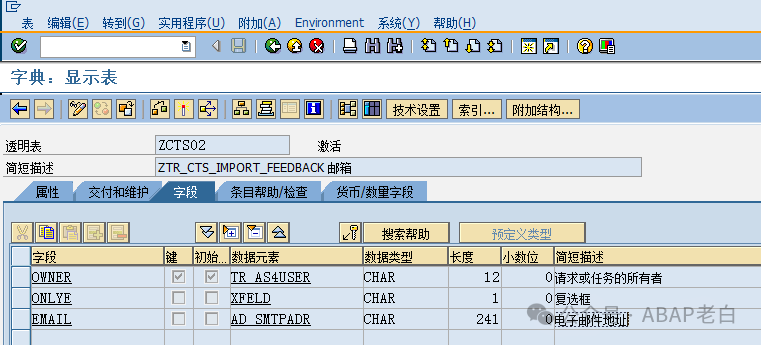

ZCTS02:
OWNER  TR_AS4USER
ONLYE  XFELD      "仅传输错误才发送邮件
EMAIL  AD_SMTPADR

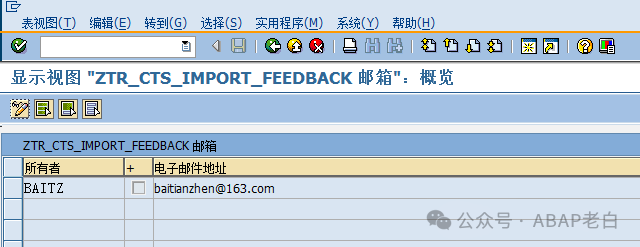

表ZCTS02在PRD这样维护：

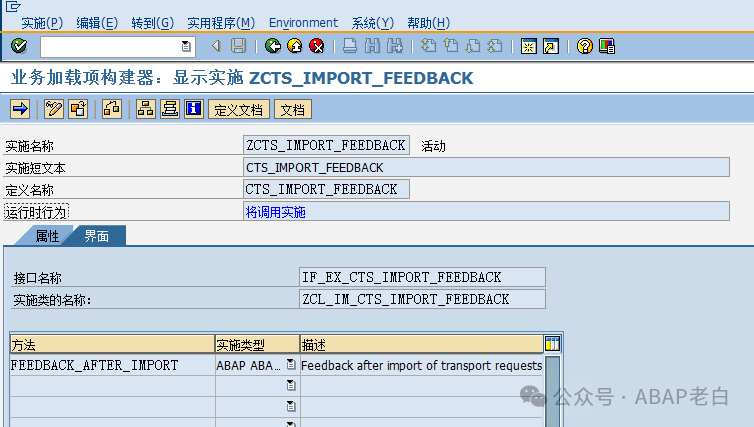

2、BADI实现

METHOD if_ex_cts_import_feedback~feedback_after_import.
  DATA lv_guid TYPE guid_22.
  DATA ls_reqt TYPE scts_imp.
  DATA ls_save TYPE zcts01.
  DATA lt_save TYPE TABLE OF zcts01.


  CALL FUNCTION 'GUID_CREATE'
    IMPORTING
      ev_guid_22 = lv_guid.


  LOOP AT requests INTO ls_reqt.
    MOVE-CORRESPONDING ls_reqt TO ls_save.
    ls_save-trguid = lv_guid.
    ls_save-erdat = sy-datum.
    ls_save-erzet = sy-uzeit.
    ls_save-ernam = sy-uname.
    APPEND ls_save TO lt_save.
  ENDLOOP.
  MODIFY zcts01 FROM TABLE lt_save.
  CALL FUNCTION 'DB_COMMIT'.


  "如果000 Client DDIC账号可以发送邮件，
  "则可以使用SUMIT的方法，否则使用下面BP_EVENT_RAISE的方法
*  SUBMIT zcts_import_feedback
*           WITH p_eparm = lv_guid
*           AND RETURN.


  CALL FUNCTION 'BP_EVENT_RAISE'
    EXPORTING
      eventid   = 'CTS_IMPORT_FEEDBACK'
      eventparm = lv_guid
    EXCEPTIONS
      OTHERS    = 5.
ENDMETHOD.

3、邮件发送程序

*&---------------------------------------------------------------------*
*& Report  ZCTS_IMPORT_FEEDBACK
*&
*&---------------------------------------------------------------------*
*& 请求传输完毕给请求所有者发送邮件程序
*& BADI CTS_IMPORT_FEEDBACK在请求传输结束触发
*& 因为BADI是在000 Client运行，使用BP_EVENT_RAISE触发此程序
*& 1、维护表ZCTS02
*& 2、在目标系统SM62创建Event
*& 3、定义JOB CTS_IMPORT_FEEDBACK
*&---------------------------------------------------------------------*
REPORT zcts_import_feedback NO STANDARD PAGE HEADING.


DATA gv_eparm TYPE tbtcm-eventparm.
DATA gv_sendm TYPE ad_smtpadr. "发送邮箱
DATA: BEGIN OF gt_trlog OCCURS 0,
        trkorr    TYPE zcts01-trkorr   ,
        as4text   TYPE e07t-as4text    ,
        tarclient TYPE zcts01-tarclient,
        owner     TYPE zcts01-owner    ,
        retcode   TYPE zcts01-retcode  ,
        result    TYPE char10,
      END OF gt_trlog.


PARAMETERS p_eparm TYPE guid_22 NO-DISPLAY.


INITIALIZATION.
  "xxxxxxxx.com改成公司域名
  CONCATENATE sy-sysid sy-mandt '@xxxxxxxx.com' INTO gv_sendm.


START-OF-SELECTION.
  PERFORM getdata.
  PERFORM prepare_mail.


*&---------------------------------------------------------------------*
*&      Form  getdata
*&---------------------------------------------------------------------*
FORM getdata.
  IF p_eparm IS INITIAL.
    CALL FUNCTION 'GET_JOB_RUNTIME_INFO'
      IMPORTING
        eventparm       = gv_eparm
      EXCEPTIONS
        no_runtime_info = 1.
  ELSE.
    gv_eparm = p_eparm.
  ENDIF.
  IF gv_eparm IS INITIAL.
    MESSAGE s000(oo) WITH '未获取EVENTPARM'.
    LEAVE PROGRAM.
  ENDIF.


  SELECT zcts01~trkorr
         e07t~as4text
         zcts01~tarclient
         e070~as4user AS owner "zcts01~owner中文乱码
         zcts01~retcode
    INTO CORRESPONDING FIELDS OF TABLE gt_trlog
    FROM zcts01 INNER JOIN e070 ON e070~trkorr = zcts01~trkorr
                LEFT  JOIN e07t ON e07t~trkorr = zcts01~trkorr AND
                                   e07t~langu  = sy-langu
    WHERE zcts01~trguid = gv_eparm.
  IF gt_trlog[] IS INITIAL.
    MESSAGE s000(oo) WITH '未获取ZCTS01表数据'.
    LEAVE PROGRAM.
  ENDIF.
ENDFORM.                    "getdata




*&---------------------------------------------------------------------*
*&      Form  prepare_mail
*&---------------------------------------------------------------------*
FORM prepare_mail.
  DATA lt_trlog LIKE TABLE OF gt_trlog WITH HEADER LINE.
  DATA lt_owner TYPE TABLE OF tr_as4user WITH HEADER LINE.
  DATA lt_body  TYPE TABLE OF solisti1 WITH HEADER LINE.
  DATA ls_cts02 TYPE zcts02.
  DATA lv_smtp  TYPE ad_smtpadr.
  DATA lv_subje TYPE so_obj_des.


  LOOP AT gt_trlog.
    lt_owner = gt_trlog-owner.
    COLLECT lt_owner.
  ENDLOOP.


  LOOP AT lt_owner.
    MESSAGE s000(oo) WITH '账号:' lt_owner.
    CLEAR: lt_trlog[],lt_body[].
    LOOP AT gt_trlog WHERE owner = lt_owner.
      MOVE-CORRESPONDING gt_trlog TO lt_trlog.
      IF lt_trlog-retcode < 4.
        lt_trlog-result = '成功'.
      ELSEIF lt_trlog-retcode < 8.
        lt_trlog-result = '警告'.
      ELSE.
        lt_trlog-result = '错误'.
      ENDIF.
      APPEND lt_trlog. CLEAR lt_trlog.
    ENDLOOP.


    SELECT SINGLE * INTO ls_cts02 FROM zcts02
      WHERE owner = lt_owner.
    CHECK sy-subrc = 0.


    IF ls_cts02-onlye = 'X'.
      READ TABLE lt_trlog WITH KEY retcode = '0008'.
      CHECK sy-subrc = 0.
    ENDIF.


    PERFORM itab_to_mail_body
            TABLES lt_trlog lt_body
            USING '请求传输结果列表:'
                  '请求,描述,目标CLIENT,结果'
                  'TRKORR,AS4TEXT,TARCLIENT,RESULT' 999.
    CONCATENATE sy-sysid sy-mandt '请求传输结果' INTO lv_subje
                                              SEPARATED BY space.
    PERFORM sendmail TABLES lt_body
                     USING gv_sendm ls_cts02-email lv_subje.
  ENDLOOP.
ENDFORM.                    "prepare_mail


*&---------------------------------------------------------------------*
*& 内表写到邮件表格(指定列方式)
*&---------------------------------------------------------------------*
FORM itab_to_mail_body TABLES t_intab t_body STRUCTURE solisti1
                       USING pv_text pv_coldesc pv_field pv_toline.
  DATA: lt_conts TYPE TABLE OF solisti1 WITH HEADER LINE,
        lt_title TYPE TABLE OF char40 WITH HEADER LINE,
        lt_field TYPE TABLE OF char40 WITH HEADER LINE.
  DATA: subrc   TYPE sy-subrc,
        charc   TYPE char2048,
        charstr TYPE string,
        str     TYPE string,
        lines   TYPE num6,
        omitnum TYPE i,
        ftype.
  FIELD-SYMBOLS <fs_fld>.


  CHECK t_intab[] IS NOT INITIAL.
  CHECK pv_field  IS NOT INITIAL.


  SPLIT pv_coldesc AT ',' INTO TABLE lt_title.
  SPLIT pv_field   AT ',' INTO TABLE lt_field.


  str = lines( t_intab ).
  CONDENSE str.
  CONCATENATE '[' str '条]' pv_text INTO str.
  CALL FUNCTION 'SCMS_STRING_TO_FTEXT'
    EXPORTING
      text      = str
    TABLES
      ftext_tab = lt_conts.


  APPEND:
    `<style type="text/css">.solid{BORDER-TOP: 1px solid;` TO lt_conts,
    `BORDER-RIGHT:1px solid;BORDER-BOTTOM: 1px solid;    ` TO lt_conts,
    `BORDER-LEFT: 1px solid}</style><table border=1      ` TO lt_conts,
    `cellpadding=2 style='border-collapse:collapse;font- ` TO lt_conts,
    `size:10.5pt'><tbody><tr style="background:#DDD9C4;">` TO lt_conts.
  IF pv_toline > 0.
    LOOP AT lt_title.
      CONCATENATE '<td class="solid">' lt_title '</td>' INTO lt_conts-line.
      APPEND lt_conts.
    ENDLOOP.
    APPEND `</tr>` TO lt_conts.
  ENDIF.
  LOOP AT t_intab FROM 0 TO pv_toline.
    APPEND '<tr>' TO lt_conts.
    CLEAR omitnum.
    LOOP AT lt_field.
      ASSIGN COMPONENT lt_field OF STRUCTURE t_intab TO <fs_fld>.
      CHECK sy-subrc = 0.


      omitnum = omitnum + 1.
      DESCRIBE FIELD <fs_fld> TYPE ftype.
      CASE ftype.
        WHEN 'I' OR 'P' OR 'F' OR 'a' OR 'e' OR 'b' OR 's'.
          charc = abs( <fs_fld> ).
          CONDENSE charc NO-GAPS.
          IF <fs_fld> < 0.
            CONCATENATE '-' charc INTO charc.
          ENDIF.
          charstr = charc.
        WHEN 'D' OR 'T'.
          IF <fs_fld> IS INITIAL OR <fs_fld> = ''.
            charc = ''.
          ELSE.
            WRITE <fs_fld> TO charc.
          ENDIF.
          charstr = charc.
        WHEN 'X' OR 'y' OR 'g'.
          charstr = <fs_fld>.
        WHEN OTHERS.
          WRITE <fs_fld> TO charc.
          charstr = charc.
      ENDCASE.
      CONCATENATE '<td class="solid">' charstr '</td>' INTO lt_conts-line.
      APPEND lt_conts.
    ENDLOOP.
    APPEND `</tr>` TO lt_conts.
  ENDLOOP.
  IF lines( t_intab ) > pv_toline.
    APPEND '<tr>' TO lt_conts.
    DO omitnum TIMES.
      lt_conts-line = '<td class="solid">...</td>'.
      APPEND lt_conts.
    ENDDO.
    APPEND '</tr>' TO lt_conts.
  ENDIF.
  APPEND '</tbody></table> <br/> ' TO lt_conts.


  APPEND LINES OF lt_conts TO t_body.
ENDFORM. "itab_to_mail_body


*&---------------------------------------------------------------------*
*&      Form  sendmail
*&---------------------------------------------------------------------*
FORM sendmail TABLES mail_body USING pv_sender pv_smtp p_odes.
  DATA lr_email    TYPE REF TO cl_bcs.
  DATA lr_body     TYPE REF TO cl_document_bcs.
  DATA lr_receiver TYPE REF TO cl_cam_address_bcs.
  DATA lr_sender   TYPE REF TO if_sender_bcs.
  DATA l_result    TYPE os_boolean.


  TRY .
      lr_email = cl_bcs=>create_persistent( ).


      lr_body = cl_document_bcs=>create_document(
                                       i_type = 'HTM'
                                       i_text = mail_body[]
                                       i_subject = p_odes ).
      lr_email->set_document( lr_body ).


      lr_receiver = cl_cam_address_bcs=>create_internet_address( pv_smtp ).
      lr_email->add_recipient( i_recipient = lr_receiver ).


      IF pv_sender IS INITIAL.
        lr_sender = cl_sapuser_bcs=>create( sy-uname ).
      ELSE.
        CALL METHOD cl_cam_address_bcs=>create_internet_address
          EXPORTING
            i_address_string = pv_sender
            i_address_name   = 'DDIC'
          RECEIVING
            result           = lr_sender.
      ENDIF.


      lr_email->set_sender( lr_sender ).
      lr_email->set_send_immediately( 'X' ).
      lr_email->set_status_attributes( i_requested_status = 'E'  "去掉邮件回执
                                       i_status_mail      = 'E' ).
      l_result = lr_email->send( i_with_error_screen = '' ).
    CATCH cx_root.
  ENDTRY.


  IF l_result = 'X'.
    MESSAGE s000(oo) WITH '邮件已发送'.
    sy-subrc = 0.
    COMMIT WORK.
  ELSE.
    sy-subrc = 4.
    MESSAGE s000(oo) WITH '发送邮件失败'.
  ENDIF.
ENDFORM.                    "sendmail

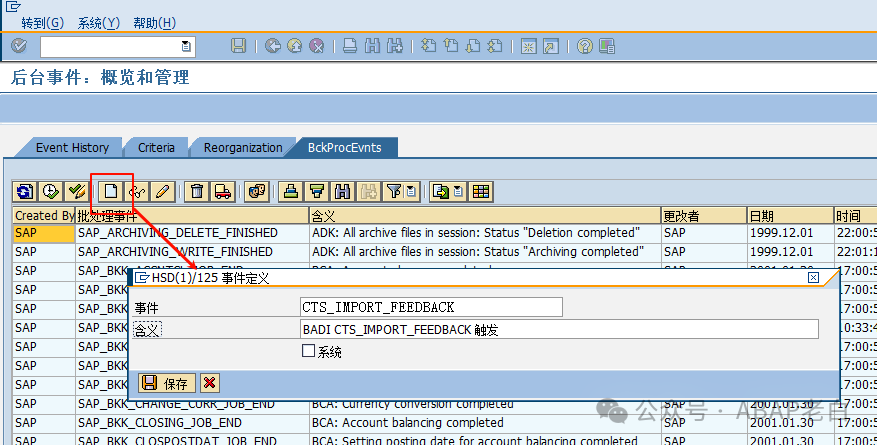

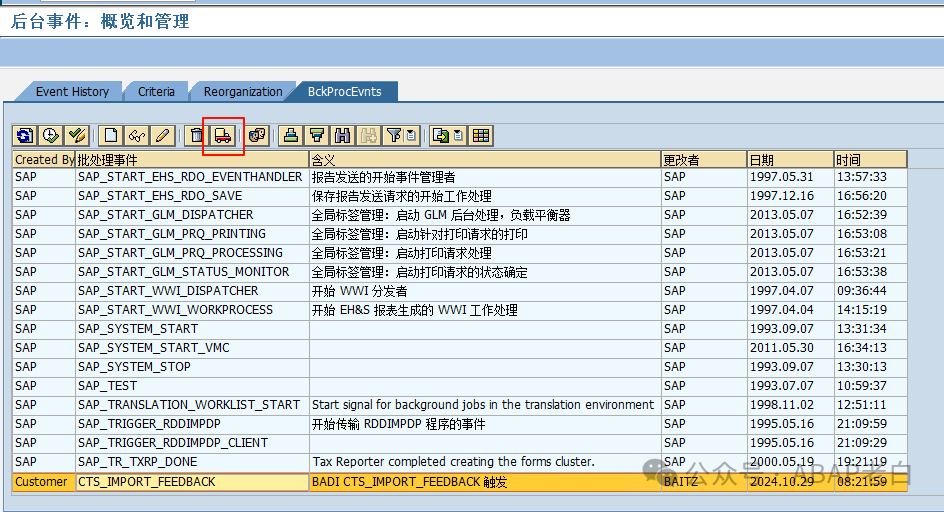

4、使用事务代码SM62定义SAP Event：CTS_IMPORT_FEEDBACK，并写入传输请求中。

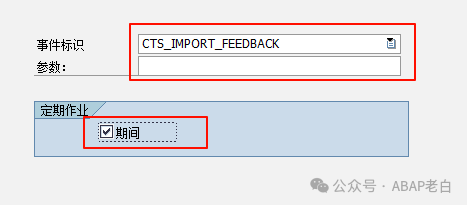

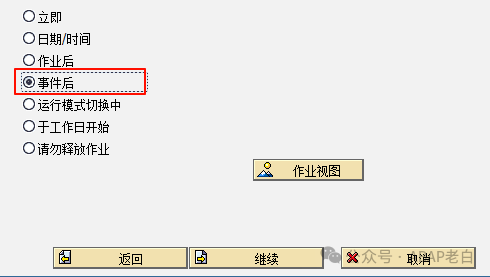

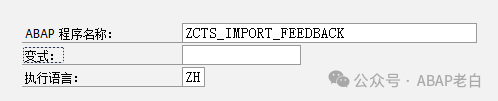

好了，现在可以把请求传到PRD了，最后，请BASIS兄弟帮助在生产机创建一个后台JOB，下面几个需要注意的点：

小甲：这就行了？我先在QAS系统配置好试试哈

一刻钟以后。。。

小甲：收到邮件了！好爽啊！哈哈哈哈，不过老师我还有个想法。。。

老白：还有想法？差不多得了哈

小甲：我不信老师对我这个点子没兴趣

老白：要不说好奇害死猫呢，又被你拿捏了，你说说吧

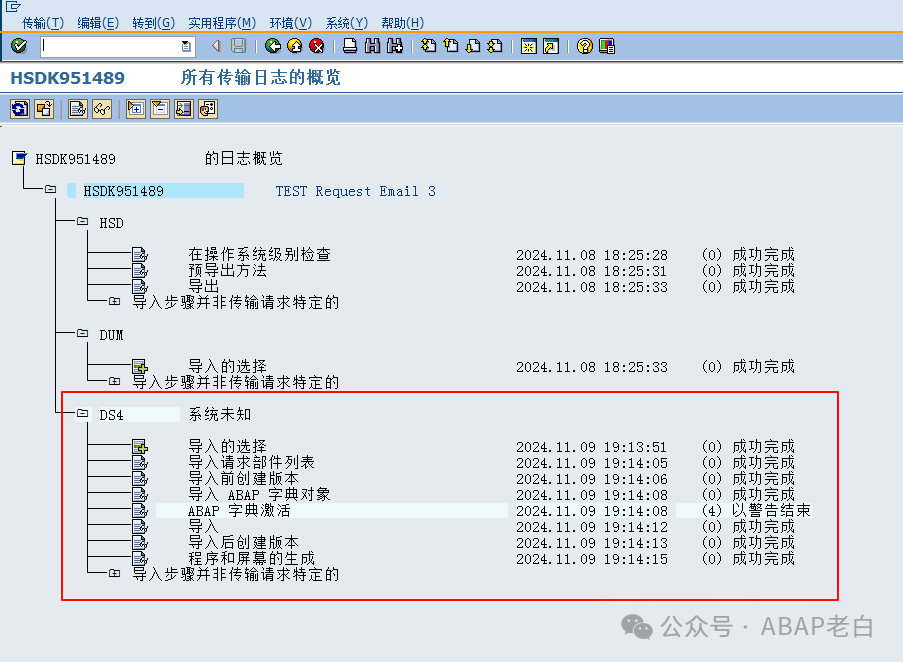

小甲：我虽然知道请求已经传输了，也知道了传输的结果，但是我还是在DEV的请求日志里面看不到PRD的传输结果，我心里别扭！有没有啥办法让我在DEV看到PRD的传输日志呢？就像是DEV传QAS那样，如果有错误我双击还能看到具体的错误是啥，总之我需要在DEV看到完整的日志！

老白：这个好办，把PRD的日志拿到DEV不就好了嘛

小甲：我连日志在哪儿放着都不知道怎么拿。。。老师你再出手一次吧，嘿嘿嘿嘿

老白：我不是给你说过嘛，请求有两个文件，一个控制文件和一个数据文件，其中那个K开头的控制文件就记录着传输的信息，传输一次这个文件就多一些内容，只要把这个文件再拿回来覆盖掉DEV原有的文件，就可以看到完整的传输记录了。另外，双击所看到的详细日志，也是存在DIR_TRANS的log目录下面，只要是把这些文件拿过来放到DEV就可以看到完整的传输日志了

小甲：通过RFC可以把文件拿回来覆盖现有的，可是不能互通的系统咋办呢？难道让BASIS给下载下来？那他们估计不同意啊

老白：我想想啊。。。ding！我有一个好主意，既然是邮件都发了，何不把这几个文件作为附件发过来呢？然后收到邮件把这些附件导入到系统不就行了？

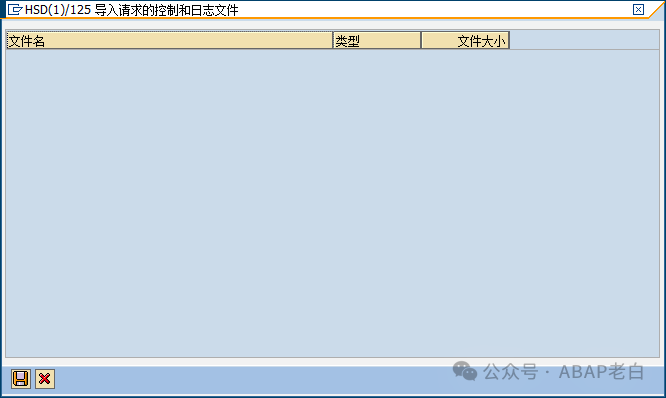

小甲：牛X！老师牛X！我也茅厕。。不是，茅塞顿开了呢！老师你改造一下发邮件的程序，我写一个牛X的上传程序，动动手指就能上传，保证你看了给我大拇指！

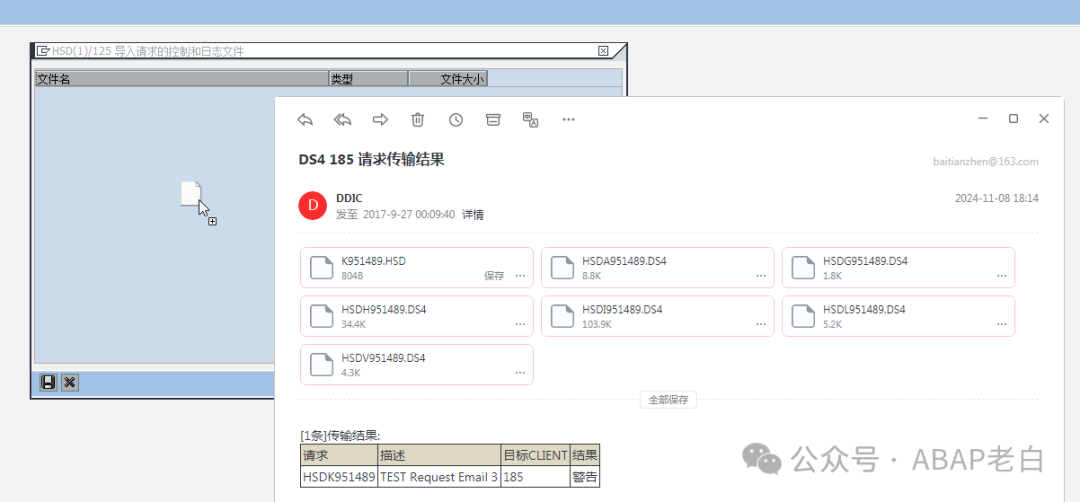

老白：嚯，牛逼起来啊。。。好了，邮件发送程序改好了，发送邮件的时候会把控制文件和日志文件一起当做附件发出来

*&---------------------------------------------------------------------*
*& Report  ZCTS_IMPORT_FEEDBACK
*&
*&---------------------------------------------------------------------*
*& 请求传输完毕给请求所有者发送邮件程序
*& BADI CTS_IMPORT_FEEDBACK在请求传输结束触发
*& 因为BADI是在000 Client运行，账号为DDIC，
*& 如果账号DDIC不能直接发送邮件，或者没有配置000 Client的SCOT
*& 则可以使用BP_EVENT_RAISE触发此程序
*& 1、维护表ZCTS02
*& 2、在打算发邮件的Client SM62创建Event
*& 3、定义JOB CTS_IMPORT_FEEDBACK
*& 4、如果是用SUBMIT的方式，在000 Client维护SCOT
*& 5、如果需要发送日志附件，把常量gv_atta的值改为'X'，否则设置为''
*&---------------------------------------------------------------------*
REPORT zcts_import_feedback NO STANDARD PAGE HEADING.


CONSTANTS gv_atta VALUE 'X'. "是否需要发送附件
DATA gv_eparm TYPE tbtcm-eventparm.
DATA gv_sendm TYPE ad_smtpadr. "发送邮箱
DATA: BEGIN OF gt_trlog OCCURS 0,
        trkorr    TYPE zcts01-trkorr   ,
        as4text   TYPE e07t-as4text    ,
        tarclient TYPE zcts01-tarclient,
        owner     TYPE zcts01-owner    ,
        retcode   TYPE zcts01-retcode  ,
        result    TYPE char10,
      END OF gt_trlog.
DATA: BEGIN OF gt_atta OCCURS 0,
        type TYPE so_obj_tp ,
        size TYPE so_obj_len,
        desc TYPE so_obj_des,
        cont TYPE solix_tab ,
      END OF gt_atta.


PARAMETERS p_eparm TYPE guid_22 NO-DISPLAY.


INITIALIZATION.
  CONCATENATE sy-sysid sy-mandt '@hisense.com' INTO gv_sendm.


START-OF-SELECTION.
  PERFORM getdata.
  PERFORM prepare_mail.


*&---------------------------------------------------------------------*
*&      Form  getdata
*&---------------------------------------------------------------------*
FORM getdata.
  IF p_eparm IS INITIAL.
    CALL FUNCTION 'GET_JOB_RUNTIME_INFO'
      IMPORTING
        eventparm       = gv_eparm
      EXCEPTIONS
        no_runtime_info = 1.
  ELSE.
    gv_eparm = p_eparm.
  ENDIF.
  IF gv_eparm IS INITIAL.
    MESSAGE s000(oo) WITH '未获取EVENTPARM'.
    LEAVE PROGRAM.
  ENDIF.


  SELECT zcts01~trkorr
         e07t~as4text
         zcts01~tarclient
         e070~as4user AS owner "zcts01~owner中文乱码
         zcts01~retcode
    INTO CORRESPONDING FIELDS OF TABLE gt_trlog
    FROM zcts01 INNER JOIN e070 ON e070~trkorr = zcts01~trkorr
                LEFT  JOIN e07t ON e07t~trkorr = zcts01~trkorr AND
                                   e07t~langu  = sy-langu
    WHERE zcts01~trguid = gv_eparm.
  IF gt_trlog[] IS INITIAL.
    MESSAGE s000(oo) WITH '未获取ZCTS01表数据'.
    LEAVE PROGRAM.
  ENDIF.
ENDFORM.                    "getdata


*&---------------------------------------------------------------------*
*&      Form  prepare_mail
*&---------------------------------------------------------------------*
FORM prepare_mail.
  DATA lt_trlog LIKE TABLE OF gt_trlog WITH HEADER LINE.
  DATA lt_owner TYPE TABLE OF tr_as4user WITH HEADER LINE.
  DATA lt_body  TYPE TABLE OF solisti1 WITH HEADER LINE.
  DATA ls_cts02 TYPE zcts02.
  DATA lv_smtp  TYPE ad_smtpadr.
  DATA lv_subje TYPE so_obj_des.
  DATA lv_trans TYPE text255.


  CALL FUNCTION 'RSPO_R_SAPGPARAM'
    EXPORTING
      name   = 'DIR_TRANS'
    IMPORTING
      value  = lv_trans
    EXCEPTIONS
      error  = 1
      OTHERS = 0.


  LOOP AT gt_trlog.
    lt_owner = gt_trlog-owner.
    COLLECT lt_owner.
  ENDLOOP.


  LOOP AT lt_owner.
    MESSAGE s000(oo) WITH '账号:' lt_owner.
    CLEAR: lt_trlog[],lt_body[],gt_atta,gt_atta[].
    LOOP AT gt_trlog WHERE owner = lt_owner.
      MOVE-CORRESPONDING gt_trlog TO lt_trlog.
      IF lt_trlog-retcode < 4.
        lt_trlog-result = '成功'.
      ELSEIF lt_trlog-retcode < 8.
        lt_trlog-result = '警告'.
      ELSE.
        lt_trlog-result = '错误'.
      ENDIF.
      APPEND lt_trlog. CLEAR lt_trlog.


      IF gv_atta = 'X'.
        PERFORM get_request_cofile USING lv_trans gt_trlog-trkorr 'C'.
        PERFORM get_request_cofile USING lv_trans gt_trlog-trkorr 'L'.
      ENDIF.
    ENDLOOP.


    SELECT SINGLE * INTO ls_cts02 FROM zcts02
      WHERE owner = lt_owner.
    CHECK sy-subrc = 0.


    IF ls_cts02-onlye = 'X'.
      READ TABLE lt_trlog WITH KEY retcode = '0008'.
      CHECK sy-subrc = 0.
    ENDIF.


    PERFORM mail_body TABLES lt_trlog lt_body
                             USING '传输结果:'
                                   '请求,描述,目标CLIENT,结果'
                                   'TRKORR,AS4TEXT,TARCLIENT,RESULT' 999.
    CONCATENATE sy-sysid sy-mandt '请求传输结果'
                INTO lv_subje SEPARATED BY space.
    PERFORM sendmail TABLES lt_body
                     USING gv_sendm ls_cts02-email lv_subje.
  ENDLOOP.
ENDFORM.                    "prepare_mail


*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
FORM get_request_cofile USING pv_trans pv_trkorr pv_file.
  DATA lv_afile LIKE rcgfiletr-ftappl.
  DATA lv_xstr  TYPE xstring.
  DATA lv_blen  TYPE i.
  DATA lv_index TYPE i.


  CHECK pv_trans IS NOT INITIAL AND pv_trkorr IS NOT INITIAL.


  CASE pv_file.
    WHEN 'C'.
      CONCATENATE 'K' pv_trkorr+4(6) '.' pv_trkorr(3) INTO gt_atta-desc.
      CONCATENATE pv_trans '/cofiles/' gt_atta-desc INTO lv_afile.


      OPEN DATASET lv_afile FOR INPUT IN BINARY MODE.
      IF sy-subrc = 0.
        READ DATASET lv_afile INTO lv_xstr.
        CLOSE DATASET lv_afile.


        CALL FUNCTION 'SCMS_XSTRING_TO_BINARY'
          EXPORTING
            buffer        = lv_xstr
          IMPORTING
            output_length = lv_blen
          TABLES
            binary_tab    = gt_atta-cont.
        gt_atta-size = lv_blen.
        gt_atta-type = 'BIN'.
        APPEND gt_atta.
      ENDIF.
    WHEN 'L'.
      DO 26 TIMES.
        lv_index = sy-index - 1.
        CONCATENATE pv_trkorr(3) sy-abcde+lv_index(1) pv_trkorr+4(6) '.'
                    sy-sysid INTO gt_atta-desc.
        CONCATENATE pv_trans '/log/' gt_atta-desc INTO lv_afile.
        OPEN DATASET lv_afile FOR INPUT IN BINARY MODE.
        IF sy-subrc = 0.
          READ DATASET lv_afile INTO lv_xstr.
          CLOSE DATASET lv_afile.


          CALL FUNCTION 'SCMS_XSTRING_TO_BINARY'
            EXPORTING
              buffer        = lv_xstr
            IMPORTING
              output_length = lv_blen
            TABLES
              binary_tab    = gt_atta-cont.
          gt_atta-size = lv_blen.
          gt_atta-type = 'BIN'.
          APPEND gt_atta.
        ENDIF.
      ENDDO.
  ENDCASE.
ENDFORM.                    "get_REQUEST_COFILE


*&---------------------------------------------------------------------*
*& 内表写到邮件表格(指定列方式)
*&---------------------------------------------------------------------*
FORM mail_body TABLES t_intab t_body STRUCTURE solisti1
               USING pv_text pv_coldesc pv_field pv_toline.
  DATA: lt_conts TYPE TABLE OF solisti1 WITH HEADER LINE,
        lt_title TYPE TABLE OF char40 WITH HEADER LINE,
        lt_field TYPE TABLE OF char40 WITH HEADER LINE.
  DATA: subrc   TYPE sy-subrc,
        charc   TYPE char2048,
        charstr TYPE string,
        str     TYPE string,
        lines   TYPE num6,
        omitnum TYPE i,
        ftype.
  FIELD-SYMBOLS <fs_fld>.


  CHECK t_intab[] IS NOT INITIAL.
  CHECK pv_field  IS NOT INITIAL.


  SPLIT pv_coldesc AT ',' INTO TABLE lt_title.
  SPLIT pv_field   AT ',' INTO TABLE lt_field.


  str = lines( t_intab ).
  CONDENSE str.
  CONCATENATE '[' str '条]' pv_text INTO str.
  CALL FUNCTION 'SCMS_STRING_TO_FTEXT'
    EXPORTING
      text      = str
    TABLES
      ftext_tab = lt_conts.


  APPEND: `<style type="text/css">.solid{BORDER-TOP: 1px ` TO lt_conts,
          `solid;BORDER-RIGHT:1px solid;BORDER-BOTTOM:   ` TO lt_conts,
          `1px solid;BORDER-LEFT: 1px solid}</style>     ` TO lt_conts,
          `<table border=1 cellpadding=2                 ` TO lt_conts,
          `style='border-collapse:collapse;              ` TO lt_conts,
          `font-size:10.5pt'><tbody>                     ` TO lt_conts,
          `<tr style="background:#DDD9C4;">              ` TO lt_conts.
  IF pv_toline > 0.
    LOOP AT lt_title.
      CONCATENATE '<td class="solid">' lt_title '</td>' INTO lt_conts-line.
      APPEND lt_conts.
    ENDLOOP.
    APPEND `</tr>` TO lt_conts.
  ENDIF.
  LOOP AT t_intab FROM 0 TO pv_toline.
    APPEND '<tr>' TO lt_conts.
    CLEAR omitnum.
    LOOP AT lt_field.
      ASSIGN COMPONENT lt_field OF STRUCTURE t_intab TO <fs_fld>.
      CHECK sy-subrc = 0.


      omitnum = omitnum + 1.
      DESCRIBE FIELD <fs_fld> TYPE ftype.
      CASE ftype.
        WHEN 'I' OR 'P' OR 'F' OR 'a' OR 'e' OR 'b' OR 's'.
          charc = abs( <fs_fld> ).
          CONDENSE charc NO-GAPS.
          IF <fs_fld> < 0.
            CONCATENATE '-' charc INTO charc.
          ENDIF.
          charstr = charc.
        WHEN 'D' OR 'T'.
          IF <fs_fld> IS INITIAL OR <fs_fld> = ''.
            charc = ''.
          ELSE.
            WRITE <fs_fld> TO charc.
          ENDIF.
          charstr = charc.
        WHEN 'X' OR 'y' OR 'g'.
          charstr = <fs_fld>.
        WHEN OTHERS.
          WRITE <fs_fld> TO charc.
          charstr = charc.
      ENDCASE.
      CONCATENATE '<td class="solid">' charstr '</td>' INTO lt_conts-line.
      APPEND lt_conts.
    ENDLOOP.
    APPEND `</tr>` TO lt_conts.
  ENDLOOP.
  IF lines( t_intab ) > pv_toline.
    APPEND '<tr>' TO lt_conts.
    DO omitnum TIMES.
      lt_conts-line = '<td class="solid">...</td>'.
      APPEND lt_conts.
    ENDDO.
    APPEND '</tr>' TO lt_conts.
  ENDIF.
  APPEND '</tbody></table> <br/> ' TO lt_conts.


  APPEND LINES OF lt_conts TO t_body.
ENDFORM. "itab_to_mail_body


*&---------------------------------------------------------------------*
*&      Form  sendmail
*&---------------------------------------------------------------------*
FORM sendmail TABLES mail_body USING pv_sender pv_smtp p_odes.
  DATA lr_email    TYPE REF TO cl_bcs.
  DATA lr_body     TYPE REF TO cl_document_bcs.
  DATA lr_receiver TYPE REF TO cl_cam_address_bcs.
  DATA lr_sender   TYPE REF TO if_sender_bcs.
  DATA l_result    TYPE os_boolean.


  TRY .
      lr_email = cl_bcs=>create_persistent( ).


      lr_body = cl_document_bcs=>create_document(
                                       i_type = 'HTM'
                                       i_text = mail_body[]
                                       i_subject = p_odes ).
      lr_email->set_document( lr_body ).


      LOOP AT gt_atta.
        lr_body->add_attachment( i_attachment_type    = gt_atta-type
                                 i_attachment_subject = gt_atta-desc
                                 i_attachment_size    = gt_atta-size
                                 i_att_content_hex    = gt_atta-cont ).
      ENDLOOP.


      lr_receiver = cl_cam_address_bcs=>create_internet_address( pv_smtp ).
      lr_email->add_recipient( i_recipient = lr_receiver ).


      IF pv_sender IS INITIAL.
        lr_sender = cl_sapuser_bcs=>create( sy-uname ).
      ELSE.
        lr_sender = cl_cam_address_bcs=>create_internet_address(
                                          i_address_string = pv_sender
                                          i_address_name   = 'DDIC' ).
      ENDIF.


      lr_email->set_sender( lr_sender ).
      lr_email->set_send_immediately( 'X' ).
      lr_email->set_status_attributes( i_requested_status = 'E'  "去掉邮件回执
                                       i_status_mail      = 'E' ).
      l_result = lr_email->send( i_with_error_screen = '' ).
    CATCH cx_root.
  ENDTRY.
  IF l_result = 'X'.
    MESSAGE s000(oo) WITH '邮件已发送'.
    sy-subrc = 0.
    COMMIT WORK.
  ELSE.
    sy-subrc = 4.
    MESSAGE s000(oo) WITH '发送邮件失败'.
  ENDIF.
ENDFORM.                    "sendmail

小甲：我的上传程序也好了！老师你LOOK LOOK

老白：就一个ALV？怎么没有上传按钮呢？

小甲：不需要上传按钮！只要是把文件拖进来就可以了，甚至可以直接把邮件附件拖进来呢，然后点保存就行了，老师我们测试一下试试，把邮件的附件全选然后拖到ALV里面，然后点保存按钮就妥了

老白：果然很快捷！给你一个大拇指！下面我们看下日志里面是不是已经有了新系统的传输信息哈

小甲：天哪！完美！走老师，我请你喝羊汤去！

老白：走！
