xposed代码分析

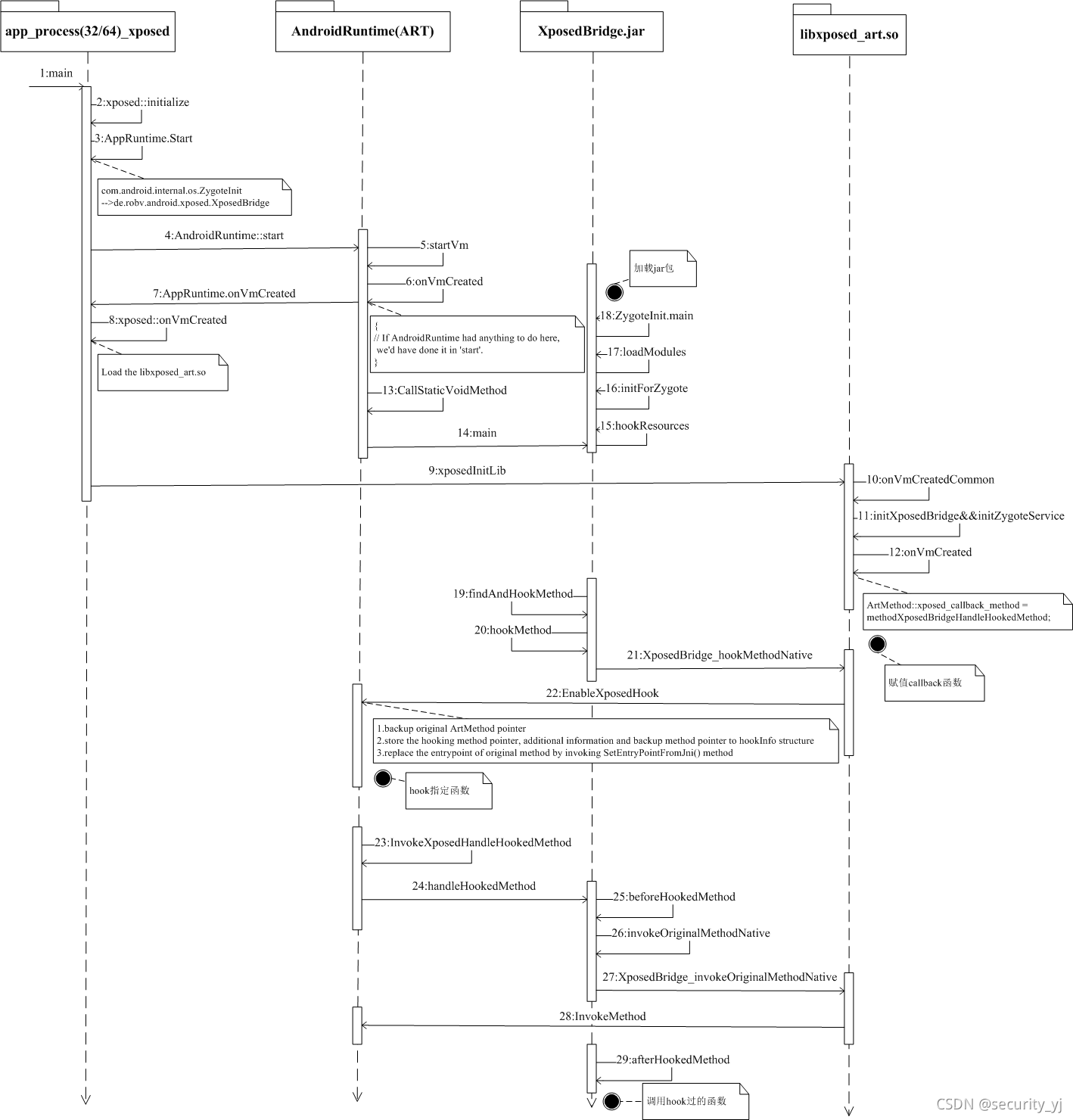

代码流程

主要流程有四个：

加载jar包

使用了xposed框架，那么runtimeStart的参数如下，

if (zygote) {

        isXposedLoaded = xposed::initialize(true, startSystemServer, NULL, argc, argv);

        runtimeStart(runtime, isXposedLoaded ? XPOSED_CLASS_DOTS_ZYGOTE : "com.android.internal.os.ZygoteInit", args, zygote);

原始的zygote中，runtimeStart的参数如下，

if (zygote) {

        runtime.start("com.android.internal.os.ZygoteInit", args, zygote);

XPOSED_CLASS_DOTS_ZYGOTE宏定义如下，

#define XPOSED_CLASS_DOTS_ZYGOTE "de.robv.android.xposed.XposedBridge"

runtimeStart打开虚拟机执行de.robv.android.xposed.XposedBridge中的main方法，

初始化相关模块后再调用ZygoteInit.main，执行com.android.internal.os.ZygoteInit中的main方法

赋值callback函数

bool onVmCreated(JNIEnv*) {

    // TODO: Handle CLASS_MIUI_RESOURCES?

    ArtMethod::xposed_callback_class = classXposedBridge;

    ArtMethod::xposed_callback_method = methodXposedBridgeHandleHookedMethod;

    return true;

}

methodXposedBridgeHandleHookedMethod = env->GetStaticMethodID(classXposedBridge, "handleHookedMethod",

        "(Ljava/lang/reflect/Member;ILjava/lang/Object;Ljava/lang/Object;[Ljava/lang/Object;)Ljava/lang/Object;");

所有被hook过的方法，回调函数都是handleHookedMethod

Hook指定函数

一般的hook指定函数的方法

               findAndHookMethod(ActivityThread.class, "systemMain", new XC_MethodHook() {

在ART中保存hook函数相关信息到XposedHookInfo结构体中

  // Save extra information in a separate structure, stored instead of the native method

  XposedHookInfo* hook_info = reinterpret_cast<XposedHookInfo*>(linear_alloc->Alloc(soa.Self(), sizeof(XposedHookInfo)));

  hook_info->reflected_method = soa.Vm()->AddGlobalRef(soa.Self(), reflected_method);

  hook_info->additional_info = soa.Env()->NewGlobalRef(additional_info);

         hook_info->original_method = backup_method;

SetEntryPointFromJniPtrSize(reinterpret_cast<uint8_t*>(hook_info), sizeof(void*));

设置标志位，表明此方法被hook了

  // Adjust access flags.

  const uint32_t kRemoveFlags = kAccNative | kAccSynchronized | kAccAbstract | kAccDefault | kAccDefaultConflict;

          SetAccessFlags((GetAccessFlags() & ~kRemoveFlags) | kAccXposedHookedMethod);

调用hook过的函数

当某个函数被调用时，会调用ART中的函数artQuickProxyInvokeHandler，

大致调用流程为art_method.Invoke()-->   art_quick_invoke_stub-->

EntryPointFromQuickCompiledCode(art_quick_proxy_invoke_handler) --> artQuickProxyInvokeHandler--->InvokeXposedHandleHookedMethod

在artQuickProxyInvokeHandler中如果此函数被hook过，

const bool is_xposed = proxy_method->IsXposedHookedMethod();

  if (is_xposed) {

    jmethodID proxy_methodid = soa.EncodeMethod(proxy_method);

    self->EndAssertNoThreadSuspension(old_cause);

    JValue result = InvokeXposedHandleHookedMethod(soa, shorty, rcvr_jobj, proxy_methodid, args);

    local_ref_visitor.FixupReferences();

    return result.GetJ();

  }

InvokeXposedHandleHookedMethod函数主要内容如下，

const XposedHookInfo* hook_info = soa.DecodeMethod(method)->GetXposedHookInfo();

  // Call XposedBridge.handleHookedMethod(Member method, int originalMethodId, Object additionalInfoObj,

  //                                      Object thisObject, Object[] args)

  jvalue invocation_args[5];

  invocation_args[0].l = hook_info->reflected_method;

  invocation_args[1].i = 1;

  invocation_args[2].l = hook_info->additional_info;

  invocation_args[3].l = rcvr_jobj;

  invocation_args[4].l = args_jobj;

  jobject result =

      soa.Env()->CallStaticObjectMethodA(ArtMethod::xposed_callback_class,

                                         ArtMethod::xposed_callback_method,

                                         invocation_args);

handleHookedMethod函数主要内容如下，

// call "before method" callbacks

            int beforeIdx = 0;

            do {

                     try {

                               ((XC_MethodHook) callbacksSnapshot[beforeIdx]).beforeHookedMethod(param);

                     } catch (Throwable t) {

                               XposedBridge.log(t);

                               // reset result (ignoring what the unexpectedly exiting callback did)

                               param.setResult(null);

                               param.returnEarly = false;

                               continue;

                     }

                     if (param.returnEarly) {

                               // skip remaining "before" callbacks and corresponding "after" callbacks

                              beforeIdx++;

                               break;

                     }

            } while (++beforeIdx < callbacksLength);

            // call original method if not requested otherwise

            if (!param.returnEarly) {

                     try {

                               param.setResult(invokeOriginalMethodNative(method, originalMethodId,

                                                 additionalInfo.parameterTypes, additionalInfo.returnType, param.thisObject, param.args));

                     } catch (InvocationTargetException e) {

                               param.setThrowable(e.getCause());

                     }

            }

            // call "after method" callbacks

            int afterIdx = beforeIdx - 1;

            do {

                     Object lastResult =  param.getResult();

                     Throwable lastThrowable = param.getThrowable();

                     try {

                               ((XC_MethodHook) callbacksSnapshot[afterIdx]).afterHookedMethod(param);

                     } catch (Throwable t) {

                               XposedBridge.log(t);

                               // reset to last result (ignoring what the unexpectedly exiting callback did)

                               if (lastThrowable == null)

                                        param.setResult(lastResult);

                               else

                                        param.setThrowable(lastThrowable);

                     }

           } while (--afterIdx >= 0);

hook示例代码

待hook的APP代码

public class MainActivity extends AppCompatActivity {

    private Button button;

    @Override

    public void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.layout_main);

        button = (Button) findViewById(R.id.testButton);

        button.setOnClickListener(new View.OnClickListener() {

            @Override

            public void onClick(View v) {

                Toast.makeText(MainActivity.this, toastMessage(), Toast.LENGTH_SHORT).show();

            }

        });

    }

    public String toastMessage() {

        return "我未被劫持";

    }

}

Hook方法

新建一个类，并实现IXposedHookLoadPackage接口，并实现接口中的handleLoadPackage方法

public class HookToast implements IXposedHookLoadPackage {

    @Override

    public void handleLoadPackage(XC_LoadPackage.LoadPackageParam loadPackageParam) throws Throwable {

        if (loadPackageParam.packageName.equals("com.mrglaucus.xposedmoduledemo")) {

            Class clazz = loadPackageParam.classLoader.loadClass("com.mrglaucus.xposedmoduledemo.MainActivity");

            XposedHelpers.findAndHookMethod(clazz, "toastMessage", new XC_MethodHook() {

                @Override

                protected void beforeHookedMethod(MethodHookParam param) throws Throwable {

                    super.beforeHookedMethod(param);

                }

                @Override

                protected void afterHookedMethod(MethodHookParam param) throws Throwable {

                    param.setResult("你已被劫持");

                }

            });

        }

    }

}
