本文详细介绍了如何使用Spring Boot和Spring Cloud搭建Eureka服务注册中心，包括在Linux环境下的部署、客户端接入及双节点集群配置。通过具体步骤和代码示例，展示了如何管理依赖、配置服务注册与发现，并实现服务间调用。

Eureka部署linux环境挂载运行

Eureka 客户端

Eureka 双节点集群

Eureka部署linux环境挂载运行

maven管理依赖的引入spring-boot-maven-plugin；
springcloud依赖的引入spring-cloud-dependencies；

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>eureka-server</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>eureka-server</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
        <spring-cloud.version>Hoxton.SR6</spring-cloud.version>
    </properties>
    <dependencies>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>

    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

然后是启动类的改动 SpringBootServletInitializer 支持外部启动

package com.ll.eureka;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@EnableEurekaServer
@SpringBootApplication
public class EurekaApplication {

    public static void main(String[] args) {
        SpringApplication.run( EurekaApplication.class, args );
    }

}

eureka.client.defaultZone: 这里目前一定要这么写，否则读取不到，http://ll-eureka:8080/eureka

server:
  port: 20000

######################################################################
#                          -- eureka --                              #
######################################################################

spring:
  application:
    name: eureka-server


eureka:
  server:
    enable-self-preservation: false
  client:
    # 注册中心不注册自己
    register-with-eureka: false
    # 不在注册中心拉去注册的服务列表
    fetch-registry: false

然后传到linux环境下，记得装匹配版本的jdk ，这里用的是1.8
然后运行linux 命令试运行项目， java -jar item.jar 如果看到了美丽的springboot启动成功画面，那么恭喜下自己
然后让项目后台运行，启用悬挂命令(item.jar=当前的jar全名) nohup java -jar item.jar &
如果这个时候看到的画面卡顿了，不用担心，关闭ssh链接，重新进入一下
ps -ef |grep eureka 查看下我们的进程

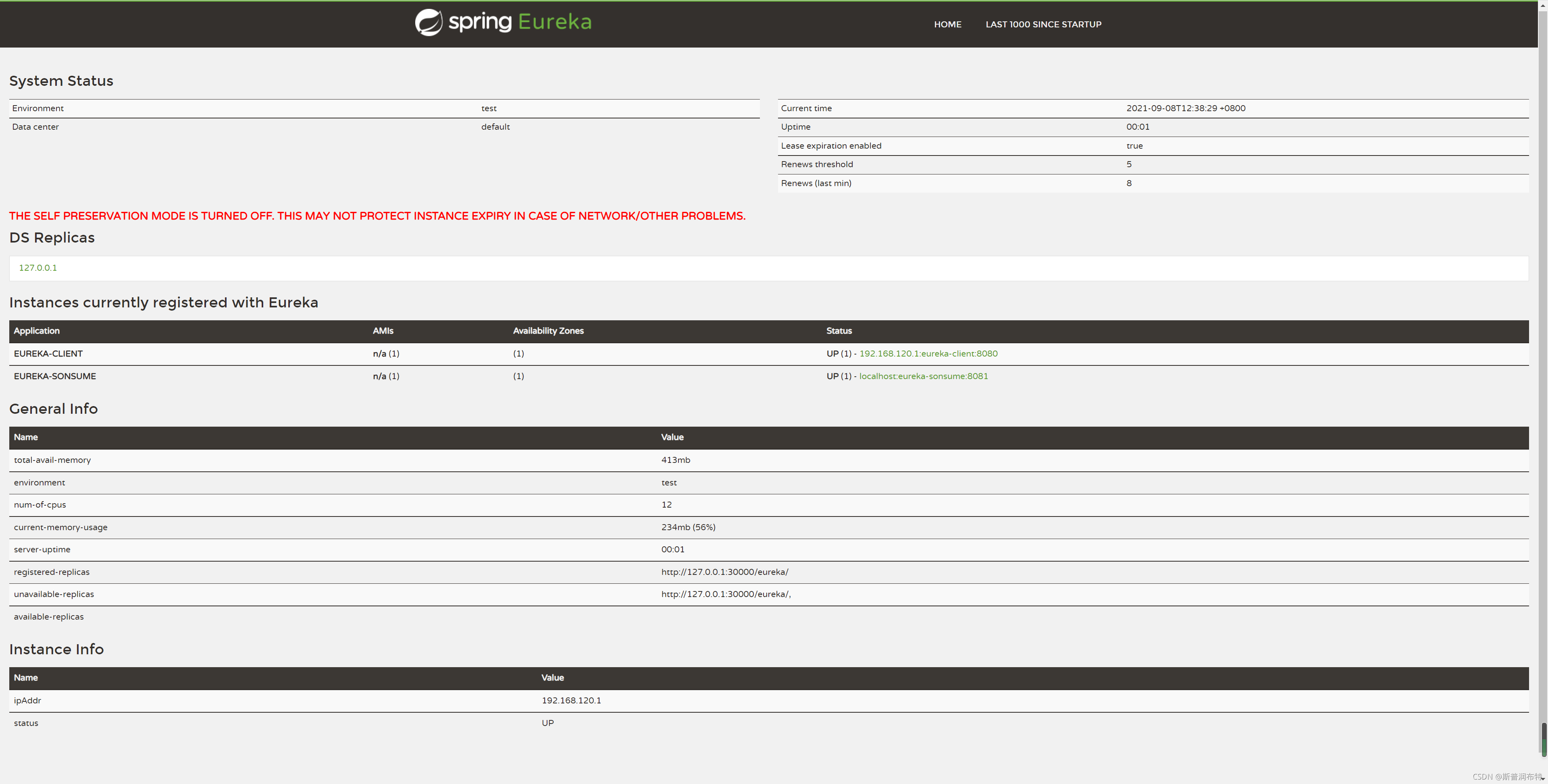

这个时候访问一下我们的Eureka
呀！出来了，心情大家懂得啊
如果没有实现这里有我做的好的jar 直接启动就可以了Eureka部署包_eureka包,eureka.jar-微服务代码类资源-优快云下载

Eureka 客户端

客户端maven依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>eureka-client</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>eureka-consume</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
        <spring-cloud.version>Hoxton.SR6</spring-cloud.version>
    </properties>
    <dependencies>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

启动类
- 启动类记得开启Eureka客户端 @EnableDiscoveryClient 和 @EnableEurekaClient 是一样的，官方建议使用 @EnableDiscoveryClient

package com.ll;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.boot.web.servlet.support.SpringBootServletInitializer;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;


@EnableEurekaClient
@SpringBootApplication
public class JobApplication extends SpringBootServletInitializer{

	public static void main(String[] args) {
		  SpringApplication.run( JobApplication.class, args);
	}

	@Override
	protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
		return application.sources( JobApplication.class );
	}
}

yaml配置
defaultZone：http://127.0.0.1:8080/eureka/ ，127.0.0.1eureka注册中心ip地址，20000eureka注册中心ip端口号
记得用spring.application.name:标明在eureka中心的名称，否则被标记为：unknown不好区分

server:
  port: 8081
spring:
  application:
    name: eureka-sonsume

eureka:
  client:
    enabled: true
    registry-fetch-interval-seconds: 10
    service-url:
      defaultZone:  http://127.0.0.1:20000/eureka/
  instance:
    prefer-ip-address: true
    lease-renewal-interval-in-seconds: 5                # 间隔5秒发送健康状态
    lease-expiration-duration-in-seconds: 15            # 15秒未接收到健康心跳，视为宕机

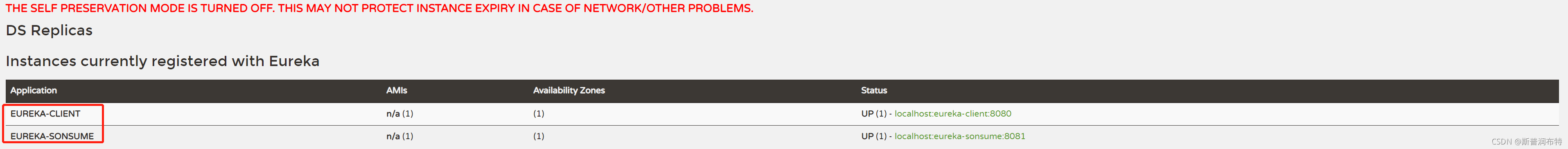

完成启动效果图

获取 Eureka 服务信息对象 LoadBalancerClient
- 由 Eureka 自动引入

接口之间原生调用使用 RestTemplate 对象即可
- 注入 RestTemplate 对象

    @Bean
    public RestTemplate restTemplate (){
        return new RestTemplate();
    }

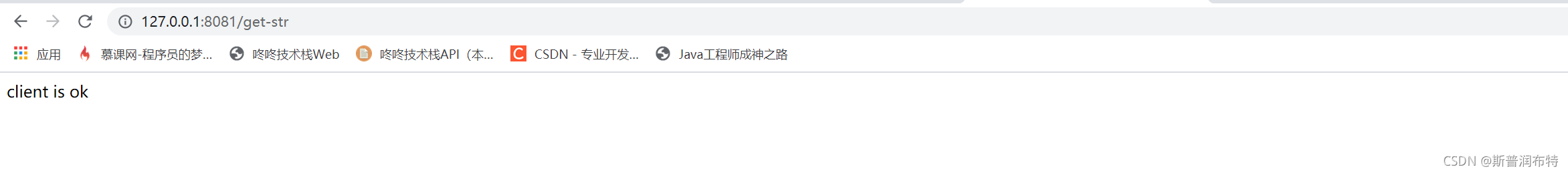

接口调用演示代码


import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.cloud.client.loadbalancer.LoadBalancerClient;
import org.springframework.util.LinkedMultiValueMap;
import org.springframework.util.MultiValueMap;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import java.util.Map;

@RestController
public class TestController {

    @Autowired
    private LoadBalancerClient loadBalancerClient;

    @Autowired
    private RestTemplate restTemplate;


    @GetMapping("get-str")
    public Object getStr (){

        //通过服务名，获取服务信息
        ServiceInstance choose = loadBalancerClient.choose("EUREKA-CLIENT");
        String host = choose.getHost();
        int port = choose.getPort();
        System.out.println(host+":"+port);
        String url = String.format("http://%s:%s/get-str",host,port);

        //接口调用
        String resuleStr = restTemplate.getForObject(url, String.class);
        return resuleStr;
    }

    @PostMapping("get-map")
    public Object getMap ( ){
        ServiceInstance choose = loadBalancerClient.choose("EUREKA-CLIENT");
        String host = choose.getHost();
        int port = choose.getPort();
        System.out.println(host+":"+port);
        String url = String.format("http://%s:%s/get-map",host,port);

        //创建MultiValueMap对象传参
        MultiValueMap<String, Object> requestEntity = new LinkedMultiValueMap<>();
        requestEntity.add("name", "Mr.chenyb");
        Map resuleMap = restTemplate.postForObject(url, requestEntity, Map.class);
        return resuleMap;
    }
}

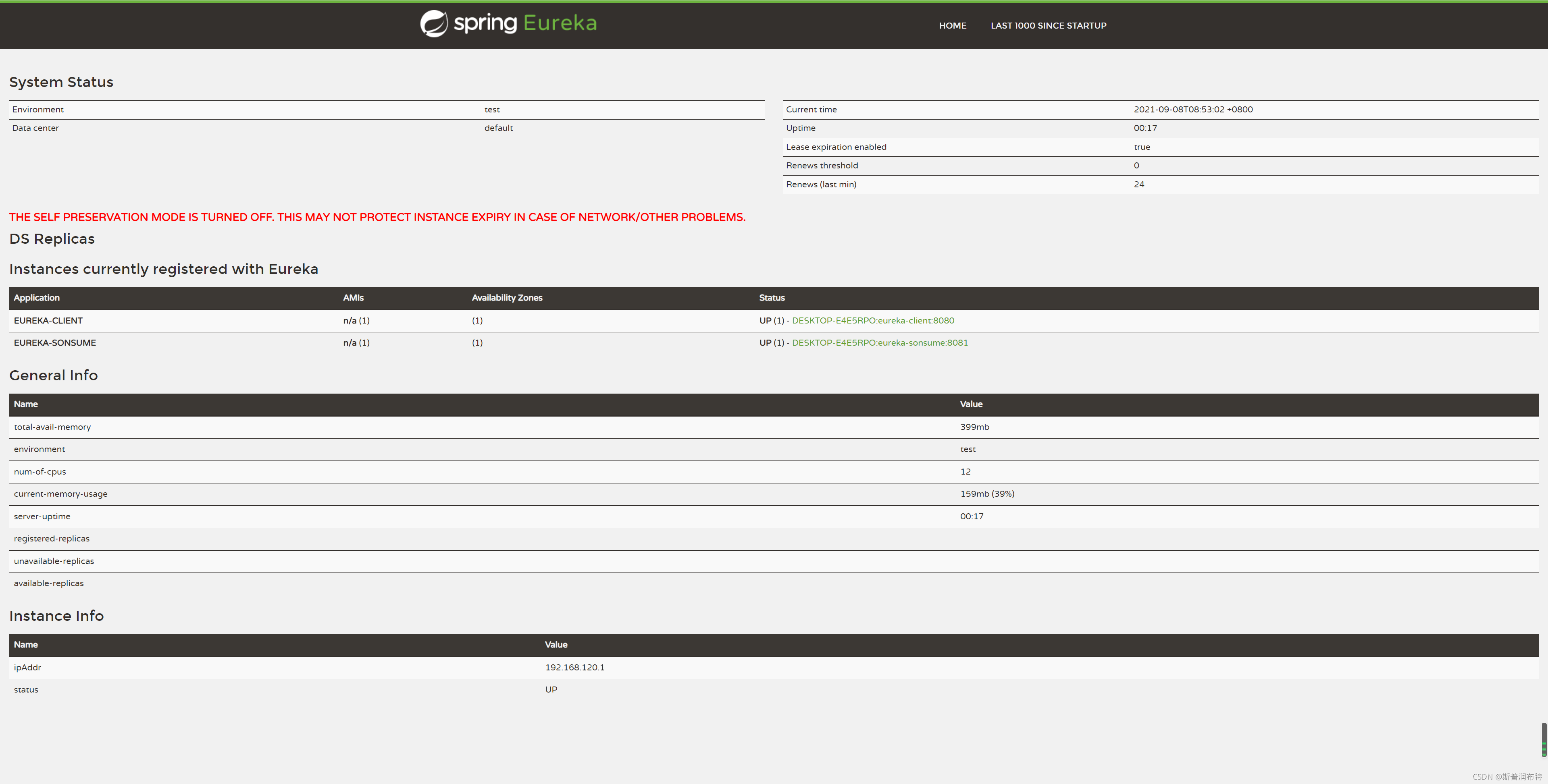

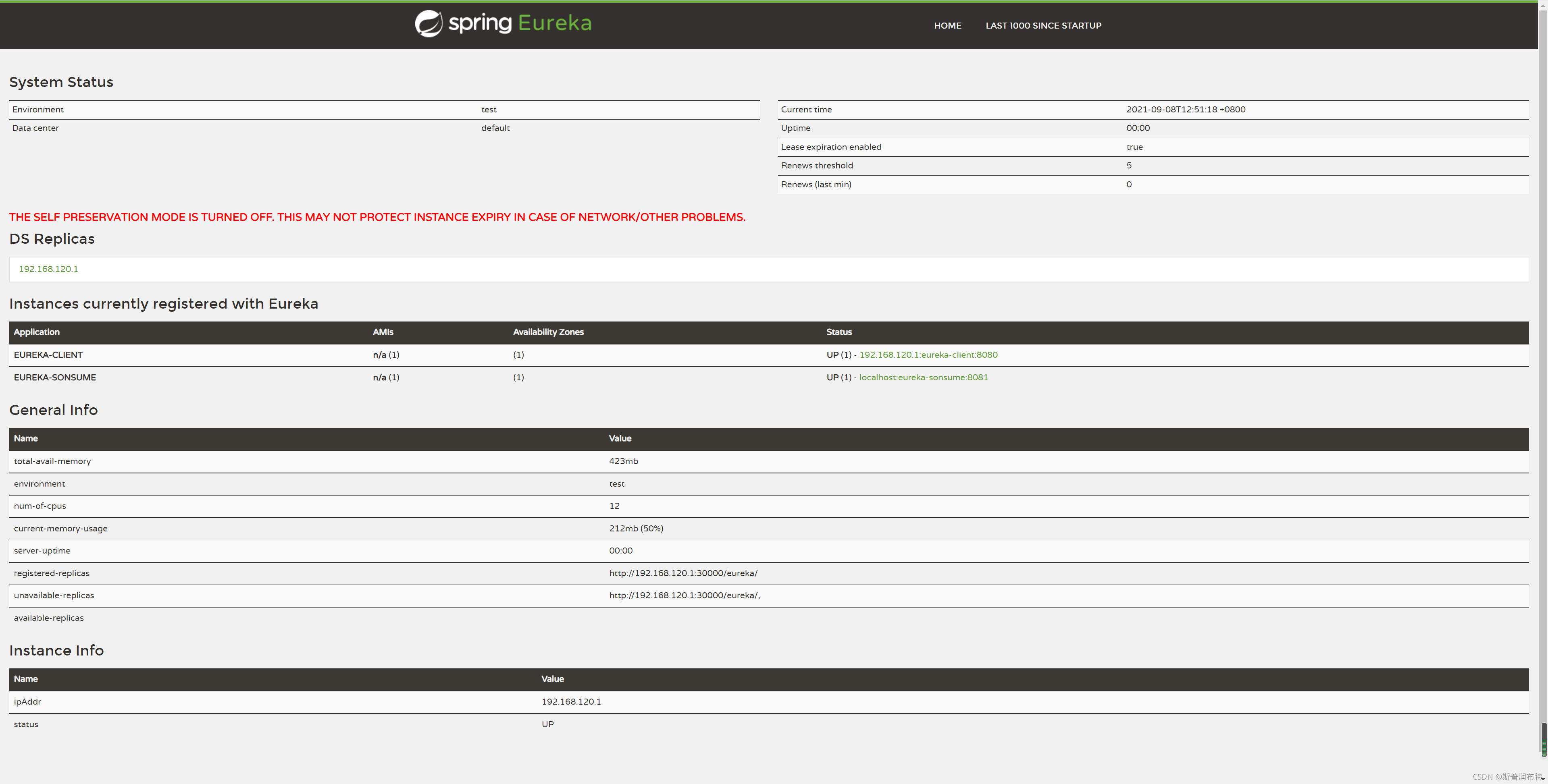

Eureka 双节点集群

Eureka 服务配置文件
- hostname：当前节点名称
- defaultZone：与其他节点通讯地址，数据同步

server:
  port: 20000

spring:
  application:
    name: eureka-server

eureka:
  server:
    enable-self-preservation: false      # 关闭服务自保
    eviction-interval-timer-in-ms: 10000 # 每10秒剔除服务
  client:
    register-with-eureka: false
    fetch-registry: false                 # 不允许注册自己
    service-url:
      defaultZone:  http://192.168.120.1:30000/eureka    # 与其他节点通讯地址
  instance:
    hostname: eureka1                     # 当前节点名称

server:
  port: 30000

spring:
  application:
    name: eureka-server2

eureka:
  server:
    enable-self-preservation: false      # 关闭服务自保
    eviction-interval-timer-in-ms: 10000 # 每10秒剔除服务
  client:
    register-with-eureka: false
    fetch-registry: false                 # 不允许注册自己
    service-url:
      defaultZone:  http://127.0.0.1:20000/eureka        # 与其他节点通讯地址
  instance:
    hostname: eureka2                     # 当前节点名称

Eureka 客户端配置文件
- defaultZone：注册中心地址，配置集群地址，用“，”分隔，会自动检测可用的服务

server:
  port: 8080
spring:
  application:
    name: eureka-client

eureka:
  client:
    enabled: true
    registry-fetch-interval-seconds: 10
    service-url:
      defaultZone:  http://127.0.0.1:20000/eureka/,http://192.168.120.1:30000/eureka/
  instance:
    prefer-ip-address: true
    lease-renewal-interval-in-seconds: 5
    lease-expiration-duration-in-seconds: 15

chenyb 随笔记录，只为方便自己学习

2018-11-05
