STM32F407ZGT6引脚定义

已于 2025-06-07 12:13:24 修改
阅读量371 收藏
点赞数 1
CC 4.0 BY-SA版权
文章标签： stm32 嵌入式硬件 单片机
于 2025-06-07 12:12:10 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/sakitea/article/details/148493574

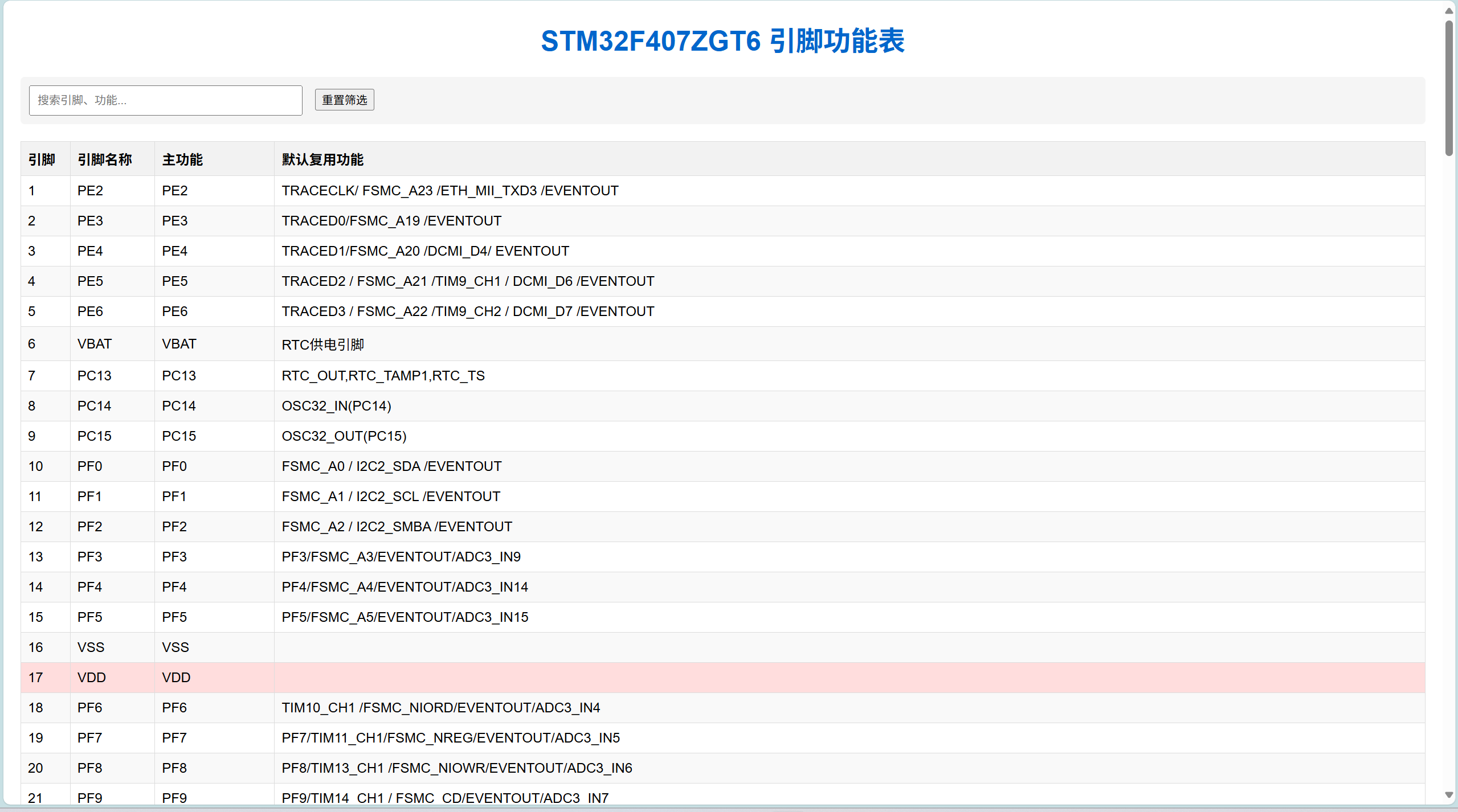

最近学F407，用AI做了个网页可以直接搜索引脚及功能，挺方便的，遂发出来共享之

直接复制下面代码，保存到文本文档，将后缀改为html即可在本地浏览器运行啦~

<!DOCTYPE html>
<html lang="zh-CN">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>STM32F407ZGT6 引脚功能表</title>
    <style>
        body {
            font-family: Arial, sans-serif;
            margin: 20px;
        }
        h1 {
            color: #0066cc;
            text-align: center;
        }
        table {
            width: 100%;
            border-collapse: collapse;
            margin-top: 20px;
        }
        th, td {
            border: 1px solid #ddd;
            padding: 8px;
            text-align: left;
        }
        th {
            background-color: #f2f2f2;
            position: sticky;
            top: 0;
        }
        tr:nth-child(even) {
            background-color: #f9f9f9;
        }
        tr:hover {
            background-color: #f1f1f1;
        }
        .power {
            background-color: #ffdddd;
        }
        .debug {
            background-color: #ddffdd;
        }
        .boot {
            background-color: #ddddff;
        }
        .filter-controls {
            margin-bottom: 15px;
            padding: 10px;
            background-color: #f5f5f5;
            border-radius: 5px;
        }
        .search-box {
            padding: 8px;
            width: 300px;
            margin-right: 10px;
        }
    </style>
</head>
<body>
    <h1>STM32F407ZGT6 引脚功能表</h1>

    <div class="filter-controls">
        <input type="text" id="searchInput" class="search-box" placeholder="搜索引脚、功能..." onkeyup="filterTable()">
        <button onclick="resetFilters()">重置筛选</button>
    </div>

    <table id="pinTable">
        <thead>
            <tr>
                <th>引脚</th>
                <th>引脚名称</th>
                <th>主功能</th>
                <th>默认复用功能</th>
            </tr>
        </thead>
        <tbody>
            <tr>
                <td>1</td>
                <td>PE2</td>
                <td>PE2</td>
                <td>TRACECLK/ FSMC_A23 /ETH_MII_TXD3 /EVENTOUT</td>
            </tr>
            <tr>
                <td>2</td>
                <td>PE3</td>
                <td>PE3</td>
                <td>TRACED0/FSMC_A19 /EVENTOUT</td>
            </tr>
            <tr>
                <td>3</td>
                <td>PE4</td>
                <td>PE4</td>
                <td>TRACED1/FSMC_A20 /DCMI_D4/ EVENTOUT</td>
            </tr>
            <tr>
                <td>4</td>
                <td>PE5</td>
                <td>PE5</td>
                <td>TRACED2 / FSMC_A21 /TIM9_CH1 / DCMI_D6 /EVENTOUT</td>
            </tr>
            <tr>
                <td>5</td>
                <td>PE6</td>
                <td>PE6</td>
                <td>TRACED3 / FSMC_A22 /TIM9_CH2 / DCMI_D7 /EVENTOUT</td>
            </tr>
            <tr class="power">
                <td>6</td>
                <td>VBAT</td>
                <td>VBAT</td>
                <td>RTC供电引脚</td>
            </tr>
            <tr>
                <td>7</td>
                <td>PC13</td>
                <td>PC13</td>
                <td>RTC_OUT,RTC_TAMP1,RTC_TS</td>
            </tr>
            <tr>
                <td>8</td>
                <td>PC14</td>
                <td>PC14</td>
                <td>OSC32_IN(PC14)</td>
            </tr>
            <tr>
                <td>9</td>
                <td>PC15</td>
                <td>PC15</td>
                <td>OSC32_OUT(PC15)</td>
            </tr>
            <tr>
                <td>10</td>
                <td>PF0</td>
                <td>PF0</td>
                <td>FSMC_A0 / I2C2_SDA /EVENTOUT</td>
            </tr>
            <tr>
                <td>11</td>
                <td>PF1</td>
                <td>PF1</td>
                <td>FSMC_A1 / I2C2_SCL /EVENTOUT</td>
            </tr>
            <tr>
                <td>12</td>
                <td>PF2</td>
                <td>PF2</td>
                <td>FSMC_A2 / I2C2_SMBA /EVENTOUT</td>
            </tr>
            <tr>
                <td>13</td>
                <td>PF3</td>
                <td>PF3</td>
                <td>PF3/FSMC_A3/EVENTOUT/ADC3_IN9</td>
            </tr>
            <tr>
                <td>14</td>
                <td>PF4</td>
                <td>PF4</td>
                <td>PF4/FSMC_A4/EVENTOUT/ADC3_IN14</td>
            </tr>
            <tr>
                <td>15</td>
                <td>PF5</td>
                <td>PF5</td>
                <td>PF5/FSMC_A5/EVENTOUT/ADC3_IN15</td>
            </tr>
            <tr class="power">
                <td>16</td>
                <td>VSS</td>
                <td>VSS</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>17</td>
                <td>VDD</td>
                <td>VDD</td>
                <td></td>
            </tr>
            <tr>
                <td>18</td>
                <td>PF6</td>
                <td>PF6</td>
                <td>TIM10_CH1 /FSMC_NIORD/EVENTOUT/ADC3_IN4</td>
            </tr>
            <tr>
                <td>19</td>
                <td>PF7</td>
                <td>PF7</td>
                <td>PF7/TIM11_CH1/FSMC_NREG/EVENTOUT/ADC3_IN5</td>
            </tr>
            <tr>
                <td>20</td>
                <td>PF8</td>
                <td>PF8</td>
                <td>PF8/TIM13_CH1 /FSMC_NIOWR/EVENTOUT/ADC3_IN6</td>
            </tr>
            <tr>
                <td>21</td>
                <td>PF9</td>
                <td>PF9</td>
                <td>PF9/TIM14_CH1 / FSMC_CD/EVENTOUT/ADC3_IN7</td>
            </tr>
            <tr>
                <td>22</td>
                <td>PF10</td>
                <td>PF10</td>
                <td>PF10/FSMC_INTR/ EVENTOUT /ADC3_IN8</td>
            </tr>
            <tr>
                <td>23</td>
                <td>PH0</td>
                <td>PH0</td>
                <td>OSC_IN(PH0)</td>
            </tr>
            <tr>
                <td>24</td>
                <td>PH1</td>
                <td>PH1</td>
                <td>OSC_OUT(PH1)</td>
            </tr>
            <tr class="debug">
                <td>25</td>
                <td>NRST</td>
                <td>复位</td>
                <td></td>
            </tr>
            <tr>
                <td>26</td>
                <td>PC0</td>
                <td>PC0</td>
                <td>OTG_HS_ULPI_STP/EVENTOUT /ADC123_IN10</td>
            </tr>
            <tr>
                <td>27</td>
                <td>PC1</td>
                <td>PC1</td>
                <td>PC1 / ETH_MDC/ EVENTOUT /ADC123_IN11</td>
            </tr>
            <tr>
                <td>28</td>
                <td>PC2</td>
                <td>PC2</td>
                <td>PC2 /SPI2_MISO /OTG_HS_ULPI_DIR /ETH_MII_TXD2/I2S2ext_SD/ EVENTOUT/ADC123_IN12</td>
            </tr>
            <tr>
                <td>29</td>
                <td>PC3</td>
                <td>PC3</td>
                <td>PC3 /SPI2_MOSI / I2S2_SD /OTG_HS_ULPI_NXT /ETH_MII_TX_CLK/EVENTOUT/ADC123_IN13</td>
            </tr>
            <tr class="power">
                <td>30</td>
                <td>VDD</td>
                <td>VDD</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>31</td>
                <td>VSSA</td>
                <td>VSSA</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>32</td>
                <td>VREF+</td>
                <td>VREF+</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>33</td>
                <td>VDDA</td>
                <td>VDDA</td>
                <td></td>
            </tr>
            <tr>
                <td>34</td>
                <td>PA0</td>
                <td>WKUP(PA0)</td>
                <td>USART2_CTS/UART4_TX/ETH_MII_CRS /TIM2_CH1_ETR/TIM5_CH1 / TIM8_ETR/EVENTOUT/ADC123_IN0/WKUP(4)</td>
            </tr>
            <tr>
                <td>35</td>
                <td>PA1</td>
                <td>PA1</td>
                <td>USART2_RTS /UART4_RX/ETH_RMII_REF_CLK /ETH_MII_RX_CLK /TIM5_CH2 / TIM2_CH2/EVENTOUT/ADC123_IN1</td>
            </tr>
            <tr>
                <td>36</td>
                <td>PA2</td>
                <td>PA2</td>
                <td>USART2_TX/TIM5_CH3 /TIM9_CH1 / TIM2_CH3 /ETH_MDIO/ EVENTOUT/ADC123_IN2</td>
            </tr>
            <tr>
                <td>37</td>
                <td>PA3</td>
                <td>PA3</td>
                <td>USART2_RX/TIM5_CH4 /TIM9_CH2 / TIM2_CH4 /OTG_HS_ULPI_D0 /ETH_MII_COL/EVENTOUT/ADC123_IN3</td>
            </tr>
            <tr class="power">
                <td>38</td>
                <td>VSS</td>
                <td>VSS</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>39</td>
                <td>VDD</td>
                <td>VDD</td>
                <td></td>
            </tr>
            <tr>
                <td>40</td>
                <td>PA4</td>
                <td>PA4</td>
                <td>SPI1_NSS / SPI3_NSS /USART2_CK /DCMI_HSYNC /OTG_HS_SOF/ I2S3_WS/EVENTOUT/ADC12_IN4/DAC_OUT1</td>
            </tr>
            <tr>
                <td>41</td>
                <td>PA5</td>
                <td>PA5</td>
                <td>PA5/SPI1_SCK/OTG_HS_ULPI_CK /TIM2_CH1_ETR/TIM8_CH1N/ EVENTOUT/ADC12_IN5/DAC_OUT2</td>
            </tr>
            <tr>
                <td>42</td>
                <td>PA6</td>
                <td>PA6</td>
                <td>PA6 /SPI1_MISO /TIM8_BKIN/TIM13_CH1 /DCMI_PIXCLK / TIM3_CH1/ TIM1_BKIN/ EVENTOUT/ADC12_IN6</td>
            </tr>
            <tr>
                <td>43</td>
                <td>PA7</td>
                <td>PA7</td>
                <td>PA7/SPI1_MOSI/ TIM8_CH1N /TIM14_CH1/TIM3_CH2/ETH_MII_RX_DV /TIM1_CH1N /ETH_RMII_CRS_DV/EVENTOUT/ADC12_IN7</td>
            </tr>
            <tr>
                <td>44</td>
                <td>PC4</td>
                <td>PC4</td>
                <td>ETH_RMII_RX_D0 /ETH_MII_RX_D0/EVENTOUT/ADC12_IN14</td>
            </tr>
            <tr>
                <td>45</td>
                <td>PC5</td>
                <td>PC5</td>
                <td>PC5 /ETH_RMII_RX_D1 /ETH_MII_RX_D1/EVENTOUT/ADC12_IN15</td>
            </tr>
            <tr>
                <td>46</td>
                <td>PB0</td>
                <td>PB0</td>
                <td>TIM3_CH3 / TIM8_CH2N/OTG_HS_ULPI_D1/ETH_MII_RXD2 /TIM1_CH2N/ EVENTOUT/ADC12_IN8</td>
            </tr>
            <tr>
                <td>47</td>
                <td>PB1</td>
                <td>PB1</td>
                <td>TIM3_CH4 / TIM8_CH3N/OTG_HS_ULPI_D2/ETH_MII_RXD3 /TIM1_CH3N/ EVENTOUT/ADC12_IN9</td>
            </tr>
            <tr class="boot">
                <td>48</td>
                <td>PB2</td>
                <td>BOOT1</td>
                <td></td>
            </tr>
            <tr>
                <td>49</td>
                <td>PF11</td>
                <td>PF11</td>
                <td>DCMI_D12/ EVENTOUT</td>
            </tr>
            <tr>
                <td>50</td>
                <td>PF12</td>
                <td>PF12</td>
                <td>FSMC_A6/ EVENTOUT</td>
            </tr>
            <tr class="power">
                <td>51</td>
                <td>VSS</td>
                <td>VSS</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>52</td>
                <td>VDD</td>
                <td>VDD</td>
                <td></td>
            </tr>
            <tr>
                <td>53</td>
                <td>PF13</td>
                <td>PF13</td>
                <td>FSMC_A7/ EVENTOUT</td>
            </tr>
            <tr>
                <td>54</td>
                <td>PF14</td>
                <td>PF14</td>
                <td>PF14 / FSMC_A8/ EVENTOUT</td>
            </tr>
            <tr>
                <td>55</td>
                <td>PF15</td>
                <td>PF15</td>
                <td>PF15 /FSMC_A9/ EVENTOUT</td>
            </tr>
            <tr>
                <td>56</td>
                <td>PG0</td>
                <td>PG0</td>
                <td>FSMC_A10/ EVENTOUT</td>
            </tr>
            <tr>
                <td>57</td>
                <td>PG1</td>
                <td>PG1</td>
                <td>PG1 / FSMC_A11/ EVENTOUT</td>
            </tr>
            <tr>
                <td>58</td>
                <td>PE7</td>
                <td>PE7</td>
                <td>FSMC_D4/TIM1_ETR/EVENTOUT</td>
            </tr>
            <tr>
                <td>59</td>
                <td>PE8</td>
                <td>PE8</td>
                <td>FSMC_D5/ TIM1_CH1N/EVENTOUT</td>
            </tr>
            <tr>
                <td>60</td>
                <td>PE9</td>
                <td>PE9</td>
                <td>FSMC_D6/TIM1_CH1/EVENTOUT</td>
            </tr>
            <tr class="power">
                <td>61</td>
                <td>VSS</td>
                <td>VSS</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>62</td>
                <td>VDD</td>
                <td>VDD</td>
                <td></td>
            </tr>
            <tr>
                <td>63</td>
                <td>PE10</td>
                <td>PE10</td>
                <td>FSMC_D7/TIM1_CH2N/EVENTOUT</td>
            </tr>
            <tr>
                <td>64</td>
                <td>PE11</td>
                <td>PE11</td>
                <td>FSMC_D8/TIM1_CH2/EVENTOUT</td>
            </tr>
            <tr>
                <td>65</td>
                <td>PE12</td>
                <td>PE12</td>
                <td>FSMC_D9/TIM1_CH3N/EVENTOUT</td>
            </tr>
            <tr>
                <td>66</td>
                <td>PE13</td>
                <td>PE13</td>
                <td>FSMC_D10/TIM1_CH3/EVENTOUT</td>
            </tr>
            <tr>
                <td>67</td>
                <td>PE14</td>
                <td>PE14</td>
                <td>FSMC_D11/TIM1_CH4/EVENTOUT</td>
            </tr>
            <tr>
                <td>68</td>
                <td>PE15</td>
                <td>PE15</td>
                <td>FSMC_D12/TIM1_BKIN/EVENTOUT</td>
            </tr>
            <tr>
                <td>69</td>
                <td>PB10</td>
                <td>PB10</td>
                <td>SPI2_SCK / I2S2_CK /I2C2_SCL/ USART3_TX /OTG_HS_ULPI_D3 /ETH_MII_RX_ER /TIM2_CH3/ EVENTOUT</td>
            </tr>
            <tr>
                <td>70</td>
                <td>PB11</td>
                <td>PB11</td>
                <td>I2C2_SDA/USART3_RX/OTG_HS_ULPI_D4 /ETH_RMII_TX_EN/ETH_MII_TX_EN /TIM2_CH4/ EVENTOUT</td>
            </tr>
            <tr class="power">
                <td>71</td>
                <td>VCAP_1</td>
                <td></td>
                <td>内部LDO电压输出-1.2V</td>
            </tr>
            <tr class="power">
                <td>72</td>
                <td>VDD</td>
                <td>VDD</td>
                <td></td>
            </tr>
            <tr>
                <td>73</td>
                <td>PB12</td>
                <td>PB12</td>
                <td>SPI2_NSS / I2S2_WS /I2C2_SMBA/USART3_CK/ TIM1_BKIN /CAN2_RX /OTG_HS_ULPI_D5/ETH_RMII_TXD0 /ETH_MII_TXD0/OTG_HS_ID/ EVENTOUT</td>
            </tr>
            <tr>
                <td>74</td>
                <td>PB13</td>
                <td>PB13</td>
                <td>SPI2_SCK / I2S2_CK /USART3_CTS/TIM1_CH1N /CAN2_TX /OTG_HS_ULPI_D6 /ETH_RMII_TXD1 /ETH_MII_TXD1/EVENTOUT/OTG_HS_VBUS</td>
            </tr>
            <tr>
                <td>75</td>
                <td>PB14</td>
                <td>PB14</td>
                <td>SPI2_MISO/ TIM1_CH2N /TIM12_CH1 /OTG_HS_DM/USART3_RTS /TIM8_CH2N/I2S2ext_SD/EVENTOUT</td>
            </tr>
            <tr>
                <td>76</td>
                <td>PB15</td>
                <td>PB15</td>
                <td>SPI2_MOSI / I2S2_SD/TIM1_CH3N / TIM8_CH3N/ TIM12_CH2 /OTG_HS_DP/ EVENTOUT/RTC_REFIN</td>
            </tr>
            <tr>
                <td>77</td>
                <td>PD8</td>
                <td>PD8</td>
                <td>FSMC_D13 / USART3_TX/EVENTOUT</td>
            </tr>
            <tr>
                <td>78</td>
                <td>PD9</td>
                <td>PD9</td>
                <td>FSMC_D14 / USART3_RX/EVENTOUT</td>
            </tr>
            <tr>
                <td>79</td>
                <td>PD10</td>
                <td>PD10</td>
                <td>FSMC_D15 / USART3_CK/EVENTOUT</td>
            </tr>
            <tr>
                <td>80</td>
                <td>PD11</td>
                <td>PD11</td>
                <td>FSMC_CLE /FSMC_A16/USART3_CTS/EVENTOUT</td>
            </tr>
            <tr>
                <td>81</td>
                <td>PD12</td>
                <td>PD12</td>
                <td>FSMC_ALE/FSMC_A17/TIM4_CH1 /USART3_RTS/EVENTOUT</td>
            </tr>
            <tr>
                <td>82</td>
                <td>PD13</td>
                <td>PD13</td>
                <td>FSMC_A18/TIM4_CH2/EVENTOUT</td>
            </tr>
            <tr class="power">
                <td>83</td>
                <td>VSS</td>
                <td>VSS</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>84</td>
                <td>VDD</td>
                <td>VDD</td>
                <td></td>
            </tr>
            <tr>
                <td>85</td>
                <td>PD14</td>
                <td>PD14</td>
                <td>FSMC_D0/TIM4_CH3/EVENTOUT/ EVENTOUT</td>
            </tr>
            <tr>
                <td>86</td>
                <td>PD15</td>
                <td>PD15</td>
                <td>FSMC_D1/TIM4_CH4/EVENTOUT</td>
            </tr>
            <tr>
                <td>87</td>
                <td>PG2</td>
                <td>PG2</td>
                <td>FSMC_A12/ EVENTOUT</td>
            </tr>
            <tr>
                <td>88</td>
                <td>PG3</td>
                <td>PG3</td>
                <td>FSMC_A13/ EVENTOUT</td>
            </tr>
            <tr>
                <td>90</td>
                <td>PG5</td>
                <td>PG5</td>
                <td>FSMC_A15/ EVENTOUT</td>
            </tr>
            <tr>
                <td>91</td>
                <td>PG6</td>
                <td>PG6</td>
                <td>FSMC_INT2/ EVENTOUT</td>
            </tr>
            <tr>
                <td>92</td>
                <td>PG7</td>
                <td>PG7</td>
                <td>FSMC_INT3 /USART6_CK/EVENTOUT</td>
            </tr>
            <tr>
                <td>93</td>
                <td>PG8</td>
                <td>PG8</td>
                <td>USART6_RTS /ETH_PPS_OUT/EVENTOUT</td>
            </tr>
            <tr class="power">
                <td>94</td>
                <td>VSS</td>
                <td>VSS</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>95</td>
                <td>VDD</td>
                <td>VDD</td>
                <td></td>
            </tr>
            <tr>
                <td>96</td>
                <td>PC6</td>
                <td>PC6</td>
                <td>I2S2_MCK /TIM8_CH1/SDIO_D6 /USART6_TX /DCMI_D0/TIM3_CH1/EVENTOUT</td>
            </tr>
            <tr>
                <td>97</td>
                <td>PC7</td>
                <td>PC7</td>
                <td>I2S3_MCK /TIM8_CH2/SDIO_D7 /USART6_RX /DCMI_D1/TIM3_CH2/EVENTOUT</td>
            </tr>
            <tr>
                <td>98</td>
                <td>PC8</td>
                <td>PC8</td>
                <td>TIM8_CH3/SDIO_D0/TIM3_CH3/ USART6_CK /DCMI_D2/ EVENTOUT</td>
            </tr>
            <tr>
                <td>99</td>
                <td>PC9</td>
                <td>PC9</td>
                <td>I2S_CKIN/ MCO2 /TIM8_CH4/SDIO_D1 /I2C3_SDA / DCMI_D3 /TIM3_CH4/ EVENTOUT</td>
            </tr>
            <tr>
                <td>100</td>
                <td>PA8</td>
                <td>PA8</td>
                <td>MCO1 / USART1_CK/TIM1_CH1/ I2C3_SCL/OTG_FS_SOF/EVENTOUT</td>
            </tr>
            <tr>
                <td>101</td>
                <td>PA9</td>
                <td>PA9</td>
                <td>USART1_TX/ TIM1_CH2 /I2C3_SMBA / DCMI_D0/EVENTOUT/OTG_FS_VBUS</td>
            </tr>
            <tr>
                <td>102</td>
                <td>PA10</td>
                <td>PA10</td>
                <td>USART1_RX/ TIM1_CH3/OTG_FS_ID/DCMI_D1/EVENTOUT</td>
            </tr>
            <tr>
                <td>103</td>
                <td>PA11</td>
                <td>PA11</td>
                <td>USART1_CTS / CAN1_RX/ TIM1_CH4 /OTG_FS_DM/ EVENTOUT</td>
            </tr>
            <tr>
                <td>104</td>
                <td>PA12</td>
                <td>PA12</td>
                <td>USART1_RTS / CAN1_TX/TIM1_ETR/ OTG_FS_DP/EVENTOUT</td>
            </tr>
            <tr class="debug">
                <td>105</td>
                <td>PA13</td>
                <td>JTMS/SWDIO</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>106</td>
                <td>VCAP_2</td>
                <td></td>
                <td>内部LDO电压-1.2V</td>
            </tr>
            <tr class="power">
                <td>107</td>
                <td>VSS</td>
                <td>VSS</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>108</td>
                <td>VDD</td>
                <td>VDD</td>
                <td></td>
            </tr>
            <tr class="debug">
                <td>109</td>
                <td>PA14</td>
                <td>JTCK/SWCLK</td>
                <td></td>
            </tr>
            <tr class="debug">
                <td>110</td>
                <td>PA15</td>
                <td>JTDI</td>
                <td></td>
            </tr>
            <tr>
                <td>111</td>
                <td>PC10</td>
                <td>PC10</td>
                <td>SPI3_SCK / I2S3_CK/UART4_TX/SDIO_D2 /DCMI_D8 / USART3_TX/EVENTOUT</td>
            </tr>
            <tr>
                <td>112</td>
                <td>PC11</td>
                <td>PC11</td>
                <td>UART4_RX/ SPI3_MISO /SDIO_D3 /DCMI_D4/USART3_RX /I2S3ext_SD/ EVENTOUT</td>
            </tr>
            <tr>
                <td>113</td>
                <td>PC12</td>
                <td>PC12</td>
                <td>UART5_TX/SDIO_CK /DCMI_D9 / SPI3_MOSI/I2S3_SD / USART3_CK/EVENTOUT</td>
            </tr>
            <tr>
                <td>114</td>
                <td>PD0</td>
                <td>PD0</td>
                <td>FSMC_D2/CAN1_RX/EVENTOUT</td>
            </tr>
            <tr>
                <td>115</td>
                <td>PD1</td>
                <td>PD1</td>
                <td>FSMC_D3 / CAN1_TX/EVENTOUT</td>
            </tr>
            <tr>
                <td>116</td>
                <td>PD2</td>
                <td>PD2</td>
                <td>TIM3_ETR/UART5_RX/SDIO_CMD / DCMI_D11/EVENTOUT</td>
            </tr>
            <tr>
                <td>117</td>
                <td>PD3</td>
                <td>PD3</td>
                <td>FSMC_CLK/USART2_CTS/EVENTOUT</td>
            </tr>
            <tr>
                <td>118</td>
                <td>PD4</td>
                <td>PD4</td>
                <td>FSMC_NOE/USART2_RTS/EVENTOUT</td>
            </tr>
            <tr>
                <td>119</td>
                <td>PD5</td>
                <td>PD5</td>
                <td>FSMC_NWE/USART2_TX/EVENTOUT</td>
            </tr>
            <tr class="power">
                <td>120</td>
                <td>VSS</td>
                <td>VSS</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>121</td>
                <td>VDD</td>
                <td>VDD</td>
                <td></td>
            </tr>
            <tr>
                <td>122</td>
                <td>PD6</td>
                <td>PD6</td>
                <td>FSMC_NWAIT/USART2_RX/ EVENTOUT</td>
            </tr>
            <tr>
                <td>123</td>
                <td>PD7</td>
                <td>PD7</td>
                <td>USART2_CK/FSMC_NE1/FSMC_NCE2/ EVENTOUT</td>
            </tr>
            <tr>
                <td>124</td>
                <td>PG9</td>
                <td>PG9</td>
                <td>USART6_RX /FSMC_NE2/FSMC_NCE3/EVENTOUT</td>
            </tr>
            <tr>
                <td>125</td>
                <td>PG10</td>
                <td>PG10</td>
                <td>FSMC_NCE4_1/FSMC_NE3/ EVENTOUT</td>
            </tr>
            <tr>
                <td>126</td>
                <td>PG11</td>
                <td>PG11</td>
                <td>FSMC_NCE4_2 /ETH_MII_TX_EN/ETH _RMII_TX_EN/EVENTOUT</td>
            </tr>
            <tr>
                <td>127</td>
                <td>PG12</td>
                <td>PG12</td>
                <td>FSMC_NE4 /USART6_RTS/EVENTOUT</td>
            </tr>
            <tr>
                <td>128</td>
                <td>PG13</td>
                <td>PG13</td>
                <td>FSMC_A24 /USART6_CTS/ETH_MII_TXD0/ETH_RMII_TXD0/EVENTOUT</td>
            </tr>
            <tr>
                <td>129</td>
                <td>PG14</td>
                <td>PG14</td>
                <td>FSMC_A25 / USART6_TX/ETH_MII_TXD1/ETH_RMII_TXD1/EVENTOUT</td>
            </tr>
            <tr class="power">
                <td>130</td>
                <td>VSS</td>
                <td>VSS</td>
                <td></td>
            </tr>
            <tr class="power">
                <td>131</td>
                <td>VDD</td>
                <td>VDD</td>
                <td></td>
            </tr>
            <tr>
                <td>132</td>
                <td>PG15</td>
                <td>PG15</td>
                <td>USART6_CTS /DCMI_D13/ EVENTOUT</td>
            </tr>
            <tr class="debug">
                <td>133</td>
                <td>PB3</td>
                <td>JTDO</td>
                <td>(JTDO/TRACESWO)/JTDO/ TRACESWO/SPI3_SCK / I2S3_CK /TIM2_CH2 / SPI1_SCK/EVENTOUT</td>
            </tr>
            <tr class="debug">
                <td>134</td>
                <td>PB4</td>
                <td>NJTRST</td>
                <td>SPI3_MISO /TIM3_CH1 / SPI1_MISO /I2S3ext_SD/ EVENTOUT</td>
            </tr>
            <tr>
                <td>135</td>
                <td>PB5</td>
                <td>PB5</td>
                <td>I2C1_SMBA/ CAN2_RX /OTG_HS_ULPI_D7 /ETH_PPS_OUT/TIM3_CH2/ SPI1_MOSI/ SPI3_MOSI /DCMI_D10 / I2S3_SD/EVENTOUT</td>
            </tr>
            <tr>
                <td>136</td>
                <td>PB6</td>
                <td>PB6</td>
                <td>I2C1_SCL/ TIM4_CH1 /CAN2_TX /DCMI_D5/USART1_TX/EVENTOUT</td>
            </tr>
            <tr>
                <td>137</td>
                <td>PB7</td>
                <td>PB7</td>
                <td>I2C1_SDA / FSMC_NL /DCMI_VSYNC /USART1_RX/ TIM4_CH2/EVENTOUT</td>
            </tr>
            <tr class="boot">
                <td>138</td>
                <td>BOOT0</td>
                <td>BOOT0</td>
                <td></td>
            </tr>
            <tr>
                <td>139</td>
                <td>PB8</td>
                <td>PB8</td>
                <td>TIM4_CH3/SDIO_D4/TIM10_CH1 / DCMI_D6 /ETH_MII_TXD3 /I2C1_SCL/ CAN1_RX/EVENTOUT</td>
            </tr>
            <tr>
                <td>140</td>
                <td>PB9</td>
                <td>PB9</td>
                <td>SPI2_NSS/ I2S2_WS /TIM4_CH4/ TIM11_CH1/SDIO_D5 / DCMI_D7 /I2C1_SDA / CAN1_TX/EVENTOUT</td>
            </tr>
            <tr>
                <td>141</td>
                <td>PE0</td>
                <td>PE0</td>
                <td>TIM4_ETR / FSMC_NBL0 /DCMI_D2/ EVENTOUT</td>
            </tr>
            <tr>
                <td>142</td>
                <td>PE1</td>
                <td>PE1</td>
                <td>FSMC_NBL1 / DCMI_D3/EVENTOUT</td>
            </tr>
            <tr class="power">
                <td>143</td>
                <td>PDR_ON</td>
                <td></td>
                <td>Regulator ON/OFF ，必须接VDD</td>
            </tr>
            <tr class="power">
                <td>144</td>
                <td>VDD</td>
                <td>VDD</td>
                <td></td>
            </tr>
        </tbody>
    </table>

    <script>
        function filterTable() {
            const input = document.getElementById("searchInput");
            const filter = input.value.toUpperCase();
            const table = document.getElementById("pinTable");
            const tr = table.getElementsByTagName("tr");

            for (let i = 1; i < tr.length; i++) {
                let found = false;
                const tdArray = tr[i].getElementsByTagName("td");

                for (let j = 0; j < tdArray.length; j++) {
                    const td = tdArray[j];
                    if (td) {
                        const txtValue = td.textContent || td.innerText;
                        if (txtValue.toUpperCase().indexOf(filter) > -1) {
                            found = true;
                            break;
                        }
                    }
                }

                tr[i].style.display = found ? "" : "none";
            }
        }

        function resetFilters() {
            document.getElementById("searchInput").value = "";
            filterTable();
        }
    </script>
</body>
</html>

STM32F407VGT6芯片管脚功能定义
04-30
STM32F407VGT6芯片管脚功能定义
stm32 F407zgT6 GPIO输出—使用固件库点亮LED
07-03
stm32 F407zgT6 GPIO输出—使用固件库点亮LED
STM32F407引脚说明
05-19
ARM内核32位单片机STM32F407引脚详细说明 （pdf文档）
STM32F407ZGT6引脚功能
热门推荐
u011510016的博客
07-20 5万+
STM32F407ZGT6 引脚 引脚名称 主功能 默认复用 1 PE2 PE2 TRACECLK/ FSMC_A23 /ETH_MII_TXD3 /EVENTOUT 2 PE3 PE3 TRACED0/FSMC_A19 /EVENTOUT 3 PE4 PE4 TRACED1/FSMC_A20 /DCMI_D4/ EVENTOUT 4 PE5 PE5 TR...
代码
dianxunjie8533的博客
03-15 210
/******************************************************************************* * 函 数 名 : USART1_Init * 函数功能 : USART1初始化函数 * 输 入 : bound:波特率 * 输 出 :...
STM32F407ZGT6__引脚配置说明书__144引脚
10-24
Pinouts and pin description；STM32F40x LQFP144 pinout
stm32f407系列引脚定义（详细）+引脚图
10-16
stm32f407系列引脚定义（详细）+引脚图
STM32F407ZGTE6定时器各通道对应引脚
m0_48808835的博客
03-27 1388
https://www.renrendoc.com/paper/130486902.html
STM32F407引脚表
01-11
文档里是STM32F407的引脚列表，很清晰直观，要注意选对引脚个数，64,100个引脚对应的不一样
STM32F407引脚图
09-01
STM32F407引脚图
STM32F407ZGT6__复用功能映射表
02-25
STM32芯片内部有很多外设，这些外设的引脚都是与IO口复用的。也就是说，一个IO口如果可以复用为内置外设的功能引脚，那么当这个IO口作为内部外设使用的时候，就叫做复用。 本文档详细列出了STM32F407ZGT6的所有的端口AF映射表。
基于STM32F407ZGT6的电子时钟以及UI设计.zip
07-07
- 硬件设计：根据STM32F407ZGT6的引脚功能，设计电路板，连接显示屏、按键和其他外围设备。 - 软件设计：编写驱动程序，实现RTC、LCD/OLED显示、按键扫描等功能，然后构建UI框架。 - 测试与调试：烧录代码后，...
HAL库STM32f407ZGT6实现串口空闲中断联合DMA中断接收数据，DMA非中断模式发送数据
05-07
在本文中，我们将深入探讨如何使用STM32F407ZGT6微控制器的HAL库来实现串口（UART）的空闲中断和DMA（直接存储器访问）中断接收数据，以及DMA非中断模式发送数据。STM32F407ZGT6是一款基于ARM Cortex-M4内核的高性能...
IO口引脚复用和映射（基于STM32F407ZGT6）
最新发布
sdjb125的博客
01-25 996
/GPIOA10复用为USART1。//使能USART1时钟。
1.STM32F407ZGT6-GPIO
yeweiliang_93的博客
01-06 1342
STM32F407ZGT6-GPIO
STM32F407 GPIO相关介绍
qq_45578181的博客
08-25 1万+
无
STM32硬件剖析（STM32F407 定时器功能引脚分配）
CodeAllen嵌入式
06-14 2万+
学习交流加（可免费帮忙下载优快云资源）： 个人微信：coderAllen 学习交流资源分享①群：736386324 推荐阅读： 如何更快的学习单片机？
【嵌入式 · STM32】STM32F407引脚复用对照表
不定时分享与嵌入式有关的知识
09-09 1万+
STM32F407引脚复用对照表；特殊引脚对照表；PWM引脚复用对照；串口引脚复用对照表；ADC引脚复用对照表
WKUP/USART2_CTS/ADC12_IN0/TIM2_CH1_ETR USART2_RTS/ADC12_IN1/TIM2_CH2 USART2_TX/ADC12_IN2/TIM2_CH3 USART2_RX/ADC12_IN3/TIM2_CH4 SPI1_NSS/USART2_CK/ADC12_IN4 SPI1_SCK/ADC12_IN5 SPI1_MISO/ADC12_IN6/TIM3_CH1 SPI1_MOSI/ADC12_IN7/TIM3_CH2 ADC12_IN8/TIM3_CH3 ADC12_IN9/TIM3_CH4 I2C2_SCL/USART3_TX I2C2_SDA/USART3_RX SPI2_NSS/I2C2_SMBAI/USART3_CK/TIM1_BKIN SPI2_SCK/USART3_CTS/TIM1_CH1N SPI2_MISO/USART3_RTS/TIM1_CH2N SPI2_MOSI/TIM1_CH3N USART1_CK/TIM1_CH1/MCO USART1_TX/TIM1_CH2 USART1_RX/TIM1_CH3 USART1_CTS/USBDM/CAN_RX/TIM1_CH4 USART1_RTS/USBDP/CAN_TX/TIM1_ETR I2C1_SMBAI I2C1_SCL/TIM4_CH1 I2C1_SDA/TIM4_CH2 TIM4_CH3 TIM4_CH4 整理这些引脚功能
05-22
这些引脚功能可以整理如下： - WKUP: 外部唤醒输入 - USART2_CTS: USART2 软件流控制信号 - ADC12_IN0: ADC12 输入通道 0 - TIM2_CH1_ETR: 定时器 2 通道 1 和外部时钟输入 - USART2_RTS: USART2 请求发送控制信号 - ADC12_IN1: ADC12 输入通道 1 - TIM2_CH2: 定时器 2 通道 2 - USART2_TX: USART2 发送数据引脚 - ADC12_IN2: ADC12 输入通道 2 - TIM2_CH3: 定时器 2 通道 3 - USART2_RX: USART2 接收数据引脚 - ADC12_IN3: ADC12 输入通道 3 - TIM2_CH4: 定时器 2 通道 4 - SPI1_NSS: SPI1 片选信号 - USART2_CK: USART2 时钟引脚 - ADC12_IN4: ADC12 输入通道 4 - SPI1_SCK: SPI1 时钟引脚 - ADC12_IN5: ADC12 输入通道 5 - SPI1_MISO: SPI1 主输入从输出引脚 - ADC12_IN6: ADC12 输入通道 6 - TIM3_CH1: 定时器 3 通道 1 - SPI1_MOSI: SPI1 主输出从输入引脚 - ADC12_IN7: ADC12 输入通道 7 - TIM3_CH2: 定时器 3 通道 2 - ADC12_IN8: ADC12 输入通道 8 - TIM3_CH3: 定时器 3 通道 3 - ADC12_IN9: ADC12 输入通道 9 - TIM3_CH4: 定时器 3 通道 4 - I2C2_SCL: I2C2 时钟引脚 - USART3_TX: USART3 发送数据引脚 - I2C2_SDA: I2C2 数据引脚 - USART3_RX: USART3 接收数据引脚 - SPI2_NSS: SPI2 片选信号 - I2C2_SMBAI: I2C2 SMBus 警告引脚 - USART3_CK: USART3 时钟引脚 - TIM1_BKIN: 定时器 1 备份输入 - SPI2_SCK: SPI2 时钟引脚 - USART3_CTS: USART3 软件流控制信号 - TIM1_CH1N: 定时器 1 通道 1 互补输出 - SPI2_MISO: SPI2 主输入从输出引脚 - USART3_RTS: USART3 请求发送控制信号 - TIM1_CH2N: 定时器 1 通道 2 互补输出 - SPI2_MOSI: SPI2 主输出从输入引脚 - TIM1_CH3N: 定时器 1 通道 3 互补输出 - USART1_CK: USART1 时钟引脚 - TIM1_CH1: 定时器 1 通道 1 - MCO: 主时钟输出引脚 - USART1_TX: USART1 发送数据引脚 - TIM1_CH2: 定时器 1 通道 2 - USART1_RX: USART1 接收数据引脚 - TIM1_CH3: 定时器 1 通道 3 - USART1_CTS: USART1 软件流控制信号 / USBDM / CAN_RX / 定时器 1 通道 4 - USBDP: USBDP / CAN_TX / 定时器 1 外部时钟输入 - TIM1_CH4: 定时器 1 通道 4 - I2C1_SMBAI: I2C1 SMBus 警告引脚 - I2C1_SCL: I2C1 时钟引脚 / 定时器 4 通道 1 - I2C1_SDA: I2C1 数据引脚 / 定时器 4 通道 2 - TIM4_CH3: 定时器 4 通道 3 - TIM4_CH4: 定时器 4 通道 4
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
