【随笔】地址空间布局随机化randomize_va_space

内核文档（Address Space Layout Randomization）：

• Documentation for /proc/sys/kernel/ — The Linux Kernel documentation
• https://www.kernel.org/doc/Documentation/sysctl/kernel.txt
• 3.15.1 Address Space Layout Randomization (oracle.com)



randomize_va_space

This option can be used to select the type of process address space randomization that is used in the system, for architectures that support this feature.

0	Turn the process address space randomization off. This is the default for architectures that do not support this feature anyways, and kernels that are booted with the “norandmaps” parameter.
1	Make the addresses of mmap base, stack and VDSO page randomized. This, among other things, implies that shared libraries will be loaded to random addresses. Also for PIE-linked binaries, the location of code start is randomized. This is the default if the CONFIG_COMPAT_BRK option is enabled.
2	Additionally enable heap randomization. This is the default if CONFIG_COMPAT_BRK is disabled. There are a few legacy applications out there (such as some ancient versions of libc.so.5 from 1996) that assume that brk area starts just after the end of the code+bss. These applications break when start of the brk area is randomized. There are however no known non-legacy applications that would be broken this way, so for most systems it is safe to choose full randomization. Systems with ancient and/or broken binaries should be configured with CONFIG_COMPAT_BRK enabled, which excludes the heap from process address space randomization.

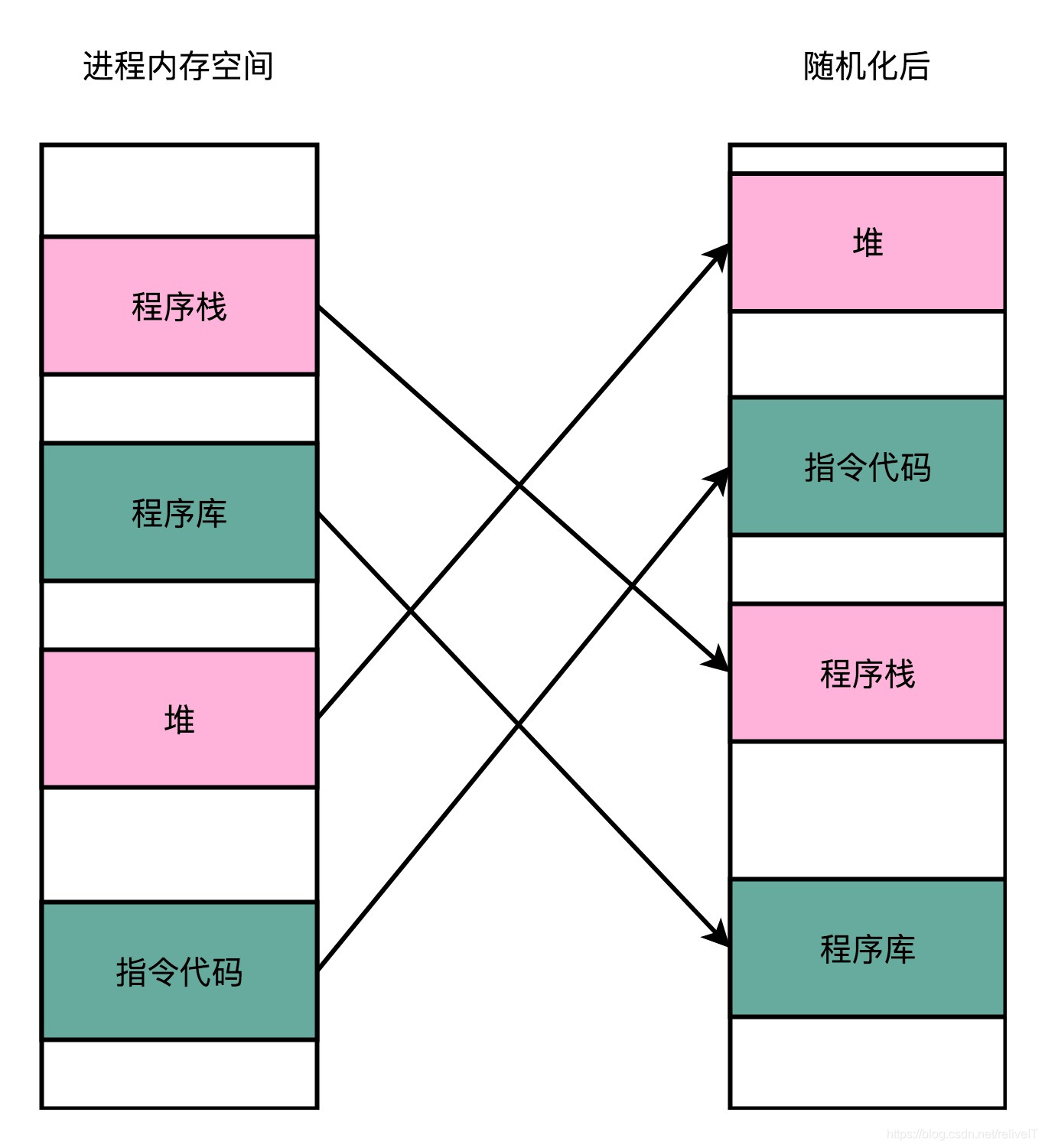

地址空间布局随机化默认是开启的，开启了之后进程的虚拟地址空间布局就不再是默认布局，vm_area_struct链接成的结构大概就是这样的：



GNU Linux中修改ASLR的方法：

You can change the setting temporarily by writing a new value to , for example: /proc/sys/kernel/randomize_va_space

# echo value > /proc/sys/kernel/randomize_va_space

To change the value permanently, add the setting to , for example: /etc/sysctl.conf

kernel.randomize_va_space = value

and run the sysctl -p command.

If you change the value of , you should test your application stack to ensure that it is compatible with the new setting. randomize_va_space

If necessary, you can disable ASLR for a specific program and its child processes by using the following command:

% setarch `uname -m` -R program [args ...]
