GNS3模拟器中关于创建vtp时，内存空间不足问题的解决

最新推荐文章于 2023-06-21 13:39:16 发布

原创最新推荐文章于 2023-06-21 13:39:16 发布 · 1.2k 阅读

1 ·

CC 4.0 BY-SA版权

文章标签：

#网络

本文介绍了使用GNS3模拟器创建VTP时遇到的空间不足错误，并提供了详细的解决步骤，包括清空闪存以确保有足够的空间来存储VLAN数据库。

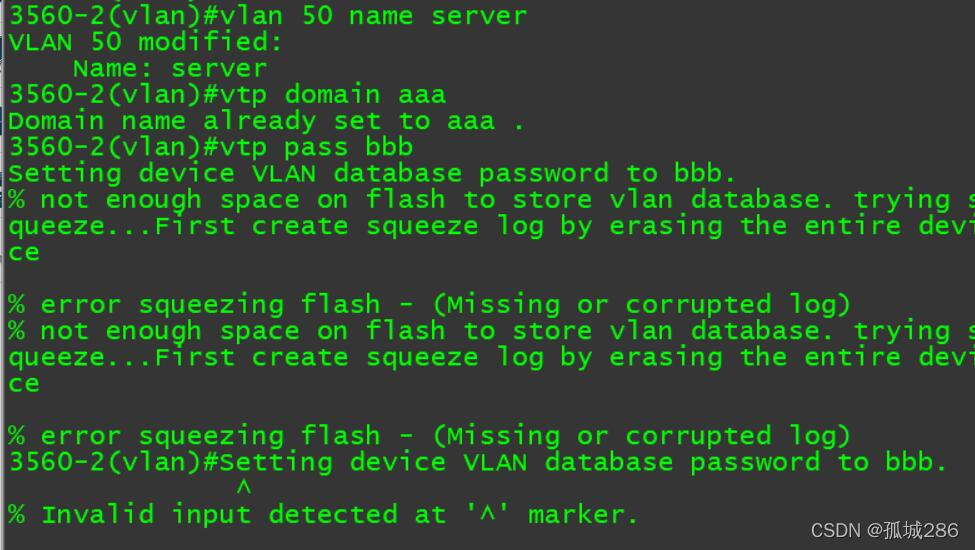

使用GNS3模拟器时，创建vtp时，发生了如下错误：

3560-2(vlan)#vtp domain aaa
Domain name already set to aaa .
3560-2(vlan)#vtp pass bbb
Setting device VLAN database password to bbb.
% not enough space on flash to store vlan database. trying squeeze...First create squeeze log by erasing the entire device

% error squeezing flash - (Missing or corrupted log)
% not enough space on flash to store vlan database. trying squeeze...First create squeeze log by erasing the entire device

% error squeezing flash - (Missing or corrupted log)
3560-2(vlan)#Setting device VLAN database password to bbb.
^
% Invalid input detected at '^' marker.
在以上错误中给出了提示！（标记的红色部分）

检查空间

3560-2#show flash

System flash directory:
No files in System flash
[0 bytes used, 7864316 available, 7864316 total]
8192K bytes of processor board System flash (Read/Write)

空间是够的

解决办法：

3560-2#erase flash

Erasing the flash filesystem will remove all files! Continue? [confirm]
Erasing device... eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee ...erased
Erase of flash: complete

3560-2#directory

Directory of flash:/

No files in directory

67108860 bytes total (67108196 bytes free)

3560-2#show flash

System flash directory:
No files in System flash
[0 bytes used, 7864316 available, 7864316 total]
8192K bytes of processor board System flash (Read/Write)
