maven依赖继承总结

于 2023-08-04 11:15:02 发布
阅读量450 收藏 2
点赞数
文章标签： spring boot java 后端
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/qq_60614034/article/details/132084856
版权

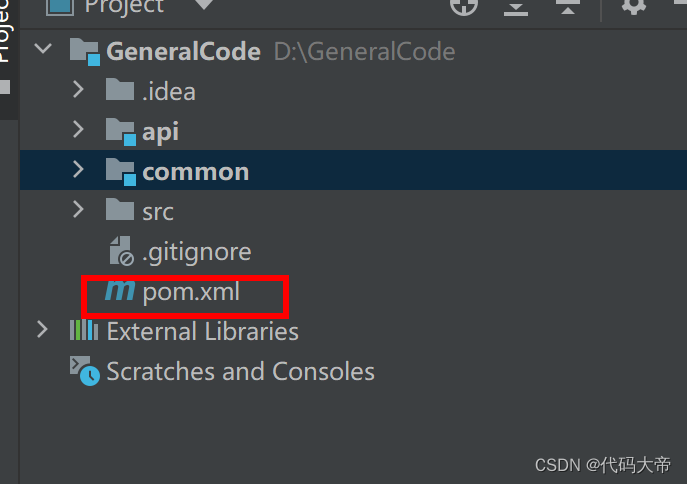

一:项目架构

二.父项目pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>


  <groupId>com.dmdd</groupId>
  <artifactId>GeneralCode</artifactId>
  <packaging>pom</packaging>
  <version>0.0.1</version>

  <modules>
    <module>api</module>
  </modules>


  <properties>
    <project.encoding>UTF-8</project.encoding>
    <maven-compiler-plugin.version>3.8.1</maven-compiler-plugin.version>
    <maven-resources-plugin.version>3.1.0</maven-resources-plugin.version>
    <java.version>1.8</java.version>

    <!-- 核心依赖 -->
    <spring-boot.version>2.7.7</spring-boot.version>

    <!-- 次要依赖 -->
    <hutool-version>5.8.16</hutool-version>
    <mybatis-spring-boot-starter.version>2.3.0</mybatis-spring-boot-starter.version>
    <mybatis-plus-version>3.4.2</mybatis-plus-version>
    <pagehelper-spring-boot-starter.version>1.4.3</pagehelper-spring-boot-starter.version>
    <orika.version>1.5.4</orika.version>
    <jsoup.version>1.13.1</jsoup.version>
    <orika.version>1.5.4</orika.version>
    <captcha.version>1.2.5</captcha.version>
    <knife4j.version>4.1.0</knife4j.version>
    <springdoc.version>1.6.9</springdoc.version>
    <elasticsearch.version>7.17.5</elasticsearch.version>
    <minio.version>8.2.2</minio.version>
    <rocketmq-springboot.version>2.2.2</rocketmq-springboot.version>
    <weixin.version>4.0.0</weixin.version>
    <spring-javaformat.version>0.0.22</spring-javaformat.version>
    <junit.version>4.13.1</junit.version>
    <lombok.version>1.18.26</lombok.version>
    <jwt.version>0.10.7</jwt.version>
    <commons-pool2.version>2.8.0</commons-pool2.version>
    <druid.version>1.2.5</druid.version>
    <kaptcha.version>2.3.2</kaptcha.version>
    <jwt.version>0.10.7</jwt.version>
    <snakeyaml>1.27</snakeyaml>
    <classfinal.version>1.2.1</classfinal.version>
  </properties>



  <dependencyManagement>
<dependencies>
<!--  核心依赖-->
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-dependencies</artifactId>
    <version>${spring-boot.version}</version>
    <type>pom</type>
    <scope>import</scope>
  </dependency>



  <!-- 次要依赖 -->
  <dependency>
    <groupId>cn.hutool</groupId>
    <artifactId>hutool-bom</artifactId>
    <version>${hutool-version}</version>
    <type>pom</type>
    <scope>import</scope>
  </dependency>

  <dependency>
    <groupId>org.mybatis.spring.boot</groupId>
    <artifactId>mybatis-spring-boot-starter</artifactId>
    <version>${mybatis-spring-boot-starter.version}</version>
  </dependency>
  <dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>${mybatis-plus-version}</version>
  </dependency>
  <dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus</artifactId>
    <version>${mybatis-plus-version}</version>
  </dependency>

<!--  lombok用于实体类lsf4j-->
  <dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <version>${lombok.version}</version>
  </dependency>

<!--  <dependency>-->
<!--    <groupId>com.microsoft.sqlserver</groupId>-->
<!--    <artifactId>mssql-jdbc</artifactId>-->
<!--    <version>9.2.1.jre8</version>-->
<!--  </dependency>-->
<!--旧版sqlserver垃圾依赖-->
<!--  <dependency>-->
<!--    <groupId>com.microsoft.sqlserver</groupId>-->
<!--    <artifactId>sqljdbc4</artifactId>-->
<!--    <version>4.0</version>-->
<!--  </dependency>-->

  <!-- 解决复合主键 -->
  <dependency>
    <groupId>com.github.jeffreyning</groupId>
    <artifactId>mybatisplus-plus</artifactId>
    <version>1.5.1-RELEASE</version>
  </dependency>

  <dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>dynamic-datasource-spring-boot-starter</artifactId>
    <version>3.6.1</version>
  </dependency>

  <!--连接池依赖-->
<!--  <dependency>-->
<!--    <groupId>com.alibaba</groupId>-->
<!--    <artifactId>druid-spring-boot-starter</artifactId>-->
<!--    <version>${druid.version}</version>-->
<!--  </dependency>-->

</dependencies>
  </dependencyManagement>


  <dependencies>
<!--    <dependency>-->
<!--      <groupId>org.springframework.boot</groupId>-->
<!--      <artifactId>spring-boot-configuration-processor</artifactId>-->
<!--      <optional>true</optional>-->
<!--    </dependency>-->
  </dependencies>
  <build>
  <finalName>${project.name}</finalName>
  <pluginManagement>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
        <version>${spring-boot.version}</version>
        <executions>
          <execution>
            <goals>
              <goal>repackage</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
    </plugins>
  </pluginManagement>

  <plugins>
    <plugin>
      <groupId>io.spring.javaformat</groupId>
      <artifactId>spring-javaformat-maven-plugin</artifactId>
      <version>${spring-javaformat.version}</version>
    </plugin>
    <plugin>
      <groupId>org.apache.maven.plugins</groupId>
      <artifactId>maven-compiler-plugin</artifactId>
      <version>${maven-compiler-plugin.version}</version>
      <configuration>
        <source>${java.version}</source>
        <target>${java.version}</target>
        <encoding>${project.encoding}</encoding>
      </configuration>
    </plugin>
    <plugin>
      <groupId>org.apache.maven.plugins</groupId>
      <artifactId>maven-resources-plugin</artifactId>
      <version>${maven-resources-plugin.version}</version>
      <configuration>
        <encoding>${project.encoding}</encoding>
      </configuration>
    </plugin>
  </plugins>
  <resources>
    <resource>
      <directory>src/main/resources</directory>
      <filtering>true</filtering>
    </resource>
  </resources>
  </build>
</project>

<!--    <dependency>-->
<!--      <groupId>org.springframework.boot</groupId>-->
<!--      <artifactId>spring-boot-configuration-processor</artifactId>-->
<!--      <optional>true</optional>-->
<!--    </dependency>--> 这个依赖有什么用


这个依赖是用来支持Spring Boot的配置属性自动补全和提示的。它会生成一个用于IDE的元数据文件，用于提供配置属性的提示和文档。这样，在编写配置文件时，可以更方便地查看和使用Spring Boot的配置属性，并获得更好的开发体验。

 <properties>

<spring-boot.version>2.7.7</spring-boot.version>

</properties>

填写依赖的版本号，方便依赖的版本管理，避免依赖冲突

就像定义常量，依赖的版本就引用定义好的常量

<dependencyManagement>

<dependencies>

。。。。

</dependencies>

<dependencyManagement>

此中的依赖不会被继承，子模块引入其中的依赖不需要指定版本

<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-configuration-processor</artifactId>
<optional>true</optional>
</dependency>
</dependencies>

 在<dependencyManagement> 外面的依赖可以被继承到

二.common模块依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.dmdd</groupId>
        <artifactId>GeneralCode</artifactId>
        <version>0.0.1</version>
    </parent>


    <artifactId>common</artifactId>
    <version>0.0.1</version>
    <name>common</name>
    <description>通用模块</description>

    <dependencies>
<!--        <dependency>-->
<!--            <groupId>org.springframework.boot</groupId>-->
<!--            <artifactId>spring-boot-starter</artifactId>-->
<!--        </dependency>-->

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

<!--        该依赖具有自动填充createTime updateTime功能-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-validation</artifactId>
        </dependency>

<!--导入继承的父模块的lombok依赖-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <scope>provided</scope>
        </dependency>


        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
        </dependency>


<!--配置动态数据源  需要父项目具有该依赖才可以使用，否则会报错-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>dynamic-datasource-spring-boot-starter</artifactId>
        </dependency>


<!--代码生成器依赖-->
<!--        <dependency>-->
<!--            <groupId>org.freemarker</groupId>-->
<!--            <artifactId>freemarker</artifactId>-->
<!--            <version>2.3.28</version>-->
<!--        </dependency>-->

    </dependencies>



    <build>
        <plugins>
            <!-- 资源文件拷贝插件 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-resources-plugin</artifactId>
                <configuration>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
        </plugins>

    </build>

</project>



三.api模块依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.dmdd</groupId>
        <artifactId>GeneralCode</artifactId>
        <version>0.0.1</version>
    </parent>


    <artifactId>api</artifactId>
    <version>0.0.1</version>
    <name>api</name>
    <description>接口模块</description>

    <dependencies>
<!-- 该模块内部的依赖和内容会继承到此模块-->
        <dependency>
            <groupId>com.dmdd</groupId>
            <artifactId>common</artifactId>
            <version>0.0.1</version>
        </dependency>


  <dependency>
    <groupId>org.yaml</groupId>
    <artifactId>snakeyaml</artifactId>
    <version>1.27</version>
  </dependency>

        <!-- junit -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <scope>test</scope>
        </dependency>
<!--        <dependency>-->
<!--            <groupId>org.springframework.boot</groupId>-->
<!--            <artifactId>spring-boot</artifactId>-->
<!--        </dependency>-->

<!--        <dependency>-->
<!--            <groupId>org.springframework.boot</groupId>-->
<!--            <artifactId>spring-boot-autoconfigure</artifactId>-->
<!--        </dependency>-->

<!--        代码生成器需要这个-->
        <dependency>
            <groupId>com.microsoft.sqlserver</groupId>
            <artifactId>mssql-jdbc</artifactId>
            <version>9.2.1.jre8</version>
        </dependency>


    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

<parent>
<groupId>com.dmdd</groupId>
<artifactId>GeneralCode</artifactId>
<version>0.0.1</version>
</parent>

 继承了父模块  父模块中<dependencyManagement>的依赖不会被继承

<!-- 该模块内部的依赖和内容会继承到此模块-->
<dependency>
<groupId>com.dmdd</groupId>
<artifactId>common</artifactId>
<version>0.0.1</version>
</dependency>

引用了common模块

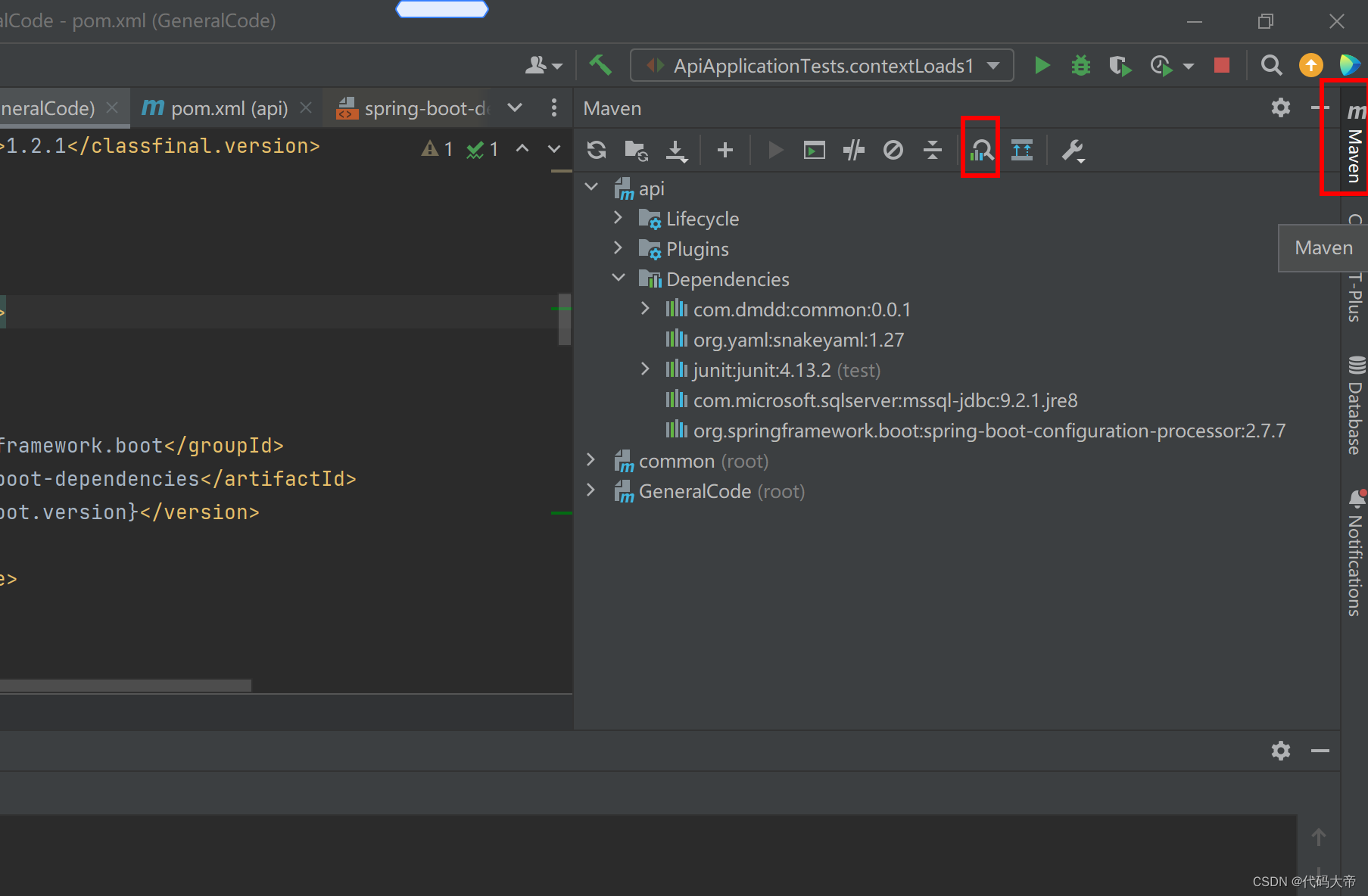

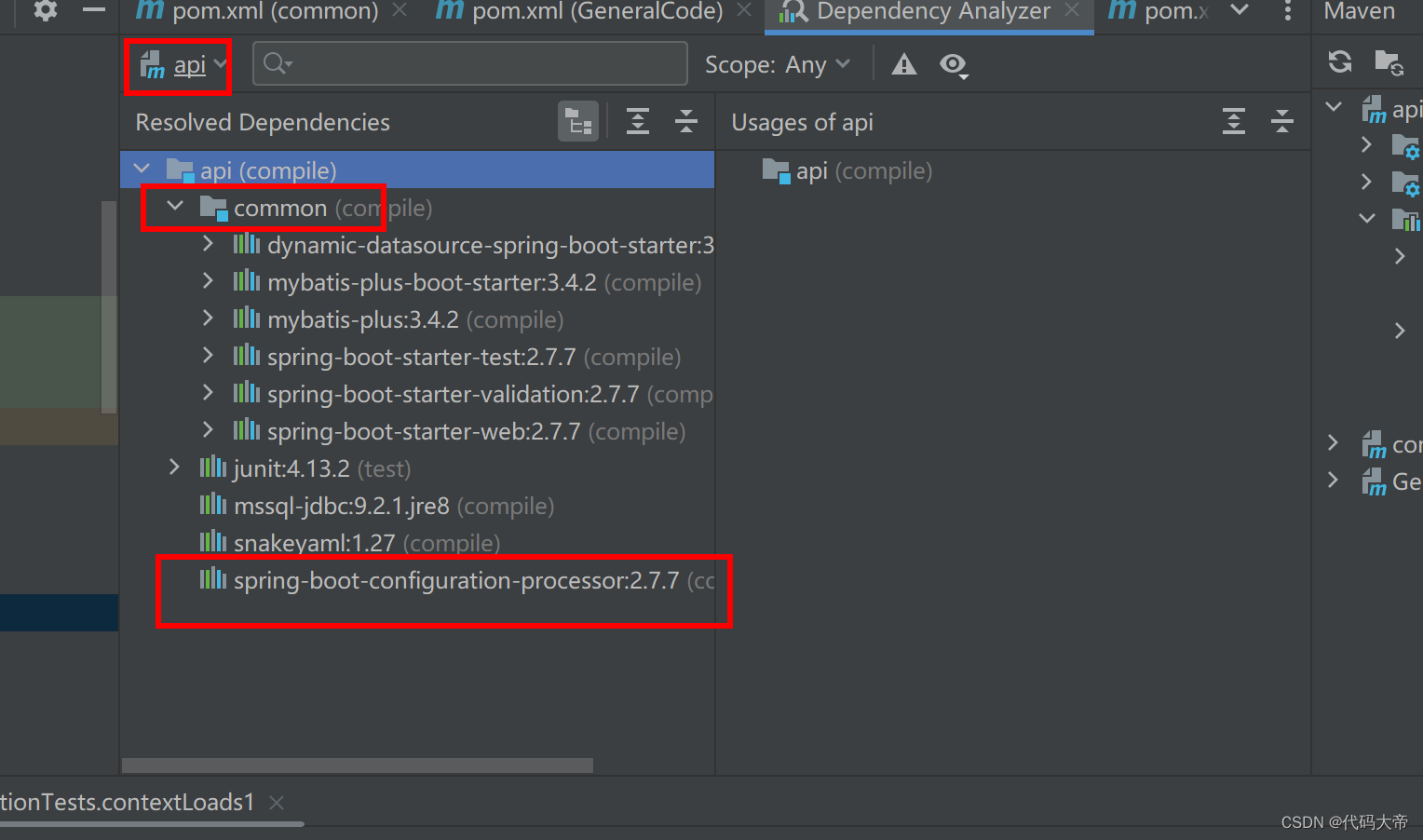

四.查看依赖树



api模块中，common模块的依赖全部继承了， 父项目的依赖只继承了不在<dependencyManagement>里的依赖
