启动进程httpd(80)，mysql(3306)，php(9000)，zabbix_server(10051),zabbix_agentd(10050),mail(25)

#服务端192.168.31.129
[root@zabbix_server ~]# ss -antl
State  Recv-Q Send-Q Local Address:Port   Peer Address:Port Process
LISTEN 0      128          0.0.0.0:10050       0.0.0.0:*
LISTEN 0      128          0.0.0.0:10051       0.0.0.0:*
LISTEN 0      128        127.0.0.1:9000        0.0.0.0:*
LISTEN 0      128          0.0.0.0:22          0.0.0.0:*
LISTEN 0      100        127.0.0.1:25          0.0.0.0:*
LISTEN 0      80                 *:3306              *:*
LISTEN 0      128                *:80                *:*
LISTEN 0      128             [::]:22             [::]:*
LISTEN 0      100            [::1]:25             [::]:*

#客户端192.168.31.131
[root@localhost ~]# ss -antl
State  Recv-Q Send-Q Local Address:Port   Peer Address:Port Process
LISTEN 0      128          0.0.0.0:10050       0.0.0.0:*
LISTEN 0      128          0.0.0.0:111         0.0.0.0:*
LISTEN 0      128          0.0.0.0:22          0.0.0.0:*
LISTEN 0      5          127.0.0.1:631         0.0.0.0:*
LISTEN 0      128        127.0.0.1:6010        0.0.0.0:*
LISTEN 0      128             [::]:111            [::]:*
LISTEN 0      128             [::]:22             [::]:*
LISTEN 0      5              [::1]:631            [::]:*
LISTEN 0      128            [::1]:6010           [::]:*

1.监控httpd进程

//在客户端上安装httpd服务
[root@localhost ~]# yum -y install httpd
[root@localhost ~]# systemctl start httpd.service    //启动服务
[root@localhost ~]# systemctl status httpd
● httpd.service - The Apache HTTP Server
   Loaded: loaded (/usr/lib/systemd/system/httpd.service; disabled;>
   Active: active (running) since Sun 2022-07-10 19:51:34 CST; 9s a>
     Docs: man:httpd.service(8)
 Main PID: 52898 (httpd)
   Status: "Running, listening on: port 80"
    Tasks: 213 (limit: 11088)
   Memory: 22.8M
   CGroup: /system.slice/httpd.service
           ├─52898 /usr/sbin/httpd -DFOREGROUND
           ├─52899 /usr/sbin/httpd -DFOREGROUND
           ├─52900 /usr/sbin/httpd -DFOREGROUND
           ├─52901 /usr/sbin/httpd -DFOREGROUND
           └─52902 /usr/sbin/httpd -DFOREGROUND

Jul 10 19:51:34 localhost.localdomain systemd[1]: Starting The Apac>
Jul 10 19:51:34 localhost.localdomain httpd[52898]: AH00558: httpd:>
Jul 10 19:51:34 localhost.localdomain systemd[1]: Started The Apach>
Jul 10 19:51:34 localhost.localdomain httpd[52898]: Server configur>
[root@localhost ~]#

//修改配置文件
[root@localhost ~]# cd /usr/local/etc
[root@localhost etc]# ls
zabbix_agentd.conf  zabbix_agentd.conf.d
[root@localhost etc]# vim zabbix_agentd.conf

# Mandatory: no
# Range: 0-1
# Default:
UnsafeUserParameters=1  //取消注释，改为1

### Option: UserParameter
#       User-defined parameter to monitor. There can be several user-defined parameters.
#       Format: UserParameter=<key>,<shell command>   //复制这个UserParameter以及后面的>止，到文件的最后空白处
#       See 'zabbix_agentd' directory for examples.

UserParameter=check_process_httpd,/bin/bash /scripts/check_process.sh
//文件的最后空白处写

//重启agentd服务，让配置文件生效
[root@localhost ~]# pkill zabbix_agentd   //先杀死进程
[root@localhost ~]# zabbix_agentd     //再启动
[root@localhost ~]# ss -antl
State  Recv-Q Send-Q Local Address:Port   Peer Address:Port Process
LISTEN 0      128          0.0.0.0:10050       0.0.0.0:*
LISTEN 0      128          0.0.0.0:111         0.0.0.0:*
LISTEN 0      128          0.0.0.0:22          0.0.0.0:*
LISTEN 0      5          127.0.0.1:631         0.0.0.0:*
LISTEN 0      128        127.0.0.1:6010        0.0.0.0:*
LISTEN 0      128        127.0.0.1:6011        0.0.0.0:*
LISTEN 0      128             [::]:111            [::]:*
LISTEN 0      128                *:80                *:*
LISTEN 0      128             [::]:22             [::]:*
LISTEN 0      5              [::1]:631            [::]:*
LISTEN 0      128            [::1]:6010           [::]:*
LISTEN 0      128            [::1]:6011           [::]:*

//查看httpd相关的进程
[root@localhost ~]# ps -ef | grep httpd
root       52898       1  0 19:51 ?        00:00:00 /usr/sbin/httpd -DFOREGROUND
apache     52899   52898  0 19:51 ?        00:00:00 /usr/sbin/httpd -DFOREGROUND
apache     52900   52898  0 19:51 ?        00:00:00 /usr/sbin/httpd -DFOREGROUND
apache     52901   52898  0 19:51 ?        00:00:00 /usr/sbin/httpd -DFOREGROUND
apache     52902   52898  0 19:51 ?        00:00:00 /usr/sbin/httpd -DFOREGROUND
root       53157   51875  0 19:53 pts/1    00:00:00 grep --color=auto httpd
//和httpd有关的服务条数为5
[root@localhost ~]# ps -ef | grep -v grep | grep -c httpd
5        //-c 显示过滤后的计数 -v 取反将grep httpd 的进程取消 不让其进入计数

编写脚本

//创建目录
[root@localhost etc]# mkdir /scripts/
//编写脚本
[root@localhost etc]# vim /scripts/check_process.sh
[root@localhost etc]# cat /scripts/check_process.sh
#!/bin/bash

count=$(ps -ef | grep -v grep | grep -c httpd)   //定义变量count的值为httpd进程数
if [ $count -ne 5 ];then      //如果count不等于5，那么
    echo '1'    //打印为1
fi
//给脚本执行权限
[root@localhost etc]# cd /scripts/
[root@localhost scripts]# ls
check_process.sh
[root@localhost scripts]# chmod +x check_process.sh
[root@localhost scripts]# ll
total 4
-rwxr-xr-x. 1 root root 101 Jul 10 19:58 check_process.sh

测试脚本

//先停掉httpd服务
[root@localhost ~]# systemctl stop httpd.service
[root@localhost ~]# ps -ef | grep -v grep | grep -c httpd
0     //此时进程数为0

//运行脚本
[root@localhost scripts]# bash check_process.sh
1    //进程数不等于5时打印为1

//查看zabbix_server服务端是否能打印
[root@zabbix_server ~]# zabbix_get -s 192.168.31.131 -k check_process_httpd
1

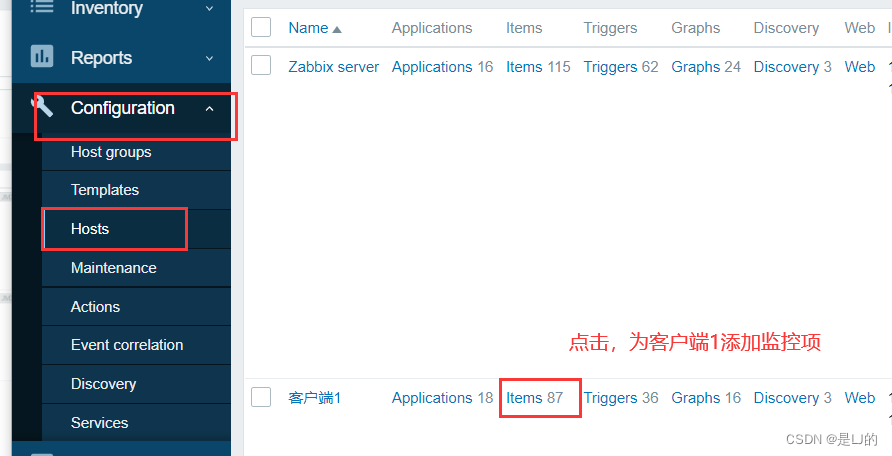

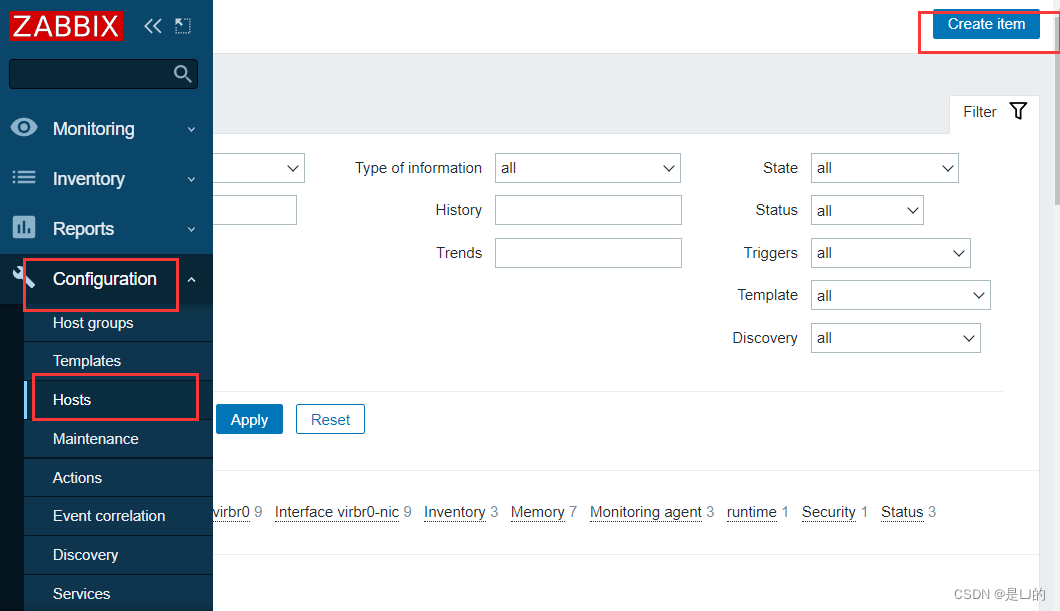

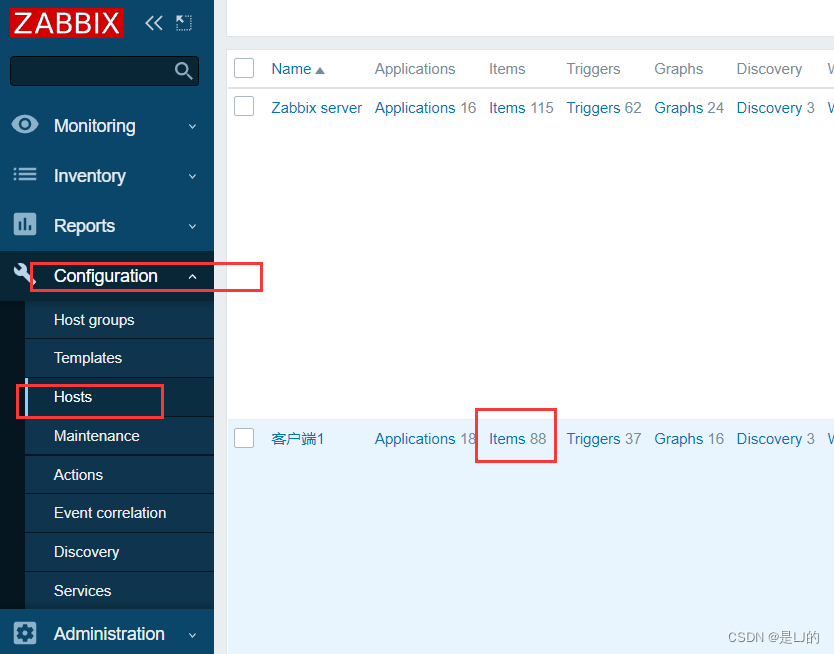

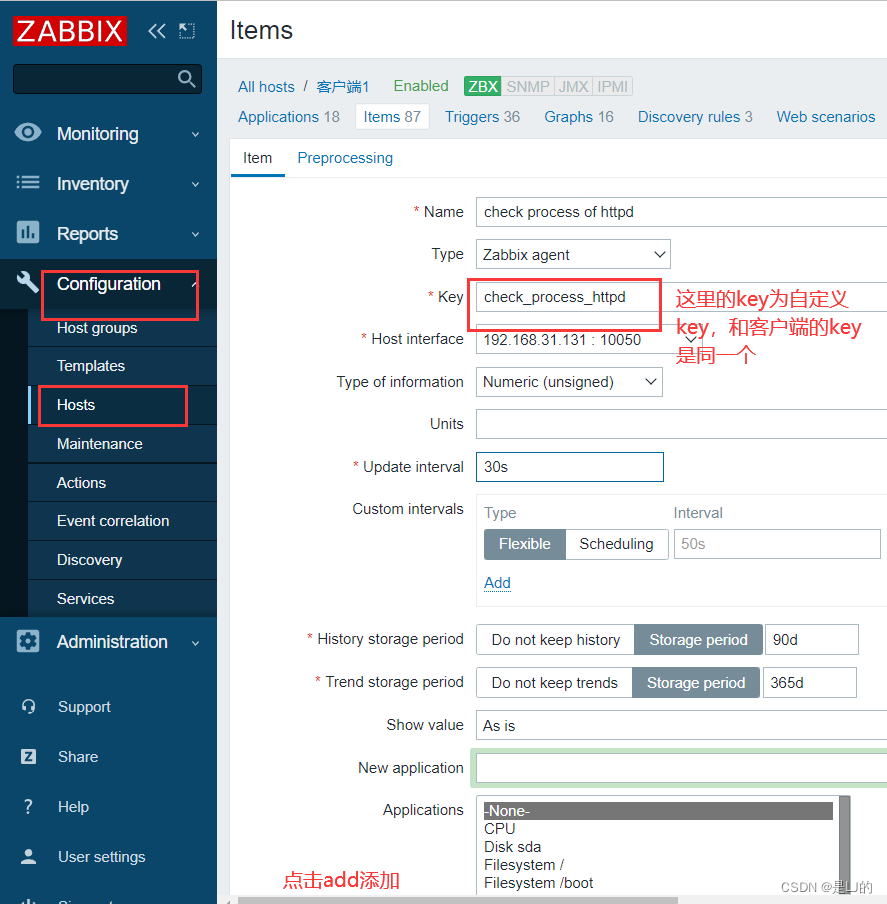

添加监控项

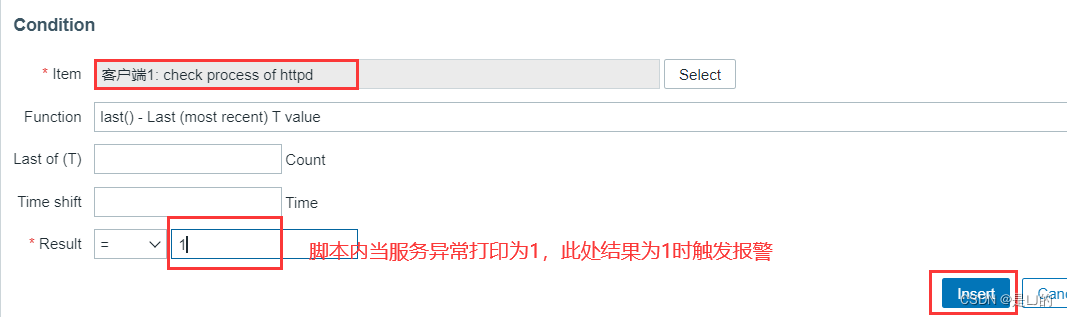

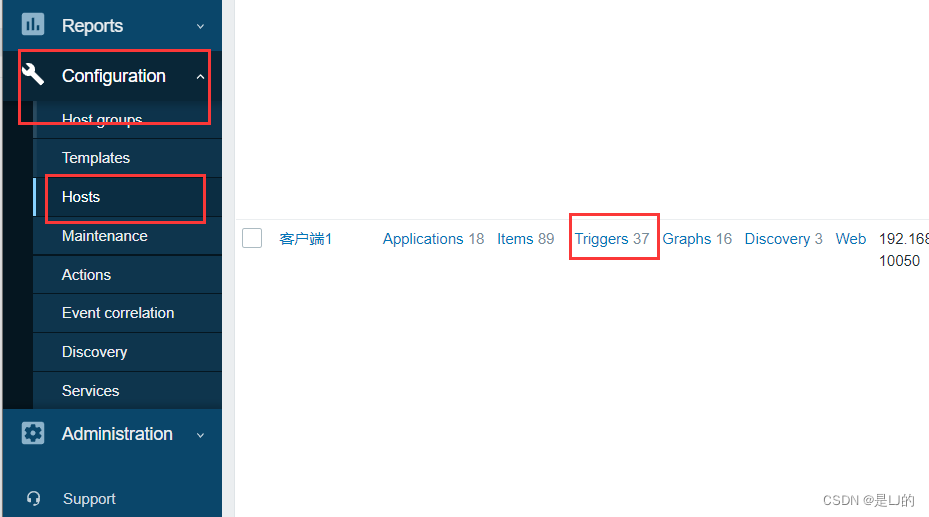

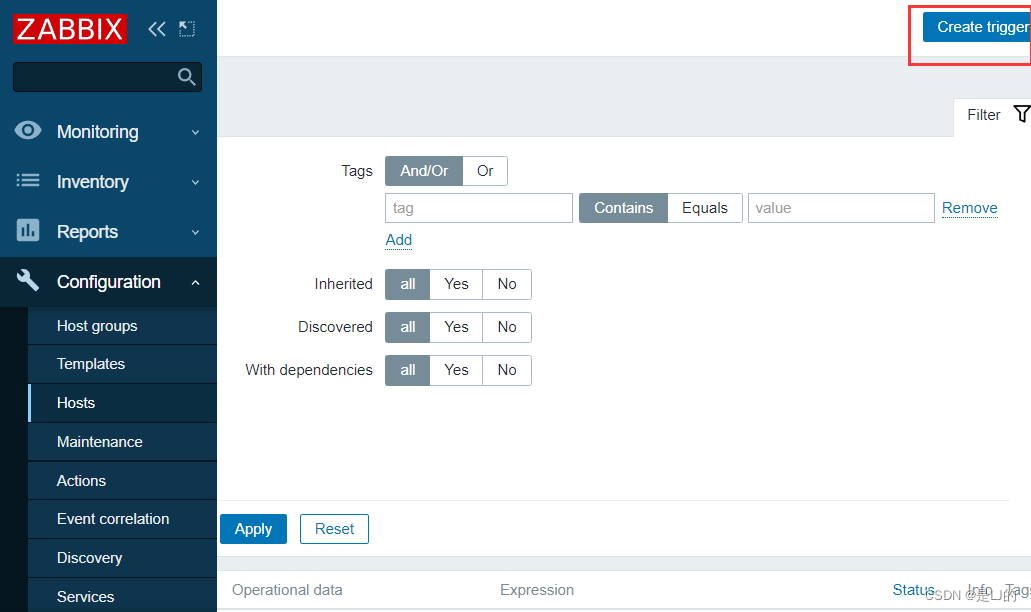

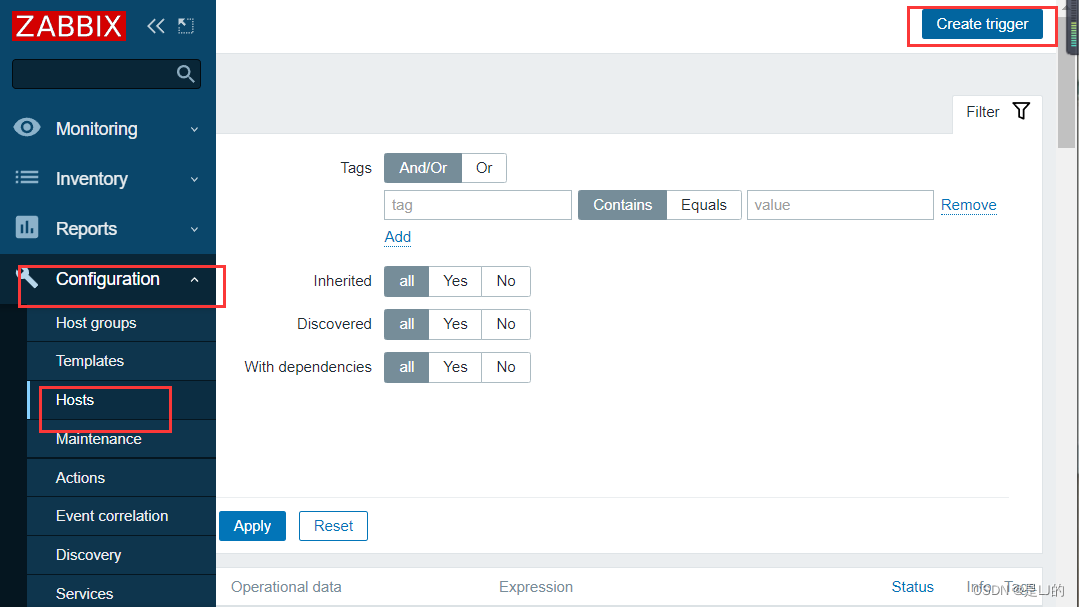

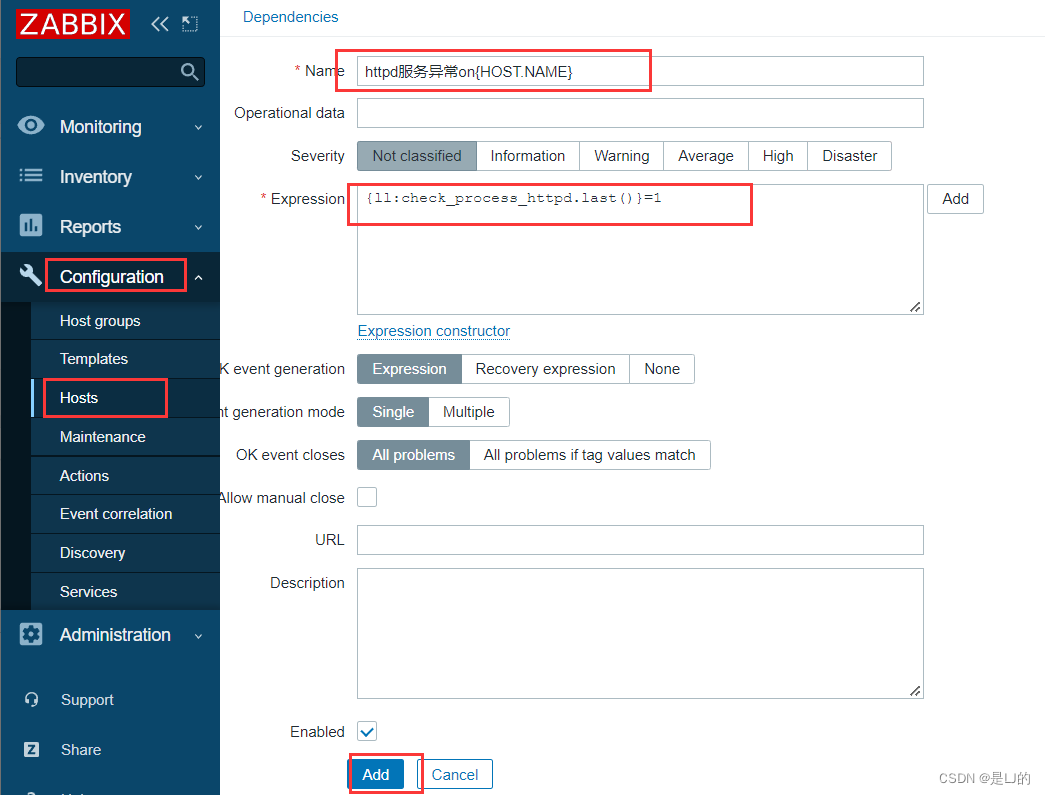

添加触发器

优化

//优化脚本
[root@localhost scripts]# vim check_process.sh
#!/bin/bash
  //"grep|$0" 过滤脚本自身 $1脚本执行时后面的参数
count=$(ps -ef | grep -Ev "grep|$0" | grep -c $1)
if [ $count -eq 0 ];then //当count 等于0 时打印1  因为正常程序执行都会有进程 所以不可能计数为0
    echo '1'
else
    echo '0'   //没问题打印0
fi

//此时httpd是关闭的，所以打印应该为1
[root@localhost scripts]# systemctl status httpd
● httpd.service - The Apache HTTP Server
   Loaded: loaded (/usr/lib/systemd/system/httpd.service; disabled;>
   Active: inactive (dead)
     Docs: man:httpd.service(8)

//执行脚本， 添加$1的参数 打印结果为1 说明没有httpd相关的进程
[root@localhost scripts]# bash check_process.sh httpd
1

//修改配置文件
[root@localhost ~]# cd /usr/local/etc/
[root@localhost etc]# ls
zabbix_agentd.conf  zabbix_agentd.conf.d
[root@localhost etc]# vim zabbix_agentd.conf

UserParameter=check_process[*],/bin/bash /scripts/check_process.sh $1

//重启zabbix_agentd
[root@localhost etc]# pkill zabbix_agentd
[root@localhost etc]# zabbix_agentd


//在服务端测试
[root@zabbix_server ~]# zabbix_get -s 192.168.31.131 -k check_process[httpd]
1         //httpd是停止的
[root@zabbix_server ~]# zabbix_get -s 192.168.31.131 -k check_process[zabbix]
0          //zabbix是正常运行的

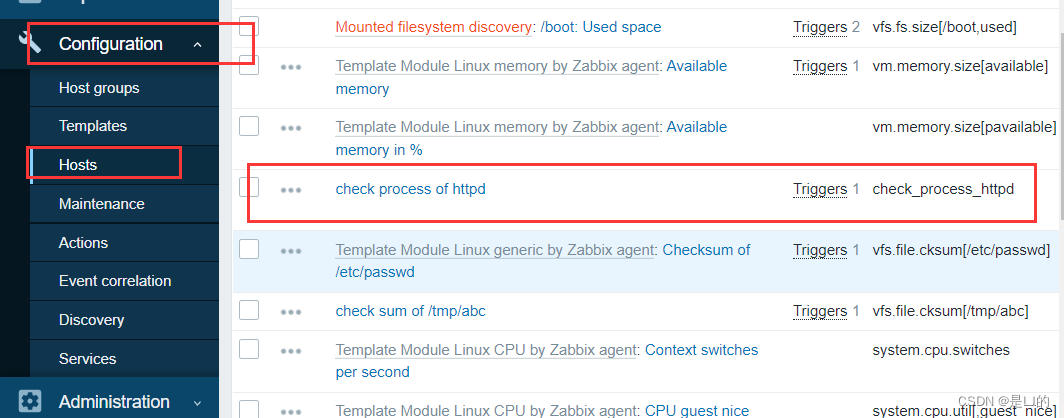

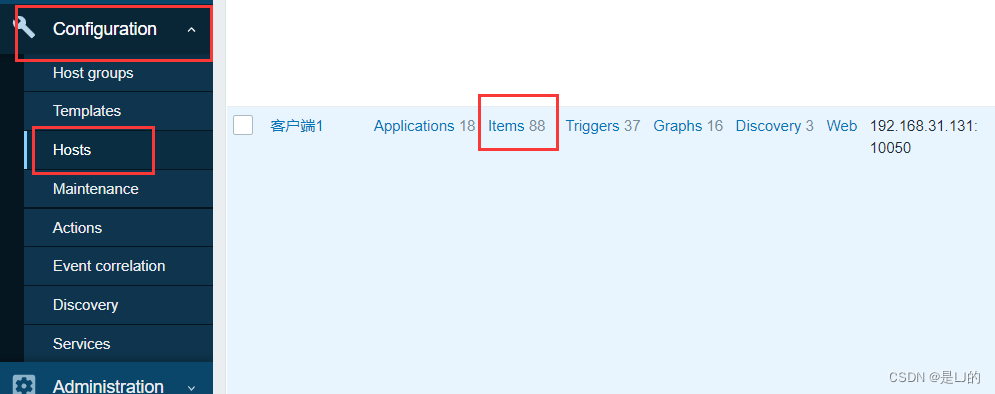

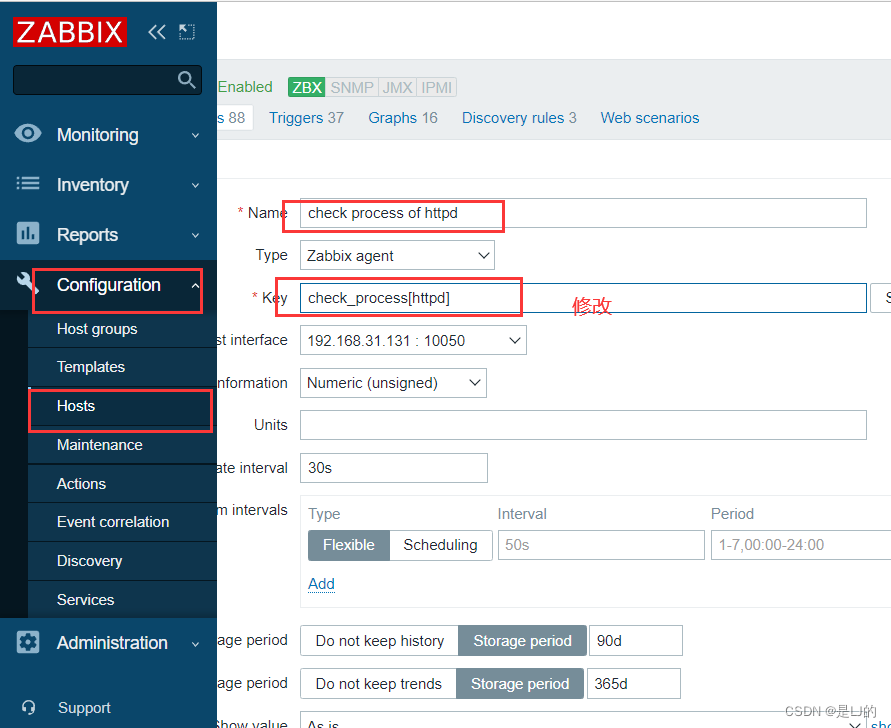

zabbix网页修改监控项

2.监控mysql进程

//先在客户端上安装mysql服务
[root@localhost ~]#  yum -y install mysql mysql-server   //安装mysql 和mysql服务
[root@localhost ~]# systemctl start mysqld.service
[root@localhost ~]# systemctl status mysqld.service
● mysqld.service - MySQL 8.0 database server
   Loaded: loaded (/usr/lib/systemd/system/mysqld.service; disabled>
   Active: active (running) since Sun 2022-07-10 20:47:20 CST; 4min>
  Process: 55335 ExecStartPost=/usr/libexec/mysql-check-upgrade (co>
  Process: 55211 ExecStartPre=/usr/libexec/mysql-prepare-db-dir mys>
  Process: 55187 ExecStartPre=/usr/libexec/mysql-check-socket (code>
 Main PID: 55291 (mysqld)
   Status: "Server is operational"
    Tasks: 37 (limit: 11088)
   Memory: 444.8M
   CGroup: /system.slice/mysqld.service
           └─55291 /usr/libexec/mysqld --basedir=/usr

Jul 10 20:47:15 localhost.localdomain systemd[1]: Starting MySQL 8.>
Jul 10 20:47:15 localhost.localdomain mysql-prepare-db-dir[55211]: >
Jul 10 20:47:20 localhost.localdomain systemd[1]: Started MySQL 8.0>

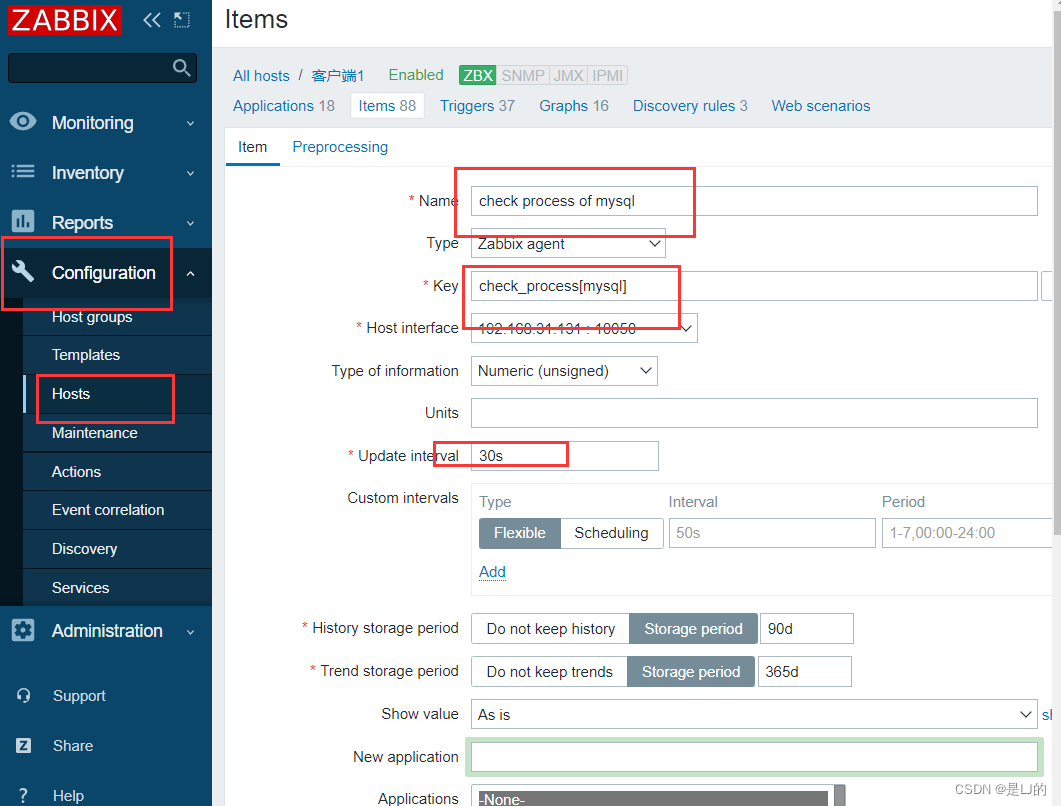

zabbix网页添加监控项

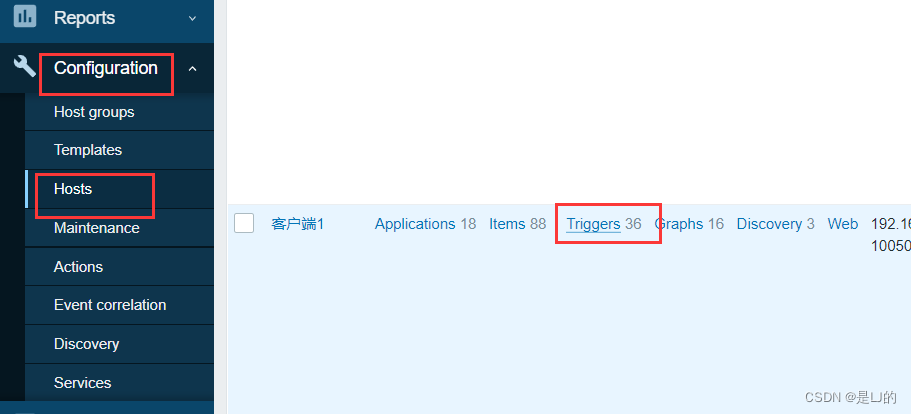

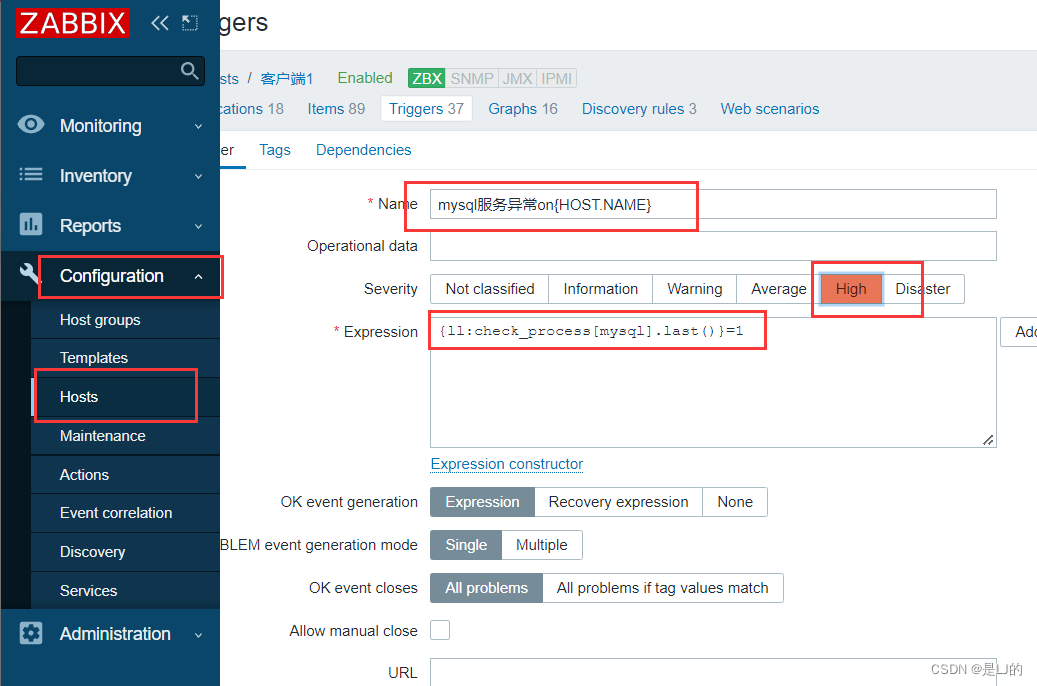

添加触发器

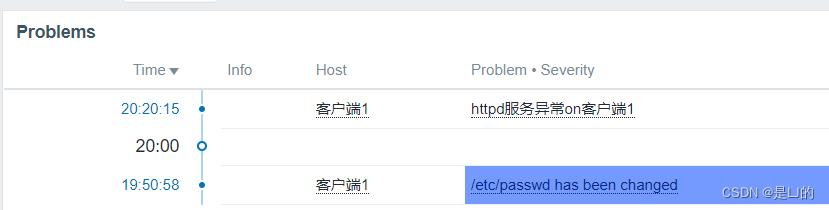

测试

//关闭mysql服务
[root@localhost ~]# systemctl stop mysqld.service

自定义监控日志（httpd）

//把脚本传到/scripts目录下
[root@localhost scripts]# ls
log.py

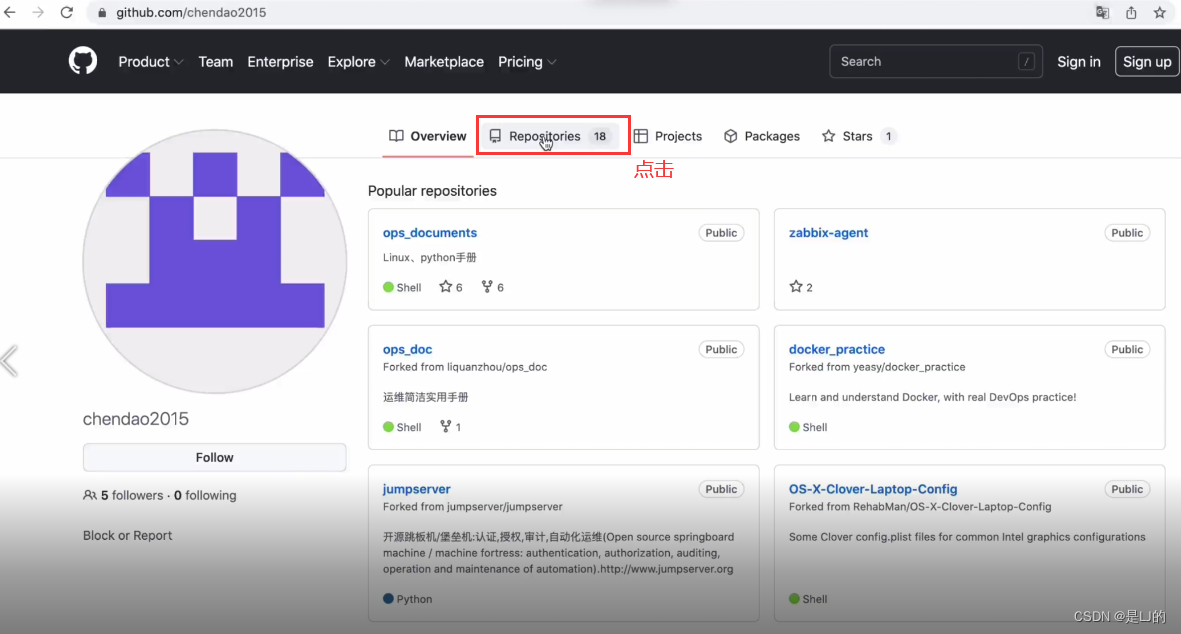

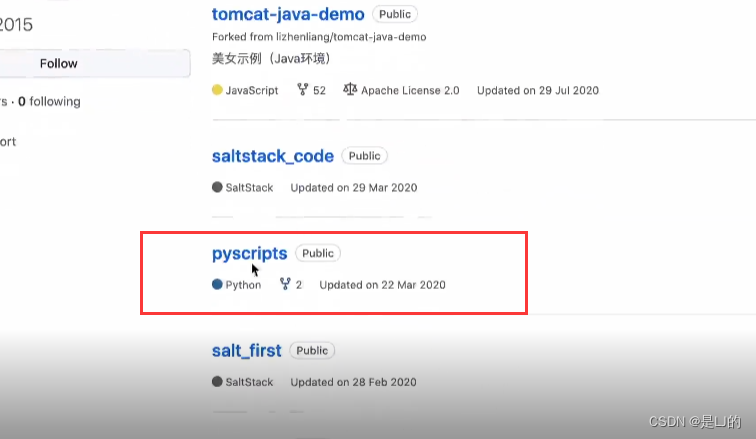

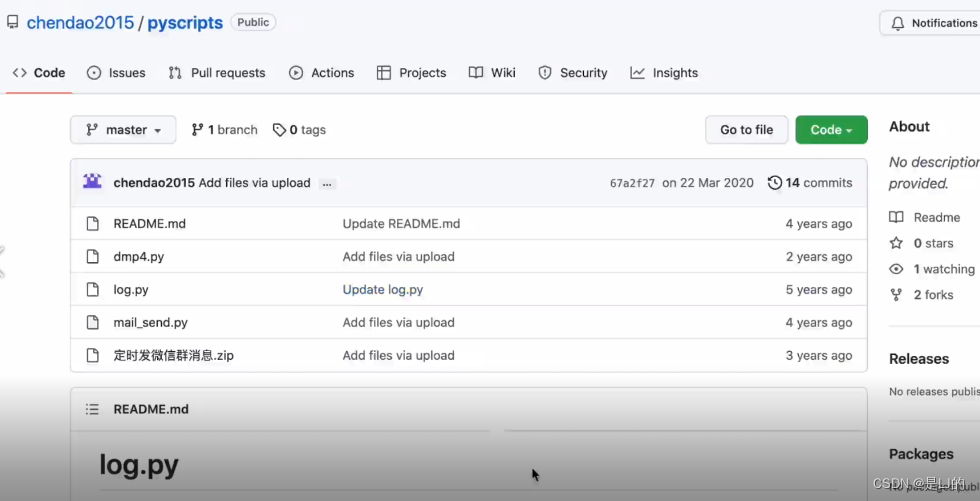

脚本下载地址 https://github.com/chendao2015/pyscripts

[root@localhost scripts]# chmod +x log.py    //给脚本log执行权限
[root@localhost scripts]# ll
总用量 8
-rwxr-xr-x. 1 root root  124 7月   9 11:17 check_process.sh
-rwxr-xr-x. 1 root root 1854 7月   9 16:15 log.py

[root@localhost ~]# setfacl -m u:zabbix:rx /var/log/httpd   //让zabbix用户对httpd的日志目录有读权限
[root@localhost ~]# getfacl /var/log/httpd/
getfacl: Removing leading '/' from absolute path names
# file: var/log/httpd/
# owner: root
# group: root
user::rwx
user:zabbix:r-x
group::---
mask::r-x
other::---


//测试脚本
[root@localhost ~]# yum install python3 -y   //安装python

[root@localhost scripts]# python3 log.py /var/log/httpd/error_log    //正常执行结果为0
0
[root@localhost scripts]# echo 'Error' >> /var/log/httpd/error_log   //向日志中添加Error
[root@localhost scripts]# python3 log.py /var/log/httpd/error_log    //脚本检查到Error  打印1
1
[root@localhost scripts]# python3 log.py /var/log/httpd/error_log    //再次执行 因为日志是实时刷新的所以这次 显示无错误 打印0
0

[root@localhost scripts]# cat /tmp/logseek    //logseek记录查询的位置
3851 //此时是3851
     [root@localhost scripts]# echo 'fshwehdcuh' >> /var/log/httpd/error_log
[root@localhost scripts]# python3 log.py /var/log/httpd/error_log   //执行脚本
0
[root@localhost scripts]# cat /tmp/logseek //再次查看
3873  //记录变为了3873


[root@localhost scripts]# ll /tmp/logseek
-rw-r--r--. 1 root root 4 7月   9 17:07 /tmp/logseek  //当网页使用时没有权限
[root@localhost scripts]# rm -rf /tmp/logseek    //脚本测试结束后可以删掉 网页会自动创建


//配置zabbix_agentd.conf文件,添加如下内容
[root@localhost etc]# vim zabbix_agentd.conf
UserParameter=check_logs[*],/usr/bin/python3 /scripts/log.py $1 $2 $3   //可以传更多的参数

[root@localhost ~]# pkill zabbix_agentd
[root@localhost ~]# zabbix_agentd   //重启让文件生效
[root@localhost ~]# ss -antl
State   Recv-Q  Send-Q    Local Address:Port      Peer Address:Port  Process
LISTEN  0       128             0.0.0.0:22             0.0.0.0:*
LISTEN  0       5             127.0.0.1:631            0.0.0.0:*
LISTEN  0       128             0.0.0.0:10050          0.0.0.0:*

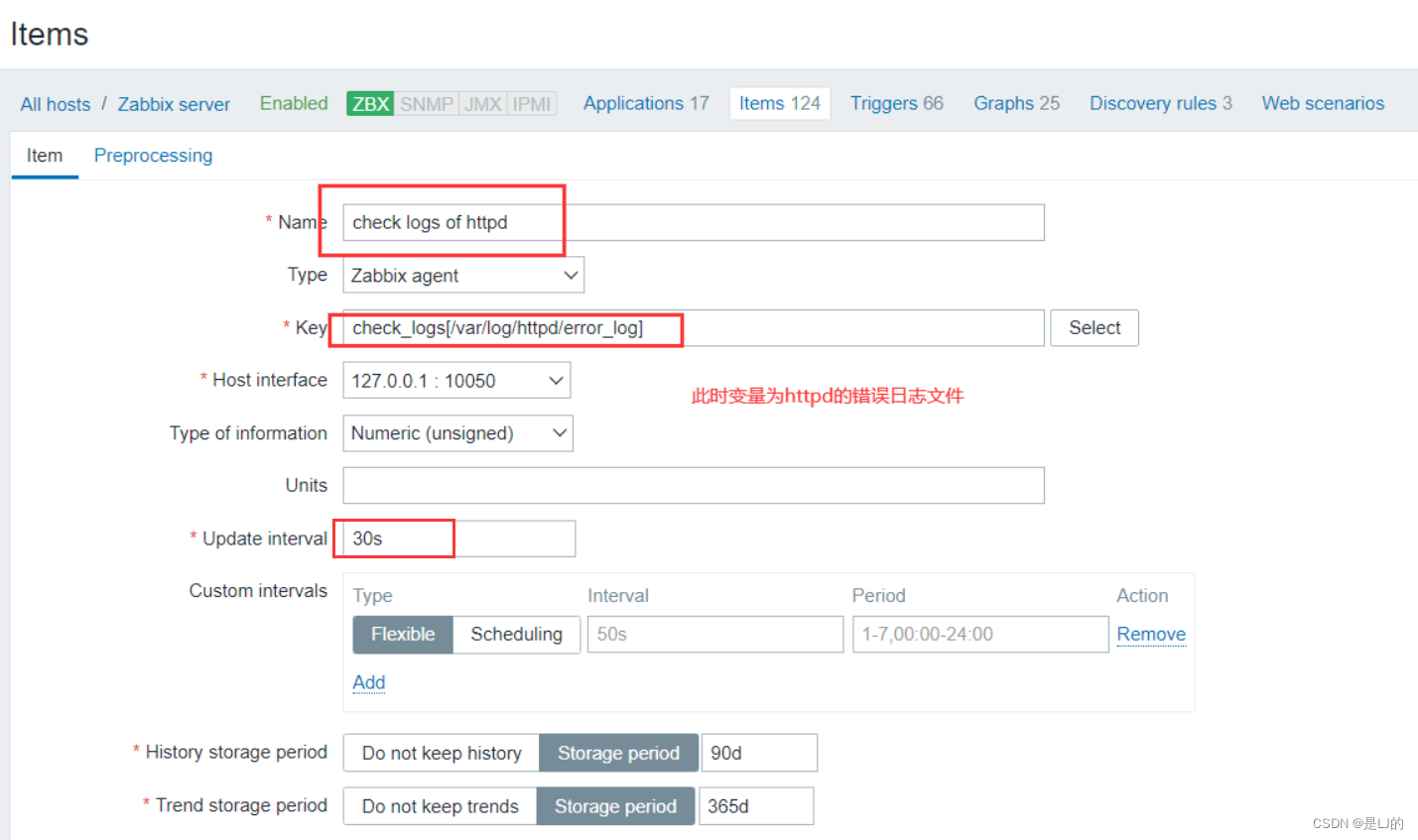

zabbix网页添加监控项

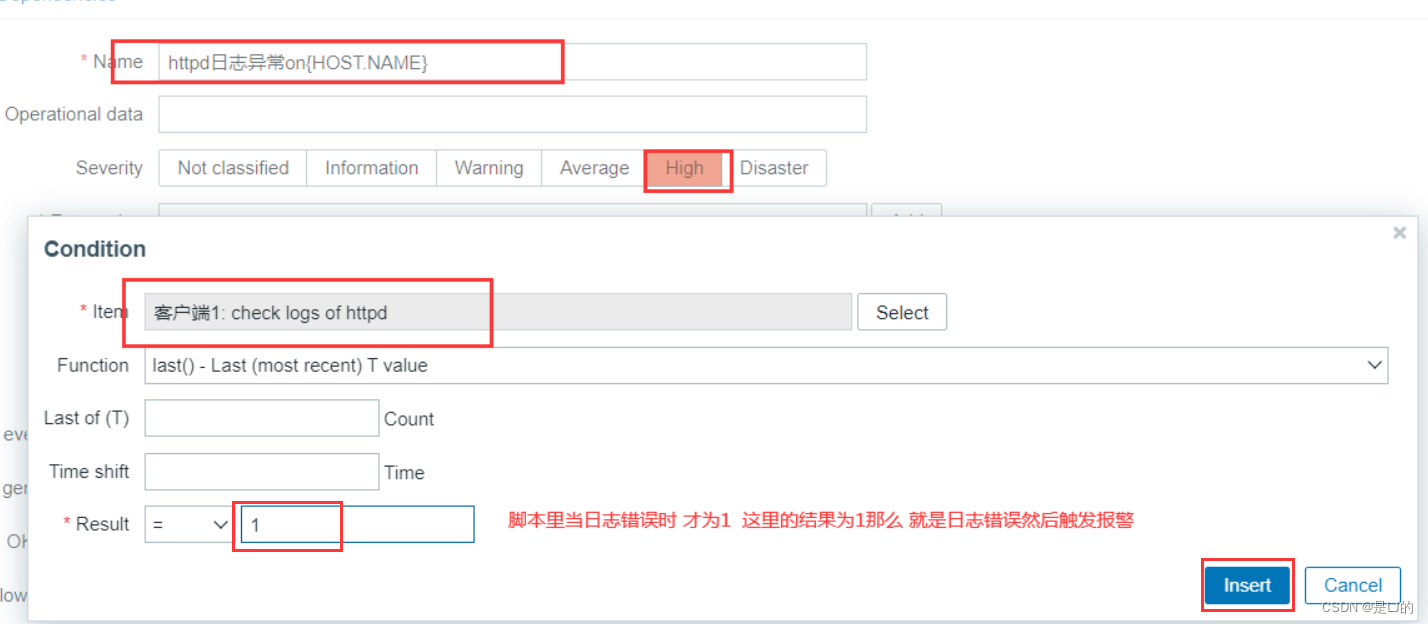

添加触发器

测试

//添加Error 到httpd的错误日志里
[root@localhost scripts]# echo 'Error' >> /var/log/httpd/error_log
