zabbix-server 高可用搭建

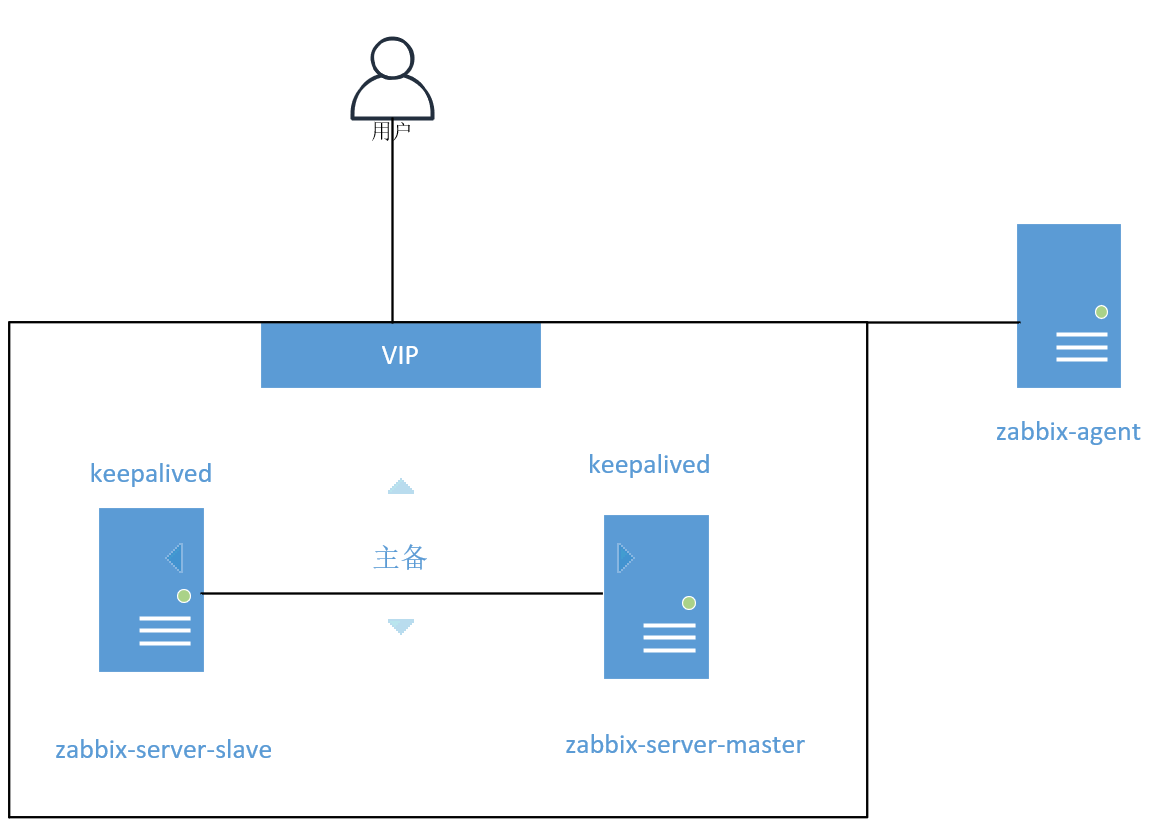

一、架构图如下

二、环境规划

ip地址	主机名	服务	系统
192.168.25.249	mysql	mysql8.0	Rocky 10
192.168.25.248	zabbix-server-slave	zabbix-server+keepalive+zabbix-agent2	Rocky 10
192.168.25.234	zabbix-server-master	zabbix-server+keepalive+zabbix-agent2	Rocky 10
192.168.25.247	zabbix-agent	zabbix-agent2	Rocky 10

三、zabbix-server搭建

1. mysql数据安装

dnf -y install http://repo.mysql.com/mysql80-community-release-el9.rpm
dnf -y install mysql-community-server --nogpgcheck
systemctl enable mysqld --now

修改数据库root密码：

pw=$(grep 'temporary password'  /var/log/mysqld.log|awk -F'root@localhost:' '{print $2}'| tr -d " ")
mysql -uroot -p"$pw" -e "ALTER USER 'root'@'localhost' IDENTIFIED BY 'Mysql#2025';" --connect-expired-password

• root密码：Mysql#2025

创建zabbix用户和数据库，并将zabbix数据库授权给zabbix用户：

mysql -uroot -p'Mysql#2025' -e "create database zabbix character set utf8mb4 collate utf8mb4_bin;"
mysql -uroot -p'Mysql#2025' -e "create user zabbix@'%' identified  by 'Zabbix#2025'"
mysql -uroot -p'Mysql#2025' -e "grant all privileges on zabbix.* to zabbix@'%';"
mysql -uroot -p'Mysql#2025' -e "set global log_bin_trust_function_creators = 1;"

导入mysql初始化数据库：

rpm -Uvh https://repo.zabbix.com/zabbix/7.0/rocky/10/x86_64/zabbix-release-latest-7.0.el10.noarch.rpm
dnf clean all
dnf -y install zabbix-sql-scripts
zcat /usr/share/zabbix-sql-scripts/mysql/server.sql.gz | mysql --default-character-set=utf8mb4 -uzabbix -p'Zabbix#2025' zabbix
mysql -uroot -p'Mysql#2025' -e "set global log_bin_trust_function_creators = 0;"
mysql -uroot -p'Mysql#2025' -e "FLUSH PRIVILEGES;"

2. 安装zabbix-server

安装zabbix-server两台zabbix-server都要安装

rpm -Uvh https://repo.zabbix.com/zabbix/7.0/rocky/10/x86_64/zabbix-release-latest-7.0.el10.noarch.rpm
dnf clean all
dnf -y install zabbix-server-mysql zabbix-web-mysql zabbix-nginx-conf zabbix-sql-scripts zabbix-selinux-policy zabbix-agent2
dnf -y install zabbix-agent2-plugin-mongodb zabbix-agent2-plugin-mssql zabbix-agent2-plugin-postgresql

修改/etc/zabbix/zabbix_server.conf配置文件设置数据库信息：

DBName=zabbix
DBUser=zabbix
DBPort=3306
DBHost=192.168.25.249
DBPassword=Zabbix#2025

启动zabbix-server

systemctl start zabbix-server zabbix-agent2 nginx php-fpm
systemctl enable zabbix-server zabbix-agent2 nginx php-fpm

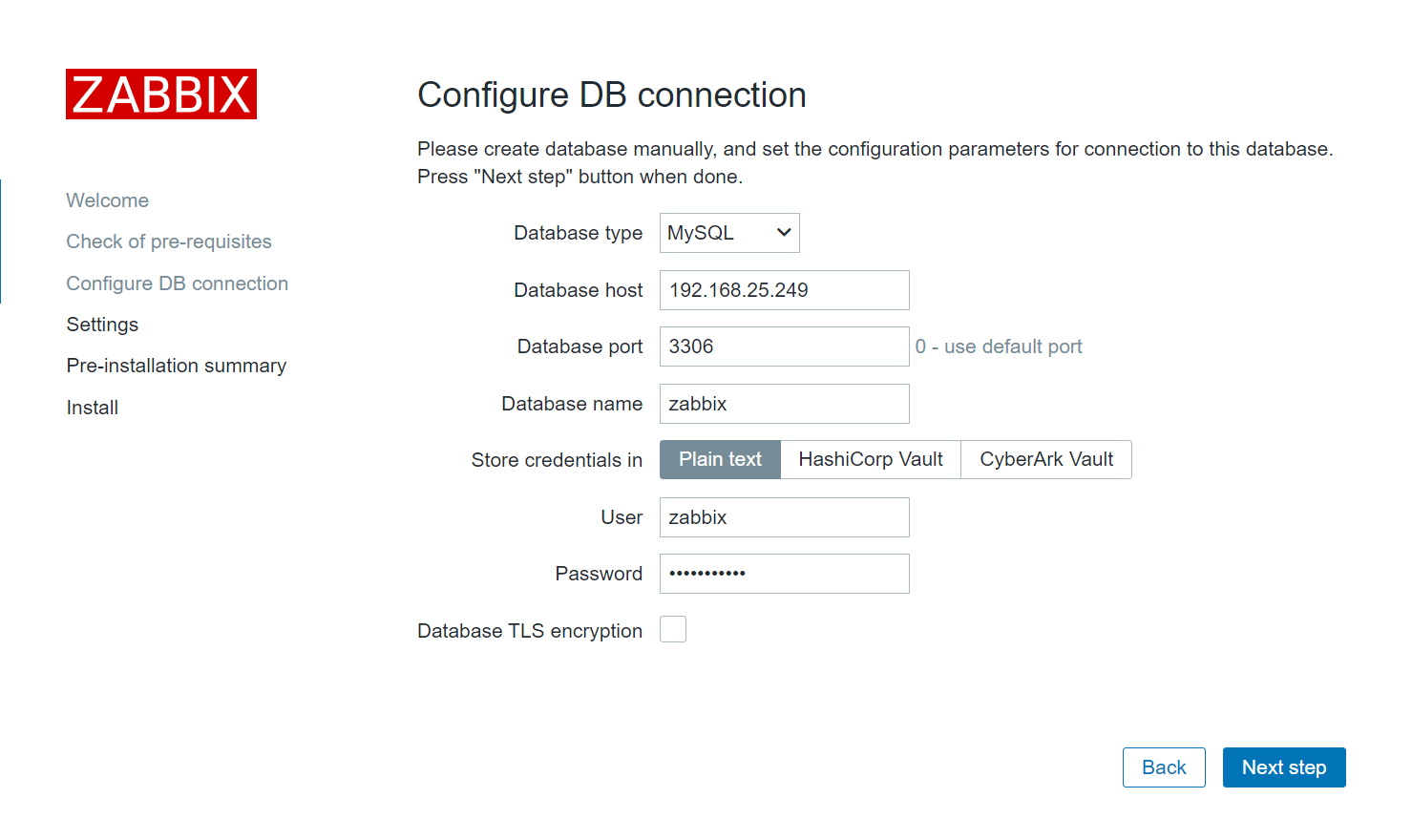

访问web ui配置数据库信息，两台都要：

3. 主备配置

修改/etc/zabbix/zabbix_server.conf文件：

zabbix-server-master:

HANodeName=zabbix-server-master
NodeAddress=192.168.25.234:10051

zabbix-server-slave：

HANodeName=zabbix-server-slave
NodeAddress=192.168.25.248:10051

• HANodeName ：主机名
• NodeAddress ：zabbix server端口地址

重启zabbix-sever

systemctl restart zabbix-server

查看日志：

grep "HA manager started" /var/log/zabbix/zabbix_server.log

备节点：

HA manager started in standby mode

主节点：

HA manager started in active mode

当某个节点处理主节点时，备节点就会被停止。

四、keepalived实现高可用

1. 安装keepalived

两台都要安装

dnf -y install keepalived

2. 修改keepalived配置

192.168.25.234：

/etc/keepalived/keepalived.conf:

global_defs {
   router_id zabbix-server01    # 唯一标识符
   vrrp_skip_check_adv_addr 1
}

vrrp_script check_zabbix {
    script "/etc/keepalived/scripts/check_zabbix.sh"
    interval 3
    timeout 1

}

vrrp_instance VI_1 {
    state BACKUP                # 两台主机都设置为BACKUP,通过优先级决定谁是MASTER
    nopreempt                   # 抢占模式
    interface ens160            # 指定VIP地址所在的接口
    virtual_router_id 51                # 虚拟路由组ID，主备需要一致，确保处于同一组
    priority 100                        # 优先级
    advert_int 1                        # 发送vrrp心跳报文的间隔/s
    authentication {    # 认证，主备需要一致
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {         # VIP可以多个，地址不能重复，需要和当前DIP处于同一网段。
        192.168.25.100
    }

    track_script {
        check_zabbix
    }
}

192.168.25.248：

/etc/keepalived/keepalived.conf:

global_defs {
   router_id zabbix-server02                    # 唯一标识符
   vrrp_skip_check_adv_addr 1
}

vrrp_script check_zabbix {
    script "/etc/keepalived/scripts/check_zabbix.sh"
    interval 3
    timeout 1
}

vrrp_instance VI_1 {
    state BACKUP                # 两台主机都设置为BACKUP,通过优先级决定谁是MASTER
    interface ens160            # 指定VIP地址所在的接口
    nopreempt                   # 非抢占模式
    virtual_router_id 51                # 虚拟路由组ID，主备需要一致，确保处于同一组
    priority 99                        # 优先级
    advert_int 1                        # 发送vrrp心跳报文的间隔/s
    authentication {    # 认证，主备需要一致
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {         # VIP可以多个，地址不能重复，需要和当前DIP处于同一网段。
        192.168.25.100
    }

    track_script {
        check_zabbix
    }

}

/etc/keepalived/scripts/check_zabbix.sh:

#!/bin/bash
# Zabbix Server 存活检测脚本
ZABBIX_SERVER_PORT=10051

#检查端口是否监听
if ! ss -tuln | grep -q ":$ZABBIX_SERVER_PORT"; then
    killall keepalived
    exit 1
else
    exit 0
fi

chmod +x check_zabbix.sh

启动keepalived：

systemctl enable keepalived --now




systemctl restart zabbix-server

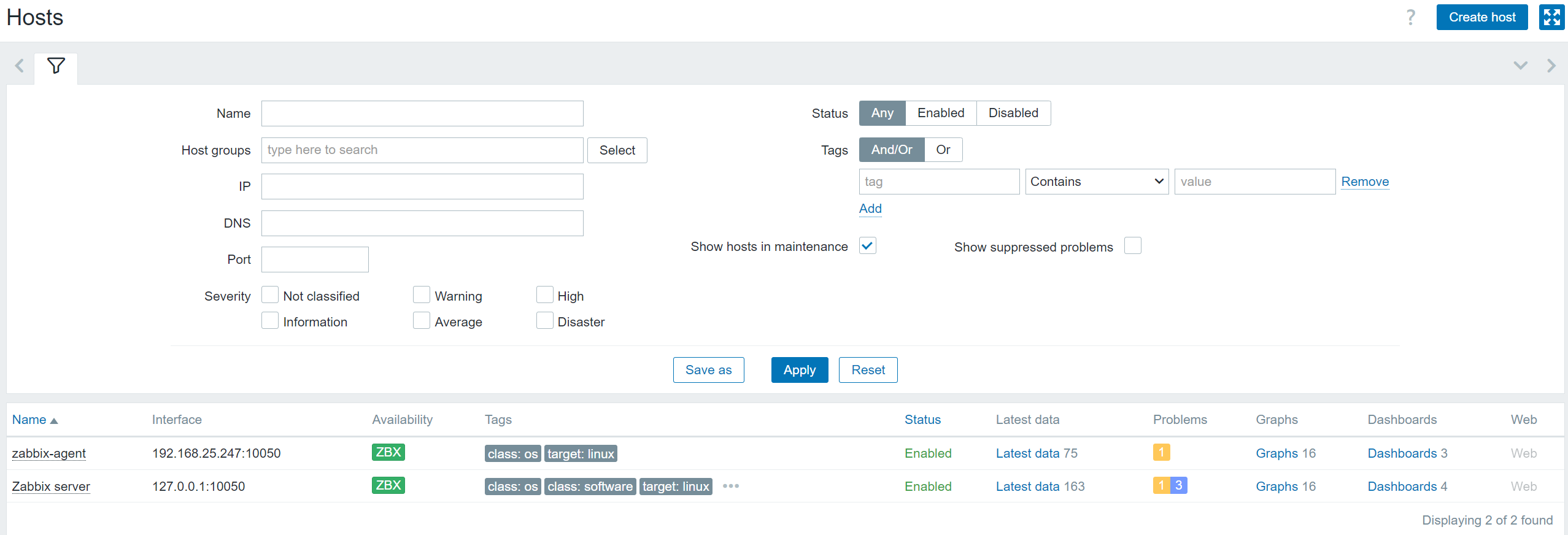

3. 添加agent主机

rpm -Uvh https://repo.zabbix.com/zabbix/7.0/rocky/10/x86_64/zabbix-release-latest-7.0.el10.noarch.rpm
dnf clean all
dnf -y install zabbix-agent2

配置：
/etc/zabbix/zabbix_agent2.conf:

Server=0.0.0.0/0
ServerActive=192.168.25.247
Hostname=zabbix-agent

systemctl enable zabbix-agent2 --now

4. 高可用测试

关闭zabbix 主节点：

systemctl stop zabbix-server

VIP随之会迁移到备节点
