小型校园网配置笔记

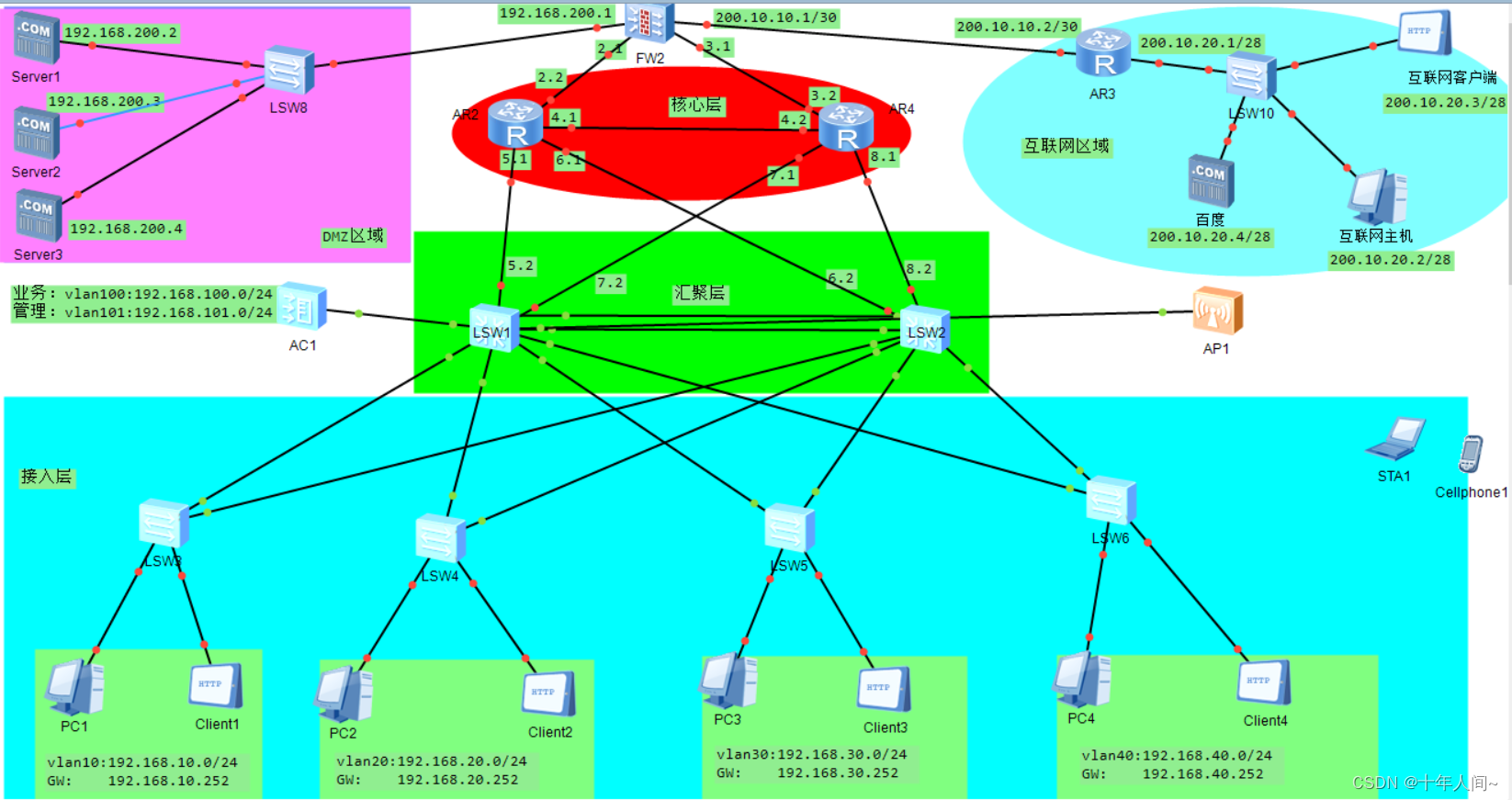

1，搭建网络拓扑图

LSW1:三层交换机命令：

<Huawei>sys

[Huawei]undo info-center enable

Info: Information center is disabled.

[Huawei]vlan batch 10 20 30 40 100 101

[Huawei]int vlan 10

[Huawei-Vlanif10]ip add 192.168.10.254 24  给vlan10配置网关

[Huawei-Vlanif10]vrrp vrid 10 virtual-ip 192.168.10.252  虚拟网关

[Huawei-Vlanif10]vrrp vrid 10 priority 120  指定当前设备的 VRRP 优先级

[Huawei-Vlanif10]vrrp vrid 10 track interface g0/0/1  配置接口跟踪

[Huawei-Vlanif10]vrrp vrid 10 track interface g0/0/3

[Huawei-Vlanif10]quit

[Huawei]int vlan 20

[Huawei-Vlanif20]ip add 192.168.20.254 24

[Huawei-Vlanif20]vrrp vrid 20 virtual-ip 192.168.20.252

[Huawei-Vlanif20]vrrp vrid 20 priority 120

[Huawei-Vlanif20]vrrp vrid 20 track interface g0/0/1

[Huawei-Vlanif20]vrrp vrid 20 track interface g0/0/3

[Huawei]int vlan 30

[Huawei-Vlanif30]ip add 192.168.30.254 24

[Huawei-Vlanif30]vrrp vrid 30 virtual-ip 192.168.30.252

[Huawei-Vlanif30]vrrp vrid 30 track interface g0/0/1

[Huawei-Vlanif30]vrrp vrid 30 track interface g0/0/3

[Huawei]int vlan 40

[Huawei-Vlanif40]ip add 192.168.40.254 24

[Huawei-Vlanif40]vrrp vrid 40 virtual-ip 192.168.40.252

[Huawei-Vlanif40]vrrp vrid 40 track interface g0/0/1

[Huawei-Vlanif40]vrrp vrid 40 track interface g0/0/3

[Huawei-Vlanif40]int vlan 100

[Huawei-Vlanif100]ip add 192.168.100.254 24

[Huawei-Vlanif100]undo shutdown

Info: Interface Vlanif100 is not shutdown.

[Huawei-Vlanif100]qu

[Huawei]vlan batch 5 7   创建vlan5和vlan7应用于上面的5网段和7网段

[Huawei]int vlan 5

[Huawei-Vlanif5]ip add 192.168.5.2 24

[Huawei-Vlanif5]int vlan 7

[Huawei-Vlanif7]ip add 192.168.7.2 24

[Huawei]int g0/0/1

[Huawei-GigabitEthernet0/0/1]port link-type access

[Huawei-GigabitEthernet0/0/1]port default vlan 5

[Huawei-GigabitEthernet0/0/1]int g0/0/3

[Huawei-GigabitEthernet0/0/3]port link-type access

[Huawei-GigabitEthernet0/0/3]port default vlan 7

[Huawei-GigabitEthernet0/0/3]qu

[Huawei]int Eth-Trunk 1

[Huawei-Eth-Trunk1]port link-type trunk   设Eth-Trunk 1 上的端口为 Trunk 端口

[Huawei-Eth-Trunk1]port trunk allow-pass vlan all

[Huawei-Eth-Trunk1]trunkport GigabitEthernet 0/0/2

[Huawei-Eth-Trunk1]trunkport GigabitEthernet 0/0/7

[Huawei-Eth-Trunk1]dis this

#

interface Eth-Trunk1

 port link-type trunk

 port trunk allow-pass vlan 2 to 4094

#

return

[Huawei-Eth-Trunk1]qui

[Huawei]dis eth-trunk 1

Eth-Trunk1's state information is:

WorkingMode: NORMAL         Hash arithmetic: According to SIP-XOR-DIP

Least Active-linknumber: 1  Max Bandwidth-affected-linknumber: 8

Operate status: up          Number Of Up Port In Trunk: 2

--------------------------------------------------------------------------------

PortName                      Status      Weight

GigabitEthernet0/0/2          Up          1               确保都处于开启状态

GigabitEthernet0/0/7          Up          1

以下命令是将此交换机上的其余端口都配置为trunk

[Huawei]interface GigabitEthernet 0/0/5

[Huawei-GigabitEthernet0/0/5]port link-type trunk

[Huawei-GigabitEthernet0/0/5]port trunk allow-pass vlan all

[Huawei-GigabitEthernet0/0/5]interface GigabitEthernet 0/0/6

[Huawei-GigabitEthernet0/0/6]port link-type trunk

[Huawei-GigabitEthernet0/0/6]port trunk allow-pass vlan all

[Huawei-GigabitEthernet0/0/6]interface GigabitEthernet 0/0/9

[Huawei-GigabitEthernet0/0/9]port link-type trunk

[Huawei-GigabitEthernet0/0/9]port trunk allow-pass vlan all

[Huawei-GigabitEthernet0/0/9]interface GigabitEthernet 0/0/12

[Huawei-GigabitEthernet0/0/12]port link-type trunk

[Huawei-GigabitEthernet0/0/12]port trunk allow-pass vlan all

[Huawei-GigabitEthernet0/0/12]interface GigabitEthernet 0/0/8

[Huawei-GigabitEthernet0/0/8]port link-type trunk

[Huawei-GigabitEthernet0/0/8]port trunk pvid vlan 101

[Huawei-GigabitEthernet0/0/8]port trunk allow-pass vlan all

[Huawei]stp enable

[Huawei]stp region-configuration

[Huawei-mst-region]region-name huawei   MST 区域设置一个名称huawei

[Huawei-mst-region]revision-level 5

[Huawei-mst-region]instance 1 vlan 10 20 100

[Huawei-mst-region]instance 2 vlan 30 40

[Huawei-mst-region]active region-configuration 启用

[Huawei]stp instance 1 root primary

[Huawei]stp instance 2 root secondary

undo info-center enable

是一条 Huawei 设备命令，用于关闭设备的信息中心功能。当 undo info-center enable 命令被执行时，信息中心功能将被关闭，设备将不再记录和输出任何日志信息。这条命令通常被用于调试和测试过程中，或者在不需要进行日志记录的情况下，关闭信息中心以减少设备的负载和消耗。

virtual-ip 192.168.10.252

表示设置 VRRP 虚拟 IP 地址为 192.168.10.252。VRRP 虚拟 IP 地址是一组 VRRP 路由器共享的 IP 地址，用于作为默认网关向外提供服务，客户端设备可以将该 IP 地址配置为其默认网关。

vrrp vrid 10 virtual-ip 192.168.10.252

命令的作用是将当前设备配置为一组 VRRP 路由器中的一员，虚拟路由器 ID 为 10，共享的虚拟 IP 地址为 192.168.10.252，并通过 VRRP 协议与其他 VRRP 路由器实现状态同步和故障转移。

vrrp vrid 10：

指定 VRRP 的虚拟路由器 ID，该 ID 必须在 1 到 255 的范围内。

priority 120：
