HashMap知识点总结

HashMap是基于哈希表的 Map 接口实现的，HashMap继承于AbstractMap，实现了Map、Cloneable、java.io.Serializable接口。以key-value键值对的形式存在。在HashMap中，key-value总是会当做一个整体来处理，系统会根据hash算法来来计算key-value的存储位置，我们总是可以通过key快速地存、取value。

1）HashMap的使用

对于HashMap，我们最常使用的方法有：
1、put(Object key,Object value)添加元素
2、get(Object key)根据键来获取对应的值
3、remove(Object key)删除指定key值的元素
4、values()得到value集
5、isEmpty()如果此映射不包含键-值映射关系，则返回 true。
6、entrySet()返回此映射所包含的映射关系的 Set 视图。
7、keySet()返回此映射中所包含的键的 Set 视图

package 集合;

import java.util.HashMap;
import java.util.Iterator;
import java.util.Map;

public class HashMapTest {
    public static void main(String[] args) {
        HashMap<Integer, String> map = new HashMap<>();
        map.put(7, "c罗");
        map.put(12, "马塞洛");
        map.put(9, "本泽马");
        map.put(4, "拉莫斯");
        map.put(14, "卡塞米罗");
        map.put(8, "克罗斯");

        //根据键来获取对应的值
        System.out.println("根据键来获取对应的值:" + map.get(7));
        System.out.println("根据键来获取对应的值:" + map.get(4));

        //删除指定key值的元素
        map.remove(12);

        //得到value集
        System.out.println("value集:" + map.values());

        //判空
        System.out.println(map.isEmpty());

        //set视图
        System.out.println(map.keySet());

        System.out.println("EntrySet遍历:");
        Iterator itr = map.entrySet().iterator();
        while ( itr.hasNext()){
            Map.Entry<Integer, String> entry = (Map.Entry<Integer, String>) itr.next();
            System.out.println(entry.getKey() + entry.getValue());
        }
    }
}

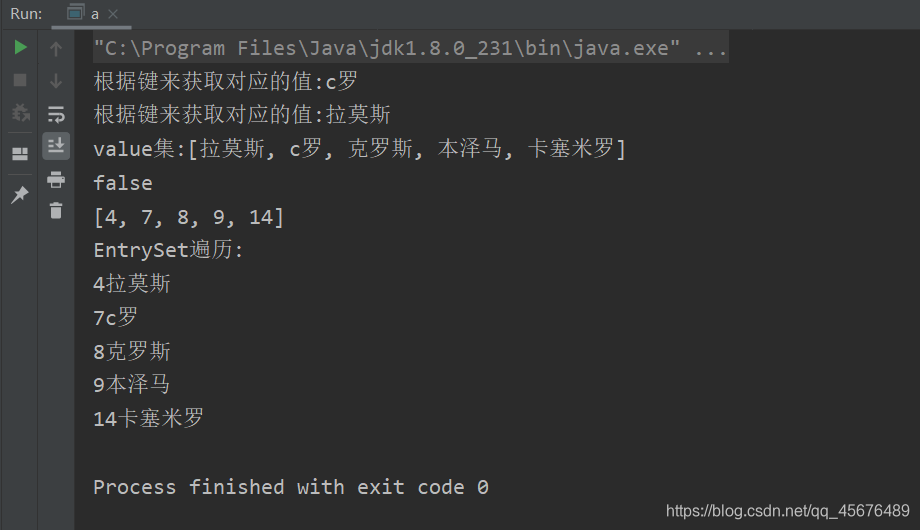

运行结果

2）HashMap底层结构

通过散列函数计算，如果不同的key对应同一个索引位置那么会造成哈希冲突，使用使用链地址法。

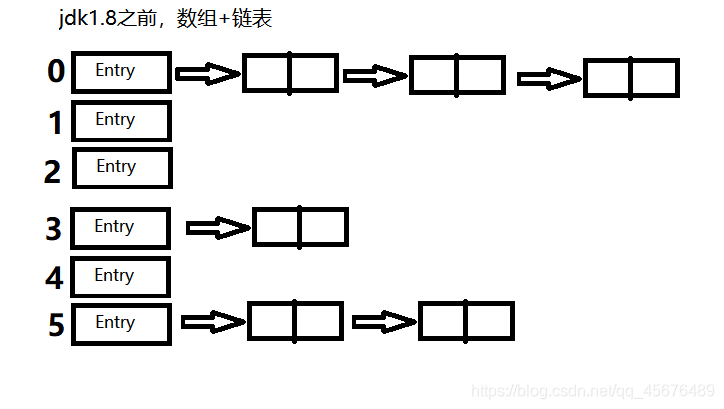

简单来说，HashMap由数组+链表组成，数组是HashMap的主体，链表则是主要为了解决哈希冲突而存在的。如果定位到的数组位置不含链表（当前entry的next指向null）,那么对于查找，添加等操作很快，仅需一次寻址即可；如果定位到的数组包含链表，对于添加操作，其时间复杂度为O(n)，首先遍历链表，存在即覆盖，否则新增；对于查找操作来讲，仍需遍历链表，然后通过key对象的equals方法逐一比对查找。

根据key值通过加密算法计算出数组中的索引index，如果数组的index位置为null，则直接插入，否则遍历index位置的链表判断key是否存在，key存在直接覆盖oldvalue，遍历完key不存在尾插法插入当前链表之后。

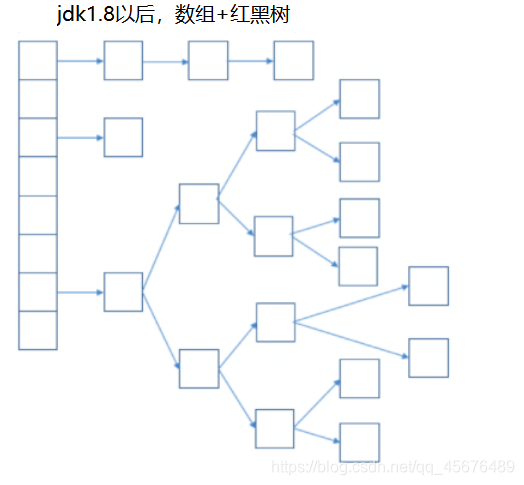

在jdk1.8以后，当链表长度超过阀值8时，将链表转换为红黑树，将查找时间从O(N)变为O(log2 N)，大大减少查找时间。

3）HashMap源码分析

默认容量DEFAULT_INITIAL_CAPACITY 为16。

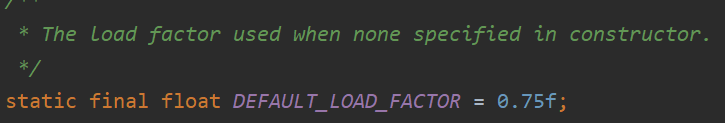

默认加载因子DEFAULT_LOAD_FACTOR为 0.75。

构造函数

   /**
     * Constructs an empty <tt>HashMap</tt> with the specified initial
     * capacity and load factor.
     *
     * @param  initialCapacity the initial capacity
     * @param  loadFactor      the load factor
     * @throws IllegalArgumentException if the initial capacity is negative
     *         or the load factor is nonpositive
     */
    public HashMap(int initialCapacity, float loadFactor) {
    //初始容量不能<0
            if (initialCapacity < 0)
            throw new IllegalArgumentException("Illegal initial capacity: " +
                                               initialCapacity);
        //初始容量不能 > 最大容量值，HashMap的最大容量值为2^30
        if (initialCapacity > MAXIMUM_CAPACITY)
            initialCapacity = MAXIMUM_CAPACITY;
        //加载因子不能 < 0
        if (loadFactor <= 0 || Float.isNaN(loadFactor))
            throw new IllegalArgumentException("Illegal load factor: " +
                                               loadFactor);

        this.loadFactor = loadFactor;
        //设置阈值为  》=初始化容量的 2的n次方的值
        this.threshold = tableSizeFor(initialCapacity);
    }

    /**
     * Constructs an empty <tt>HashMap</tt> with the specified initial
     * capacity and the default load factor (0.75).
     *
     * @param  initialCapacity the initial capacity.
     * @throws IllegalArgumentException if the initial capacity is negative.
     */
    public HashMap(int initialCapacity) {
        //指定初始化容量的构造函数
        this(initialCapacity, DEFAULT_LOAD_FACTOR);
    }

    /**
     * Constructs an empty <tt>HashMap</tt> with the default initial capacity
     * (16) and the default load factor (0.75).
     */
    public HashMap() {
        //默认构造函数，赋值加载因子为默认的0.75f
        this.loadFactor = DEFAULT_LOAD_FACTOR; // all other fields defaulted
    }

    /**
     * Constructs a new <tt>HashMap</tt> with the same mappings as the
     * specified <tt>Map</tt>.  The <tt>HashMap</tt> is created with
     * default load factor (0.75) and an initial capacity sufficient to
     * hold the mappings in the specified <tt>Map</tt>.
     *
     * @param   m the map whose mappings are to be placed in this map
     * @throws  NullPointerException if the specified map is null
     */

     //新建一个哈希表，同时将另一个map m 里的所有元素加入表中
    public HashMap(Map<? extends K, ? extends V> m) {
        this.loadFactor = DEFAULT_LOAD_FACTOR;
        putMapEntries(m, false);
    }

扩容函数

/**
     * Initializes or doubles table size.  If null, allocates in
     * accord with initial capacity target held in field threshold.
     * Otherwise, because we are using power-of-two expansion, the
     * elements from each bin must either stay at same index, or move
     * with a power of two offset in the new table.
     *
     * @return the table
     */
final Node<K,V>[] resize() {
        //oldTab 为当前表的哈希桶
        Node<K,V>[] oldTab = table;
        //当前哈希桶的容量 length
        int oldCap = (oldTab == null) ? 0 : oldTab.length;
        //当前的阈值
        int oldThr = threshold;
        //初始化新的容量和阈值为0
        int newCap, newThr = 0;
        //如果当前容量大于0
        if (oldCap > 0) {
            //如果当前容量已经到达上限
            if (oldCap >= MAXIMUM_CAPACITY) {
                //则设置阈值是2的31次方-1
                threshold = Integer.MAX_VALUE;
                //同时返回当前的哈希桶，不再扩容
                return oldTab;
            }//否则新的容量为旧的容量的两倍。
            else if ((newCap = oldCap << 1) < MAXIMUM_CAPACITY &&
                     oldCap >= DEFAULT_INITIAL_CAPACITY)//如果旧的容量大于等于默认初始容量16
                //那么新的阈值也等于旧的阈值的两倍
                newThr = oldThr << 1; // double threshold
        }//如果当前表是空的，但是有阈值。代表是初始化时指定了容量、阈值的情况
        else if (oldThr > 0) // initial capacity was placed in threshold
            newCap = oldThr;//那么新表的容量就等于旧的阈值
        else {}//如果当前表是空的，而且也没有阈值。代表是初始化时没有任何容量/阈值参数的情况               // zero initial threshold signifies using defaults
            newCap = DEFAULT_INITIAL_CAPACITY;//此时新表的容量为默认的容量 16
            newThr = (int)(DEFAULT_LOAD_FACTOR * DEFAULT_INITIAL_CAPACITY);//新的阈值为默认容量16 * 默认加载因子0.75f = 12
        }
        if (newThr == 0) {//如果新的阈值是0，对应的是  当前表是空的，但是有阈值的情况
            float ft = (float)newCap * loadFactor;//根据新表容量 和 加载因子 求出新的阈值
            //进行越界修复
            newThr = (newCap < MAXIMUM_CAPACITY && ft < (float)MAXIMUM_CAPACITY ?
                      (int)ft : Integer.MAX_VALUE);
        }
        //更新阈值
        threshold = newThr;
        @SuppressWarnings({"rawtypes","unchecked"})
        //根据新的容量 构建新的哈希桶
            Node<K,V>[] newTab = (Node<K,V>[])new Node[newCap];
        //更新哈希桶引用
        table = newTab;
        //如果以前的哈希桶中有元素
        //下面开始将当前哈希桶中的所有节点转移到新的哈希桶中
        if (oldTab != null) {
            //遍历老的哈希桶
            for (int j = 0; j < oldCap; ++j) {
                //取出当前的节点 e
                Node<K,V> e;
                //如果当前桶中有元素,则将链表赋值给e
                if ((e = oldTab[j]) != null) {
                    //将原哈希桶置空以便GC
                    oldTab[j] = null;
                    //如果当前链表中就一个元素，（没有发生哈希碰撞）
                    if (e.next == null)
                        //直接将这个元素放置在新的哈希桶里。
                        //注意这里取下标 是用 哈希值 与 桶的长度-1 。 由于桶的长度是2的n次方，这么做其实是等于 一个模运算。但是效率更高
                        newTab[e.hash & (newCap - 1)] = e;
                        //如果发生过哈希碰撞 ,而且是节点数超过8个，转化成了红黑树（暂且不谈 避免过于复杂， 后续专门研究一下红黑树）
                    else if (e instanceof TreeNode)
                        ((TreeNode<K,V>)e).split(this, newTab, j, oldCap);
                    //如果发生过哈希碰撞，节点数小于8个。则要根据链表上每个节点的哈希值，依次放入新哈希桶对应下标位置。
                    else { // preserve order
                        //因为扩容是容量翻倍，所以原链表上的每个节点，现在可能存放在原来的下标，即low位， 或者扩容后的下标，即high位。 high位=  low位+原哈希桶容量
                        //低位链表的头结点、尾节点
                        Node<K,V> loHead = null, loTail = null;
                        //高位链表的头节点、尾节点
                        Node<K,V> hiHead = null, hiTail = null;
                        Node<K,V> next;//临时节点 存放e的下一个节点
                        do {
                            next = e.next;
                            //这里又是一个利用位运算 代替常规运算的高效点： 利用哈希值 与 旧的容量，可以得到哈希值去模后，是大于等于oldCap还是小于oldCap，等于0代表小于oldCap，应该存放在低位，否则存放在高位
                            if ((e.hash & oldCap) == 0) {
                                //给头尾节点指针赋值
                                if (loTail == null)
                                    loHead = e;
                                else
                                    loTail.next = e;
                                loTail = e;
                            }//高位也是相同的逻辑
                            else {
                                if (hiTail == null)
                                    hiHead = e;
                                else
                                    hiTail.next = e;
                                hiTail = e;
                            }//循环直到链表结束
                        } while ((e = next) != null);
                        //将低位链表存放在原index处，
                        if (loTail != null) {
                            loTail.next = null;
                            newTab[j] = loHead;
                        }
                        //将高位链表存放在新index处
                        if (hiTail != null) {
                            hiTail.next = null;
                            newTab[j + oldCap] = hiHead;
                        }
                    }
                }
            }
        }
        return newTab;
    }

增，删

/**
     * Associates the specified value with the specified key in this map.
     * If the map previously contained a mapping for the key, the old
     * value is replaced.
     *
     * @param key key with which the specified value is to be associated
     * @param value value to be associated with the specified key
     * @return the previous value associated with <tt>key</tt>, or
     *         <tt>null</tt> if there was no mapping for <tt>key</tt>.
     *         (A <tt>null</tt> return can also indicate that the map
     *         previously associated <tt>null</tt> with <tt>key</tt>.)
     */
    public V put(K key, V value) {
        //先根据key，取得hash值。 再调用上一节的方法插入节点
        return putVal(hash(key), key, value, false, true);
    }
    /**
     * Copies all of the mappings from the specified map to this map.
     * These mappings will replace any mappings that this map had for
     * any of the keys currently in the specified map.
     *
     * @param m mappings to be stored in this map
     * @throws NullPointerException if the specified map is null
     */
    public void putAll(Map<? extends K, ? extends V> m) {
        //将另一个Map的所有元素加入表中，参数evict初始化时为false，其他情况为true
        putMapEntries(m, true);
    }

/**
     * Removes the mapping for the specified key from this map if present.
     *
     * @param  key key whose mapping is to be removed from the map
     * @return the previous value associated with <tt>key</tt>, or
     *         <tt>null</tt> if there was no mapping for <tt>key</tt>.
     *         (A <tt>null</tt> return can also indicate that the map
     *         previously associated <tt>null</tt> with <tt>key</tt>.)
     */
     //如果key对应的value存在，则删除这个键值对。 并返回value。如果不存在 返回null
    public V remove(Object key) {
        Node<K,V> e;
        return (e = removeNode(hash(key), key, null, false, true)) == null ?
            null : e.value;
    }

/**
     * Implements Map.remove and related methods.
     *
     * @param hash hash for key
     * @param key the key
     * @param value the value to match if matchValue, else ignored
     * @param matchValue if true only remove if value is equal
     * @param movable if false do not move other nodes while removing
     * @return the node, or null if none
     */
    final Node<K,V> removeNode(int hash, Object key, Object value,
                               boolean matchValue, boolean movable) {
        // p 是待删除节点的前置节点
        Node<K,V>[] tab; Node<K,V> p; int n, index;
        //如果哈希表不为空，则根据hash值算出的index下 有节点的话。
        if ((tab = table) != null && (n = tab.length) > 0 &&
            (p = tab[index = (n - 1) & hash]) != null) {
            //node是待删除节点
            Node<K,V> node = null, e; K k; V v;
            //如果链表头的就是需要删除的节点
            if (p.hash == hash &&
                ((k = p.key) == key || (key != null && key.equals(k))))
                //将待删除节点引用赋给node
                node = p;
                else if ((e = p.next) != null) {
                //否则循环遍历 找到待删除节点，赋值给node
                if (p instanceof TreeNode)
                    node = ((TreeNode<K,V>)p).getTreeNode(hash, key);
                else {
                    do {
                        if (e.hash == hash &&
                            ((k = e.key) == key ||
                             (key != null && key.equals(k)))) {
                            node = e;
                            break;
                        }
                        p = e;
                    } while ((e = e.next) != null);
                }
            }
            //如果有待删除节点node，  且 matchValue为false，或者值也相等
            if (node != null && (!matchValue || (v = node.value) == value ||
                                 (value != null && value.equals(v)))) {
                if (node instanceof TreeNode)
                    ((TreeNode<K,V>)node).removeTreeNode(this, tab, movable);
                else if (node == p)//如果node ==  p，说明是链表头是待删除节点
                    tab[index] = node.next;
                else//否则待删除节点在表中间
                    p.next = node.next;
                ++modCount;//修改modCount
                --size;//size减1
                afterNodeRemoval(node);
                return node;
            }
        }
        return null;
    }

遍历

/**
     * Returns a {@link Set} view of the mappings contained in this map.
     * The set is backed by the map, so changes to the map are
     * reflected in the set, and vice-versa.  If the map is modified
     * while an iteration over the set is in progress (except through
     * the iterator's own <tt>remove</tt> operation, or through the
     * <tt>setValue</tt> operation on a map entry returned by the
     * iterator) the results of the iteration are undefined.  The set
     * supports element removal, which removes the corresponding
     * mapping from the map, via the <tt>Iterator.remove</tt>,
     * <tt>Set.remove</tt>, <tt>removeAll</tt>, <tt>retainAll</tt> and
     * <tt>clear</tt> operations.  It does not support the
     * <tt>add</tt> or <tt>addAll</tt> operations.
     *
     * @return a set view of the mappings contained in this map
     */
    public Set<Map.Entry<K,V>> entrySet() {
        Set<Map.Entry<K,V>> es;
        return (es = entrySet) == null ? (entrySet = new EntrySet()) : es;
    }

final class EntrySet extends AbstractSet<Map.Entry<K,V>> {
        public final int size()                 { return size; }
        public final void clear()               { HashMap.this.clear(); }
        public final Iterator<Map.Entry<K,V>> iterator() {
            return new EntryIterator();
        }
        public final boolean contains(Object o) {
            if (!(o instanceof Map.Entry))
                return false;
            Map.Entry<?,?> e = (Map.Entry<?,?>) o;
            Object key = e.getKey();
            Node<K,V> candidate = getNode(hash(key), key);
            return candidate != null && candidate.equals(e);
        }
        public final boolean remove(Object o) {
            if (o instanceof Map.Entry) {
                Map.Entry<?,?> e = (Map.Entry<?,?>) o;
                Object key = e.getKey();
                Object value = e.getValue();
                return removeNode(hash(key), key, value, true, true) != null;
            }
            return false;
        }
        public final Spliterator<Map.Entry<K,V>> spliterator() {
            return new EntrySpliterator<>(HashMap.this, 0, -1, 0, 0);
        }
        public final void forEach(Consumer<? super Map.Entry<K,V>> action) {
            Node<K,V>[] tab;
            if (action == null)
                throw new NullPointerException();
            if (size > 0 && (tab = table) != null) {
                int mc = modCount;
                for (int i = 0; i < tab.length; ++i) {
                    for (Node<K,V> e = tab[i]; e != null; e = e.next)
                        action.accept(e);
                }
                if (modCount != mc)
                    throw new ConcurrentModificationException();
            }
        }
    }
