uniapp h5 tabBar兼容IOS手机底部黑线

文章主要讨论了在uniapp开发中遇到的iOS设备底部出现黑线的问题,以及如何通过设置`padding-bottom:constant(safe-area-inset-bottom)`和`padding-bottom:env(safe-area-inset-bottom)`来解决这个问题。同时,文章提供了自定义tabBar的方案,包括在pages.json中配置,隐藏原生tabBar,创建自定义组件,并应用safe-area-inset-bottom进行兼容性适配。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

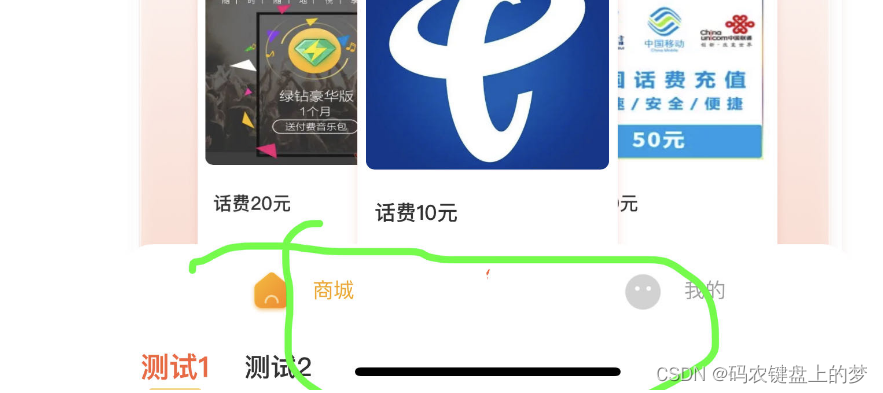

uniapp 兼容IOS手机底部黑线 IOS苹果手机有很多款手机底部都有一条黑线。底部的tabbar 导航栏如果遇到IOS手机则会出现问题。 因为我这边的tabbar导航栏是自己写的,不是用的uniapp自带的,所以如果遇到IOS手机底部有黑线的这种,需要将tabbar导航栏的高度调整一下才可以。 除此之外还有些页面,底部有个按钮之类的,也是需要做兼容处理的。

在这里插入图片描述

uni-app:iPhone的底部安全区域

padding-bottom: constant(safe-area-inset-bottom);
padding-bottom: env(safe-area-inset-bottom);
uni.getSysteminfo({
  success: res => {
    let safeArea = res.safeAreaInsets.bottom;
  }
})

该APi返回一个对象,包含 top right bottom left width height,其中bottom为安全区域高度

对应的兼容情况如下,uni-app的版本2.5.3+使用safeAreaInsets值

safeArea 在竖屏正方向下的安全区域 App、H5、微信小程序
safeAreaInsets 在竖屏正方向下的安全区域插入位置(2.5.3+) App、H5、微信小程序

uniapp自定义tabBar方案

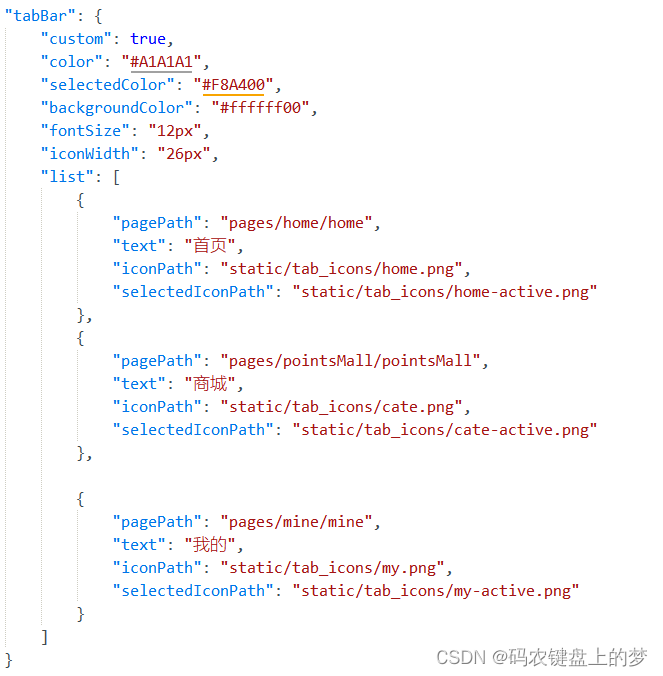

一、pages.json文件中添加tarBar

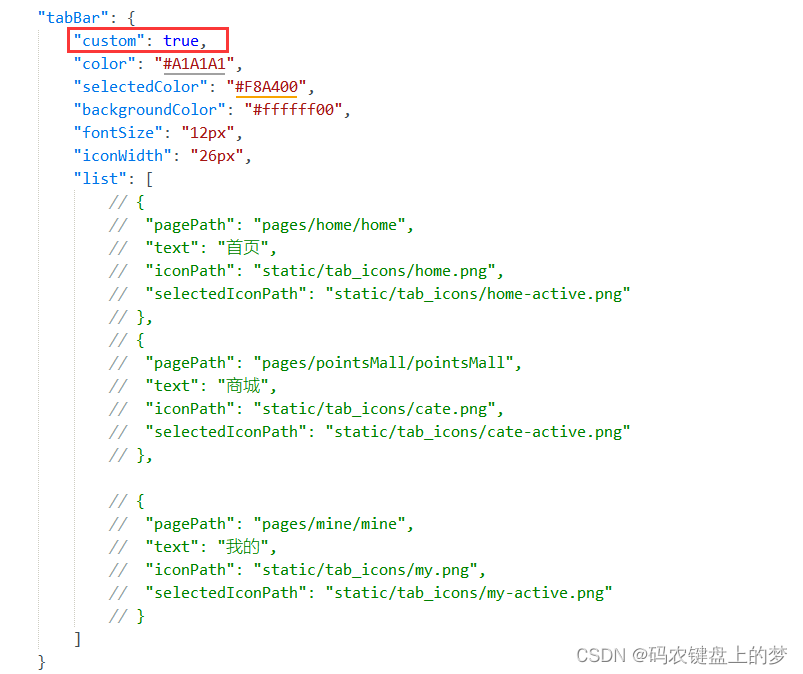

二、把原生的tabBar隐藏起来

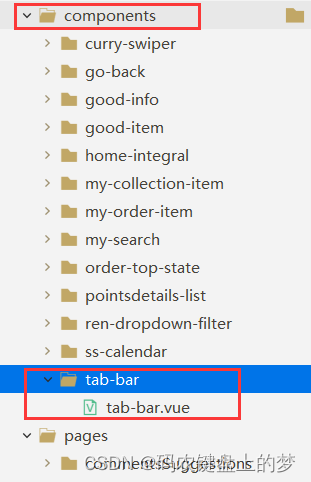

三、自定义一个tabBar组件

        //重点代码

        height: 50px;
        padding-bottom: env(safe-area-inset-bottom); // 适配iphoneX的底部
        padding-bottom: env(safe-area-inset-bottom); /*兼容 IOS>11.2*/

<template>
	<view class="tab-bar">
		<view
			v-for="(item, index) in list"
			:key="index"
			class="tab-bar-item"
			@click="switchTab(item, index)"
		>
			<image
				class="tab_img"
				:src="selected === index ? item.selectedIconPath : item.iconPath"
			></image>
			<view class="tab_text" :style="{ color: selected === index ? selectedColor : color }">
				{{ item.text }}
			</view>
		</view>
	</view>
</template>

<script>
export default {
	props: {
		selected: {
			// 当前选中的tab index
			type: Number,
			default: 0
		}
	},
	data() {
		return {
			color: '#A1A1A1',
			selectedColor: '#F8A400',
			list: [
				{
					pagePath: '/pages/pointsMall/pointsMall',
					text: '商城',
					iconPath: '/static/tab_icons/cate.png',
					selectedIconPath: '/static/tab_icons/cate-active.png'
				},

				{
					pagePath: '/pages/mine/mine',
					text: '我的',
					iconPath: '/static/tab_icons/my.png',
					selectedIconPath: '/static/tab_icons/my-active.png'
				}
			]
		};
	},
	methods: {
		switchTab(item, index) {
			console.log('item', item);
			console.log('index', index);
			uni.reLaunch({
				url: item.pagePath
			});
		}
	}
};
</script>

<style lang="scss">
.tab-bar {
	position: fixed;
	bottom: -1px;
	left: 0;
	right: 0;
	background-color: transparent;
	display: flex;
	justify-content: center;
	align-items: center;

	border-top-right-radius: 20px;
	.tab-bar-item {
		height: 50px;
		padding-bottom: env(safe-area-inset-bottom); // 适配iphoneX的底部
		padding-bottom: env(safe-area-inset-bottom); /*兼容 IOS>11.2*/
		background: white;
		flex: 1;
		text-align: center;
		display: flex;
		justify-content: center;
		align-items: center;
		flex-direction: row;

		.tab_img {
			width: 50rpx;
			height: 50rpx;
		}

		.tab_text {
			font-size: 20rpx;
			margin-left: 9rpx;
		}
	}
}
.tab-bar-item:first-child {
	border-top-right-radius: 20px;
}
.tab-bar-item:last-child {
	border-top-left-radius: 20px;
}
</style>

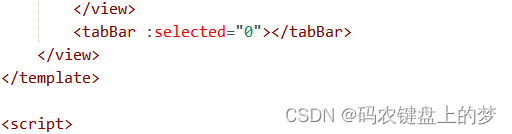

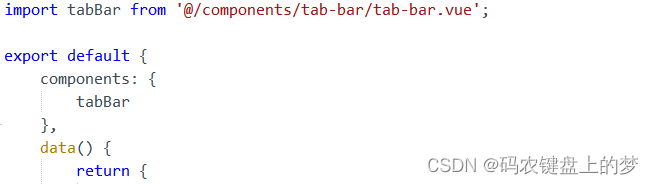

四、引用组件

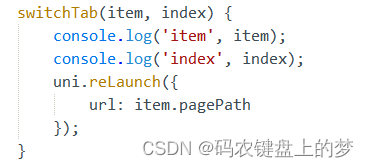

五、路由跳转

### UniApp H5 平台 TabBar 显示不全解决方案 在开发过程中遇到 **TabBar 图片无法正常显示** 或者 **TabBar 被遮挡/显示不全** 的问题时,可以按照以下方法逐一排查并解决问题。 #### 1. 确认图片路径是否正确 如果 `tabBar` 中的图片未加载成功,需确认配置文件中的路径是否无误。通常情况下,`tabBar` 配置项位于项目的 `manifest.json` 文件中。以下是常见的配置方式: ```json { "tabBar": { "list": [ { "pagePath": "pages/index/index", "text": "首页", "iconPath": "static/images/home.png", // 默认状态图标 "selectedIconPath": "static/images/home-active.png" // 选中状态图标 } ] } } ``` 确保 `iconPath` 和 `selectedIconPath` 所指向的资源能够被项目访问到[^1]。 --- #### 2. 检查 CSS 样式冲突 当运行环境切换至 H5 平台时,可能会因为样式覆盖或者屏幕适配问题导致 `tabBar` 不完全展示。可以通过以下方式进行调整: - 添加全局样式的重置规则,防止外部框架干扰: ```css * { margin: 0; padding: 0; box-sizing: border-box; } /* 特殊处理 iPhone X 及以上设备的安全区域 */ html, body { height: 100%; overflow-x: hidden; } .tab-bar-container { position: fixed; bottom: 0; width: 100%; background-color: white; /* 设置背景颜色避免透明效果 */ } ``` 对于 iOS 设备底部安全区的支持,可利用 `env()` 函数动态计算高度差值[^2]: ```css .tab-bar-container { padding-bottom: env(safe-area-inset-bottom); } ``` 此设置会自动适应不同型号的 iPhone 底部圆角设计,从而避免因系统导航栏造成的视觉错位现象。 --- #### 3. 使用 API 获取设备参数 通过调用 `uni.getSystemInfoSync()` 方法获取当前设备的具体尺寸数据,并据此优化布局逻辑。例如,在初始化页面时执行如下代码片段来判断是否存在额外的空间需求: ```javascript const systemInfo = uni.getSystemInfoSync(); if (systemInfo.safeAreaInsets && systemInfo.safeAreaInsets.bottom > 0) { console.log('存在底部安全边距:', systemInfo.safeAreaInsets.bottom); } else { console.log('无需特殊处理'); } ``` 上述脚本可以帮助开发者了解目标终端是否有特殊的 UI 布局约束条件需要满足。 --- #### 4. 更新依赖库版本 部分旧版工具链可能未能妥善支持某些新特性(如 Safe Area),因此建议升级至最新稳定发行版后再尝试重现问题。具体操作步骤包括但不限于以下几个方面: - 升级 CLI 工具; - 替换基础组件模板; - 修改编译选项以启用实验性质的功能开关等。 注意:每次变更前务必做好备份工作以防意外丢失重要资料! --- ### 总结 综上所述,针对 UniAppH5 场景下发生的 TabBar 渲染异常状况可以从四个方面入手分析解决办法——验证素材链接有效性、审查前端表现层定义语句、借助原生接口探测硬件属性以及适时跟进官方文档指导完成必要的技术迭代过程。 ---
