redis的集群搭建

一、redis的集群搭建
1.将之前的redis关掉

[root@server1 utils]# /etc/init.d/redis_6379 stop

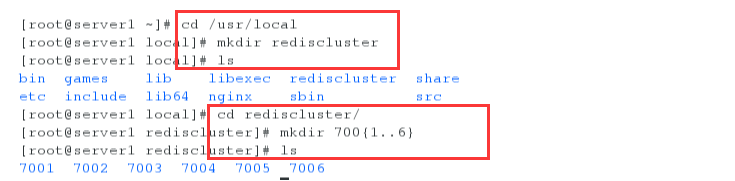

2.搭建集群环境，搭建六个(7001到7006)集群节点

[root@server1 ~]# cd /usr/local
[root@server1 local]# mkdir rediscluster
[root@server1 local]# ls
bin  games    lib    libexec  rediscluster  share
etc  include  lib64  nginx    sbin          src
[root@server1 local]# cd rediscluster/
[root@server1 rediscluster]# mkdir 700{1..6}
[root@server1 rediscluster]# ls
7001  7002  7003  7004  7005  7006

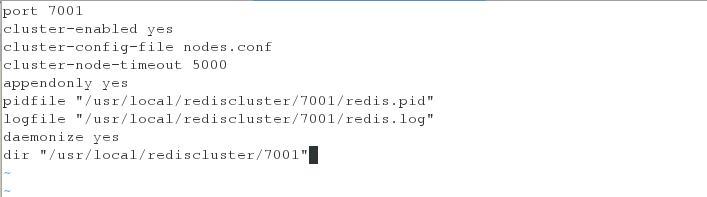

3.在每个节点的目录里编写配置文件redis.conf

[root@server1 rediscluster]# cd 7001/
[root@server1 7001]# vim redis.conf
port 7001
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000
appendonly yes
pidfile "/usr/local/rediscluster/7001/redis.pid"
logfile "/usr/local/rediscluster/7001/redis.log"
daemonize yes
dir "/usr/local/rediscluster/7001"
[root@server1 7001]# redis-server redis.conf

4.查看进程，7001进程已开启

[root@server1 7001]# ps ax

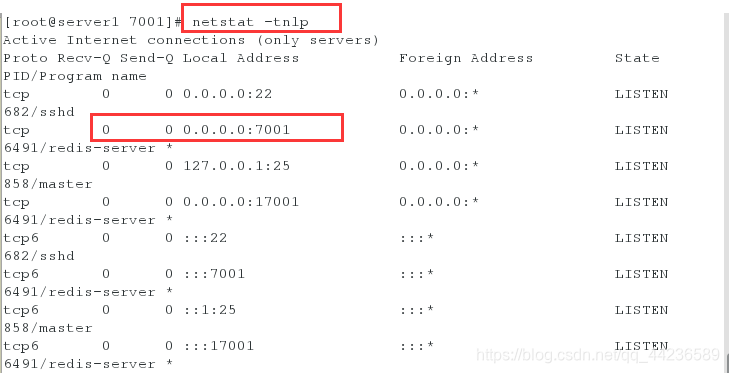

查看端口7001已经打开

[root@server1 7001]# netstat -tnlp

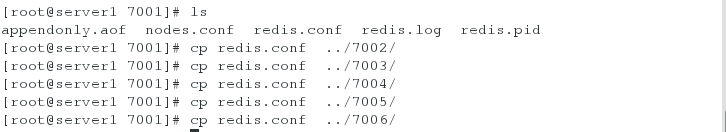

5.把7001目录下配置好的文件发送给其他目录，其他目录下的文件只需修改对应的号(比如：7002目录下的配置文件对应的号为7002)

[root@server1 7001]# cp redis.conf  ../7002/
[root@server1 7001]# cp redis.conf  ../7003/
[root@server1 7001]# cp redis.conf  ../7004/
[root@server1 7001]# cp redis.conf  ../7005/
[root@server1 7001]# cp redis.conf  ../7006/

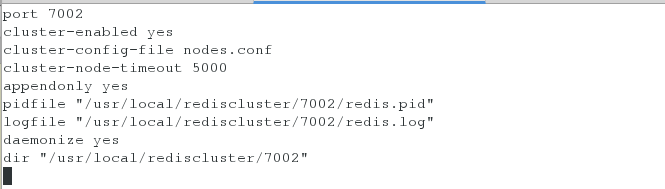

6.修改7002目录下redis.conf文件

[root@server1 7001]# cd ../7002/
[root@server1 7002]# vim redis.conf
port 7002
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000
appendonly yes
pidfile "/usr/local/rediscluster/7002/redis.pid"
logfile "/usr/local/rediscluster/7002/redis.log"
daemonize yes
dir "/usr/local/rediscluster/7002"

[root@server1 7002]# redis-server redis.conf

注意：其他几个目录配置如上

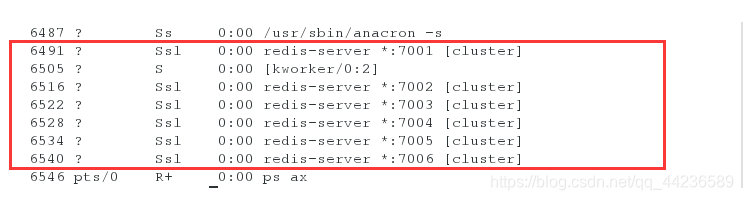

7.查看进程6个端口的进程都已开启

[root@server1 7006]# ps ax

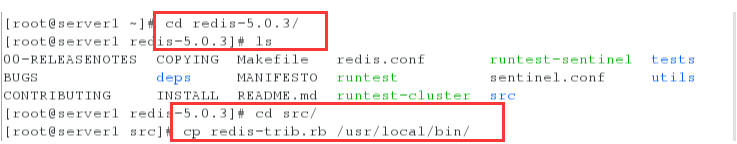

8.复制redis-trib.rb到/usr/local/bin/下

[root@server1 ~]# cd redis-5.0.3/
[root@server1 redis-5.0.3]# ls
00-RELEASENOTES  COPYING  Makefile   redis.conf       runtest-sentinel  tests
BUGS             deps     MANIFESTO  runtest          sentinel.conf     utils
CONTRIBUTING     INSTALL  README.md  runtest-cluster  src
[root@server1 redis-5.0.3]# cd src/
[root@server1 src]# cp redis-trib.rb /usr/local/bin/

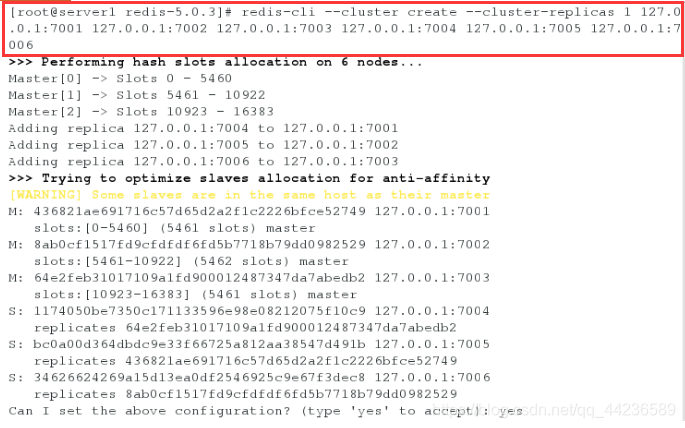

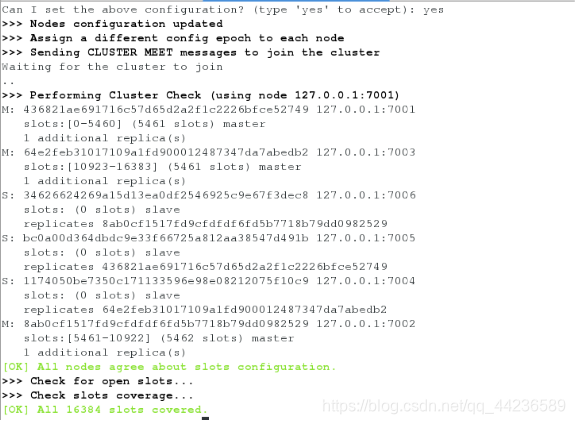

9.创建集群

[root@server1 redis-5.0.3]# redis-cli --cluster create --cluster-replicas 1 127.0.0.1:7001 127.0.0.1:7002 127.0.0.1:7003 127.0.0.1:7004 127.0.0.1:7005 127.0.0.1:7006

• 测试：

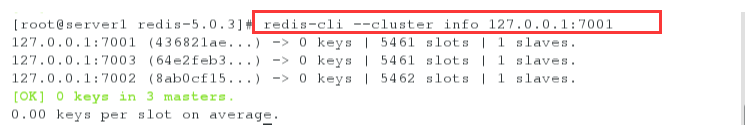

1.测试集群与对应节点关系，7001，7002，7003是matser

[root@server1 redis-5.0.3]# redis-cli --cluster info 127.0.0.1:7001
127.0.0.1:7001 (436821ae...) -> 0 keys | 5461 slots | 1 slaves.
127.0.0.1:7003 (64e2feb3...) -> 0 keys | 5461 slots | 1 slaves.
127.0.0.1:7002 (8ab0cf15...) -> 0 keys | 5462 slots | 1 slaves.
[OK] 0 keys in 3 masters.
0.00 keys per slot on average.

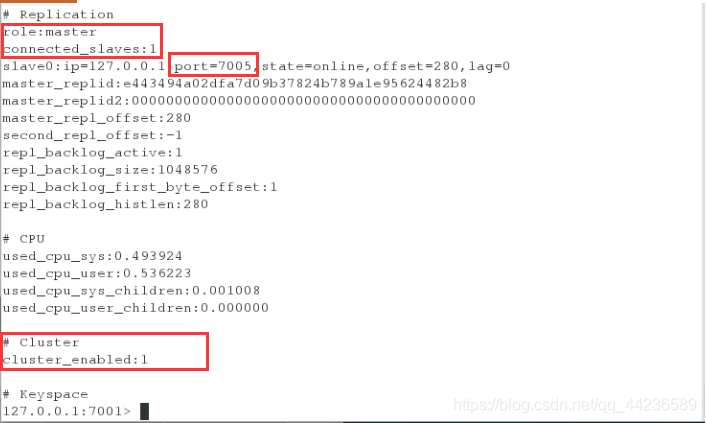

[root@server1 redis-5.0.3]# redis-cli -c -p 7001
127.0.0.1:7001> info

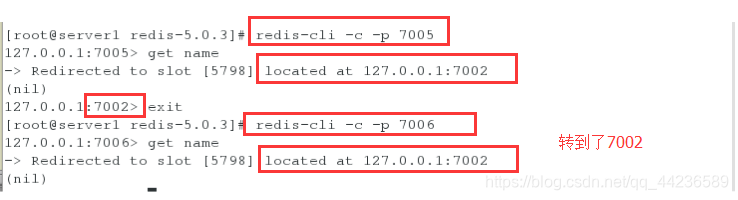

2.无中心检测

[root@server1 redis-5.0.3]# redis-cli -c -p 7005
127.0.0.1:7005> get name
-> Redirected to slot [5798] located at 127.0.0.1:7002
(nil)
127.0.0.1:7002> exit

[root@server1 redis-5.0.3]# redis-cli -c -p 7006
127.0.0.1:7006> get name
-> Redirected to slot [5798] located at 127.0.0.1:7002
(nil)

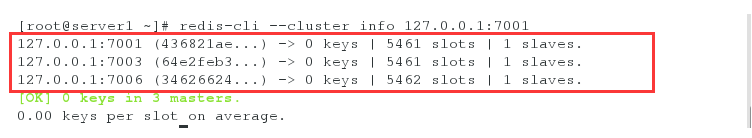

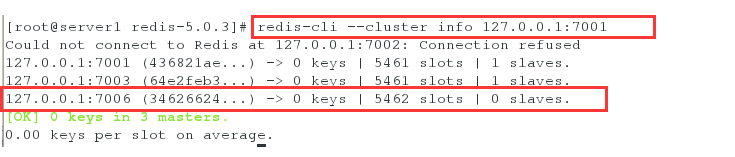

3.将7002(master)宕掉，对应的7006会接替

[root@server1 redis-5.0.3]# redis-cli -c -p 7002
127.0.0.1:7002> SHUTDOWN
not connected>

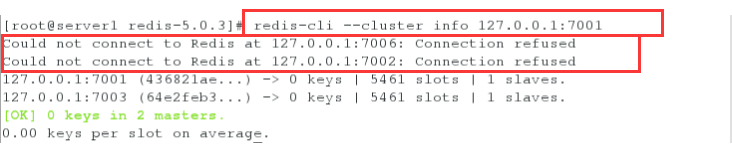

4.如果在把slave宕掉，整个集群就无法使用

[root@server1 redis-5.0.3]# redis-cli -c -p 7006
127.0.0.1:7006> SHUTDOWN
not connected> exit

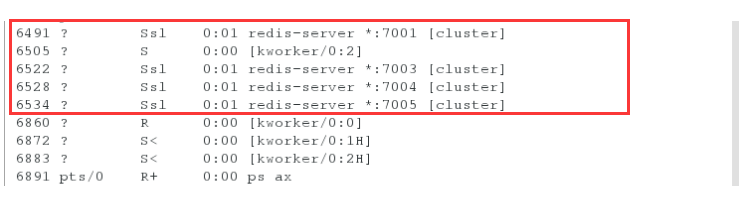

5.查看进程，7002，7006进程不在

• 恢复集群

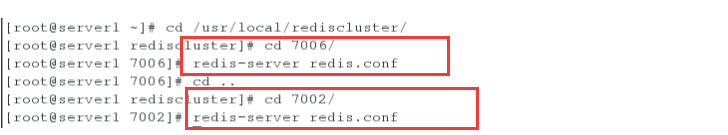

1.重新加载7002和7006的配置文件

[root@server1 ~]# cd /usr/local/rediscluster/
[root@server1 rediscluster]# cd 7006/
[root@server1 7006]# redis-server redis.conf
[root@server1 7006]# cd ..
[root@server1 rediscluster]# cd 7002/
[root@server1 7002]# redis-server redis.conf

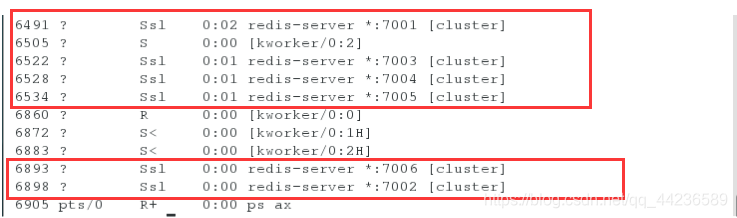

2.再次查看集群恢复正常

[root@server1 ~]# ps ax

• 给集群中添加节点

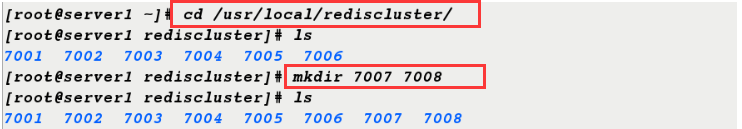

  1.先创建两个新的节点

[root@server1 ~]# cd /usr/local/rediscluster/
[root@server1 rediscluster]# ls
7001  7002  7003  7004  7005  7006
[root@server1 rediscluster]# mkdir 7007 7008
[root@server1 rediscluster]# ls
7001  7002  7003  7004  7005  7006  7007  7008

2.把7001目录下配置好的redis文件发送给7007和7008目录下

[root@server1 rediscluster]# cp 7001/redis.conf 7007/
[root@server1 rediscluster]# cp 7001/redis.conf 7008/

3.切换到7007目录下，编辑redis配置文件

[root@server1 rediscluster]# cd 7007/
[root@server1 7007]# ls
redis.conf
[root@server1 7007]# vim redis.conf
 port 7007
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000
appendonly yes
pidfile "/usr/local/rediscluster/7007/redis.pid"
logfile "/usr/local/rediscluster/7007/redis.log"
daemonize yes
dir "/usr/local/rediscluster/7007"

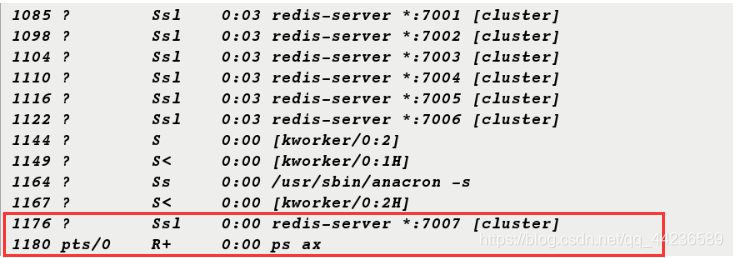

4.把新建节点7007拉起来，查看进程7007节点已经起来

[root@server1 7007]# redis-server redis.conf
[root@server1 7007]# ps ax

5.切换到7008目录下，编辑redis配置文件

[root@server1 7007]# cd ../7008
[root@server1 7008]# vim redis.conf
port 7008
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000
appendonly yes
pidfile "/usr/local/rediscluster/7008/redis.pid"
logfile "/usr/local/rediscluster/7008/redis.log"
daemonize yes
dir "/usr/local/rediscluster/7008"

6.把新建节点7008拉起来，查看进程7008节点已经起来

[root@server1 7008]# redis-server redis.conf
[root@server1 7008]# ps ax

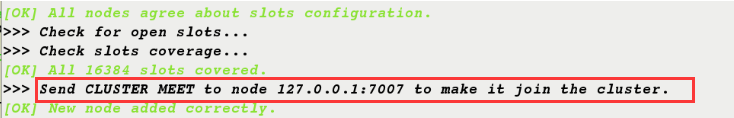

7.把节点7007添加到集群里(master的添加方法)

[root@server1 ~]# redis-cli --cluster add-node 127.0.0.1:7007 127.0.0.1:7001

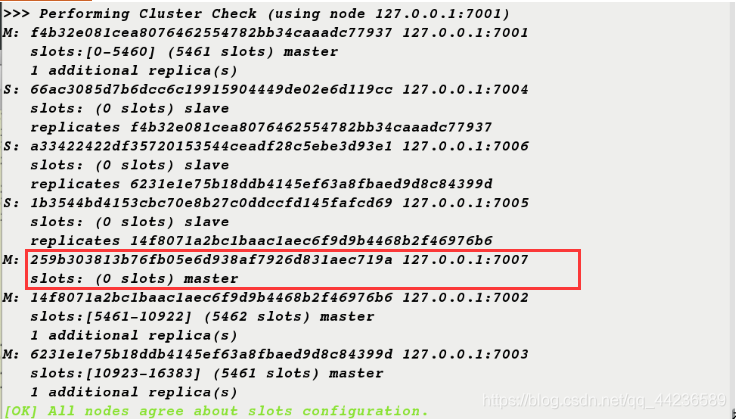

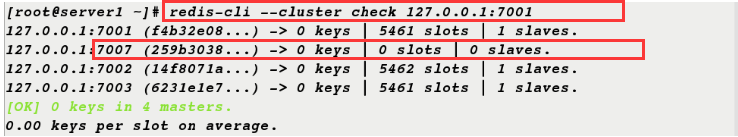

8.查看节点7007已经添加进去

[root@server1 ~]# redis-cli --cluster check 127.0.0.1:7001

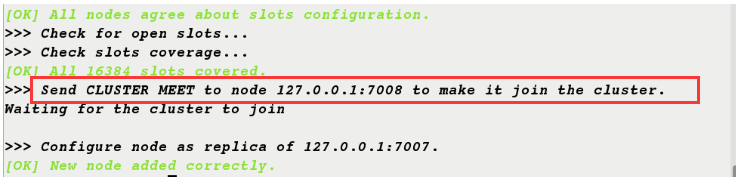

9.把节点7008添加到集群里(slave的添加方法)

[root@server1 ~]# redis-cli --cluster add-node --cluster-slave --cluster-master-id 259b303813b76fb05e6d938af7926d831aec719a 127.0.0.1:7008 127.0.0.1:7007

注意：这里的id号为节点7007的id

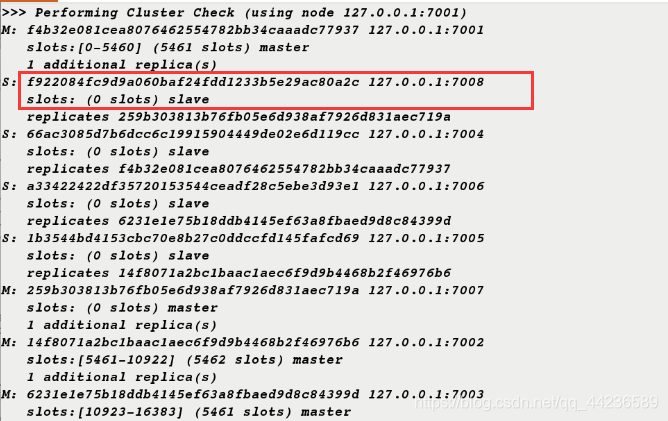

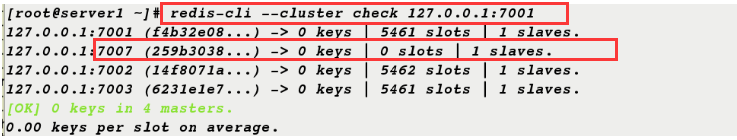

10.再次查看，节点7008已经添加进去

[root@server1 ~]# redis-cli --cluster check 127.0.0.1:7001

11.给新的节点7007添加哈希槽

[root@server1 ~]# redis-cli --cluster reshard --cluster-from all --cluster-to 259b303813b76fb05e6d938af7926d831aec719a --cluster-slots 300 --cluster-yes 127.0.0.1:7001

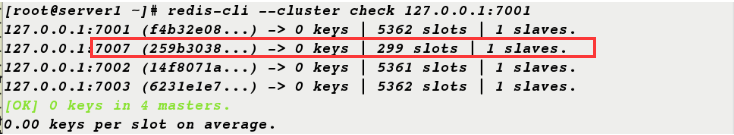

12.再次查看，哈希槽添加成功，但可以看到哈希槽分配不平均，会导致数据不同步

[root@server1 ~]# redis-cli --cluster check 127.0.0.1:7001

13.平均分配哈希槽

[root@server1 ~]# redis-cli --cluster rebalance --cluster-threshold 1 --cluster-use-empty-masters 127.0.0.1:7001

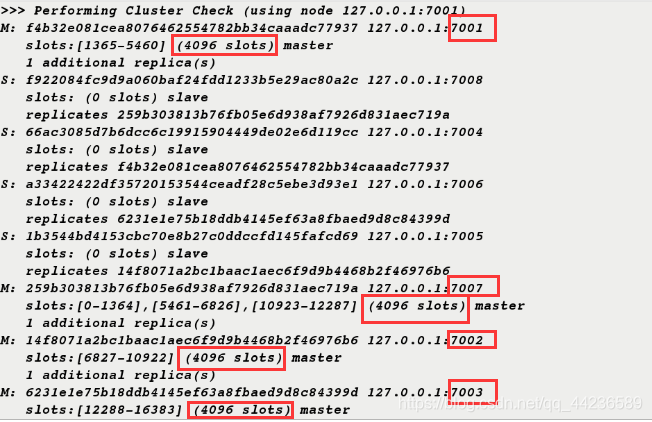

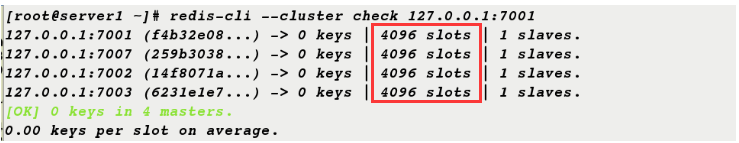

14.再次检查，可以看到哈希槽都为4096 slots

[root@server1 ~]# redis-cli --cluster check 127.0.0.1:7001

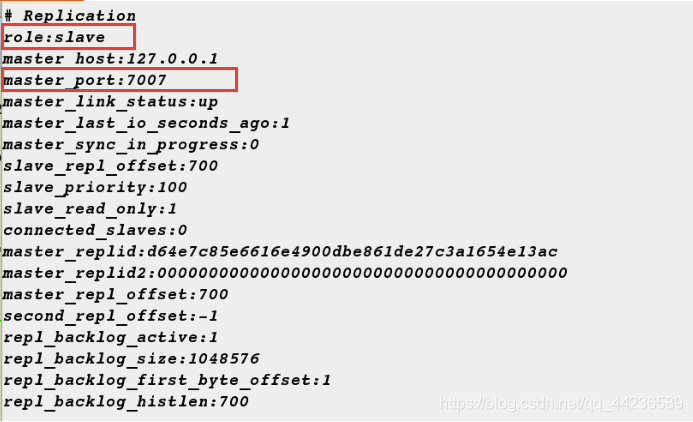

15.查看节点状态

[root@server1 ~]# redis-cli -c -p 7008
127.0.0.1:7008> info
