本文主要介绍了Bootstrap的网格系统，包括container的区别、列的使用、对齐方式、边距和阴影等。在网格系统中，重点讲解了V4的新特性，如直接使用col-n和col的灵活布局，以及对齐方式的实现。此外，还涵盖了文本处理、图片样式、表格样式、边框调整和定位等基础知识。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

由于组件部分官方整理的非常好，在这里不再整理
https://v4.bootcss.com/docs/4.0/components/alerts/

1.网格系统

v3:

https://v3.bootcss.com/css/#grid

v4:

https://v4.bootcss.com/docs/4.0/layout/grid/

container和container-fluid（v3,v4相同）

container两边有一定的margin
container-fluid占满横向全屏，无两侧margin
行用row，列col
一行共12份

 <div class="container">
    <div class="row">
        <div class="col-lg-4" style="background-color: #09afff;"></div>
        <div class="col-lg-4" style="background-color: red;"></div>
        <div class="col-lg-4" style="background-color: #09afff;"></div>
    </div>
  </div>

 <div class="container-fluid">
    <div class="row">
        <div class="col-lg-4" style="background-color: #09afff;"></div>
        <div class="col-lg-4" style="background-color: red;"></div>
        <div class="col-lg-4" style="background-color: #09afff;"></div>
    </div>
  </div>

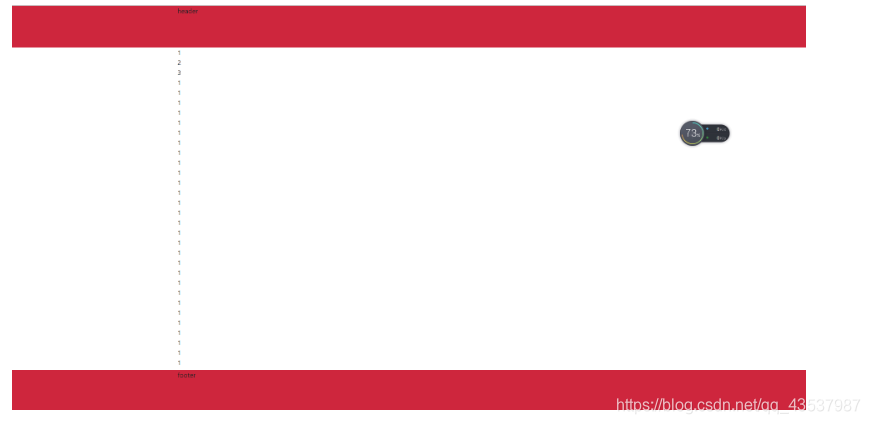

container的不同之处

v3container由分成四段：

$[外链图片转存失败(img-j3kkTVbK-1564649104361)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564411187395.png)]$

v4container由分成五段：

在这里插入图片描述

V4中可直接使用class="col-n"和class=“col”

在v3中只能使用col-md(lg,sm,xs)-n，实测显示在v3中使用class="col-n"和class=“col”，每个col分别占一行
在v4中假设使用col-4,则3个col-4占一行
在v4中假设使用col,则不管多少个，就算超出12份，所有的col都占一行，且均分

请看代码：（v4）

<container>
  <div class="row">
    <div class="col-4" style="background-color: red;"></div>
    <div class="col-4" style="background-color: blue;"></div>
    <div class="col-4" style="background-color: yellow;"></div>
    <div class="col-4" style="background-color: yellow;"></div>
    <div class="col-4" style="background-color: green;"></div>
    <div class="col-4" style="background-color: red;"></div>
  </div>
</container>

效果:

$[外链图片转存失败(img-7GsuWYBS-1564649104368)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564410881971.png)]$

<container>
  <div class="row">
    <div class="col" style="background-color: red;"></div>
    <div class="col" style="background-color: blue;"></div>
    <div class="col" style="background-color: yellow;"></div>
    <div class="col" style="background-color: yellow;"></div>
    <div class="col" style="background-color: green;"></div>
    <div class="col" style="background-color: red;"></div>
  </div>
</container>

效果：

$[外链图片转存失败(img-jG3KkkbQ-1564649104369)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564410893487.png)]$

如果想要换行，可以加一个类 .w-100,意思是width:100%;

<container>
  <div class="row">
    <div class="col" style="background-color: red;"></div>
    <div class="col" style="background-color: blue;"></div>
    <div class="col" style="background-color: yellow;"></div>
    <div class="col" style="background-color: yellow;"></div>
    <div class="w-100" style="background-color: green;"></div>
    <div class="col" style="background-color: red;"></div>
  </div>
</container>

$[外链图片转存失败(img-6opuX2RZ-1564649104370)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564410904412.png)]$

根据内容多少改变列的宽度col-auto

  <div class="row" style="height:100px;border:1px solid red;">
      <div class="col-lg-3" style="background-color: #09afff;"></div>
      <div class="col-lg-auto mr-auto" style="background-color: red;">1111111111111</div>
      <div class="col-lg-3" style="background-color: #09afff;"></div>
    </div>

$[外链图片转存失败(img-i6FclZLA-1564649104371)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564410916625.png)]$

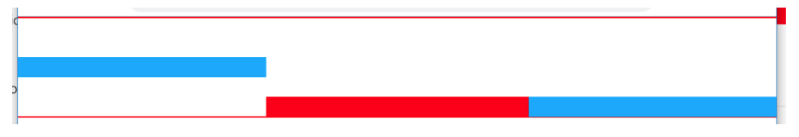

v4中的对齐方式（类似flex布局）

垂直对齐

想让里面的列改变垂直对齐的方式,给父元素添加一个叫align-item-***的类
align-item-start(上对齐)align-item-center(中间对齐)align-item-end(下对齐)
某列想要改变自己的对齐方式，align-self-***

  <div class="row align-items-end" style="height:100px;border:1px solid red;">
      <div class="col align-self-center" style="background-color: #09afff;"></div>
      <div class="col" style="background-color: red;"></div>
      <div class="col" style="background-color: #09afff;"></div>
    </div>

$[外链图片转存失败(img-T45E90Jl-1564649104371)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564410940223.png)]$

水平对齐

想让里面的列改变垂直对齐的方式,给父元素添加一个叫justify-content-***的类
justify-content-start(左对齐)justify-content-center(中间对齐)justify-content-end(右对齐)justify-content-around(每个元素两端均匀分布)justify-content-between(两端对齐，中间均匀分布)

 <div class="row justify-content-end" style="height:100px;border:1px solid red;">
      <div class="col-md-3" style="background-color: #09afff;"></div>
      <div class="col-md-3 " style="background-color: red;"></div>
      <div class="col-md-3" style="background-color: #09afff;"></div>
    </div>

$[外链图片转存失败(img-ZAo2iX5v-1564649104372)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564410952301.png)]$

没有排水沟？？

给.row添加no-gutters,去除col两端默认的15px的padding

 <div class="row justify-content-end no-gutters" style="height:100px;border:1px solid red;">
      <div class="col-md-3" style="background-color: #09afff;"></div>
      <div class="col-md-3 " style="background-color: red;"></div>
      <div class="col-md-3" style="background-color: #09afff;"></div>
    </div>

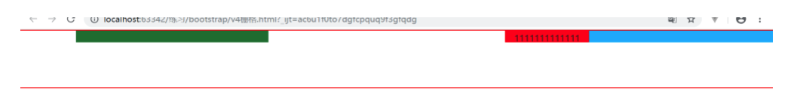

排序

order-n(默认为0，数值越大，越靠右)
order-first放在最左
order-last放最右

<div class="row" style="height:100px;border:1px solid red;">
      <div class="col-lg-3" style="background-color: #1c7430;"></div>
      <div class="col-lg-auto order-1" style="background-color: red;">1111111111111</div>
      <div class="col-lg-3 order-first" style="background-color: #09afff;"></div>
    </div>

$[外链图片转存失败(img-WvFpqnEL-1564649104372)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564410967257.png)]$

列偏移

v3:

col-md-push-n向右偏移
col-lg-pull-n向左偏移
可以覆盖冲突的部分

  <div class="container">
    <div class="row">
      <div class="row align-items-end" style="height:100px;border:1px solid red;">
        <!--会覆盖-->
        <div class="col-lg-3 col-lg-push-1 align-self-center" style="background-color: #09afff;"></div>
        <div class="col-lg-3 col-lg-pull-1" style="background-color: red;"></div>
        <div class="col-lg-3" style="background-color: #09afff;"></div>
      </div>
    </div>
  </div>

$[外链图片转存失败(img-zWHDThpQ-1564649104373)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564410974962.png)]$

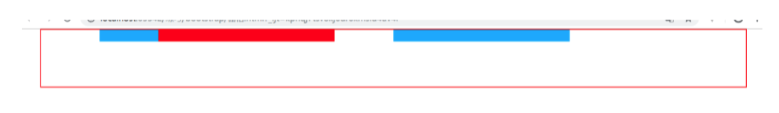

v4:

offset-n向右偏移
mr-auto 加此类的元素右侧全部右靠齐
ml-auto 加此类的元素右侧全部左靠齐

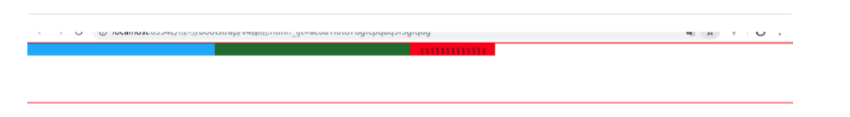

    <div class="row" style="height:100px;border:1px solid red;">
      <div class="col-lg-3 mr-auto  offset-1" style="background-color: #1c7430;"></div>
      <div class="col-lg-auto" style="background-color: red;">1111111111111</div>
      <div class="col-lg-3" style="background-color: #09afff;"></div>
    </div>

$[外链图片转存失败(img-C0douwaw-1564649104374)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564410986337.png)]$

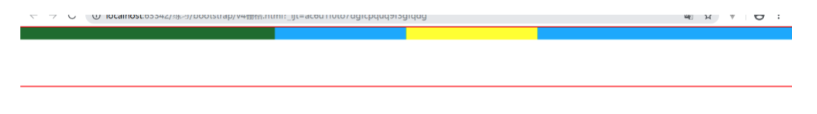

嵌套（v4v3相同）

    <div class="row" style="height:100px;border:1px solid red;">
      <div class="col-lg-4" style="background-color: #1c7430;"></div>
      <div class="col-lg-4">
        <div class="row">
        <div class="col-lg-6" style="background-color: #09afff;"></div>
        <div class="col-lg-6" style="background-color: yellow;"></div>
      </div>
      </div>
      <div class="col-lg-4" style="background-color: #09afff;"></div>
    </div>

$[外链图片转存失败(img-T5ggox83-1564649104374)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564410997936.png)]$

2.bootstrap文本

`<abbr>`缩略语

 <abbr title="这是一个缩略语">email</abbr>

现实的样式：出现虚线下划线

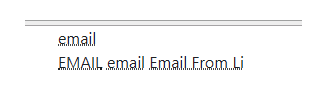

文本转大小写

 <div class="container">
      <abbr title="这是一个缩略语">email</abbr>
      <br>
      <abbr title="这是一个缩略语" class="text-uppercase">email</abbr>
      <abbr title="这是一个缩略语" class="text-lowercase">EMAIL</abbr>
      <abbr title="这是一个缩略语" class="text-capitalize">email from li</abbr>
 </div>

运行结果：

$[外链图片转存失败(img-qTKjyZEJ-1564649104375)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564358286334.png)]$

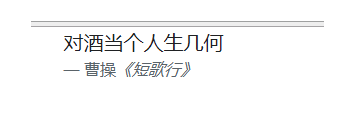

`<blockquote>` 来源备注与引用

欲想达成下面的效果：

$[外链图片转存失败(img-JH9jaT2l-1564649104376)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564358689290.png)]$

 <blockquote class="blockquote">
         <p class="mb-0">对酒当个人生几何</p>
         <!-- p标签默认存在下边距，清除使用mb-0  =>  margin-buttom:0; -->
         <footer class="blockquote-footer">曹操<cite>《短歌行》</cite></footer>
 </blockquote>

列表

清除前面的序号

 <ul class="list-unstyled">
            <li>111</li>
            <li>111</li>
            <li>111</li>
</ul>

嵌套情况

<ul class="list-unstyled">
            <li>111</li>
            <li>111</li>
            <li>111</li>
            <ul>
                <li>2222</li>
                <li>2222</li>
                <li>2222</li>
            </ul>
</ul>

$[外链图片转存失败(img-5QWhoPoT-1564649104376)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564360494937.png)]$

分行或单行显示

list-inline list-inline-item

 <ul class="list-inline">
            <li class="list-inline-item">111</li>
            <li class="list-inline-item">111</li>
            <li class="list-inline-item">111</li>
</ul>

float

<ul class="list-unstyled clearfix">
            <li class="float-left">222</li>
            <li class="float-left">222</li>
            <li class="float-left">222</li>
</ul>

效果对比：上为inline下位float

$[外链图片转存失败(img-L1JfWwjE-1564649104376)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564360788998.png)]$

`<kbd>`键盘动作提示

使用kbd标签，表明这是一个键盘输入操作

黑底白字，不知道有何用，花里胡哨

<kbd>Lorem</kbd> ipsum dolor, sit <kbd>amet</kbd> consectetur adipisicing elit. Commodi

$[外链图片转存失败(img-Q5tpHH02-1564649104376)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564361543645.png)]$

3.boostrap图片

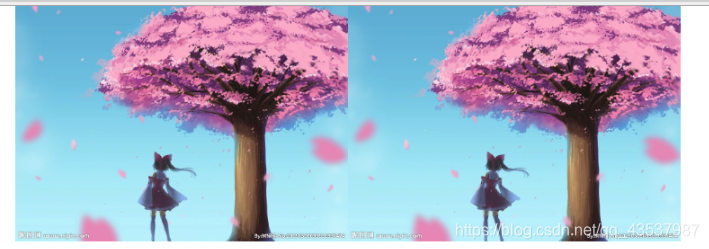

img-fluid

img-fluid等同于width:100%;
no-gutters 去除15px的padding 加在row上

<div class="container">
        <div class="row no-gutters">
            <div class="col-xl-4">
                <img src="./1.jpg" alt="" class="img-fluid">
            </div>
            <div class="col-xl-4">
                <img src="./1.jpg" alt="" class="w-100">
            </div>
        </div>
</div>

$[外链图片转存失败(img-L7gZwtXf-1564649104377)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564362442635.png)]$

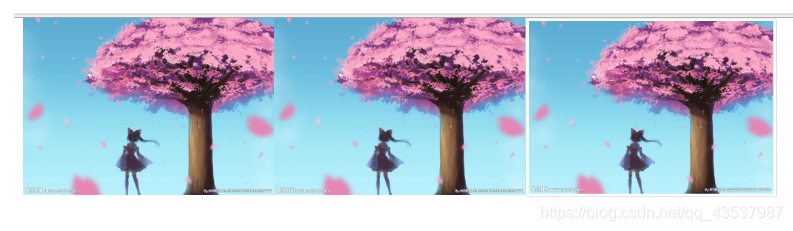

img-thumbnail 缩略图

无非加点边框

<div class="container">
        <div class="row no-gutters">
            <div class="col-xl-4">
                <img src="./1.jpg" alt="" class="img-fluid">
            </div>
            <div class="col-xl-4">
                <img src="./1.jpg" alt="" class="w-100">
            </div>
            <div class="col-xl-4">
                <img src="./1.jpg" alt="" class="img-fluid img-thumbnail">
            </div>
        </div>
</div>

$[外链图片转存失败(img-1a6jHhxo-1564649104377)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564362632285.png)]$

rounded mx-auto

rounded 图片添加0.25rem的圆角
mx-auto => margin:0 auto;

 <div class="container">
        <img src="./1.jpg" alt="" class="mx-auto d-block w-25">
        <div class="text-center">
        <img src="./1.jpg" alt="" class="w-25 rounded">
        </div>
 </div>

效果为图片居中


需求：大屏幕时显示1.jpg 中等屏幕显示2.jpg 其他屏幕显示3.jpg

 <picture>
            <source srcset="1.jpg" media="(min-width:992px)">
            <source srcset="2.jpg" media="(min-width:576px)">
            <img src="3.jpg" alt="">
</picture>

4.bootstrap 表格

https://v4.bootcss.com/docs/4.0/content/tables/

table相关样式

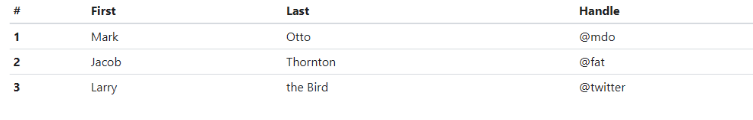

table 变为bootstrap表格
$[外链图片转存失败(img-5pZofjAV-1564649104377)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564364973513.png)]$

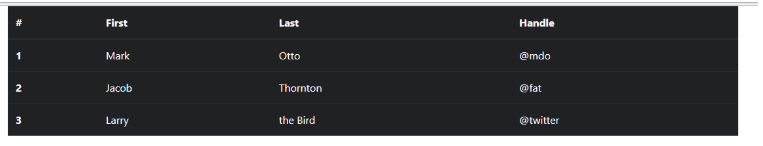

table-dark 背景为黑色
$[外链图片转存失败(img-kJYRUUBu-1564649104378)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564364933304.png)]$
table-danger 背景为红色

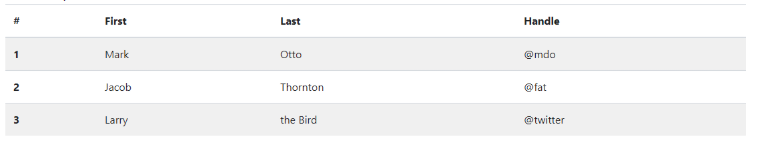

table-striped 添加斑马条纹
$[外链图片转存失败(img-qGcrmib5-1564649104378)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564364996499.png)]$

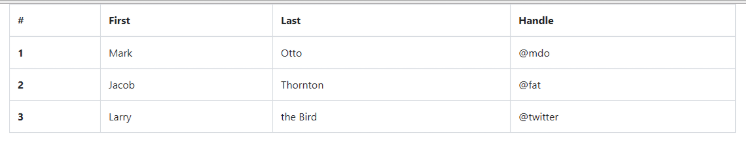

table-bordered 表格添加外边框
$[外链图片转存失败(img-vdzAvZYi-1564649104379)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564365018483.png)]$
table-hover 鼠标经过本行高亮
$[外链图片转存失败(img-U1KF7Wc1-1564649104379)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564365116928.png)]$
table-sm 表格整体变小
$[外链图片转存失败(img-odgdxvyp-1564649104379)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564365136332.png)]$

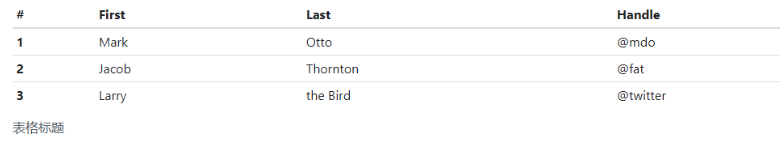

caption

表格添加标题

 <table class="table table-sm ">
            <caption>表格标题</caption>
            <thead>

$[外链图片转存失败(img-iIRiqwZY-1564649104380)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564365237962.png)]$

thead相关样式

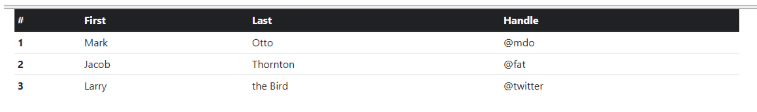

thead-dark

$[外链图片转存失败(img-uEk1x56a-1564649104381)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564365269859.png)]$

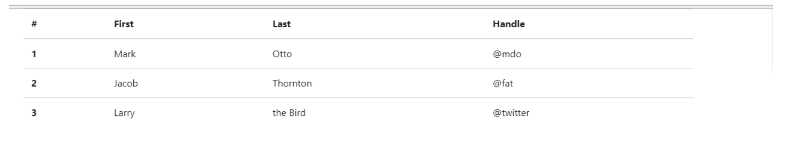

thead-light
$[外链图片转存失败(img-34Rm6DxV-1564649104381)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564365287536.png)]$

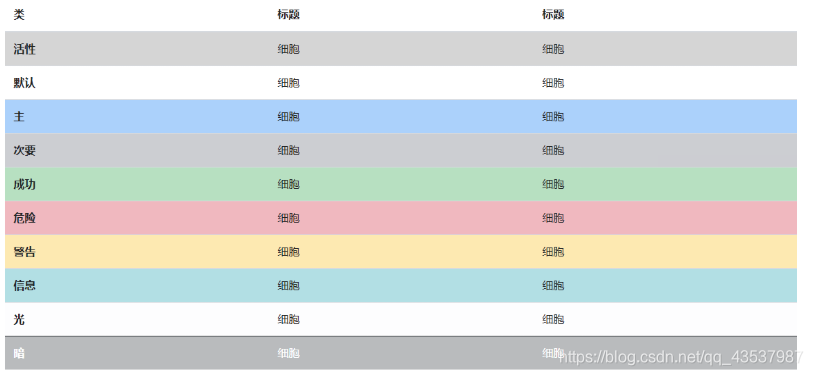

颜色1

<tr class="table-active">...</tr>
<tr class="table-primary">...</tr>
<tr class="table-secondary">...</tr>
<tr class="table-success">...</tr>
<tr class="table-danger">...</tr>
<tr class="table-warning">...</tr>
<tr class="table-info">...</tr>
<tr class="table-light">...</tr>
<tr class="table-dark">...</tr>

$[外链图片转存失败(img-ynslHkiU-1564649104382)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564365395508.png)]$

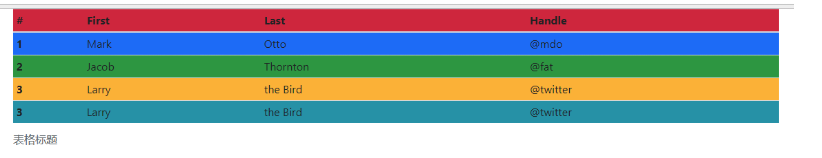

颜色2（此五颜色熟记）

bg-primary
bg-success
bg-danger
bg-warning
bg-info

$[外链图片转存失败(img-hW23f8qI-1564649104382)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564365578783.png)]$

响应式表格

在<table>外使用table-responsive

$[外链图片转存失败(img-Z9AQTcHD-1564649104383)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564365756185.png)]$

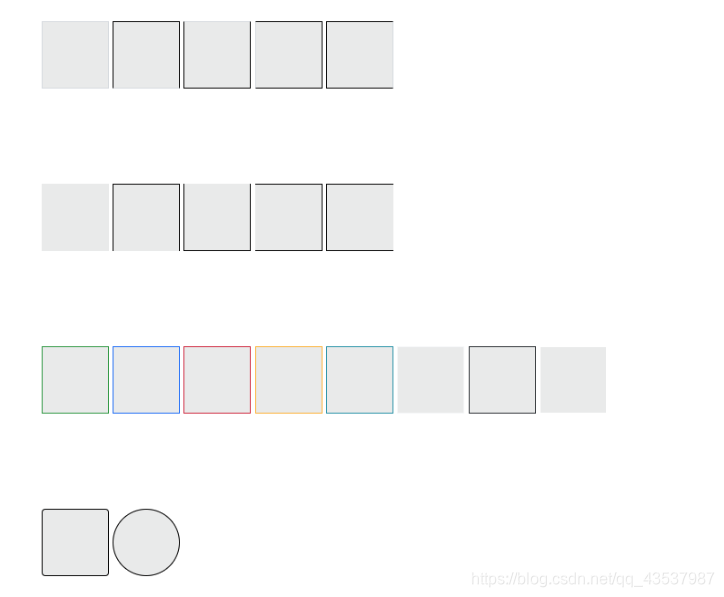

5.bootstrap边框

添加边框属性

默认添加一行 border: 1px solid #dee2e6!important;

这个属性好像是没什么卵用？？？？

border
border-bottom
boirder-top
border-left
border-right

清除边框属性

border-0
border-top-0
border-bottom-0
border-left-0
border-right-0

添加边框颜色

border-info
border-danger
border-success
border-primary
border-warning
border-light
border-dark
border-white

rounded

rounded-circle

<!DOCTYPE html>
<html lang="">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>Document</title>
    <link rel="stylesheet" href="./css/bootstrap.min.css">
    <style>
        .container {
            margin-top:100px;
        }
        span {
            display: inline-block;
            width: 75px;
            height: 75px;
            background-color: #eee;
            border:1px solid #000;
        }
    </style>
</head>
<body>
    <div class="container">
        <span class="border"></span>
        <span class="border-bottom"></span>
        <span class="border-top"></span>
        <span class="border-left"></span>
        <span class="border-right"></span>
    </div>
    <div class="container">
            <span class="border-0"></span>
            <span class="border-bottom-0"></span>
            <span class="border-top-0"></span>
            <span class="border-left-0"></span>
            <span class="border-right-0"></span>
    </div>
    <div class="container">
            <span class="border-success"></span>
            <span class="border-primary"></span>
            <span class="border-danger"></span>
            <span class="border-warning"></span>
            <span class="border-info"></span>
            <span class="border-light"></span>
            <span class="border-dark"></span>
            <span class="border-white"></span>
    </div>
    <div class="container">
        <span class="rounded"></span>
        <span class="rounded-circle"></span>
    </div>
</body>
</html>

$[外链图片转存失败(img-yO4iz584-1564649104383)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564367463555.png)]$

6.display + text + mw-100 mh-100

display

display-[value]-none (important!!!)
display-inline-block
display-table
…

text

text-truncate 当行超出部分以省略号显示
text-nowrap 超出不换行
text-justify 消除行末空白的情况

mw-100 mh-100

mw-100 => max-width:100;
mh-100 => max-height:100;

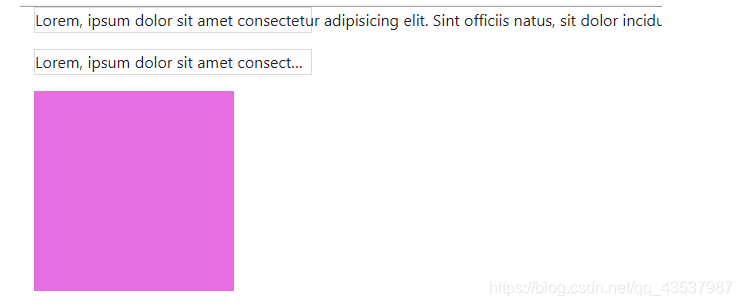

<body>
    <div class="container">
        <p class="w-25 text-nowrap border">Lorem, ipsum dolor sit amet consectetur adipisicing elit. Sint officiis
            natus, sit dolor incidunt ducimus explicabo, eum possimus totam quasi, repellendus corrupti. Cumque tenetur
            animi quas, non a harum eligendi?</p>
        <p class="w-25 text-truncate border">Lorem, ipsum dolor sit amet consectetur adipisicing elit. Sint officiis
            natus, sit dolor incidunt ducimus explicabo, eum possimus totam quasi, repellendus corrupti. Cumque tenetur
            animi quas, non a harum eligendi?</p>

        <div style="height: 200px;width:200px;">
            <div style="height: 400px;width:400px;background: violet;" class="mw-100 mh-100"></div>
        </div>
    </div>
</body>

$[外链图片转存失败(img-XxVL0HKv-1564649104384)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564369549578.png)]$

7.bootstrap边距和阴影

边距

https://v4.bootcss.com/docs/4.0/utilities/spacing/

内边距

t-top, l-left, r-right, b-bottom, x-水平，y-垂直

p-[断点]-[边距的值]
- 边距值为0-5和auto
p-xl-1 大屏幕下所有内边距为0.25rem
pt-md-5 中等屏幕上内边距为3rem
px-auto 水平为padding:auto;

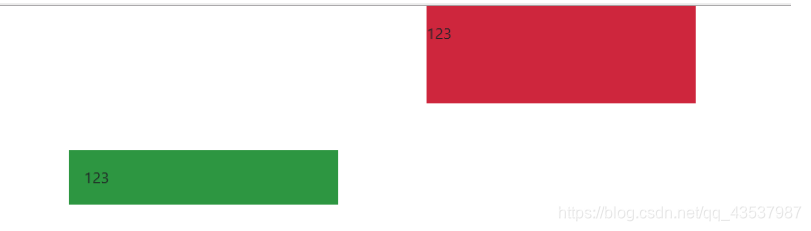

 <div class="container">
      <div class="w-25 bg-danger mx-auto pt-3" style="height: 100px;">123</div>
      <div class="w-25 bg-success m-5 p-3">123</div>
 </div>

$[外链图片转存失败(img-yFENXQfD-1564649104384)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564383294591.png)]$

外边距

同内边距，把p变为m即可

阴影？（？效果进不来）

8.定位 + 显示隐藏 + 关闭图标

定位

position

class=“position-relative/position…”

 <div class="position-relative border" style="width: 200px;height: 200px;">
    <div class="position-absolute bg-success" style="width: 100px;height: 100px;top:0;right:0;"></div>
</div>

$[外链图片转存失败(img-zgnb1oG2-1564649104385)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564385257573.png)]$

固定于顶部

 <div style="padding:100px 0; ">
            <header class="bg-danger fixed-top" style="height: 100px;"><div class="container">header</div></header>
            <div class="container">
                1<br>2<br>3<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>
                111<br>222<br>333<br>
            </div>
          <footer class="bg-danger fixed-bottom" style="height: 100px;"><div class="container">footer</div></footer>
</div>

$[外链图片转存失败(img-Q3kC7WsO-1564649104385)(C:\Users\0123\AppData\Roaming\Typora\typora-user-images\1564385722769.png)]$

贴齐于顶部

<h1 class="text-center">大标题</h1>
        <header class="bg-danger sticky-top" style="height: 100px;">
            <div class="container">header</div>
        </header>
        <div class="container">
            1<br>2<br>3<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>1<br>
            111<br>222<br>333<br>
        </div>
        <footer class="bg-danger" style="height: 100px;">
            <div class="container">footer</div>
 </footer>

效果同上,且可以在上面增加内容

invisible 依旧占有位置

 <h1 class="text-center invisible">大标题</h1>

关闭图标close

  <button class="close">x</button>

.close {

float: right;
font-size: 1.5rem;
font-weight: 700;
line-height: 1;
color: #000;
text-shadow: 0 1px 0 #fff;
opacity: .5;

}

9.嵌入

<!-- 16by9  16:9的尺寸显示 -->
<div class="embed-responsive embed-responsive-1by1">
   <iframe src="http://www.taobao.com" class="embed-responsive-item"></iframe>
</div>

10.图像替换

利于搜索引擎优化
example:将图片替换成标题

 <h1 class="text-hide" style="background:url('./1.jpg');height: 100px;width: 100px;">这里的文字显示不出来，被text-hide掉</h1>
