【STL源码分析】deque

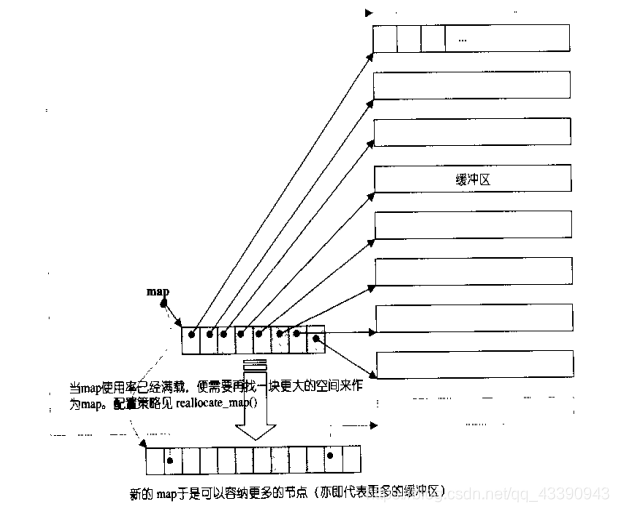

_Deque_base 用于维护一维的指针

	//如果一维数组不够用了，需要动态开辟一个新的的一维数组，
	//将原数组中的保存的缓冲区地址的指针全部复制到新的一维数组中
	//
  _Tp** _M_map;  //一维数组
  size_t _M_map_size;  //一位数组的大小
  iterator _M_start; // 一位数组的起始迭代器
  iterator _M_finish; //一位数组的末尾迭代器

//每次进行分配的时候，只分配一个一维指针指向的数组的大小
  _Tp* _M_allocate_node()
    { return _Node_alloc_type::allocate(__deque_buf_size(sizeof(_Tp))); }

一维数组的开辟于

//初始化一维的数组
template <class _Tp, class _Alloc>
void
_Deque_base<_Tp,_Alloc>::_M_initialize_map(size_t __num_elements)
{
  size_t __num_nodes =
    __num_elements / __deque_buf_size(sizeof(_Tp)) + 1;

	//计算map大小
  _M_map_size = max((size_t) _S_initial_map_size, __num_nodes + 2);
  _M_map = _M_allocate_map(_M_map_size);

	//获得一维数组的起始地址与终止地址
  _Tp** __nstart = _M_map + (_M_map_size - __num_nodes) / 2;
  _Tp** __nfinish = __nstart + __num_nodes;

  __STL_TRY {
  	//开辟第二维的数组，一维数组的每一个元素中存放第二维数组的起始地址
    _M_create_nodes(__nstart, __nfinish);
  }
  __STL_UNWIND((_M_deallocate_map(_M_map, _M_map_size),
                _M_map = 0, _M_map_size = 0));
  //设置一维数组的迭代器的指针
  _M_start._M_set_node(__nstart);
  _M_finish._M_set_node(__nfinish - 1);
  _M_start._M_cur = _M_start._M_first;
  _M_finish._M_cur = _M_finish._M_first +
               __num_elements % __deque_buf_size(sizeof(_Tp));
}

template <class _Tp, class _Alloc>
void _Deque_base<_Tp,_Alloc>::_M_create_nodes(_Tp** __nstart, _Tp** __nfinish)
{
  _Tp** __cur;
  __STL_TRY {
  	//循环开辟第二维的数组
    for (__cur = __nstart; __cur < __nfinish; ++__cur)
      *__cur = _M_allocate_node();
  }
  __STL_UNWIND(_M_destroy_nodes(__nstart, __cur));
}

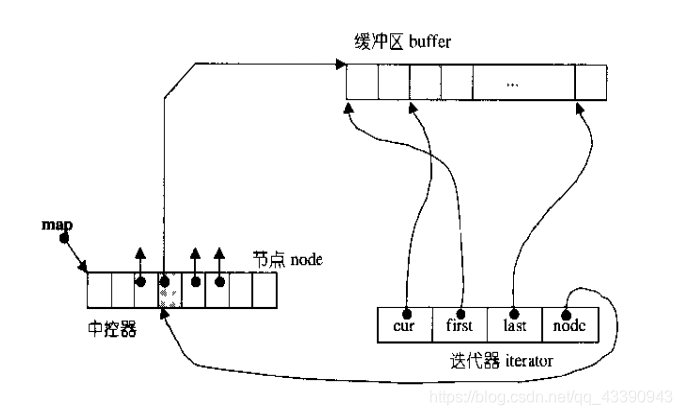

deque迭代器的指针

  _Tp* _M_cur;  //指向当前节点
  _Tp* _M_first; //指向当前节点所在缓冲区起始节点
  _Tp* _M_last; //指向当前节点所在缓冲区终止节点
  //deque 底层是一个可以动态扩容的二维数组，
  _Map_pointer _M_node; //指向当前节点所在缓冲区

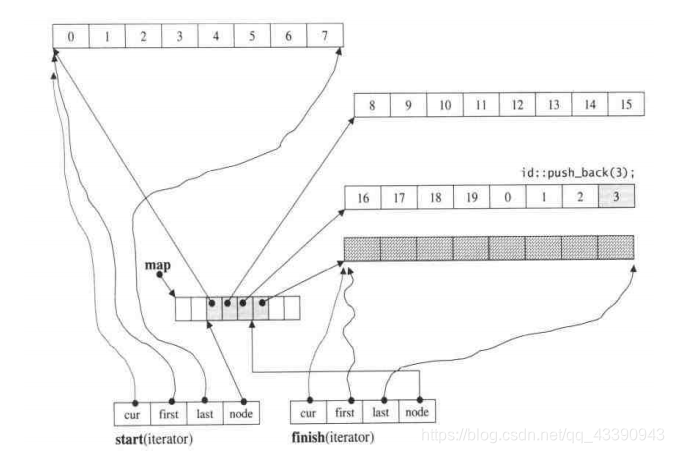

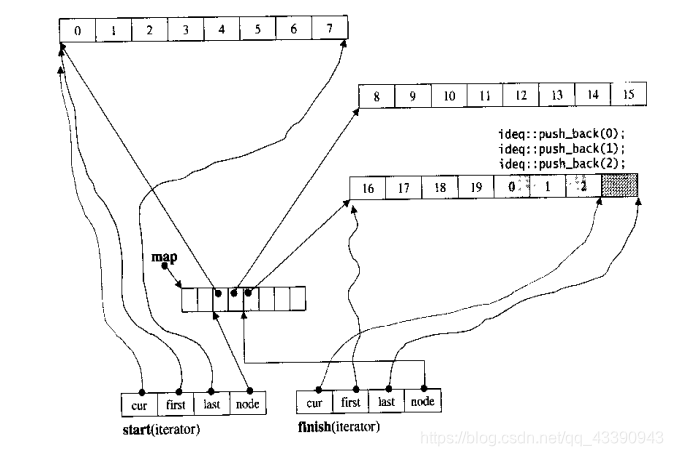

push_back

  void push_back(const value_type& __t) {
  	//如果deque还有备用节点供插入，则直接在备用节点插入
    if (_M_finish._M_cur != _M_finish._M_last - 1) {
      construct(_M_finish._M_cur, __t);
      ++_M_finish._M_cur;
    }
    //否则进行动态扩容后再插入
    else
      _M_push_back_aux(__t);
  }

_M_push_back_aux

void deque<_Tp,_Alloc>::_M_push_back_aux(const value_type& __t)
{
  value_type __t_copy = __t;
  _M_reserve_map_at_back();
  //在一维数组的结尾位置分配一块连续的内存
  *(_M_finish._M_node + 1) = _M_allocate_node();
  __STL_TRY {
  	//插入元素
    construct(_M_finish._M_cur, __t_copy);
	//设置一维数组的结尾指针
    _M_finish._M_set_node(_M_finish._M_node + 1);
	//当前位置设置为新申请的数组的开始位置
    _M_finish._M_cur = _M_finish._M_first;
  }
  __STL_UNWIND(_M_deallocate_node(*(_M_finish._M_node + 1)));
}

insert

template <class _Tp, class _Alloc> template <class _ForwardIterator>
void deque<_Tp,_Alloc>::insert(iterator __pos,
                          _ForwardIterator __first, _ForwardIterator __last,
                          forward_iterator_tag) {
  size_type __n = 0;
  distance(__first, __last, __n);
  //如果在起始位置插入
  if (__pos._M_cur == _M_start._M_cur) {
  	//在deque的前面进行扩容
    iterator __new_start = _M_reserve_elements_at_front(__n);
    __STL_TRY {
    	//用__first 到 __last中的元素填充新扩容的数组
      uninitialized_copy(__first, __last, __new_start);
      _M_start = __new_start;
    }
    __STL_UNWIND(_M_destroy_nodes(__new_start._M_node, _M_start._M_node));
  }
  //如果插入点在末尾位置
  else if (__pos._M_cur == _M_finish._M_cur) {
  	//在deque的结尾处进行扩容
    iterator __new_finish = _M_reserve_elements_at_back(__n);
    __STL_TRY {
    //用__first 到 __last中的元素填充新扩容的数组
      uninitialized_copy(__first, __last, _M_finish);
      _M_finish = __new_finish;
    }
    __STL_UNWIND(_M_destroy_nodes(_M_finish._M_node + 1,
                                  __new_finish._M_node + 1));
  }
  //在中间位置进行插入
  else
    _M_insert_aux(__pos, __first, __last, __n);
}

_M_insert_aux

template <class _Tp, class _Alloc> template <class _ForwardIterator>
void deque<_Tp,_Alloc>::_M_insert_aux(iterator __pos,
                                      _ForwardIterator __first,
                                      _ForwardIterator __last,
                                      size_type __n)
{
	//__elemsbefore当前位置到起始的元素的个数
  const difference_type __elemsbefore = __pos - _M_start;
  size_type __length = size();
  //如果插入点的位置到起始的位置的元素个数小于deque总元素个数的一半
  //则在deque前面进行扩容，移动的元素的个数较少，效率相对较高
  if (__elemsbefore < __length / 2) {
  	//新开辟__n个位置
    iterator __new_start = _M_reserve_elements_at_front(__n);
    iterator __old_start = _M_start;
    __pos = _M_start + __elemsbefore;
	//先将原来的前半部分元素向前移动，再将__first 到 __last 位置的元素插入到__pos开始的位置处
    __STL_TRY {
      if (__elemsbefore >= difference_type(__n)) {
        iterator __start_n = _M_start + difference_type(__n);

        uninitialized_copy(_M_start, __start_n, __new_start);
        _M_start = __new_start;
        copy(__start_n, __pos, __old_start);
        copy(__first, __last, __pos - difference_type(__n));
      }
      else {
        _ForwardIterator __mid = __first;
        advance(__mid, difference_type(__n) - __elemsbefore);
        __uninitialized_copy_copy(_M_start, __pos, __first, __mid,
                                  __new_start);
        _M_start = __new_start;
        copy(__mid, __last, __old_start);
      }
    }
    __STL_UNWIND(_M_destroy_nodes(__new_start._M_node, _M_start._M_node));
  }
  //从deque的末尾处进行扩容， 过程与上面的一样
  else {
    iterator __new_finish = _M_reserve_elements_at_back(__n);
    iterator __old_finish = _M_finish;
    const difference_type __elemsafter =
      difference_type(__length) - __elemsbefore;
    __pos = _M_finish - __elemsafter;
    __STL_TRY {
      if (__elemsafter > difference_type(__n)) {
        iterator __finish_n = _M_finish - difference_type(__n);
        uninitialized_copy(__finish_n, _M_finish, _M_finish);
        _M_finish = __new_finish;
        copy_backward(__pos, __finish_n, __old_finish);
        copy(__first, __last, __pos);
      }
      else {
        _ForwardIterator __mid = __first;
        advance(__mid, __elemsafter);
        __uninitialized_copy_copy(__mid, __last, __pos, _M_finish, _M_finish);
        _M_finish = __new_finish;
        copy(__first, __mid, __pos);
      }
    }
    __STL_UNWIND(_M_destroy_nodes(_M_finish._M_node + 1,
                                  __new_finish._M_node + 1));
  }
}
