本文介绍Zuul路由网关的基本功能，包括代理、路由和过滤。Zuul与Eureka整合，作为微服务间的统一入口，实现服务间的请求转发及处理。文章提供了配置示例，展示了如何设置Zuul服务。

简介：

zuul 路由网关对请求的路由与过滤两个最主要的功能。

路由功能负责将外部请求转发到具体微服务实例上，是实现外部访问统一入口的基础

过滤器负责对请求的处理过程进行干预，是实现请求校验，服务器聚合等功能的基础

Zuul和Eureka进行整合,将Zuul自身注册为Eureka服务治理下的应用，同时从Eureka中获得其他服务的消息，也即以后访问微服务都是通过Zuul跳转后获得。

注意：Zuul服务最终还是会注册进Eureka

提供=代理+路由+过滤三大功能

话不多说上代码：

pom文件


<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<parent>
		<groupId>com.atguigu.springcloud</groupId>
		<artifactId>microservicecloud</artifactId>
		<version>0.0.1-SNAPSHOT</version>
	</parent>

	<artifactId>microservicecloud-zuul-gateway-9527</artifactId>

	<dependencies>
		<!-- zuul路由网关 -->
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-zuul</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-eureka</artifactId>
		</dependency>
		<!-- actuator监控 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-actuator</artifactId>
		</dependency>
		<!-- hystrix容错 -->
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-hystrix</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-config</artifactId>
		</dependency>
		<!-- 日常标配 -->
		<dependency>
			<groupId>com.atguigu.springcloud</groupId>
			<artifactId>microservicecloud-api</artifactId>
			<version>${project.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jetty</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
		</dependency>
		<!-- 热部署插件 -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>springloaded</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-devtools</artifactId>
		</dependency>
	</dependencies>

</project>

yml文件

server:
  port: 9527

spring:
  application:
    name: microservicecloud-zuul-gateway

eureka:
  client:
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka,http://eureka7003.com:7003/eureka
  instance:
    instance-id: gateway-9527.com
    prefer-ip-address: true

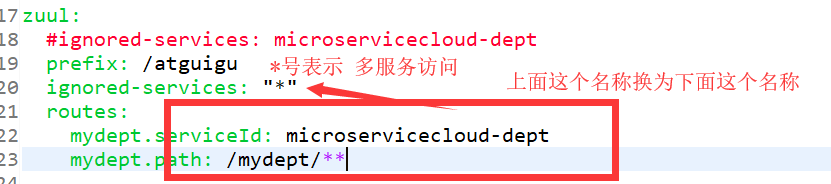

zuul:
  #ignored-services: microservicecloud-dept
  prefix: /atguigu
  ignored-services: "*"
  routes:
    mydept.serviceId: microservicecloud-dept
    mydept.path: /mydept/**

info:
  app.name: atguigu-microcloud
  company.name: www.atguigu.com
  build.artifactId: $project.artifactId$
  build.version: $project.version$

介绍：

启动类

package com.atguigu.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.zuul.EnableZuulProxy;

@SpringBootApplication
@EnableZuulProxy
public class Zuul_9527_StartSpringCloudApp
{
	public static void main(String[] args)
	{
		SpringApplication.run(Zuul_9527_StartSpringCloudApp.class, args);
	}
}
